Product Information

Description

  • Genuine Pentair Part
  • Bronze Enclosed Design
  • Free Shipping

Pentair Sta-Rite CSPH/CCSPH 15 HP Commercial Pump Impeller (16830-0211)

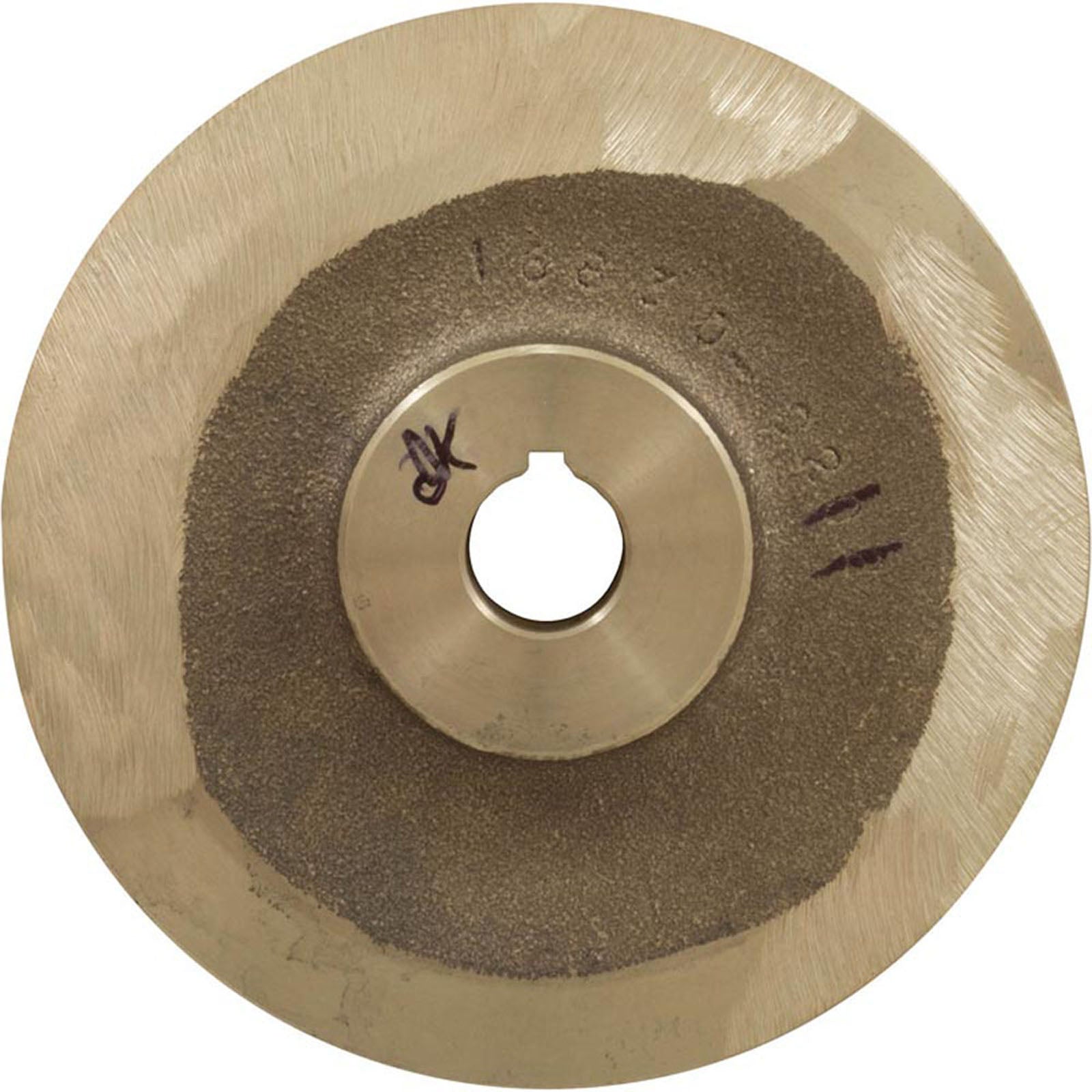

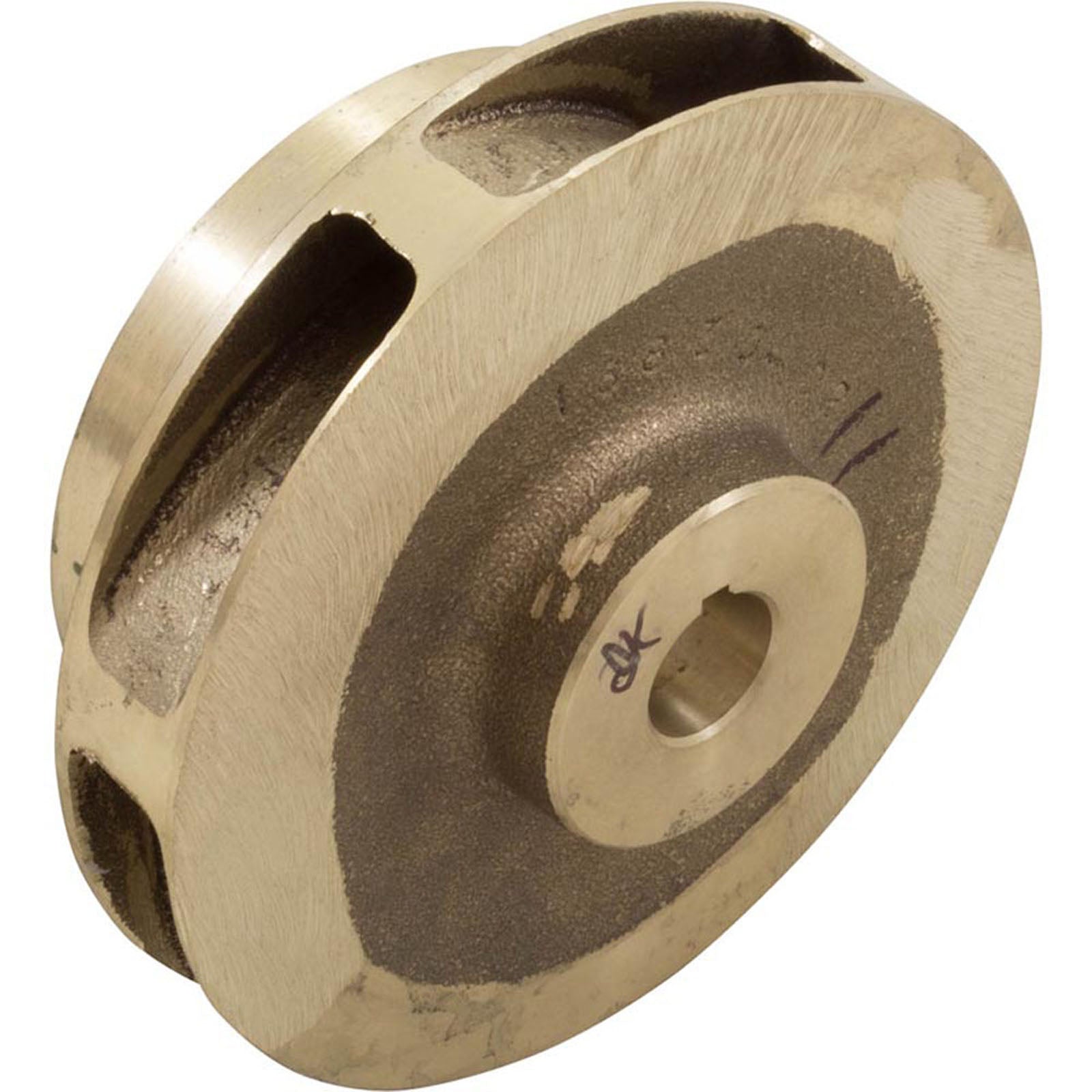

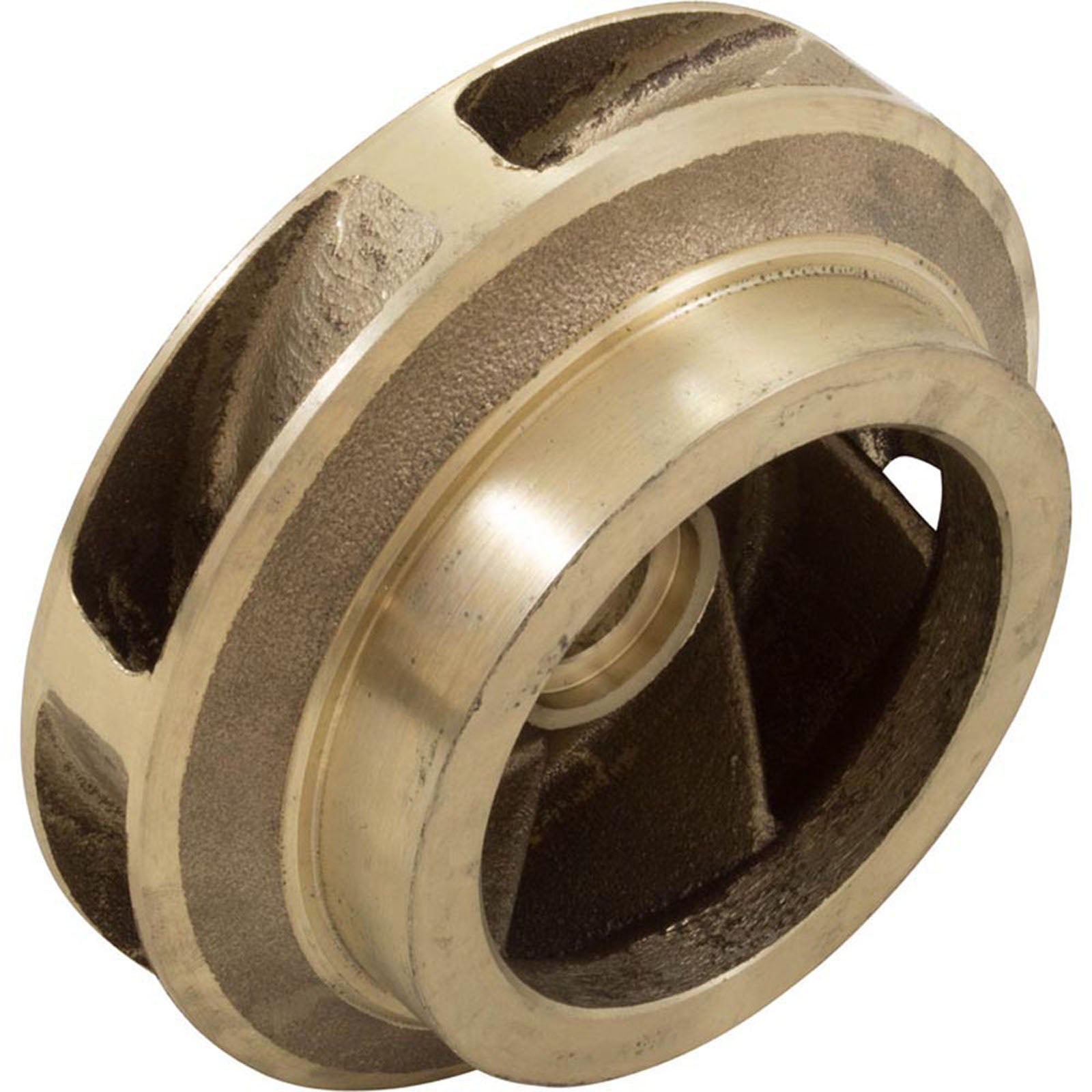

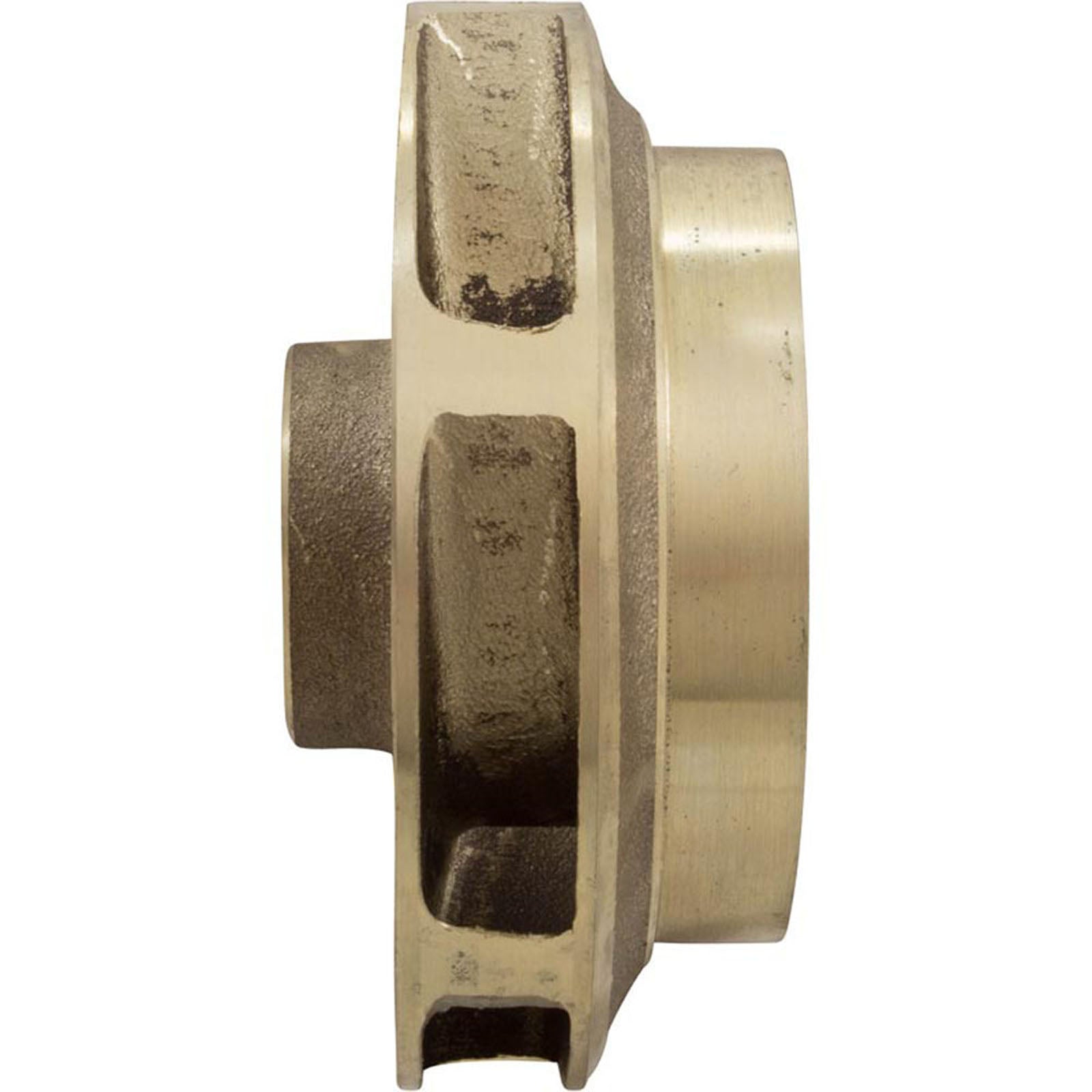

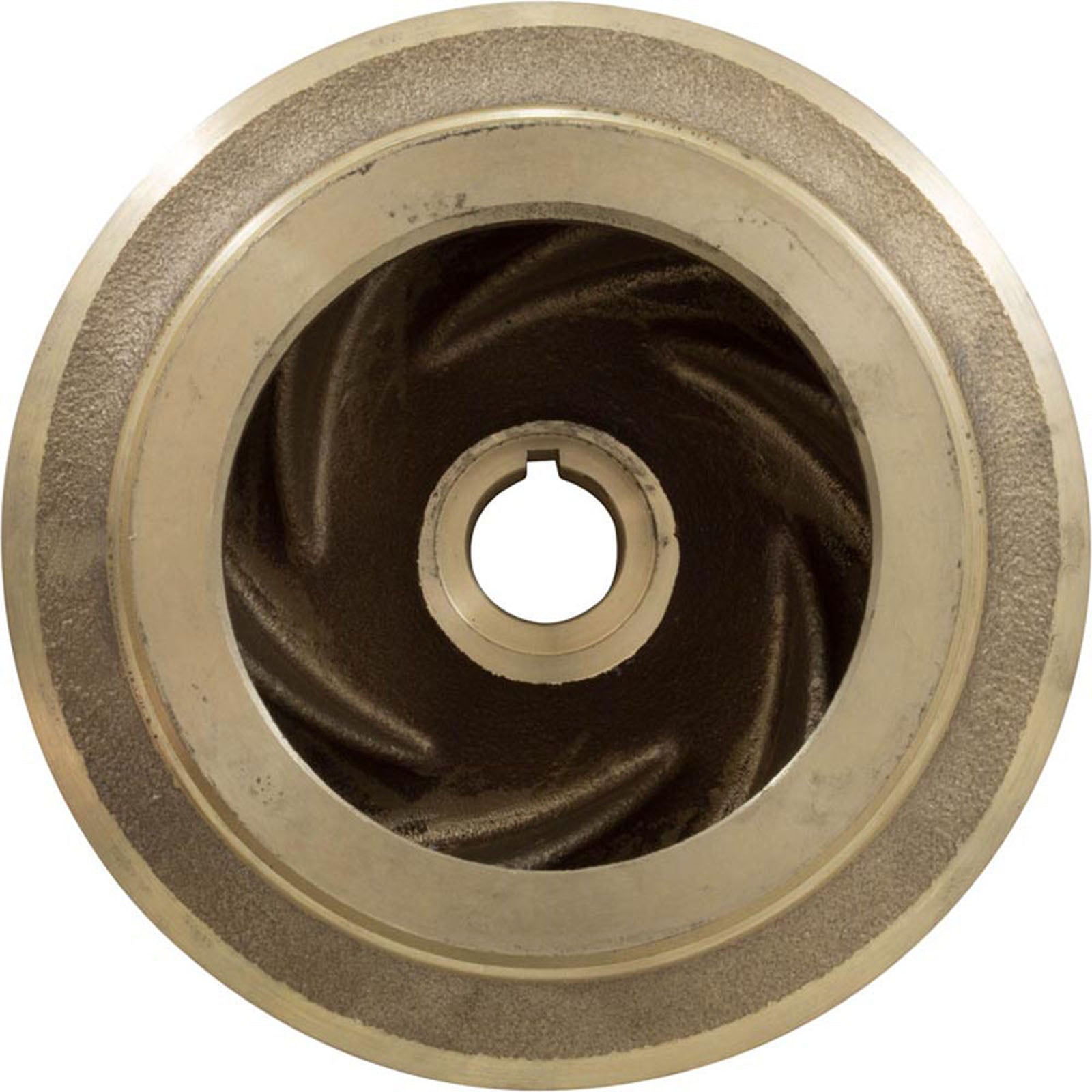

Bronze enclosed impeller for 15 HP CSPH pumps.

16830-0211
Pentair Part
15 HP
60 Hz Pump
Bronze
Enclosed Impeller
CSPH / CCSPH
Pump Series
200 in-lb
Screw Torque

Pentair 16830-0211 is the impeller, Key No. 11 on Pentair's repair parts list, for the 15 HP Sta-Rite CSPH and CCSPH self-priming commercial pool pumps on 60 Hz power. Pentair builds the CSP series with an enclosed bronze impeller that runs in a bronze wear ring, and the CCSPH version is epoxy lined. PST SKU PST-35-102-3014.

Why PST Customers Pick This

Bronze Enclosed Impeller

Pentair specifies a bronze enclosed impeller for the CSP commercial series, running inside a bronze wear ring (Pentair 16830-0120).

Matched to 15 HP Models

Pentair lists 16830-0211 for the 15 HP three phase CSPHM3-144 and CCSPHM3-144 pumps and for the 200 V CSPH2M3-144 and CCSPH2M3-144.

Back Pull-Out Service

Unbolt the bracket from the volute and the bracket, impeller and motor slide out as one unit. Pentair's back pull-out design lets you service normal wearing parts without disconnecting the piping.

Check the Wear Ring Too

Pentair's service steps call for inspecting the impeller skirt and the wear ring for damage, pitting or wear, and replacing the ring if needed. Worn controlled clearances are a listed cause of internal leakage.

Secure the Impeller Screw

Pentair calls for Loctite Primer T and Loctite #271 on the 3/8 in impeller screw (S23566), torqued to 200 inch-lbs (2.3 kg-m).

Service Notice

Pentair's manual says to disconnect all power to the pump and close the valves to isolate it before disassembly, then drain the pump and trap. Do not use gasoline as a cleaning solvent, it is a fire and explosion hazard.

Specifications

Identification
Manufacturer Pentair (Sta-Rite)
Pentair Part Number 16830-0211
Parts List Position Key No. 11, Impeller
SKU PST-35-102-3014
Construction
Impeller Type Enclosed (closed face)
Material Bronze
Wear Ring Bronze, Pentair 16830-0120
Fits (15 HP, 60 Hz)
Three Phase, 230/460 V CSPHM3-144, CCSPHM3-144
Three Phase, 200 V CSPH2M3-144, CCSPH2M3-144
50 Hz Models (10 HP) 5CSPHL3-144, 5CCSPHL3-144
Mating Parts (Pentair)
Gasket, Impeller to Shaft Sleeve 33455-8044
Gasket, Impeller to Washer 33455-8043
Impeller Washer 38917-0203
Stat-O-Seal Washer C43-46SS
Impeller Screw S23566, 3/8-16 x 1 in
Mechanical Shaft Seal S32014
Installation
Removal Tool Wheel puller
Thread Locker Loctite #271 with Loctite Primer T
Impeller Screw Torque 200 in-lb (2.3 kg-m)

Frequently Asked Questions

Which pumps use the 16830-0211?

On Pentair's 60 Hz parts lists it is the impeller for the 15 HP three phase CSPHM3-144 and CCSPHM3-144 (230/460 V) and the 200 V CSPH2M3-144 and CCSPH2M3-144. CCSPH models are the epoxy lined versions.

Is it the same part on 50 Hz pumps?

Not at the same horsepower. On Pentair's 50 Hz 5CSPH and 5CCSPH list, 16830-0211 is the impeller for the 10 HP 5CSPHL3-144 and 5CCSPHL3-144, and the 15 HP 50 Hz models use 16830-0212.

My pump is a different horsepower. Which impeller do I need?

Pentair's 60 Hz CSPH and CCSPH list: 7.5 HP uses 16830-0209, 10 HP uses 16830-0210, 15 HP uses 16830-0211 and 20 HP uses 16830-0212. Match the model on your pump's nameplate.

What goes back on with the impeller?

Pentair's assembly steps put a new impeller gasket (33455-8044) on the shaft, then the impeller, the impeller to washer gasket (33455-8043), the impeller washer (38917-0203), the Stat-O-Seal washer (C43-46SS) and the impeller screw (S23566), in that order. Inspect the wear ring (16830-0120) while the pump is open.

Order Pentair 16830-0211 From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 30-Day Returns
  • Warranty Backed
  • Authorized Pentair Dealer
California Prop 65 Warning:
This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.

Additional Info

Category Parts Pool Parts Pool Pump Parts
SKU PST-35-102-3014
MPN 16830-0211
Replaces 168300211, 5078-10B, 600424, _16830-0211, STA-101-1504
Manufacturer Pentair
Weight 6.95 lb
