Product Information
Description
- Genuine Pentair Part
- Bronze Enclosed Design
- Free Shipping

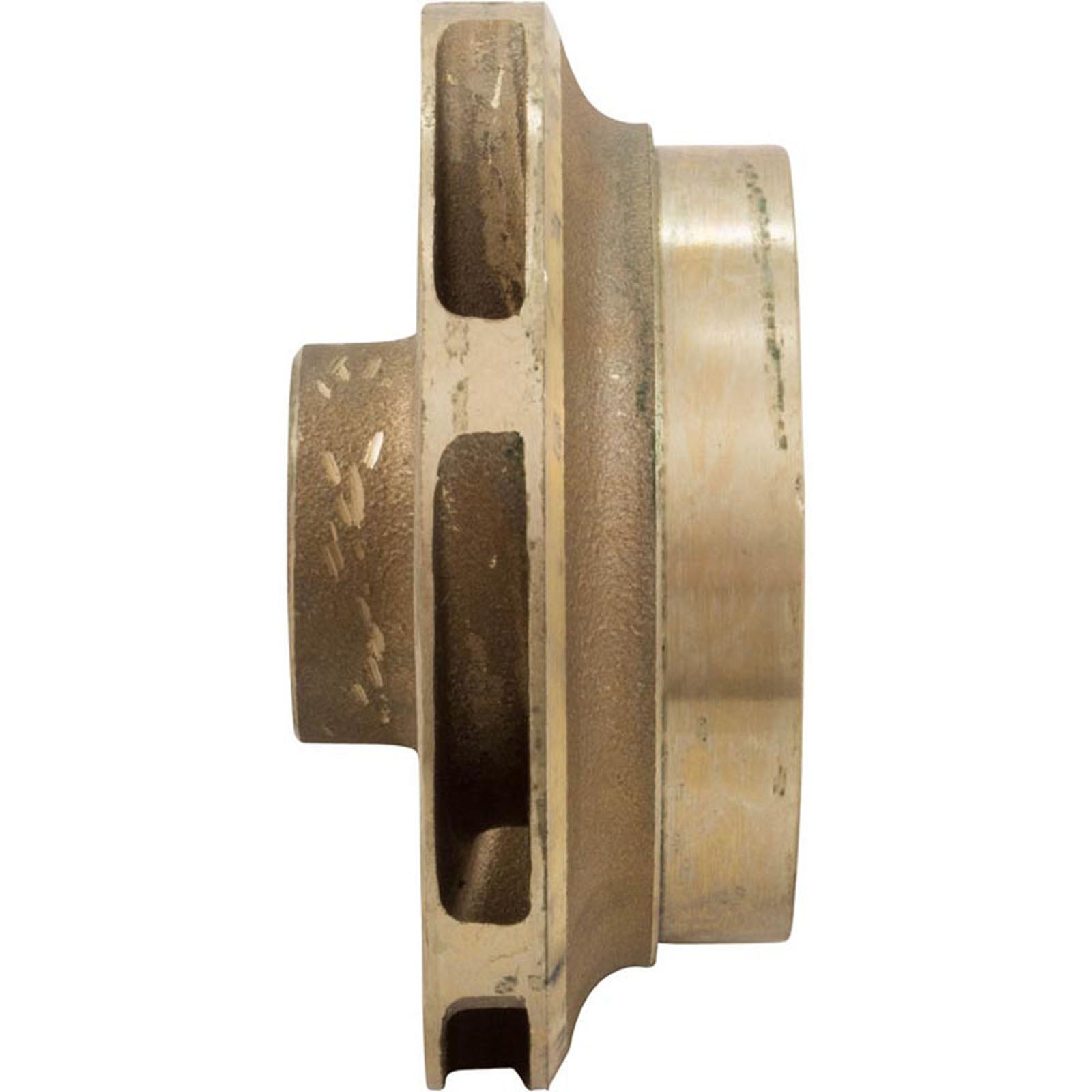

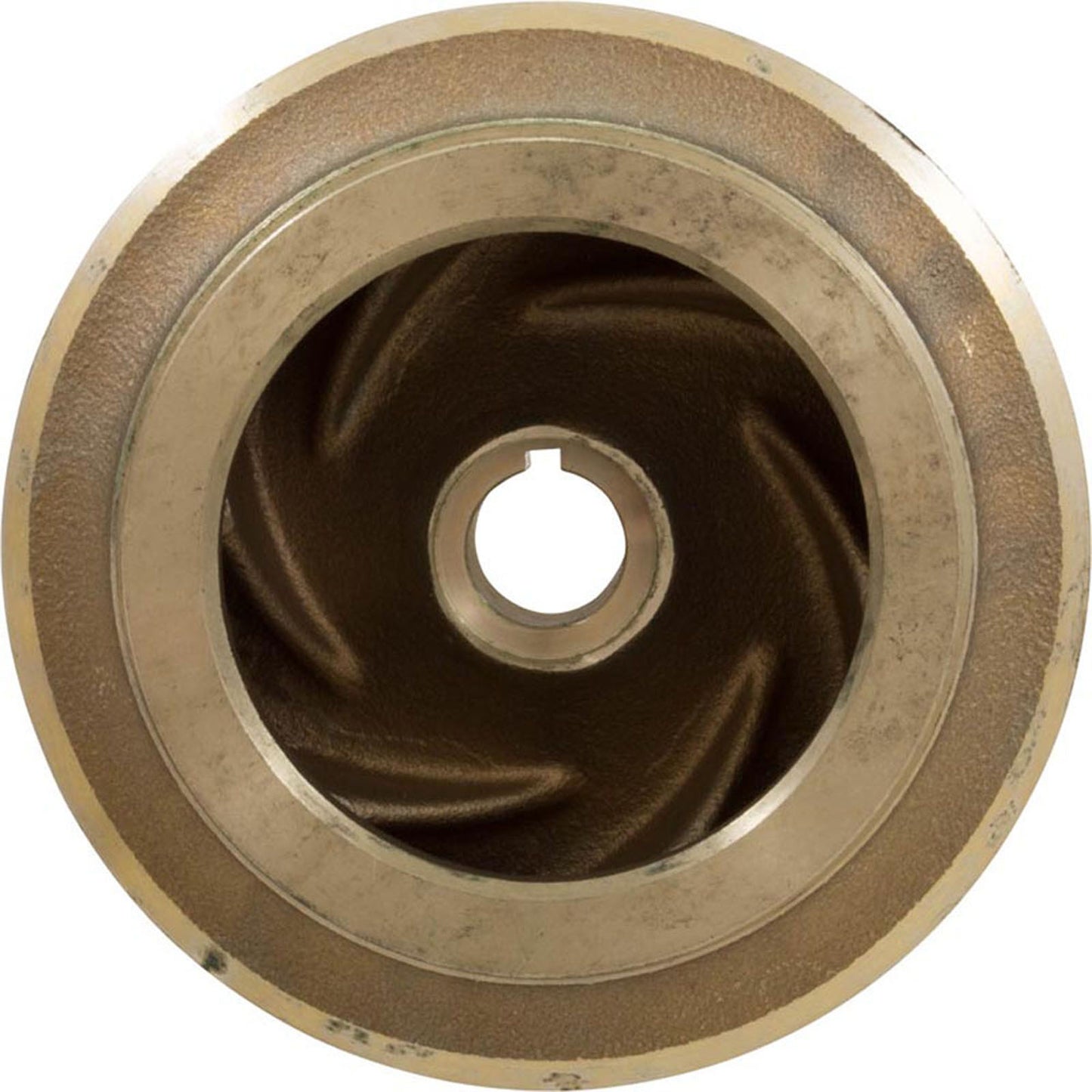

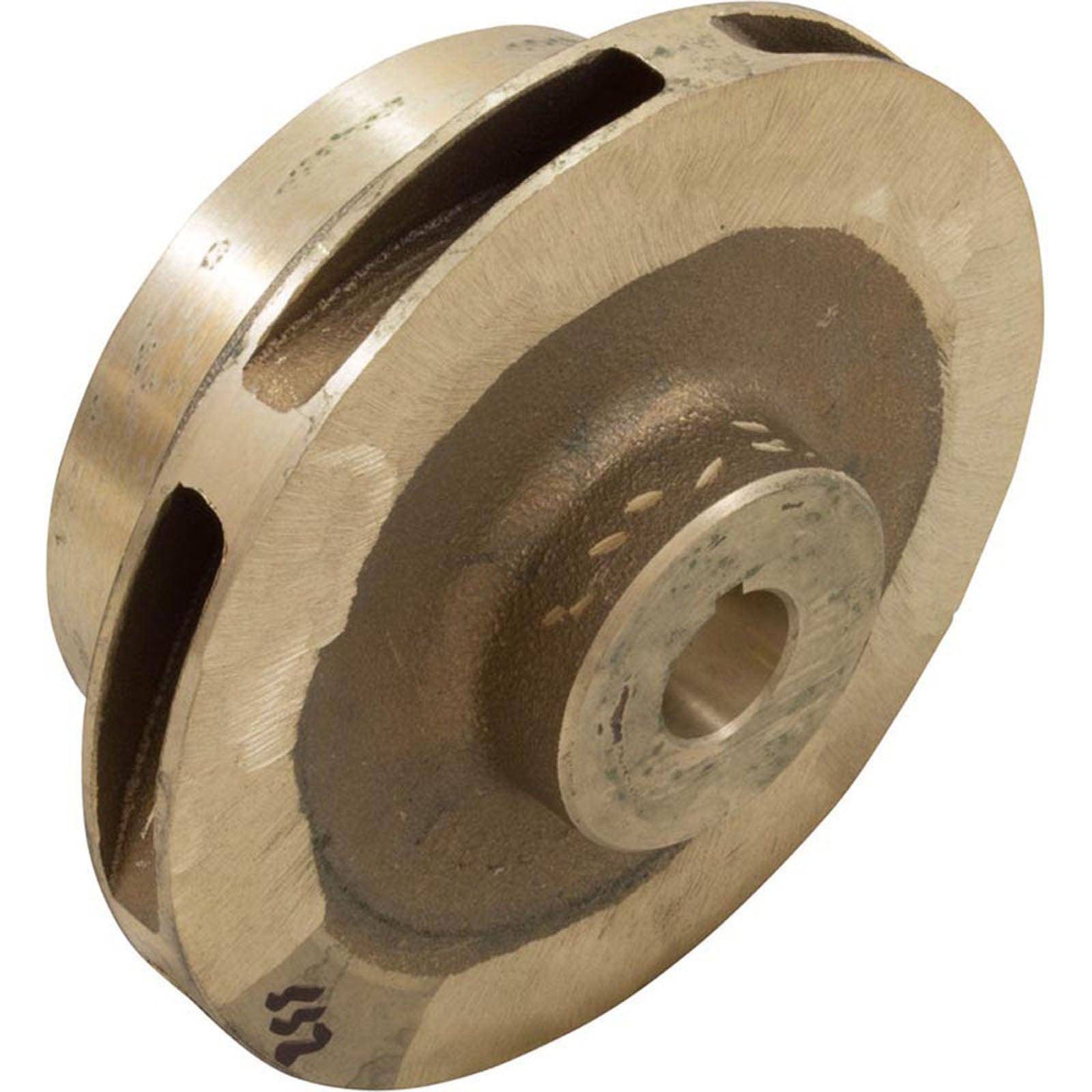

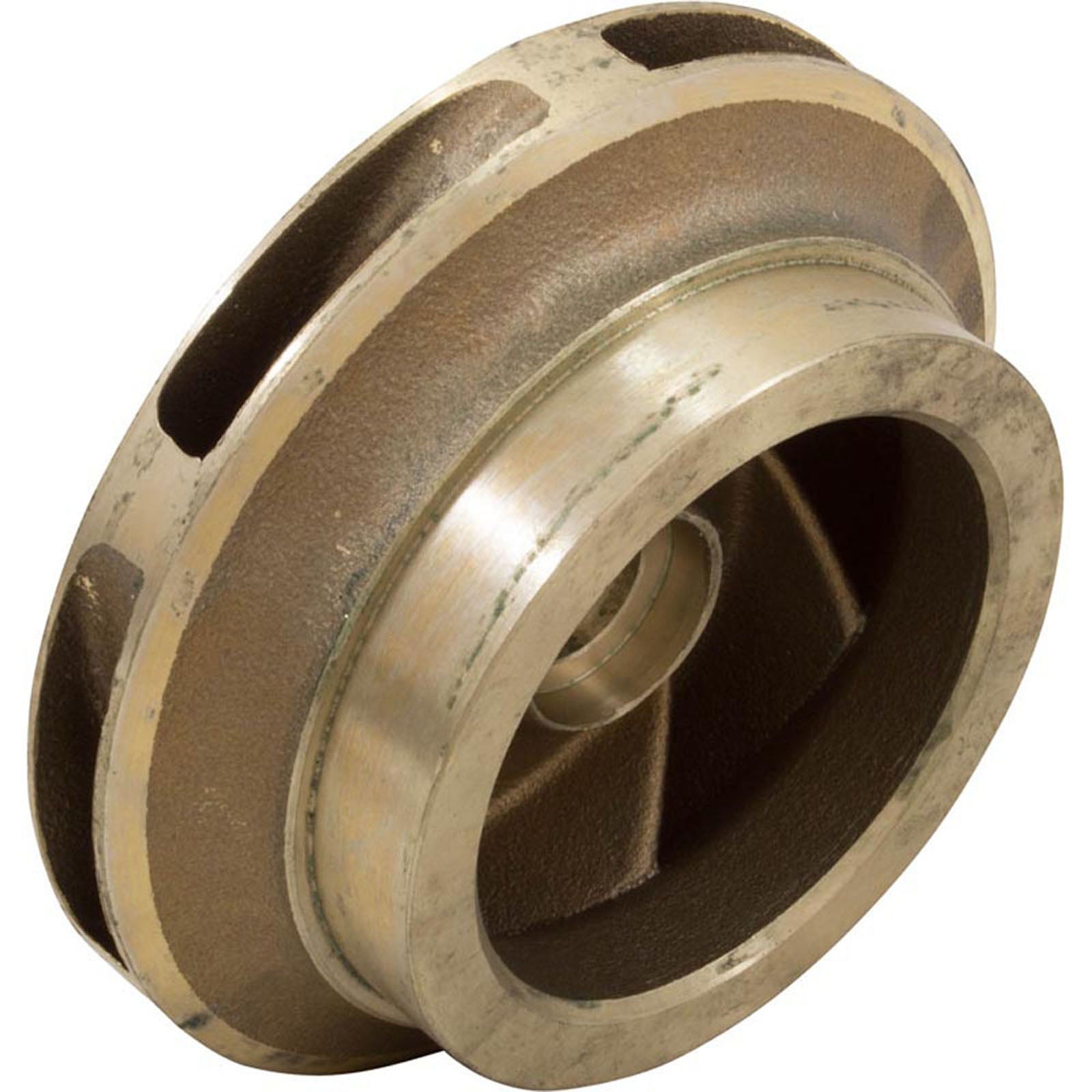

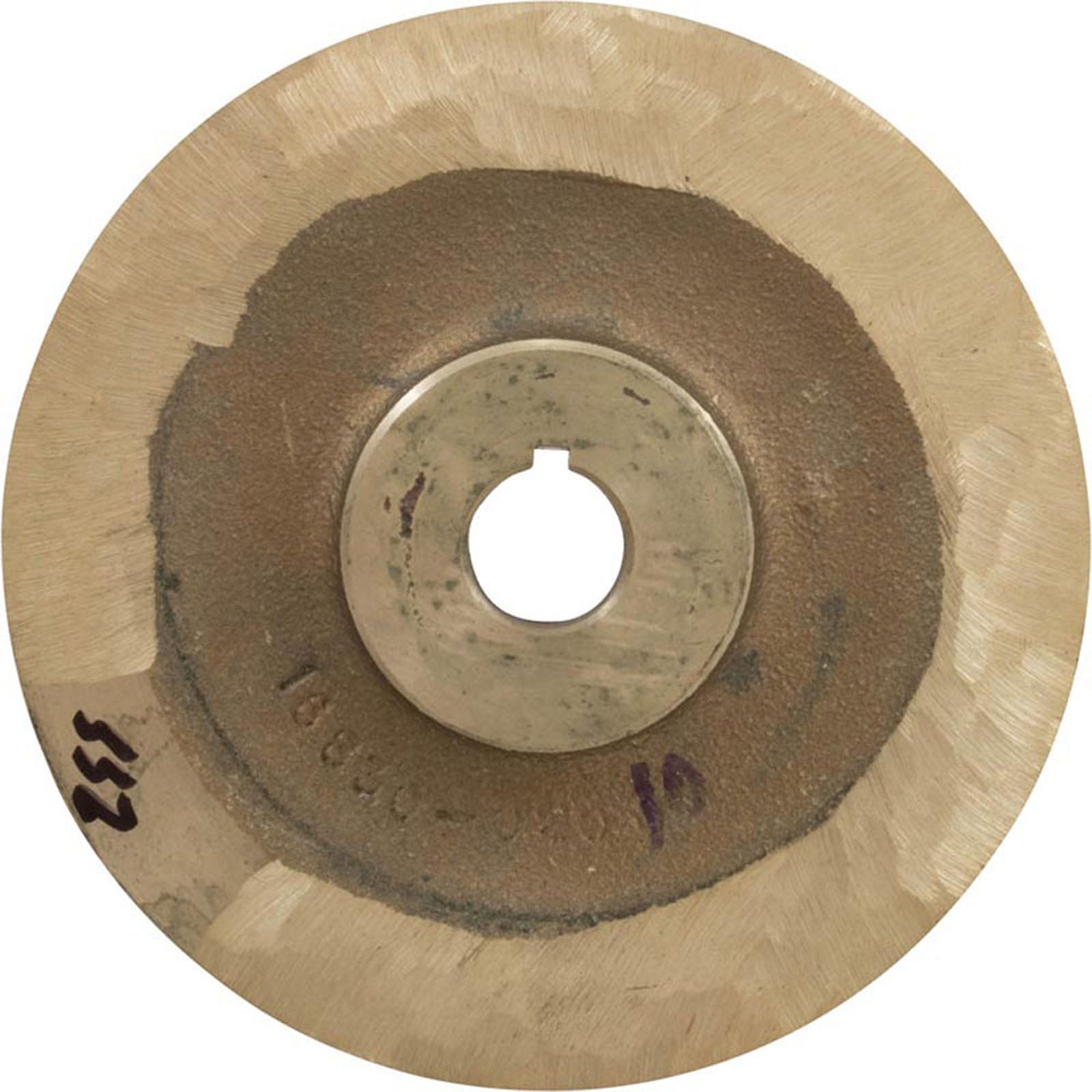

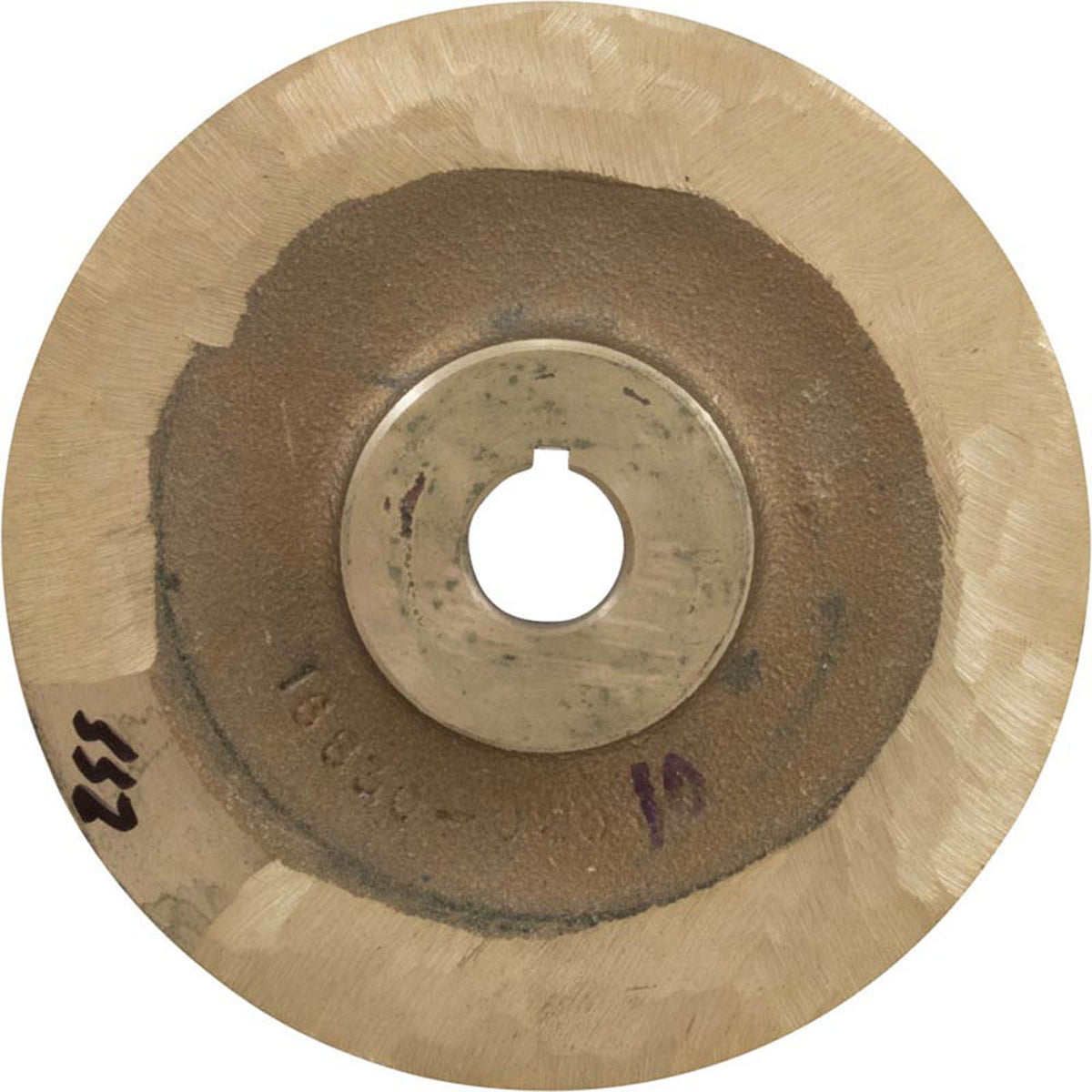

Pentair Sta-Rite CSPH/CCSPH 10 HP Commercial Pump Impeller (16830-0210)
Bronze enclosed impeller for 10 HP CSPH pumps.
Pentair 16830-0210 is the impeller, Key No. 11 on Pentair's repair parts list, for the 10 HP Sta-Rite CSPH and CCSPH self-priming commercial pool pumps on 60 Hz power. Pentair builds the CSP series with an enclosed bronze impeller that runs in a bronze wear ring, and the CCSPH version is epoxy lined. PST SKU PST-35-102-3012.
Why PST Customers Pick This
Bronze Enclosed Impeller
Pentair specifies a bronze enclosed impeller for the CSP commercial series, running inside a bronze wear ring (Pentair 16830-0120).
Matched to 10 HP Models
Pentair lists 16830-0210 for the 10 HP CSPHL-143 and CCSPHL-143 single phase pumps, the CSPHL3-143 and CCSPHL3-143 three phase pumps, and the 200 V CSPH2L3-143 and CCSPH2L3-143.
Back Pull-Out Service
Unbolt the bracket from the volute and the bracket, impeller and motor slide out as one unit. Pentair's back pull-out design lets you service normal wearing parts without disconnecting the piping.
Check the Wear Ring Too
Pentair's service steps call for inspecting the impeller skirt and the wear ring for damage, pitting or wear, and replacing the ring if needed. Worn controlled clearances are a listed cause of internal leakage.
Secure the Impeller Screw
Pentair calls for Loctite Primer T and Loctite #271 on the 3/8 in impeller screw (S23566), torqued to 200 inch-lbs (2.3 kg-m).
Service Notice
Pentair's manual says to disconnect all power to the pump and close the valves to isolate it before disassembly, then drain the pump and trap. Do not use gasoline as a cleaning solvent, it is a fire and explosion hazard.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair (Sta-Rite) |
| Pentair Part Number | 16830-0210 |
| Parts List Position | Key No. 11, Impeller |
| SKU | PST-35-102-3012 |
| Construction | |
| Impeller Type | Enclosed (closed face) |
| Material | Bronze |
| Wear Ring | Bronze, Pentair 16830-0120 |
| Fits (10 HP, 60 Hz) | |
| Single Phase, 230 V | CSPHL-143, CCSPHL-143 |
| Three Phase, 230/460 V | CSPHL3-143, CCSPHL3-143 |
| Three Phase, 200 V | CSPH2L3-143, CCSPH2L3-143 |
| 50 Hz Models (7.5 HP) | 5CSPHK3-143, 5CCSPHK3-143 |
| Mating Parts (Pentair) | |
| Gasket, Impeller to Shaft Sleeve | 33455-8044 |
| Gasket, Impeller to Washer | 33455-8043 |
| Impeller Washer | 38917-0203 |
| Stat-O-Seal Washer | C43-46SS |
| Impeller Screw | S23566, 3/8-16 x 1 in |
| Mechanical Shaft Seal | S32014 |
| Installation | |
| Removal Tool | Wheel puller |
| Thread Locker | Loctite #271 with Loctite Primer T |
| Impeller Screw Torque | 200 in-lb (2.3 kg-m) |
Frequently Asked Questions
Which pumps use the 16830-0210?
On Pentair's 60 Hz parts lists it is the impeller for the 10 HP single phase CSPHL-143 and CCSPHL-143, the three phase CSPHL3-143 and CCSPHL3-143 (230/460 V), and the 200 V CSPH2L3-143 and CCSPH2L3-143. CCSPH models are the epoxy lined versions.
Is it the same part on 50 Hz pumps?
Not at the same horsepower. On Pentair's 50 Hz 5CSPH and 5CCSPH list, 16830-0210 is the impeller for the 7.5 HP 5CSPHK3-143 and 5CCSPHK3-143, and the 10 HP 50 Hz models use 16830-0211.
My pump is a different horsepower. Which impeller do I need?
Pentair's 60 Hz CSPH and CCSPH list: 7.5 HP uses 16830-0209, 10 HP uses 16830-0210, 15 HP uses 16830-0211 and 20 HP uses 16830-0212. Match the model on your pump's nameplate.
What goes back on with the impeller?
Pentair's assembly steps put a new impeller gasket (33455-8044) on the shaft, then the impeller, the impeller to washer gasket (33455-8043), the impeller washer (38917-0203), the Stat-O-Seal washer (C43-46SS) and the impeller screw (S23566), in that order. Inspect the wear ring (16830-0120) while the pump is open.
Order Pentair 16830-0210 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Pentair Dealer
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-102-3012 |
| MPN | 16830-0210 |
| Replaces | 168300210, 5078-10A, 600425, _16830-0210, STA-101-1471 |
| Manufacturer | Pentair |
| Weight | 6.46 lb |
