Product Information
Description
- Genuine Pentair Part
- Closed Impeller
- Pairs With Diffuser 356735Z
- Free Shipping

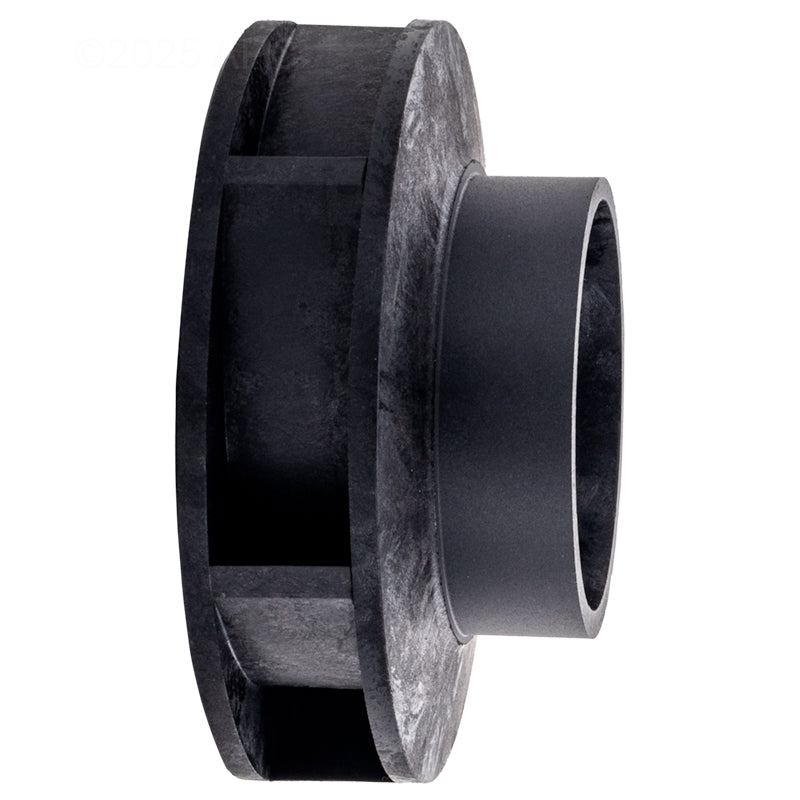

Pentair EQ Series Impeller for EQW300 and EQ1500 Commercial Pumps (350027Z)
Closed impeller for EQ Series commercial pumps.
The Pentair 350027Z is the impeller (key no. 15) for EQ Series high performance commercial pumps, listed for the 3 HP EQ300 / EQW300 and EQK300 and the 15 HP EQK1500 models, among others. On every model that uses it, Pentair pairs it with diffuser 356735Z. Pentair credits the EQ Series' efficiency to its closed impeller design, which it says lets the motor run cooler.
Why PST Customers Pick This
Closed Impeller Design
Pentair lists a closed impeller for longer motor life and an efficient impeller design for lower motor load among the EQ Series' features.
Listed by Model
Pentair's EQ Series parts table names 350027Z for the EQ300 and EQK300, the EQK1500, EQK1500 575V and EQKT1500, and the explosion-proof and 50 Hz EQK1000.
Keyed to the Shaft
The impeller is keyed to the motor shaft with a parallel key and held by a socket head screw and washers. Align the keyway with the key, push it fully on, and tighten the screw securely.
Check It Spins Free
After fitting the diffuser around the impeller nose, rotate the impeller by hand to confirm it turns freely. Pentair warns a bound impeller can stop the motor from starting or make it draw excessive amps.
Inspect the Vanes
Pentair calls it good practice to check that the vane passageways are open and no vanes are broken or worn. A clogged impeller is one cause of low flow with low filter pressure.
Service Notice
Pentair states this pump should be installed and serviced only by a qualified pool service professional. Always disconnect power at the circuit breaker before servicing, and lock out or tag the circuit so it cannot be switched on while you work.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair |
| Part Number | 350027Z |
| Part | Impeller (key no. 15) |
| Pump Series | EQ Series high performance commercial pump |
| SKU | PST-350027Z |
| Fitment (Pentair Parts Table) | |
| EQ300, 3 HP, 1 Phase | Pump part nos. 340014, 340026 (EQW300) |
| EQK300, 3 HP, 3 Phase | Pump part nos. 340016, 340027 (EQWK300) |
| EQK1500, 15 HP, 3 Phase | Pump part nos. 340024, 340035 |
| EQK1500 575V | Pump part nos. 340151, 340159 |
| EQKT1500 and EQKT1500 Export | Pump part nos. 340611, 340607 and 348089, 348097 |
| EQK1000, 10 HP | Explosion-proof (340045, 340047) and 50 Hz models |
| Mating Parts, Separate Numbers | |
| Diffuser (key no. 17) | 356735Z |
| Impeller Screw (key no. 16) | 071037Z, 3/8-16 x 1 in. socket head cap, 18-8 SS |
| Seal Set (key no. 14) | 071725S |
| Seal Plate (key no. 13) | 356795Z |
Frequently Asked Questions
Which EQ Series pumps use the 350027Z?
Pentair's parts table lists it for the EQ300 / EQW300 and EQK300 / EQWK300 (3 HP), the EQK1500, EQK1500 575V, EQKT1500 and EQKT1500 Export (15 HP), and the explosion-proof and 50 Hz EQK1000 (10 HP).
What does the K in the model number mean?
Pentair notes that the K refers to 3 phase. Model numbers without the K are 1 phase.
Which diffuser goes with it?
Pentair pairs impeller 350027Z with diffuser 356735Z on every model in its parts table that uses this impeller.
How do I confirm it is seated correctly?
Pentair says to rotate the impeller by hand as you tighten the diffuser screws. With the pump assembled, you can remove the strainer basket, reach through the strainer pot and spin the impeller to verify that it rotates freely.
Order the 350027Z From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Genuine Pentair Part
- Pool Techs on Support
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-350027Z |
| MPN | 350027Z |
| Manufacturer | Pentair |
| Weight | 1.0 lb |
