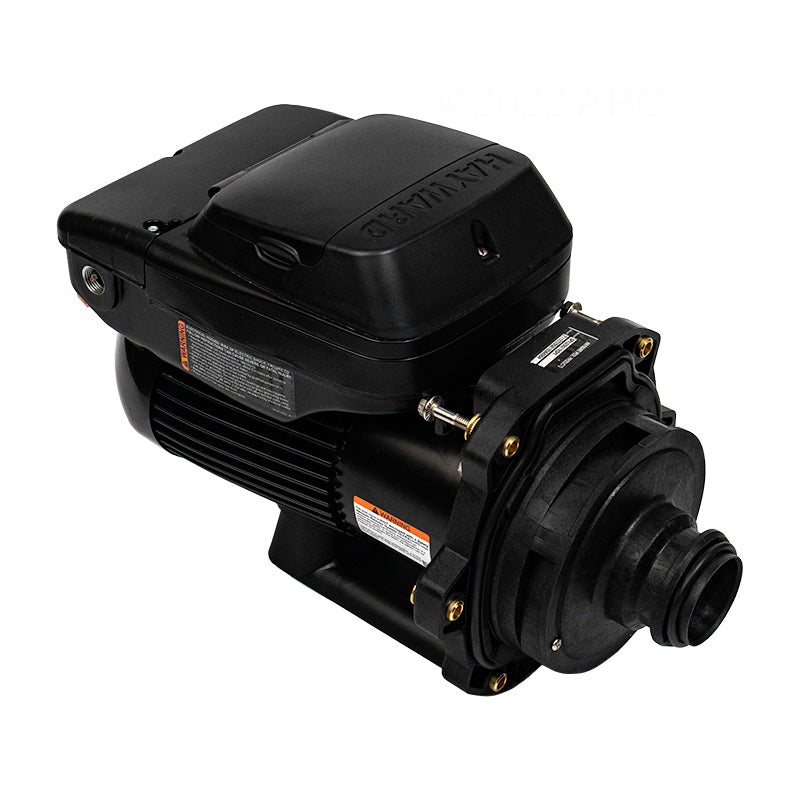

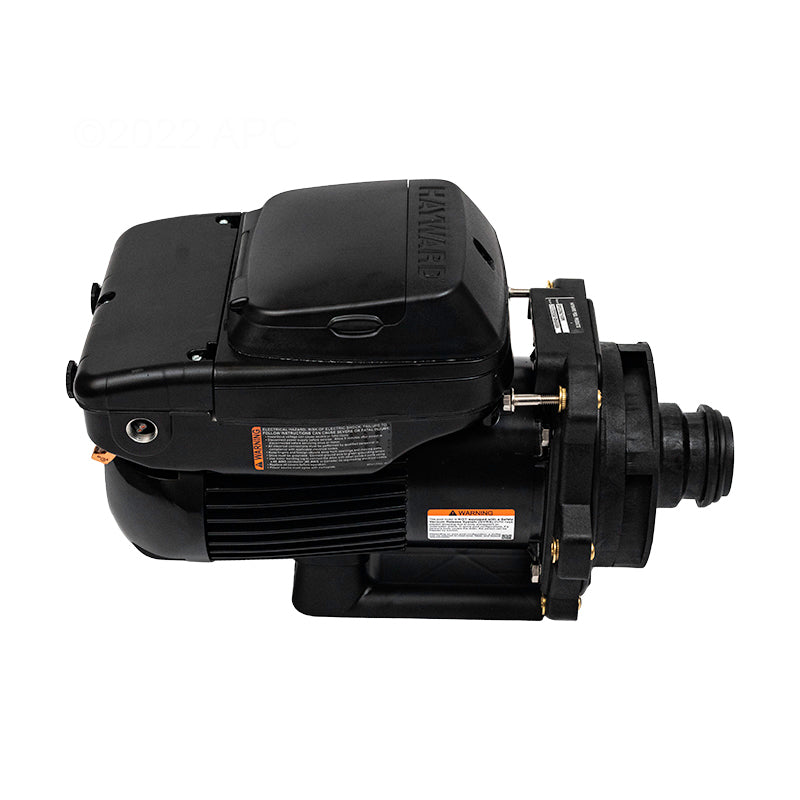

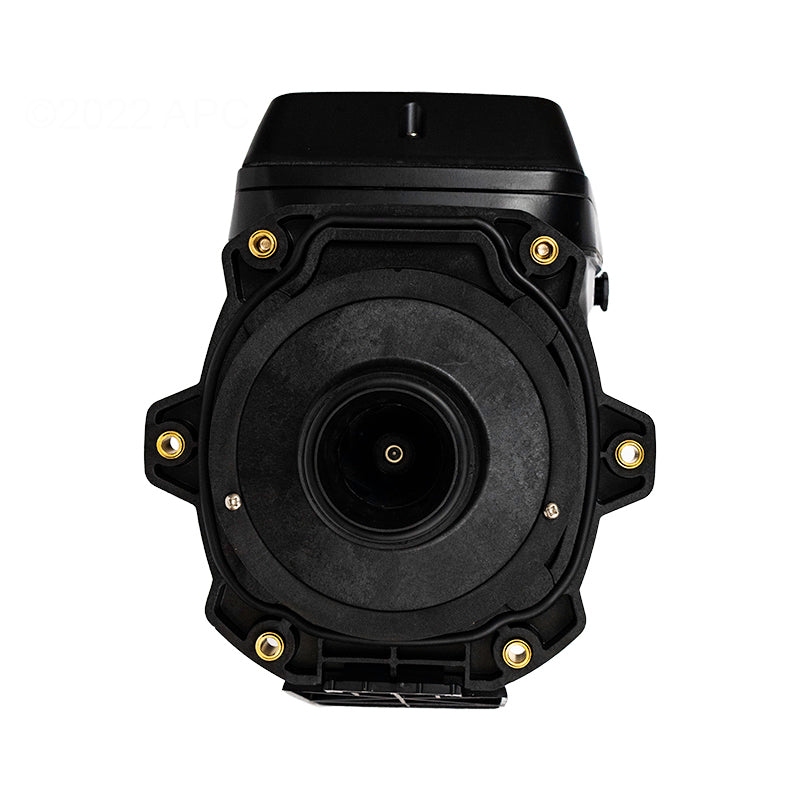

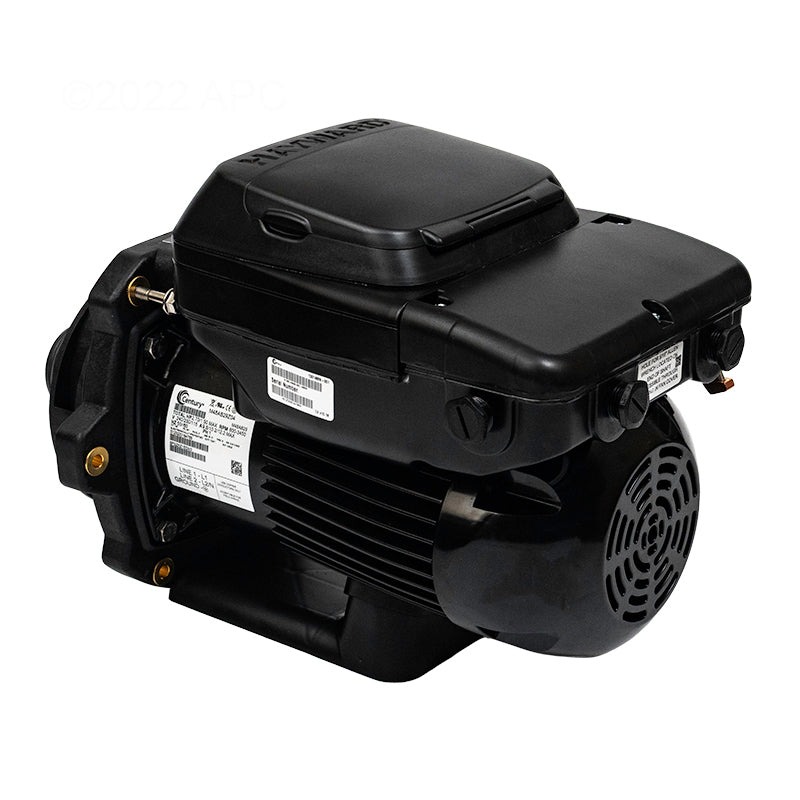

Hayward SPX3206Z1VSPE TriStar VS G3 Power End Assembly, 2.7 HP
Restore your variable speed pump in one drop in.
The Hayward SPX3206Z1VSPE TriStar VS G3 Power End Assembly (PST-SPX3206Z1VSPE) is the complete OEM drop in that brings your TriStar VS 950 or EcoStar SP3400VSP back to full variable speed life. You get the 2.7 HP totally enclosed permanent magnet motor, the integrated digital drive and display, a fresh impeller, diffuser, shaft seal, O-rings, seal plate, and motor bolts in one ready to bolt kit. Hayward stopped selling the motor by itself for units built after January 2019, so this assembly is the factory authorized path to recovering your pump without replacing the wet end or the union plumbing.
A True OEM Drop In
You get the complete power end from Hayward, not a third party motor swap. The kit ships with the 2.7 HP motor, the factory drive and display, the impeller, the impeller screw and ring, the diffuser, the diffuser screw and O-ring, the shaft seal assembly, the seal plate, the housing O-ring, and the motor bolts. Your existing strainer pot, lid, and plumbing unions stay in place, so a service tech can swap a failed power end in a single visit and bring the pump back online the same day.
Permanent Magnet Efficiency
The totally enclosed permanent magnet motor pairs with Hayward's hydraulic redesign to slash circulation costs. Running on the low and mid speed presets, this power end can cut pump energy use by up to 90 percent compared to a single speed pump, and it does it without sacrificing turnover. Lower RPM also means quieter operation, less stress on your filter and heater, and a longer service life for every other piece of equipment on the pad.
Eight Timers, Four Presets

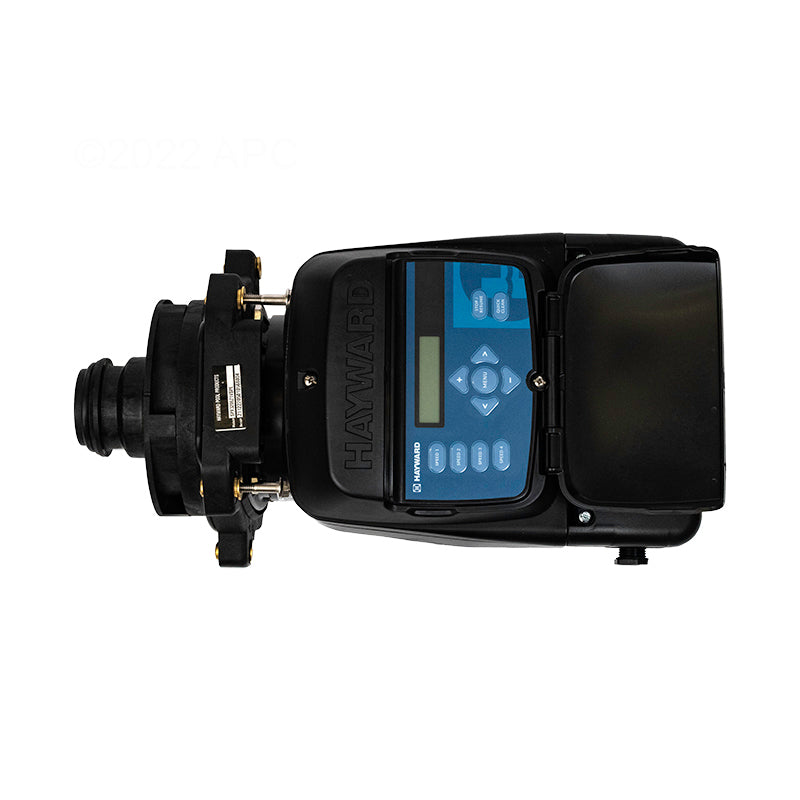

The integrated digital control sits on top of the motor and gives you 4 preset speeds and up to 8 daily timers right out of the box. Dial in a slow overnight skim, a midday filtration ramp, and a high speed cleaner cycle without an external automation panel. The drive remembers your schedule through power outages, so the pump comes back exactly the way you set it.
Who It's For
TriStar VS 950 Repair
Your SP32950VSP threw a fault, the drive went dark, or the motor is humming and tripping the breaker. Bolt this power end on, keep the wet end, and skip the full pump replacement.
TriStar VS 950 Omni
Drops directly onto the HL32950VSP Omni model. The Omni control board on the existing housing still talks to the new drive, so your automation schedule and IntelliComm relays stay intact.
Obsolete EcoStar Rescue
Hayward no longer builds the EcoStar SP3400VSP or SP3400VSPVR. This power end is the factory authorized way to restore variable speed service on those legacy pumps without re-plumbing the pad.
Service Pro Truck Stock
Pool service companies stock this power end as a one visit fix. Show up, swap, schedule the speeds, and leave the homeowner with a fully working pump in under an hour.
Why PST Customers Pick This
2.7 HP Variable Speed
Drives the same flow as the original TriStar VS 950, with the headroom to overcome long suction runs and tall solar lifts.
Factory Hardware Included
Ships with motor bolts, the housing O-ring, and the seal plate, so you are not chasing a missing fastener mid install.
Fresh Shaft Seal
A brand new shaft seal assembly is included, eliminating the most common cause of repeat leaks after a motor swap.
Totally Enclosed Motor
The TEFC permanent magnet motor stands up to pad mounted outdoor service and resists splash and insect intrusion.
Energy Code Compliant
Variable speed operation meets the DOE and Title 20 efficiency rules now enforced on most pool pump replacements.
Exact OEM Fit
Mates to your existing TriStar VS strainer housing without adapters, shims, or aftermarket brackets.
Electrical Notice
Wiring on a variable speed pump motor must follow NEC 680 and any local pool equipment bonding rules. A licensed electrician should confirm the dedicated circuit, GFCI protection where required, and the equipotential bonding lug before the drive is energized. Improper wiring can damage the drive electronics and will void the parts warranty.
Full Specifications
Frequently Asked Questions
Which pumps does the SPX3206Z1VSPE actually fit?
It is the OEM power end for the Hayward TriStar VS 950 (SP32950VSP), the TriStar VS 950 Omni (HL32950VSP), and the obsolete EcoStar SP3400VSP and SP3400VSPVR. If your data plate shows one of those model numbers, this assembly is the correct service part.
Do I have to replace the strainer housing and plumbing too?
No. This is a power end only, which is the motor side of the pump. Your existing strainer pot, lid, basket, and union connections stay in place. The seal plate that sits between the motor and the housing is included in the kit, along with the housing O-ring, so the rebuild seals cleanly against your current pump body.
Can I install this myself, or do I need a pro?
The mechanical swap is straightforward for a confident DIYer, but the electrical hookup must follow NEC 680 and any local pool bonding code. Most homeowners are best served by having a licensed electrician or pool service tech land the line voltage and confirm the bonding lug. Doing it yourself with the wrong wire size or missing GFCI protection can damage the drive and void the warranty.
Why is Hayward only selling the full power end and not just the motor?
Hayward stopped selling the motor by itself on TriStar VS and EcoStar pumps built after January 2019. The drive and motor are tuned together at the factory, so the only authorized service path is the complete power end assembly. Aftermarket motor only swaps will not give you the matched drive logic or the OEM warranty.
How much energy will this actually save me?
Hayward rates the TriStar VS platform at up to 90 percent energy savings versus a single speed pump of similar HP, depending on how low you can run the overnight filtration cycle. Most homeowners see the biggest gains by running 1,200 to 1,800 RPM for circulation and only kicking up to 2,800 to 3,450 RPM for the cleaner or solar.
What warranty comes with the SPX3206Z1VSPE?
The factory warranty on a replacement power end is 1 year parts only from Hayward, registered through PST as an authorized dealer. The warranty assumes the unit was installed to code and was not damaged by improper wiring, dry running, or chemical attack.
What is the difference between this power end and a brand new TriStar VS pump?
A brand new TriStar VS 950 ships with a new strainer housing, basket, lid, and union connections in addition to the power end. If your wet end is in good shape, the SPX3206Z1VSPE saves you the cost of buying those components again and avoids cutting and re-gluing the pad plumbing.
Order the SPX3206Z1VSPE From PST
Authorized Hayward dealer pricing on the complete TriStar VS G3 power end, backed by PST Pool Supplies' service team.
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-SPX3206Z1VSPE |
| MPN | SPX3206Z1VSPE |
| Manufacturer | Hayward |
| Weight | 14.1 lb |
