Product Information
Description
- Above-Ground Pools
- Up to 18,000 Gallons
- Return-Jet Mount
- Twist-Lock Cord
Hayward AquaTrol RJ
Silky-Soft Salt Water. Zero Chlorine Hassle.
The Hayward AquaTrol RJ-TL (W3AQ-TROL-RJ-TL) is a complete salt chlorination system engineered specifically for above-ground pools up to 18,000 gallons. It automatically converts dissolved salt into pure chlorine, sanitizing your pool continuously while delivering the silky-soft water that salt-pool owners love. With a built-in 24-hour pump timer, easy return-jet mounting, and a twist-lock power cord for secure outdoor use, the AquaTrol RJ-TL installs in about 30 minutes and pays for itself in just a few seasons of chlorine savings.
Salt In → Chlorine Out
Say Goodbye to Chlorine Buckets
No more measuring, mixing, or hauling chlorine. The AquaTrol's patented TurboCell automatically converts ordinary pool salt into pure chlorine on demand, providing continuous sanitization with zero handling of harsh chemicals. You add salt once, and the system does the rest.
Silky-Smooth Water
Water That's Gentler on Everything
Salt-generated chlorine produces water so soft it won't sting eyes, dry out skin and hair, or fade swimsuits and pool toys. Many owners say it feels closer to spa water than a traditional chlorinated pool. The result: a swim experience your whole family will actually want to enjoy.
Set It & Forget It
Built-In 24-Hour Pump Timer
The AquaTrol's integrated timer controls your filter pump in 15-minute increments, allowing multiple run periods per day for optimal circulation and chlorine generation. The unit plugs directly into your existing outlet, then your pump plugs into the AquaTrol, no electrician required for the timer setup.
Why Switch to Salt?
Gentle on Eyes
No red, irritated eyes after swimming
Soft Skin & Hair
No more dry, itchy skin post-swim
Won't Fade Fabrics
Easier on swimsuits and pool floats
Lower Annual Cost
Pays for itself in just a few seasons
Smart, Simple, Solid
Everything you need built into one compact controller.

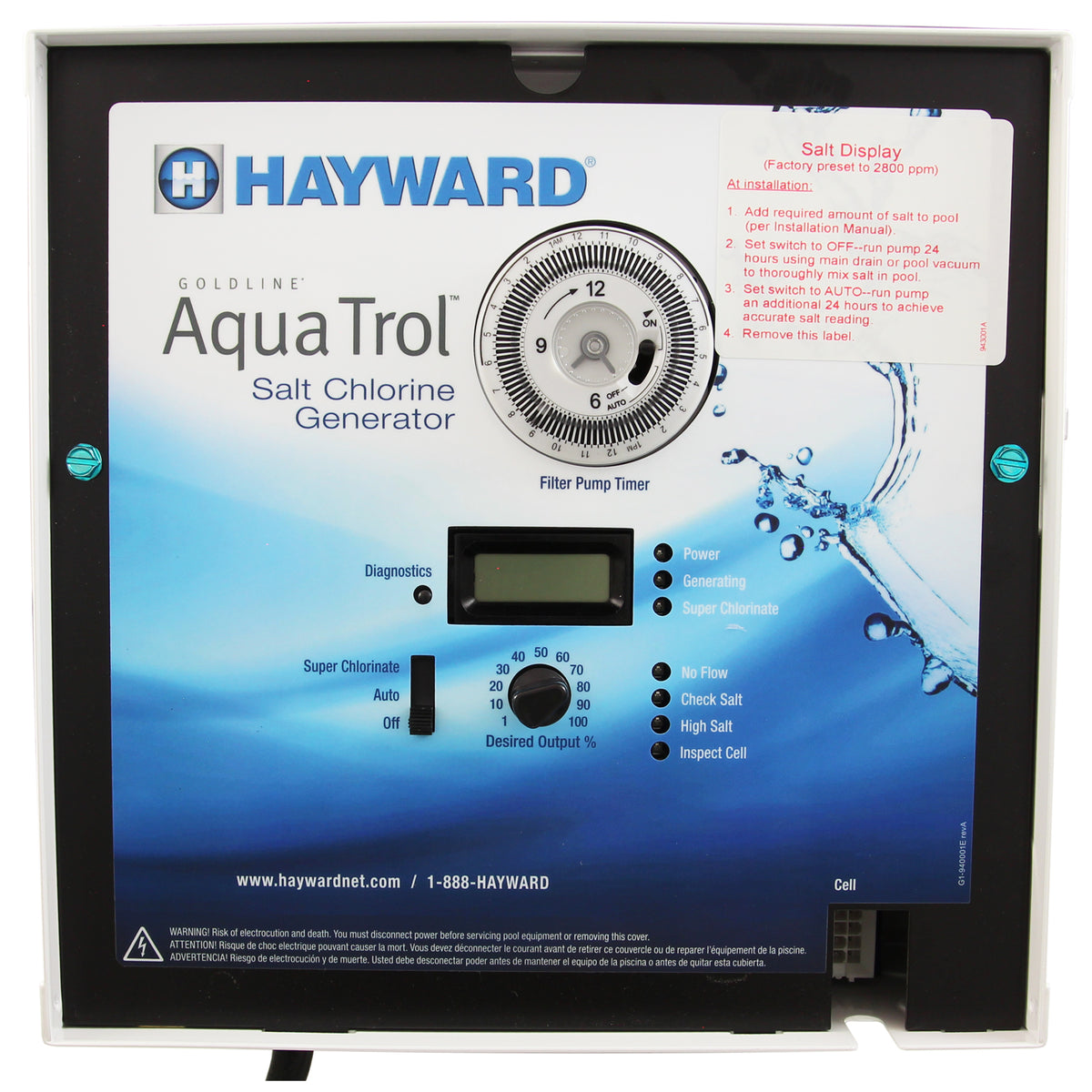

Digital Salt Display

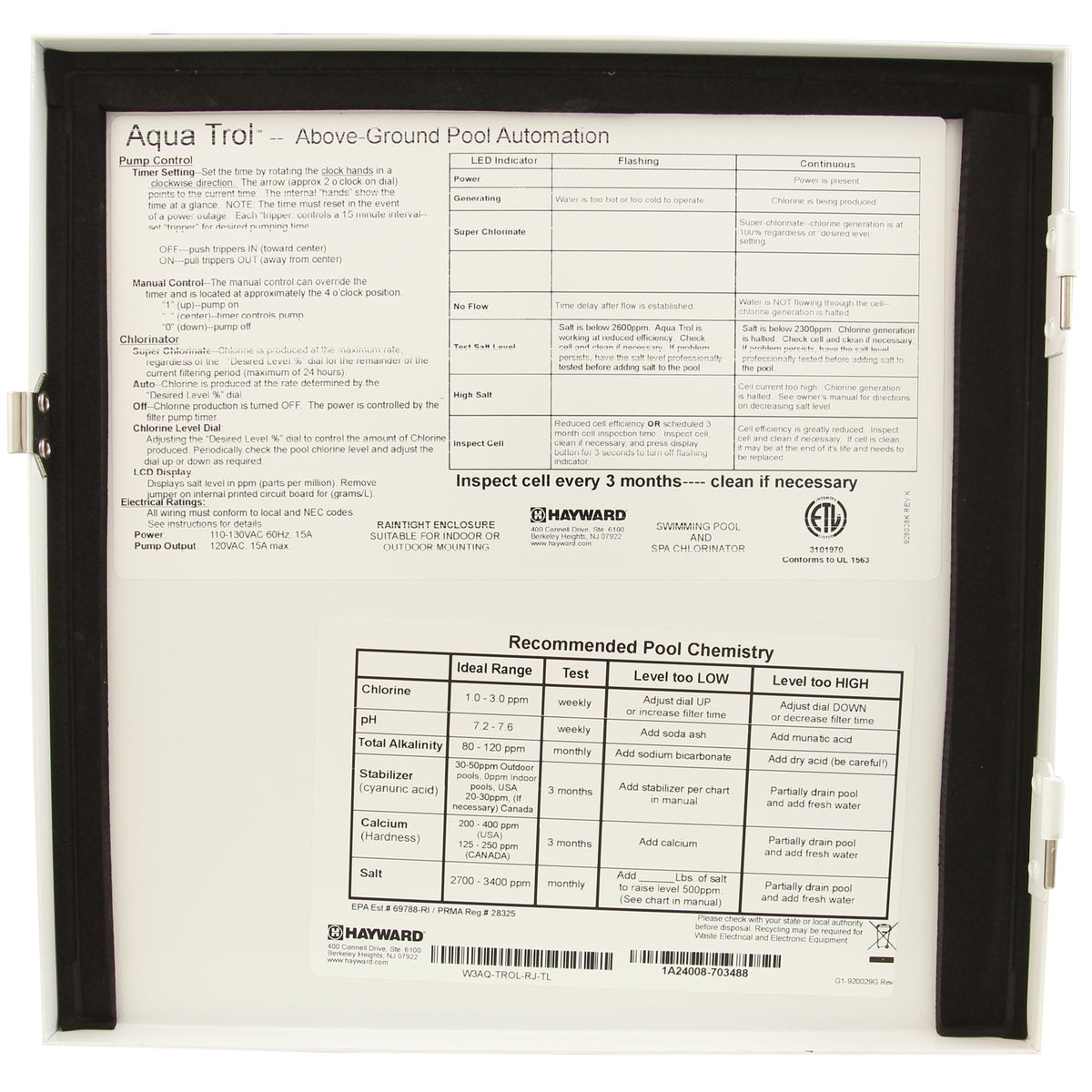

Real-time salt-level readout with 7 diagnostic indicators including Power, Generating, Super Chlorinate, No Flow, Check Salt, High Salt, and Inspect Cell.
Super Chlorinate
One-touch shock function boosts chlorine output for 24 hours, perfect for after heavy use, parties, or post-storm recovery.
Self-Cleaning Cell
Patented reverse-polarity technology automatically cleans the salt cell, dramatically reducing scale buildup and maintenance demands.
Twist-Lock Cord
The "TL" twist-lock plug delivers a secure, weather-resistant power connection that won't accidentally unplug, ideal for outdoor installations.
Manual Override
ON / Auto / OFF switch gives you direct control whenever you need it, separate from the automated programming.
ETL Listed
Safety-certified to meet US and Canadian electrical standards for outdoor pool equipment use.
Installs in About
The "RJ" return-jet design mounts the salt cell vertically beneath your pool's return-jet fitting on the outside of the pool wall, no cutting into existing plumbing required. Connect the lower end with 2" rigid PVC or 1-1/2" / 1-1/4" flexible hose, plug in, add salt, and you're done.

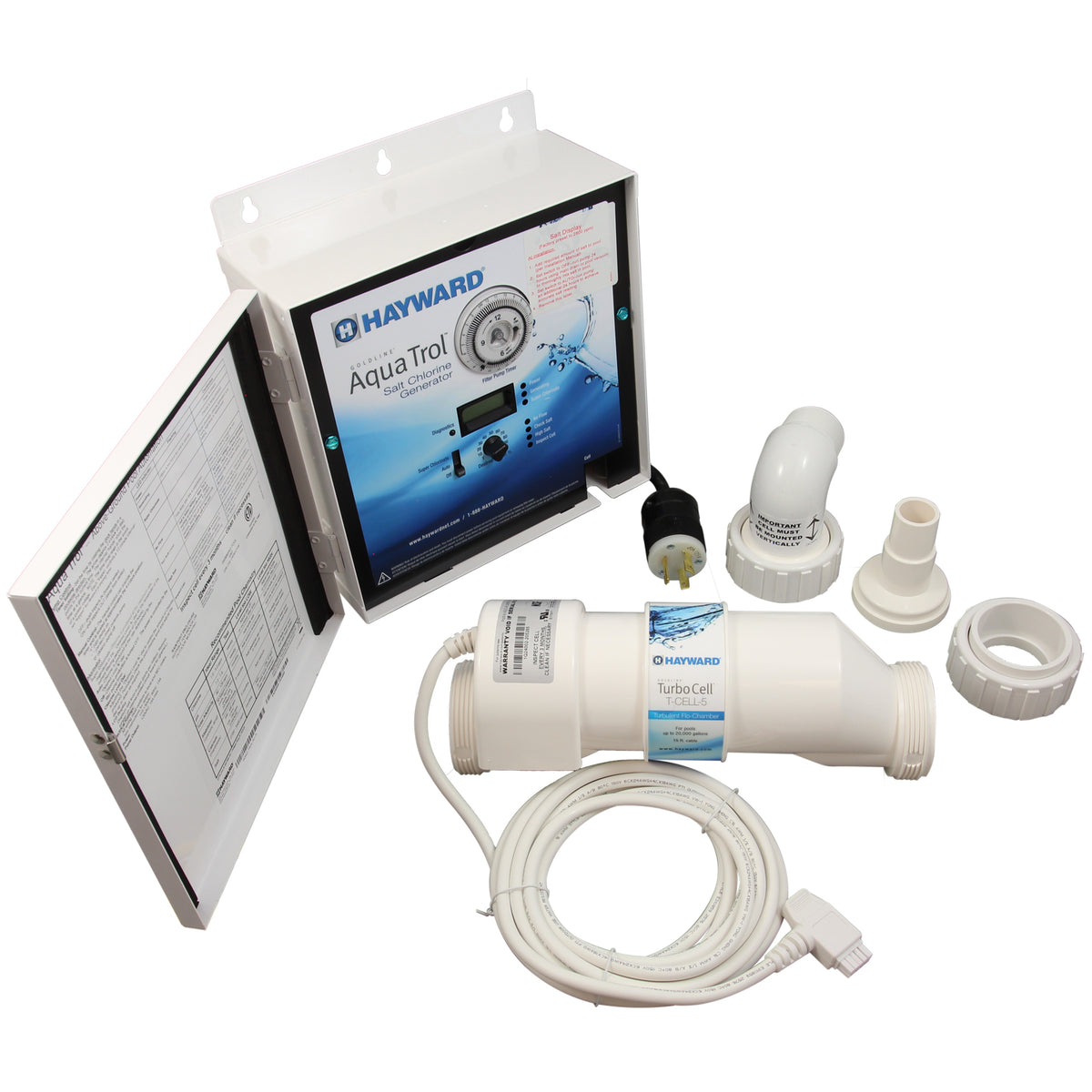

What's In The Box
- AquaTrol Control Box
- TurboCell T-CELL-5 Salt Cell
- Right-Angle Mounting Adapter
- Return-Jet Fittings
- Twist-Lock Line Cord
- Twist-Lock Outlet
- Unions & Adapters
- Owner's Manual
Installation Note:
For best results and to maintain warranty validity, Hayward recommends professional installation by a qualified pool service technician. Salt should be added gradually after installation and not before, to avoid over-salination.
Full Specifications
| Manufacturer | Hayward |
|---|---|
| Model | AquaTrol RJ-TL |
| SKU / Part Number | W3AQ-TROL-RJ-TL |
| Pool Type | Above-Ground |
| Max Pool Size | 18,000 Gallons |
| Cell Mounting | Return Jet (RJ) |

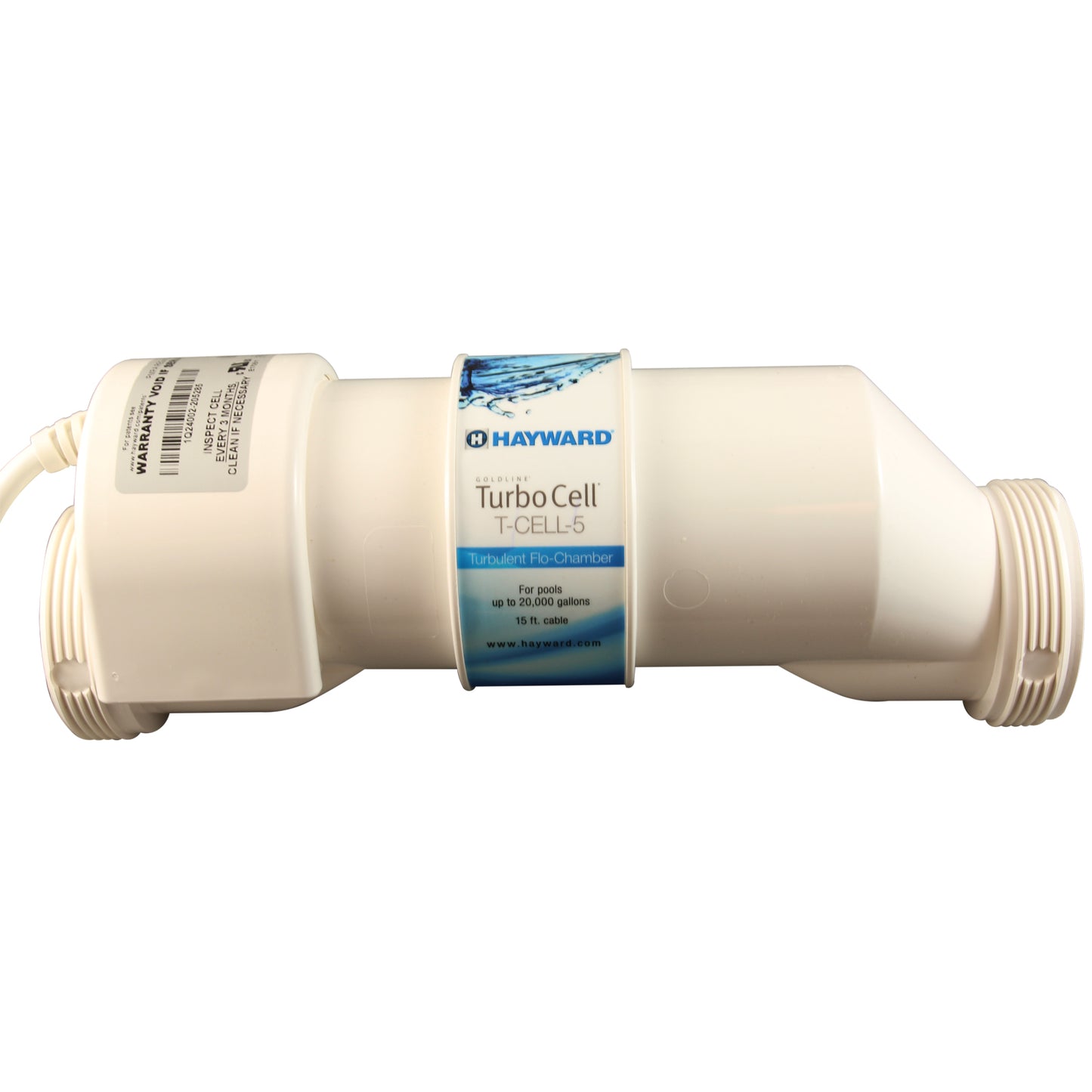

| Salt Cell Included | TurboCell T-CELL-5 |
| Compatible Cells | GLX-CELL-5, T-CELL-5, TCELLS318 |
| Power Cord | Twist-Lock (TL) |
| Pipe Compatibility | 2" PVC / 1-1/2" or 1-1/4" Hose |
| Built-In Timer | 24-Hour, 15-min Increments |
| Diagnostic Indicators | 7 |
| Super Chlorinate | Yes (24-hour boost) |
| Operating Modes | ON / Auto / OFF |
| Cell Cleaning | Automatic Reverse-Polarity |
| Certification | ETL Listed |
| Installation Time | ~30 Minutes |
| Warranty | Hayward Manufacturer Warranty |
Frequently Asked Questions
What's the difference between the "RJ" and "HP" models?
The RJ (Return Jet) model mounts the salt cell directly to the return-jet fitting on the outside of your pool, perfect for above-ground pools. The HP model uses hose or PVC pipe connections instead. If your above-ground pool has a standard return jet, the RJ is the simpler install.
What does "TL" mean in the model number?
"TL" stands for Twist-Lock, referring to the included line cord and outlet. Twist-lock plugs deliver a secure connection that won't accidentally pull free, which is especially important for outdoor pool equipment exposed to weather and use.
How much salt does the pool need?
Hayward recommends a salt concentration of approximately 3,200 PPM (parts per million) for optimal performance. For an 18,000-gallon pool starting from zero, that's roughly 480 lbs of pool-grade salt. Always test your salt level before adding more.
Will it work with my existing filter pump?
Yes. The AquaTrol's timer-controlled outlet works with virtually any standard above-ground pool pump. The pump plugs into the AquaTrol, and the AquaTrol plugs into the outlet your pump was using.
How long does the TurboCell last?
The included T-CELL-5 TurboCell typically lasts 3 to 5 years depending on usage and water chemistry. Maintaining proper salt levels and balanced water dramatically extends cell life. Replacement cells (T-CELL-5, GLX-CELL-5, or TCELLS318) are available.
Can I install this myself?
Many homeowners install the AquaTrol themselves in about 30 minutes since it requires no hardwiring (it simply plugs in). However, Hayward recommends professional installation by a qualified pool technician to ensure proper setup and to validate any manufacturer warranty claims.
Does it work in cold weather?
Salt chlorine generators stop producing chlorine when water temperature drops below approximately 60°F. In winterized regions, you'll typically shut down and winterize the unit along with your pool. Most owners remove the cell and store the control box indoors during the off-season.
Make the Switch to Salt
Order today from your authorized Hayward dealer at PST Pool Supplies.
- Free Shipping
- 30-Day Returns
- Hayward Warranty
- Authorized Dealer
Additional Info
| Category | Sale Special Sale Salt Chlorine Generators |
| SKU | PST-W3AQTROLRJTL |
| MPN | W3AQ-TROL-RJ-TL |
| Manufacturer | Hayward |
| Weight | 24.2 lb |
