Product Information
Description
- Genuine Hayward Part
- 1-Year Part Warranty
- Up to 40,000 Gallons
- Free Shipping

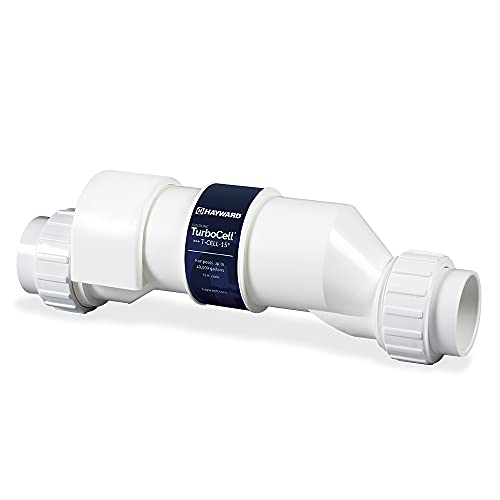

Hayward GLX-CELL-15-W TurboCell Replacement Salt Cell, 40,000 Gallons
Hayward replacement cell for Aqua Rite systems.
The Hayward GLX-CELL-15-W is Hayward's replacement Turbo Cell for in-ground pools up to 40,000 gallons, listed by Hayward as a cell replacement with a 4,000-hour plate. Hayward makes it for Aqua Rite electronic chlorine generators, Aqua Logic chlorination kits and Pro Logic P4 and PS controls, and covers it with a 1-year replacement part warranty.
Why PST Customers Pick This
Genuine Hayward Cell
Hayward lists part GLX-CELL-15-W (GTIN 761418009831) as its replacement cell for 40,000-gallon pools. Hayward's warranty states that a non-genuine replacement salt cell voids the warranty on the Hayward chlorinator it is used on.
Plugs In on Display Units
On chlorinators with a digital display, Hayward's instruction is to remove the old cell and plug in the new one. Units without a display are hard-wired using the cell's two black and two white wires, per Hayward's sheet.
Wide Hayward Fit
Hayward lists the cell for Aqua Rite (all models), Aqua Rite Pro, Aqua Rite XL, Aqua Logic chlorination kits, Pro Logic P4 and PS, Naturesoft, Mineral Springs MS-10 and MS-11, and SplashCLEAR SP-40.
Set Cell Type T-CELL-15
Replacing an existing T-CELL-15 or GLX-CELL-15 needs no reconfiguration. Otherwise, Aqua Rite units from 2009 on, Aqua Rite Pro and Pro Logic P4 and PS controls are set to cell type T-CELL-15 before use.
Match Output to Run Time
Hayward notes that chlorine output depends on how long the filter pump runs each day. Adjust the chlorination setting whenever you change pump run time, and aim for a steady 1 to 3 ppm.
Low-Flow Mounting Options
With 2-speed or variable speed pumps on low speed, Hayward suggests mounting the cell vertically or inverted so it stays flooded. Hayward Support says orientation relative to water flow does not matter.
Configure Before Use
Hayward warns that an incorrect controller configuration causes inaccurate salt readings, improper operation and possible system shutdown. Hayward also advises consulting a qualified stone installation specialist before running a salt system next to natural stone coping or decking.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | GLX-CELL-15-W |
| Hayward Description | Cell replacement, 40K gal, 4,000 hour plate |
| GTIN / UPC | 761418009831 |
| SKU | PST-GLXCELL15W |
| Part Type | Salt chlorinator cell (water quality part) |
| Performance | |
| Max Pool Size | 40,000 gallons |
| Cell Plate | 4,000-hour plate (Hayward) |
| Controller Cell Type Setting | T-CELL-15 |
| Pool Type | In-ground |
| Application | Aftermarket replacement |
| Compatibility | |
| Aqua Rite | All models (AQR, AQ-RITE, AQ-RITE-XL) |
| Aqua Rite Pro | AQR-PRO |
| Pro Logic | P4 and PS (PL-P-4, PL-PS-x, AQ-LOGIC-P-4, AQ-LOGIC-PS-x) |
| Aqua Logic | Chlorination kits |
| Other Hayward Systems | Naturesoft (all models), Mineral Springs MS-10 and MS-11, SplashCLEAR SP-40 |
| Not For | Aqua Trol, SplashCLEAR SP-18, Mineral Springs MS-20 and MS-21 (separate cells) |
| Warranty | |
| Replacement Part Warranty | 1 year (Hayward) |
Frequently Asked Questions
Do I need to reprogram my controller?
Not when you are replacing an existing T-CELL-15 or GLX-CELL-15. Otherwise Hayward calls for setting the cell type to T-CELL-15 on Aqua Rite units from 2009 on (firmware 1.5 or later), Aqua Rite Pro and Pro Logic P4 and PS. Aqua Rite units from 2008 and earlier and the Aqua Rite XL need no configuration.
What size pool is it for?
Hayward rates the GLX-CELL-15-W for in-ground pools up to 40,000 gallons. Hayward's warranty excludes damage from installing a cell on a pool larger than its rating.
Does the direction of water flow through the cell matter?
No. Hayward Support says cell orientation relative to water flow does not matter. With 2-speed or variable speed pumps on low speed, Hayward recommends a vertical or inverted installation so the cell stays full of water.
How does it connect to a chlorinator without a display?
Display units take the cell plug as is. For units without a display, Hayward's sheet has you cut off the plug, keep the two black and two white wires, twist each pair together and connect them as shown in Hayward's wiring diagram.
What warranty comes with it?
Hayward lists a 1-year warranty on this replacement part. Per Hayward, using a non-genuine replacement salt cell on a Hayward chlorination product voids that product's warranty.
Order the GLX-CELL-15-W From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 1-Year Hayward Warranty
- Authorized Hayward Dealer
Additional Info
| Category | Parts Pool Parts Chemical Feeder Parts |
| SKU | PST-GLXCELL15W |
| MPN | FBA_GLX-CELL-15 |
| Manufacturer | Hayward |
| Weight | 3.77 lb |
