Description

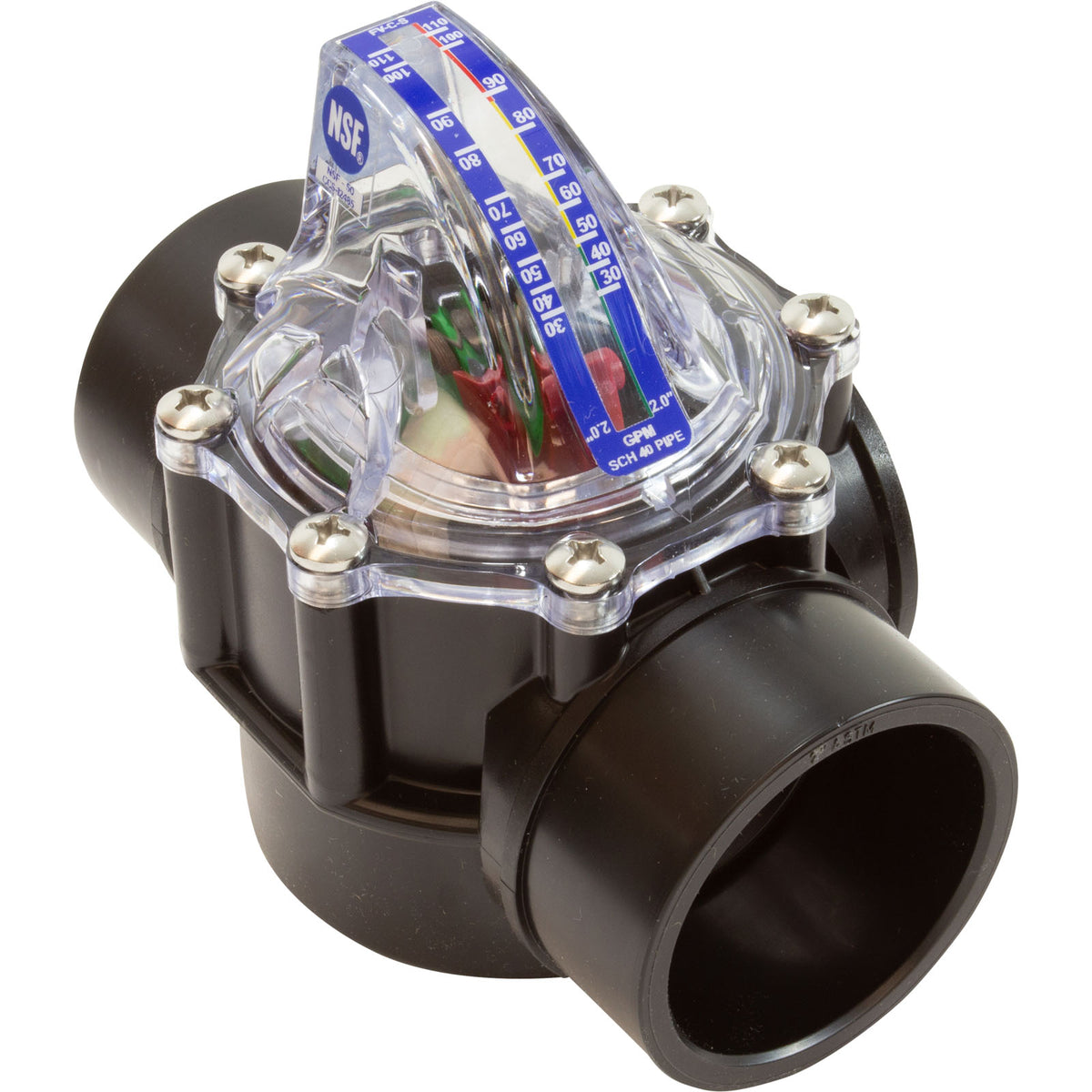

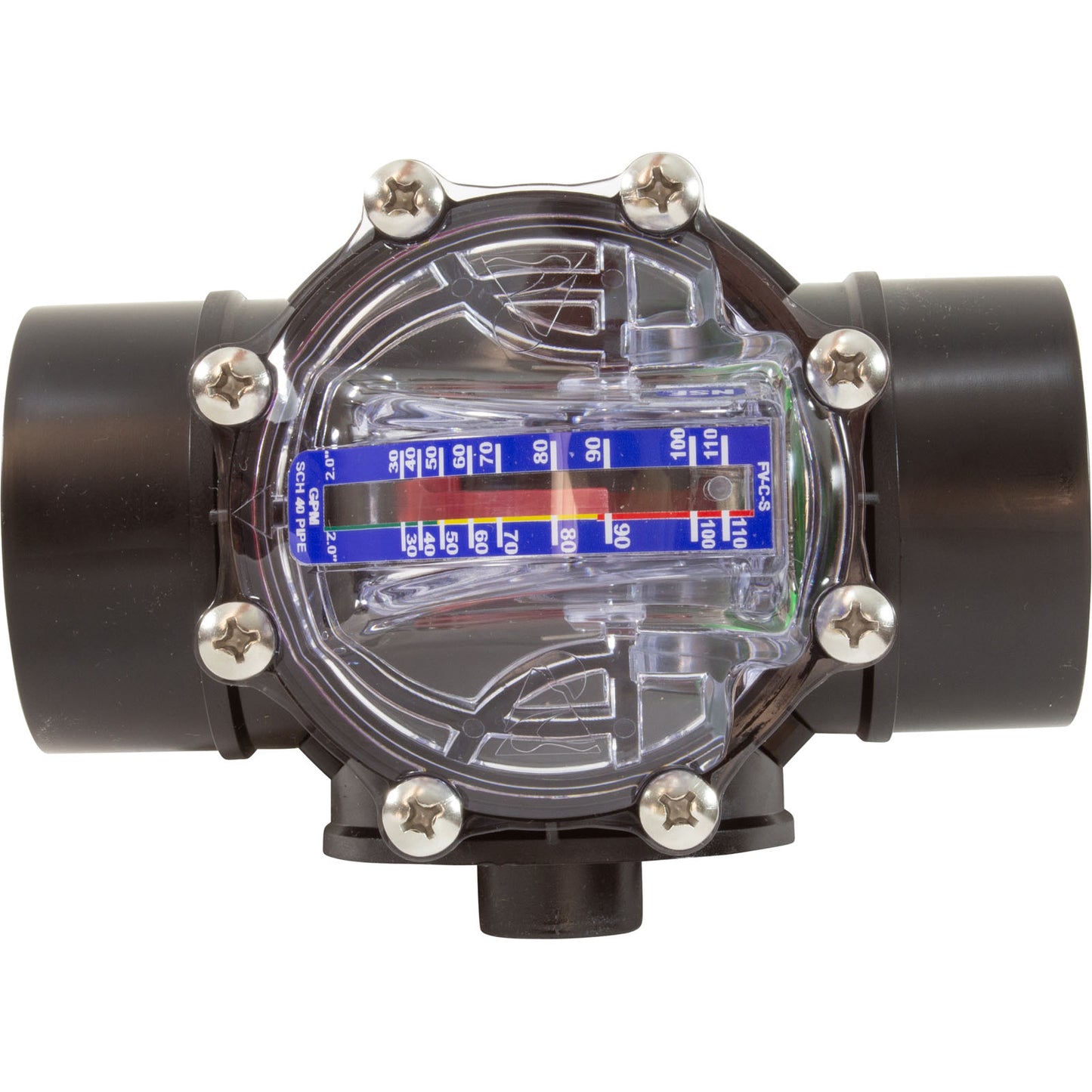

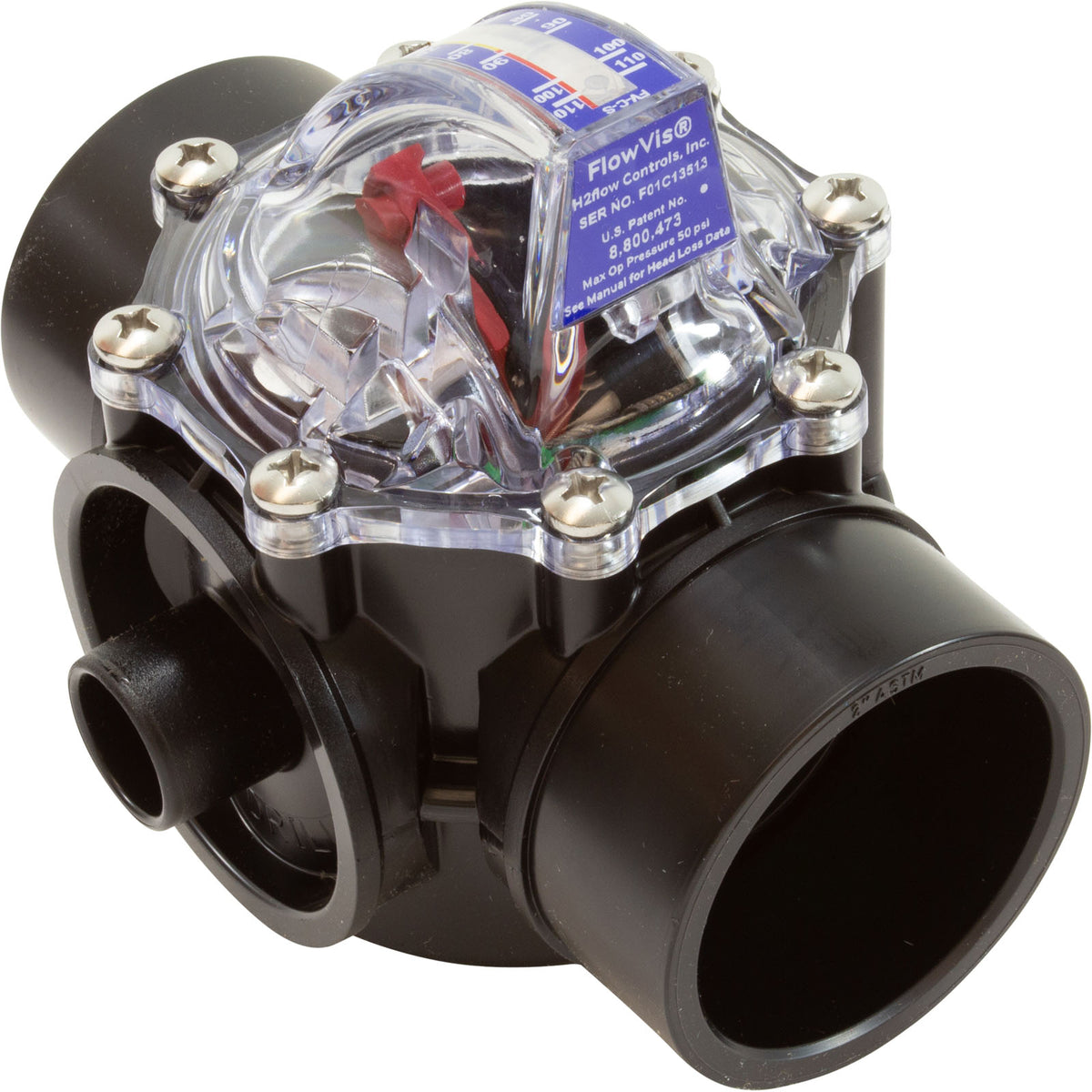

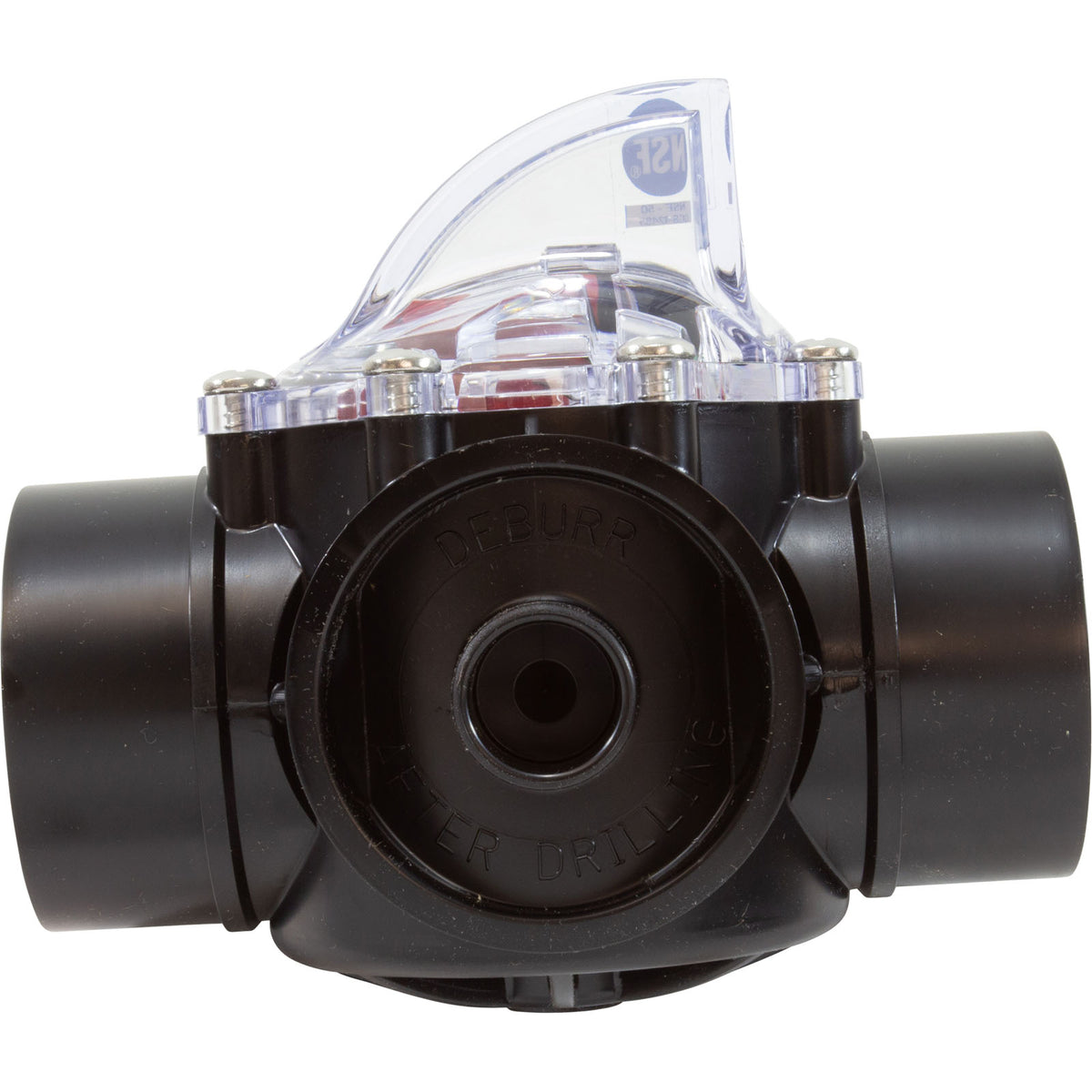

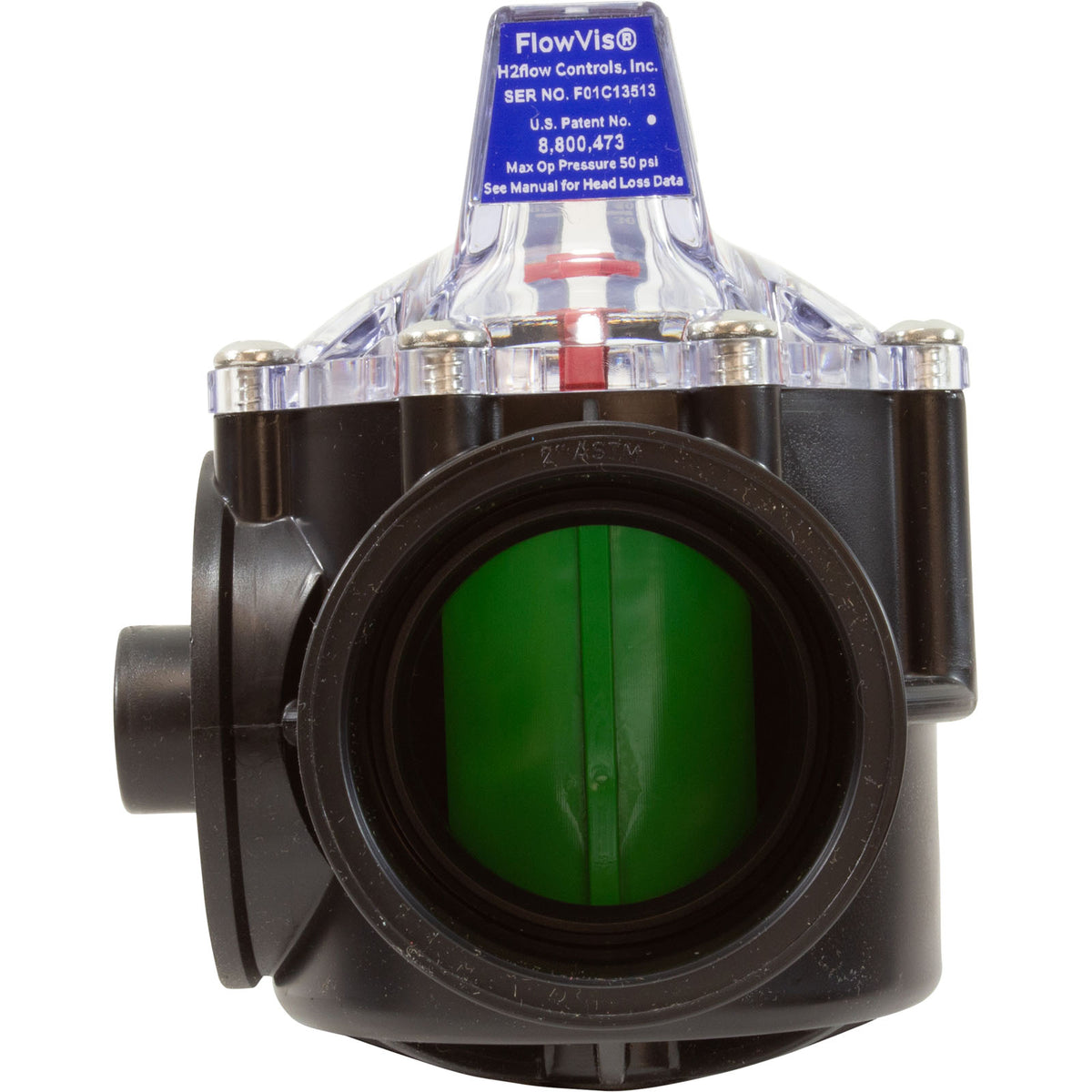

H2Flow FlowVis Flow Meter and Check Valve, 2 in / 2-1/2 in Spigot, with Safety Flapper
Flow reading and check valve in one CPVC body.
Genuine H2Flow FlowVis combination flow meter and check valve in the 2 in / 2-1/2 in spigot body, with the integrated safety flapper for the dual-function check role. Reads 10 to 110 GPM directly on a clear GPM scale (LPM and FPS marks optional), and the flapper backs up flow shutoff during pump-off or backwash operations. NSF 50 Level 1 certified for commercial pool use, no calibration required, installs horizontal, vertical, or upside-down with no loss of accuracy.
| Manufacturer | H2Flow Controls |
|---|---|
| Product Line | FlowVis |
| Model Variant | 2 in / 2-1/2 in spigot with safety flapper |
| Connection | Spigot (slip-on glue) reducing 2-1/2 in to 2 in |
| Pipe Size Range | 2 in to 2-1/2 in |
| Flow Range | 10 to 110 GPM |
| Pressure Rating | 50 psi |
| Body Material | CPVC |
| Body Color | Black |
| Accuracy | Equal to or greater than 97.9 percent across the FlowVis model range |
| Certification | NSF 50 Level 1 (across eight FlowVis models) |
| Doubles As | Check valve (1.5 in, 2 in, and 2.5 in models) |
| Install Orientations | Horizontal, vertical, or upside-down |
| Calibration | Not required, factory calibrated |
| PST SKU | PST-26-042-1010 |
Can I install this right next to an elbow or other fitting?
Yes. The FlowVis is engineered to maintain accuracy with no straight-pipe run requirement, unusual for a flow meter. Most competing meters need 5 to 10 pipe diameters of straight pipe upstream to get a reliable reading. This unit reads true even when installed inches from an elbow, tee, or valve.
Do I still need a separate check valve?

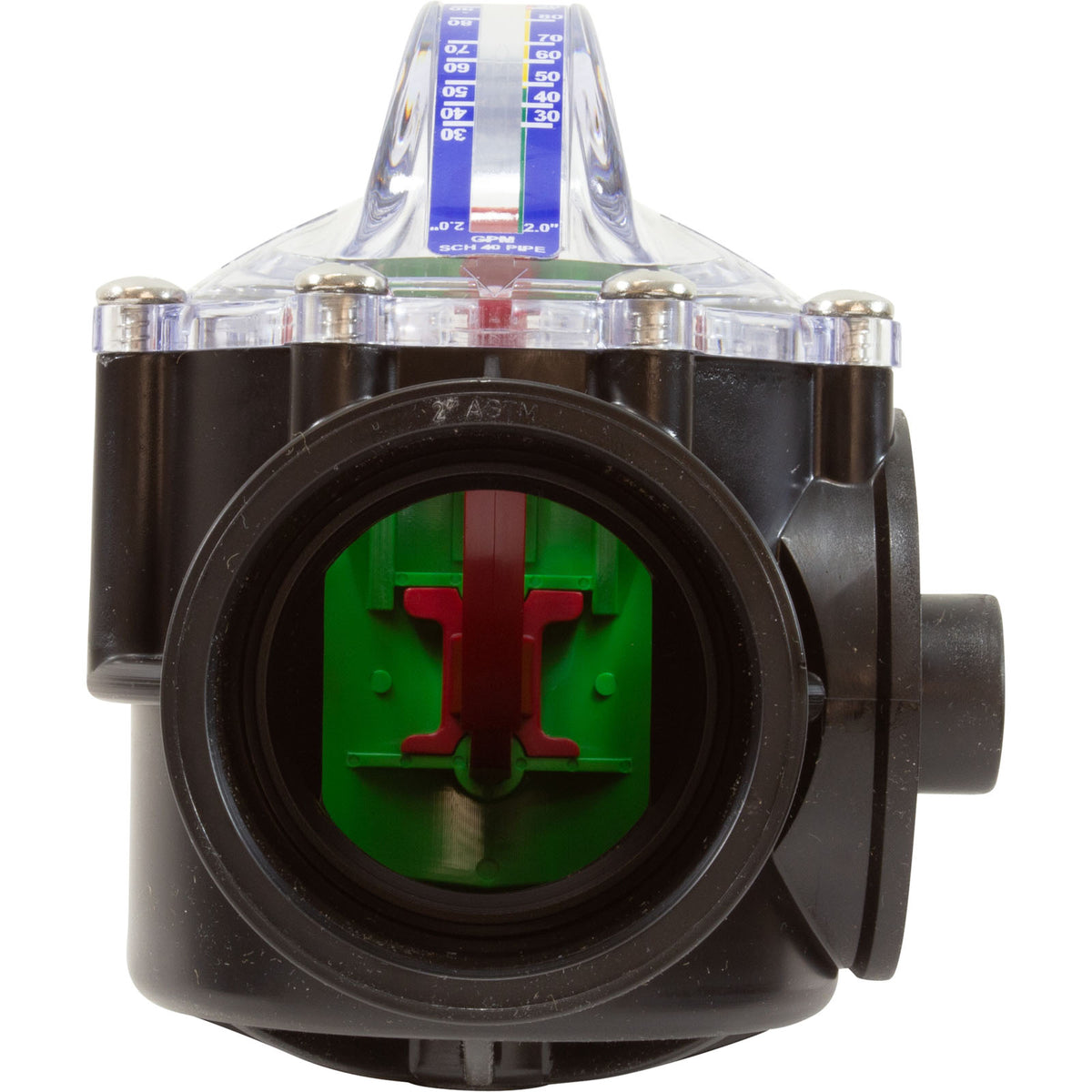

No. On the 1.5 in, 2 in, and 2.5 in models (this one included), the FlowVis doubles as the system check valve via the integrated flapper. Eliminates a fitting, a glue joint, and a leak point. Pair it with your pump discharge to prevent siphon-back when the system is off.
Will this fit my schedule 40 plumbing?
Yes. The 2 in / 2-1/2 in spigot end is sized to glue directly into the socket of a 2 in or 2-1/2 in Sch 40 PVC fitting or pipe coupling. Use standard PVC primer and cement, no special prep for the CPVC body. Dry-fit first to confirm orientation, the flow direction arrow on the body must match the actual pump flow.
Additional Info
| Category | Pool Products Pool Accessories Pool Flow Meters |
| SKU | PST-26-042-1010 |
| MPN | FV-C-S |
| Replaces | 68255 |
| Manufacturer | H2Flow |
| Weight | 1.74 lb |
