Product Information
Description

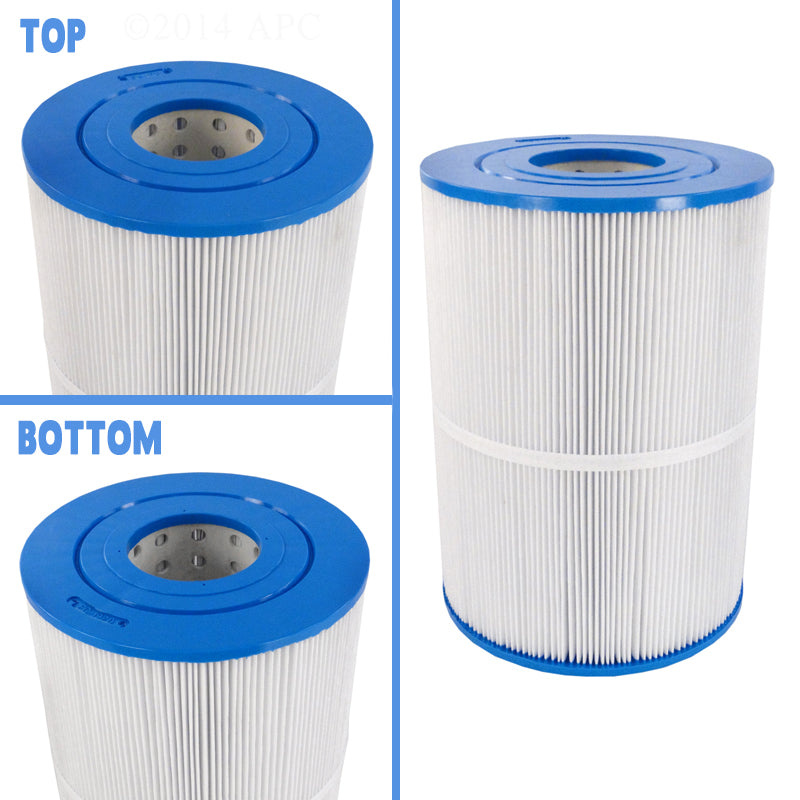

Filbur PC0820 145 Sq Ft Pool Filter Cartridge
Clean water, full flow, longer runs.
The Filbur PC0820 (PST-PC0820) is a 145 sq ft replacement filter cartridge that drops straight into your Jandy CL580 and CV580 cartridge filter. It measures 7" outer diameter by 33" long with open 3" ends top and bottom, so it seats on the manifold exactly like the original. You run four of these in a 580 sq ft Jandy housing for a full 580 sq ft of pleated surface, which means longer runs between cleanings and steady flow all season.
More Media, Longer Runs
Every PC0820 packs 145 sq ft of pleated surface into a single cartridge, and a full set of four gives your Jandy CL580 or CV580 the complete 580 sq ft it was engineered around. More surface area means dirt spreads across more pleats before pressure climbs, so you go longer between cleanings and your pump moves water against less resistance. That is fewer hose-downs for you and steadier flow for the pool.
Reemay Media That Holds Up
The PC0820 is built from 4 oz Reemay polyester, the same heavy-duty spun media that resists tearing when you spray it down and shrugs off chlorine, salt, and pH swings. Reinforced end caps and a rigid molded core keep the 180 pleats from collapsing under flow, so the cartridge keeps its shape and its rated surface area through cleaning cycle after cleaning cycle instead of matting down after a month.
Exact Drop-In Jandy Fit
This is the correct cartridge for the Jandy CL580 and CV580, replacing OEM part numbers R0357900 and A0104100 bolt-for-bolt. The 7" diameter, 33" length, and open 3" end caps match the factory manifold, so the cartridge seats and seals without spacers or trimming. Pull your old set, drop in the new one, close the clamp band, and you are filtering again in minutes.
Who It's For
Jandy CL580 Filters
The factory-size cartridge for the Jandy CL Series CL580. A full set of four restores the housing to its rated 580 sq ft.
Jandy CV580 Filters
Also the correct fit for the Jandy Pro Series CV580 cartridge filter, using the same 145 sq ft element in all four positions.
Large Residential Pools
Built for the bigger backyard pools that run a 580 sq ft housing, where high surface area keeps turnover strong and cleanings infrequent.
Annual Cartridge Swaps
An easy yearly or seasonal replacement when your old pleats are frayed, flattened, or no longer cleaning up after a soak.
Why PST Customers Pick This
Full 580 Sq Ft Set
Four PC0820 cartridges return your CL580 or CV580 to its complete 580 sq ft of filtration area for maximum dirt-holding capacity.
Lower Pressure Drop
More pleated surface spreads debris thinner, so filter pressure rises slowly and your pump keeps full flow to the returns.
Reinforced Core
A rigid molded center core and banded pleats hold their shape under flow so the cartridge will not collapse or channel.
Tool-Free Swap
Open the clamp band, lift the old set off the manifold, drop the new cartridges on. No plumbing changes and no special tools.
Verified 7 x 33
Published 7" outer diameter and 33" length with 3" open ends let you confirm the exact fit before you order.
Wide Cross-Reference
Replaces Pleatco PJAN145, Unicel C-7482, Jandy R0357900, and more, so you are not hunting for a discontinued OEM part.
Full Specifications
Frequently Asked Questions
How many PC0820 cartridges does my Jandy CL580 or CV580 take?
Four. The Jandy CL580 and CV580 are 580 sq ft filters built around four 145 sq ft cartridges. Replace all four at the same time so the set wears evenly and your filter keeps its full rated surface area. A mismatched set with one fresh cartridge and three worn ones channels water and shortens the life of the new one.
What filter does the PC0820 fit?
The PC0820 is the correct cartridge for the Jandy CL Series CL580 and the Jandy Pro Series CV580 cartridge filters. It is not the cartridge for the smaller CV340 or CV460 housings, which use shorter elements. If your housing is rated at 580 sq ft and your old cartridges measure 7" by 33", this is the right part.
Which part numbers does this cartridge replace?
The PC0820 cross-references the Jandy OEM cartridges R0357900 and A0104100, plus the aftermarket equivalents Pleatco PJAN145, Unicel C-7482, Filbur FC-0820, and Darlly 71451. Any of these numbers on your old cartridge means the PC0820 is a direct replacement.
What is the cartridge made of and how long does it last?
It uses 4 oz Reemay polyester media over 180 pleats with reinforced end caps and a rigid center core. With regular rinsing and a deep cleaning when pressure climbs about 8 to 10 psi over clean, a set typically lasts one to three seasons depending on bather load and water chemistry. Replace the cartridges when the pleats stay gray after cleaning or the fabric starts to tear.
How do I know when to clean it versus replace it?
Hose down the pleats when the filter pressure gauge reads about 8 to 10 psi above the clean starting pressure. Soak the cartridges in a dedicated filter cleaner once or twice a season to clear oils and scale. When a thorough cleaning no longer drops the pressure, or the pleats are frayed, flattened, or permanently discolored, it is time for a new set.
Can I install this myself?
Yes. This is a straightforward job. Shut off the pump, relieve filter pressure at the air bleed, open the clamp band, and lift the top half of the housing off. Pull the old cartridges off the manifold, set the new ones in place, reseat the housing, close the clamp band, and restart the pump with the air bleed open until water comes out. No plumbing or wiring is involved.
Order the Filbur PC0820 From PST
The 145 sq ft replacement cartridge for your Jandy CL580 and CV580, backed by PST Pool Supplies' service team before and after your swap.
Additional Info
| Category | Pool Products Pool Filters Replacement Filter Cartridge |
| SKU | PST-PC0820 |
| MPN | PC0820 |
| Replaces | FC-0820P |
| Manufacturer | Filbur |
| Weight | 6.3 lb |
