Product Information
Description

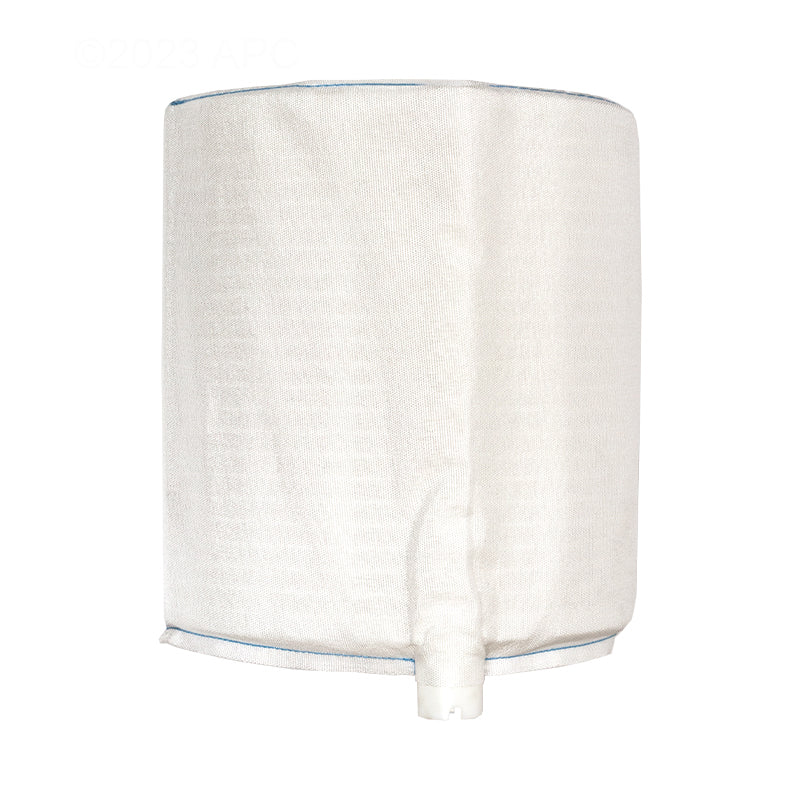

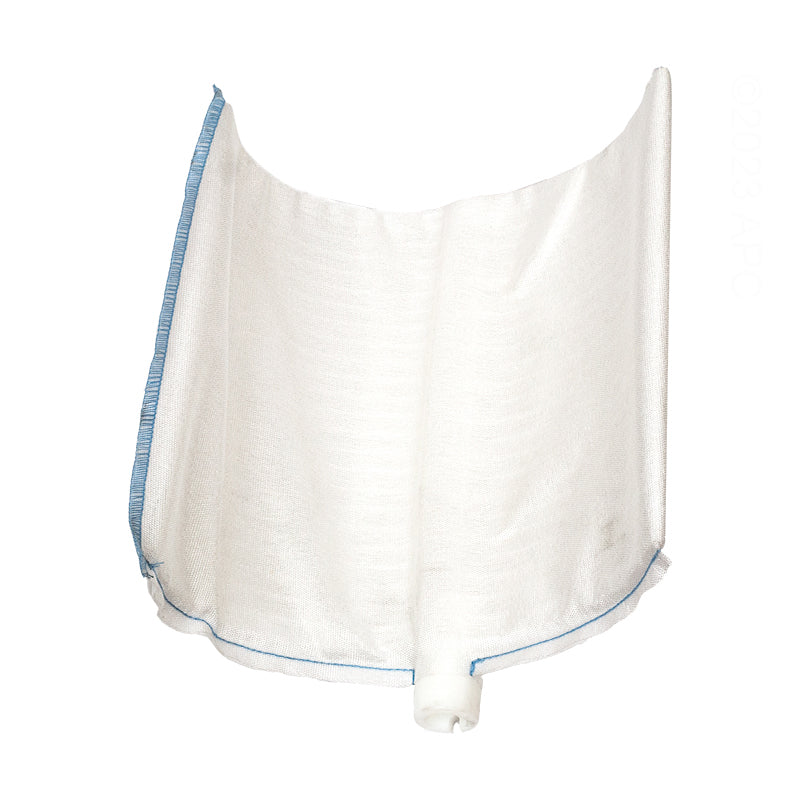

Filbur FC-9220 DE Filter Grid for Purex SMBW 2024 / 4024
12 in full grid for the 24 sq ft bottom-manifold Purex DE filter.
The Filbur FC-9220 (MPN APCFGR30) is a single 12 in full-height DE filter grid for the 24 square foot Purex SM and SMBW 2024 / 4024 bottom-manifold filter. Note the 12 in figure is the grid height, not the filtration area, the complete 2000-series grid set runs 24 sq ft across eight grids. Direct cross to Unicel FG-1224 and Pentair OEM 074922.
| Brand | Filbur |
|---|---|
| Model | FC-9220 |
| MPN | APCFGR30 |
| PST SKU | PST-APCFGR30 |
| Type | DE Filter Grid, full |
| Collar Style | Single notch |
| Filter Series | Purex SM / SMBW 2024 and 4024 |
|---|---|
| System Filter Area | 24 sq ft |
| Manifold | Bottom manifold |
| Grids Per Complete Set | 8 (Purex 2000 series) |
| Grid Position | Full grid |
| Grid Height | 12 in |
|---|---|
| Frame Material | High-impact polystyrene |
| Filter Cloth | Multi-filament polypropylene |
| Center Core | Reinforced center tube |
| Seam Construction | Chemical-resistant stitched and sonic-welded |
- Purex SMBW 2024 DE filter (24 sq ft)
- Purex SMBW 4024 DE filter (24 sq ft)
- Purex SM 2024 / SM 4024 bottom-manifold DE filters
Is this 12 square feet or 12 inches?
It is a 12 inch tall grid. The full Purex SMBW 2024 / 4024 filter it fits is rated at 24 sq ft total once the complete 8-grid set is installed.
How many grids do I need for a full rebuild?
A Purex 2000-series 24 sq ft filter takes 8 full grids. This listing is a single grid, so order eight if you are replacing the entire pack.
Does this fit a top-manifold Purex filter?
No. This is the bottom-manifold grid for the SM / SMBW 2024 and 4024. Top-manifold Purex filters use a different grid and manifold assembly. It does cross directly to Unicel FG-1224 and Pentair OEM 074922.
Additional Info
| Category | Pool Products Pool Filters Replacement Filter Cartridge |
| SKU | PST-APCFGR30 |
| MPN | APCFGR30 |
| Replaces | FC-9220 |
| Manufacturer | Filbur |
| Weight | 1.6 lb |
