Product Information
Description
- Genuine Pentair Part
- ETi 400 Parts List
- Free Shipping

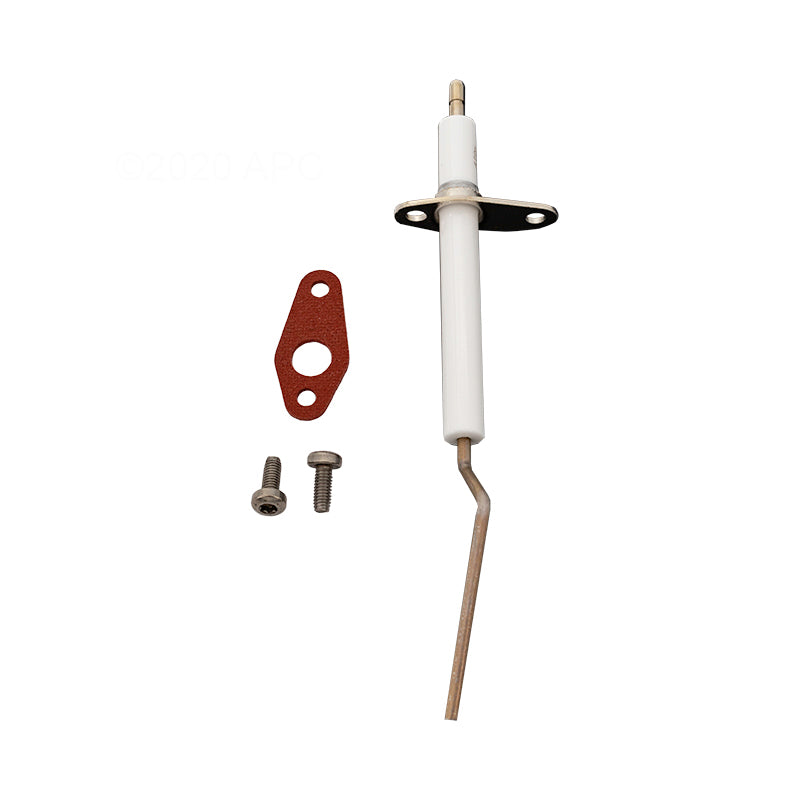

Pentair Flame Sensor for ETi 400 and UltraTemp ETi Hybrid Heaters (462023Z)
The flame sensor rod for ETi 400 heaters.
Pentair 462023Z is the flame sensor for the Pentair ETi 400 high efficiency pool and spa heater, listed as part 462023 in Pentair's ETi 400 replacement parts and in the gas system parts of the UltraTemp ETi hybrid heater. The ETi 400 uses one flame sensor rod, set 0.6 to 0.66 in. from the burner. PST SKU PST-462023Z.
Why PST Customers Pick This
On the ETi 400 Parts List
Pentair lists flame sensor 462023 in the ETi 400 replacement parts, with one sensor per heater.
Also in UltraTemp ETi
Pentair's catalog lists the same 462023 flame sensor in the gas system parts of the UltraTemp ETi high performance hybrid heater.
Shows Up as IGN
On the ETi 400, a flame sensor fault shows the IGN symbol with the text IGN and disables the keypad. Pentair's reset for that fault is cycling power.
Set the Rod Gap
Pentair's ignition troubleshooting chart says to verify the connection to the flame sensor rod and set the rod-to-burner distance to 0.6 to 0.66 in.
Annual Inspection
Pentair's maintenance section includes a burner spark electrode and flame sensor rod inspection, recommended every 12 months and at the start of every swimming season.
Gas Appliance Notice
Pentair states that the ETi 400 must be installed and serviced by a professional service technician qualified in pool heater installation. Improper installation or operation could create carbon monoxide and flue gases that can cause serious injury or death, and will void the warranty.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair |
| Pentair Part Number | 462023 |
| Part Number as Sold | 462023Z |
| SKU | PST-462023Z |
| Part Type | Flame sensor rod |
| Fitment | |
| Heater | Pentair ETi 400 high efficiency pool and spa heater |
| Also Listed For | UltraTemp ETi high performance hybrid heater, gas system |
| Quantity per ETi 400 | 1 |
| ETi 400 Service Data | |
| Rod to Burner Distance | 0.6 to 0.66 in. |
| Fault Display | IGN symbol and IGN text, keypad disabled |
| Fault Reset | Cycle power |
| Inspection | Every 12 months and at the start of every swimming season |
Frequently Asked Questions
Does it fit the UltraTemp ETi hybrid heater?
Pentair's catalog lists flame sensor 462023 in the gas system parts of the UltraTemp ETi high performance hybrid heater, as well as in the ETi 400 replacement parts.
What does an IGN fault mean on the ETi 400?
Pentair's fault table lists a flame sensor fault as the IGN symbol with the text IGN, with the keypad disabled until power is cycled. The matching troubleshooting chart also checks gas pressure, the ignition control module and the spark electrodes.
Who should replace the flame sensor?
Pentair says the ETi 400 must be installed and serviced by a professional service technician qualified in pool heater installation, and some jurisdictions require installers to be licensed.
Order the 462023Z From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Pentair Dealer
