Product Information
Description

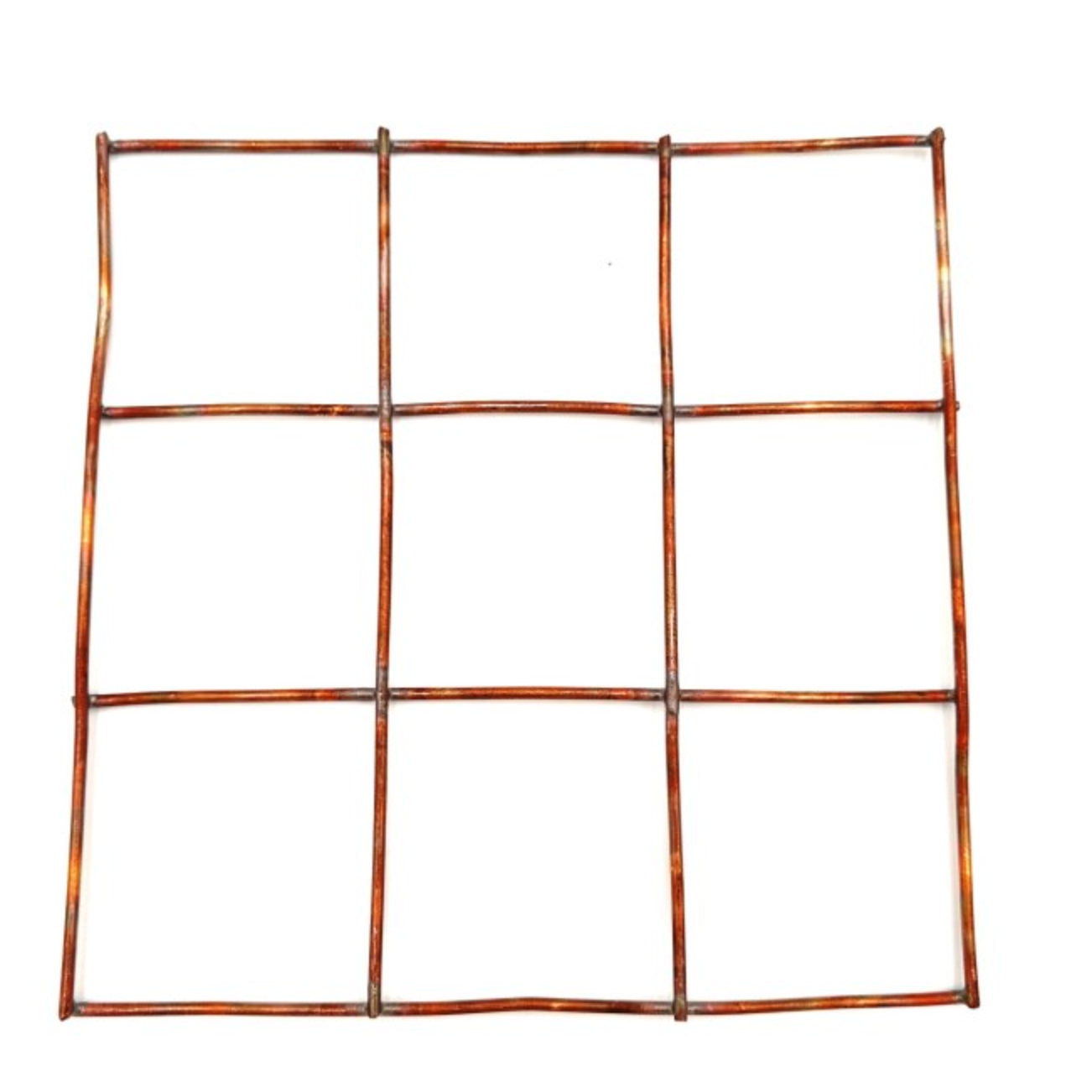

EquiBond EB3100 Copper Equipotential Pool Bonding Grid - 3' x 100' Roll Kit
Achieve NEC-compliant equipotential bonding around your pool in a fraction of the time with the EquiBond EB3100, a pre-fabricated #8 solid copper bonding grid on a 3-foot by 100-foot roll. Exothermically welded at every intersection and supplied as a complete kit with rebar clamps, split bolts, and stakes, EquiBond replaces hours of hand-tying copper wire with a roll-out solution that satisfies NEC Section 680.26(C) for equipotential bonding.
Key Features:
- NEC 680.26(C) Compliant: Meets the National Electrical Code requirement for equipotential bonding around permanently installed pools.
- Solid Copper Construction: Built from #8 solid bare copper conductor for long-term corrosion resistance and low-resistance bonding.
- Exothermically Welded Grid: Permanent molecular-bond intersections on 12-inch centers eliminate loose connections and guarantee continuity.
- Complete Installation Kit: Includes JRD UL-listed rebar clamps, 17 #8 split bolts, and 16 metal stakes to secure the grid and tie it into rebar.
- Single-Installer Friendly: Lightweight roll format lays out quickly under paver, concrete, or stone decks - one person can install without special tools.
Technical Specifications:
- Dimensions: 3 ft wide x 100 ft long
- Conductor: #8 solid bare copper
- Grid Spacing: 12 inches
- Connections: Exothermically welded
- Code Compliance: NEC Section 680.26(C)
- Kit Includes: Rebar clamps, 17 #8 split bolts, 16 metal stakes
- Part Number (MPN): EB3100
Additional Info
| Category | Parts Pool Parts Pool Plumbing Parts |
| SKU | PST-EB3100 |
| MPN | EB3100 |
| Manufacturer | Equibond |
| Weight | 37.65 lb |
