Hayward Deluxe 4-Way Ball Valve, 1-1/2" FIP (SP0735)
Hayward Deluxe 4-Way Ball Valve, 1-1/2" FIP (SP0735)
272 in stock
Ships from: Memphis, TN | Tucson, AZ | Bloomfield, CT | Murray, UT
Genuine OEM product, sold with full manufacturer warranty support.
- Next day Shipping Mon–Fri
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description
- Genuine Hayward Valve
- Rated to 50 PSI
- 1-Year Parts Warranty
- Free Shipping

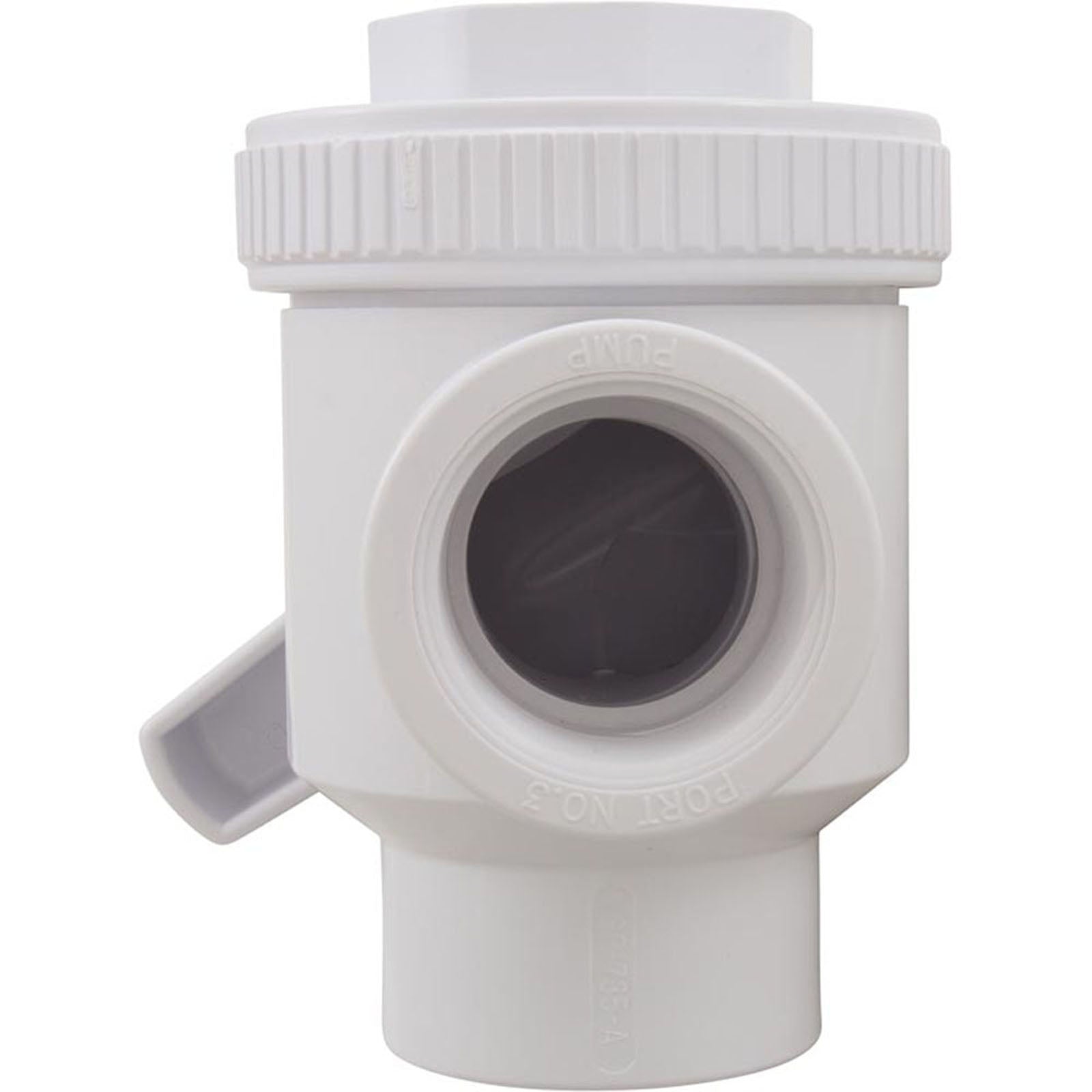

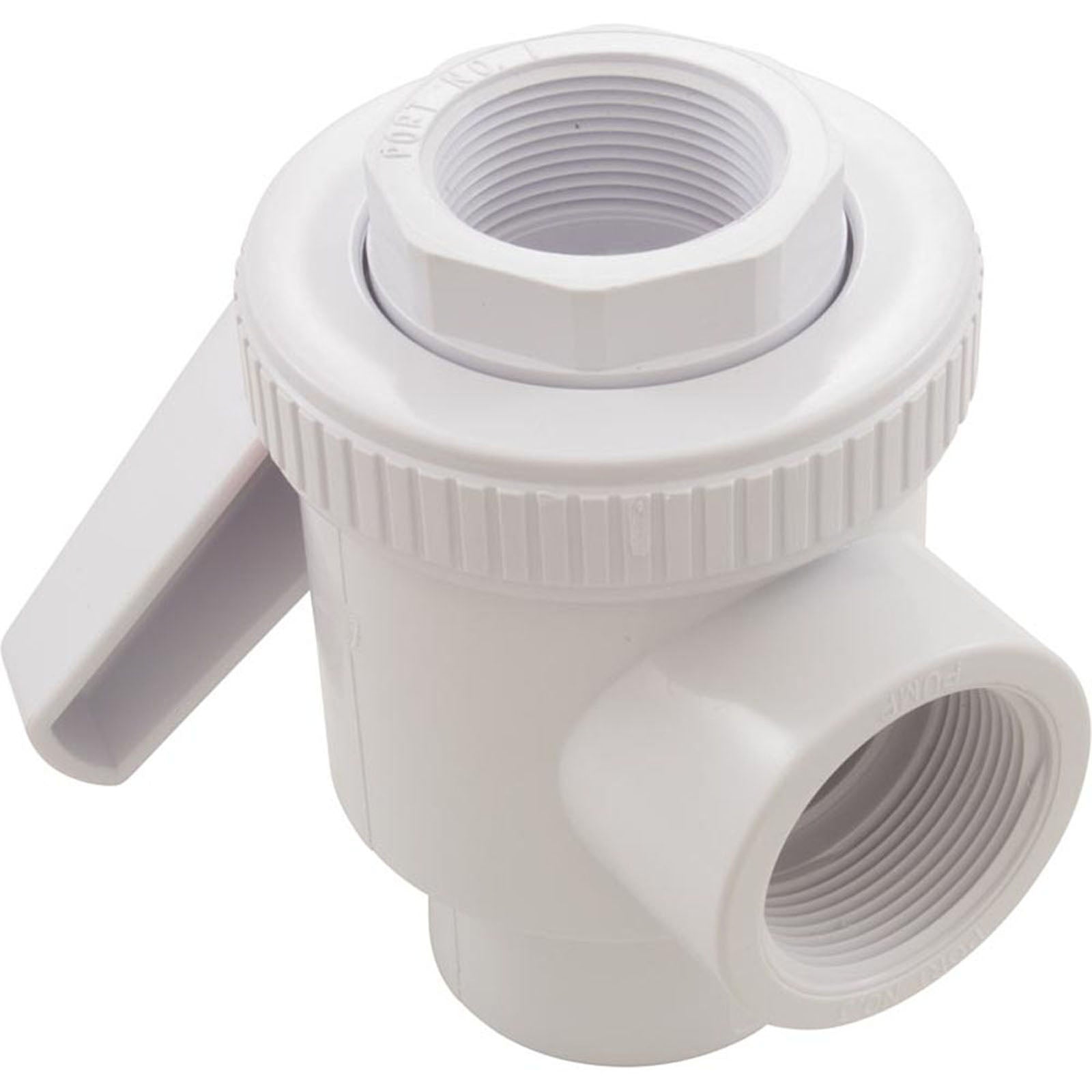

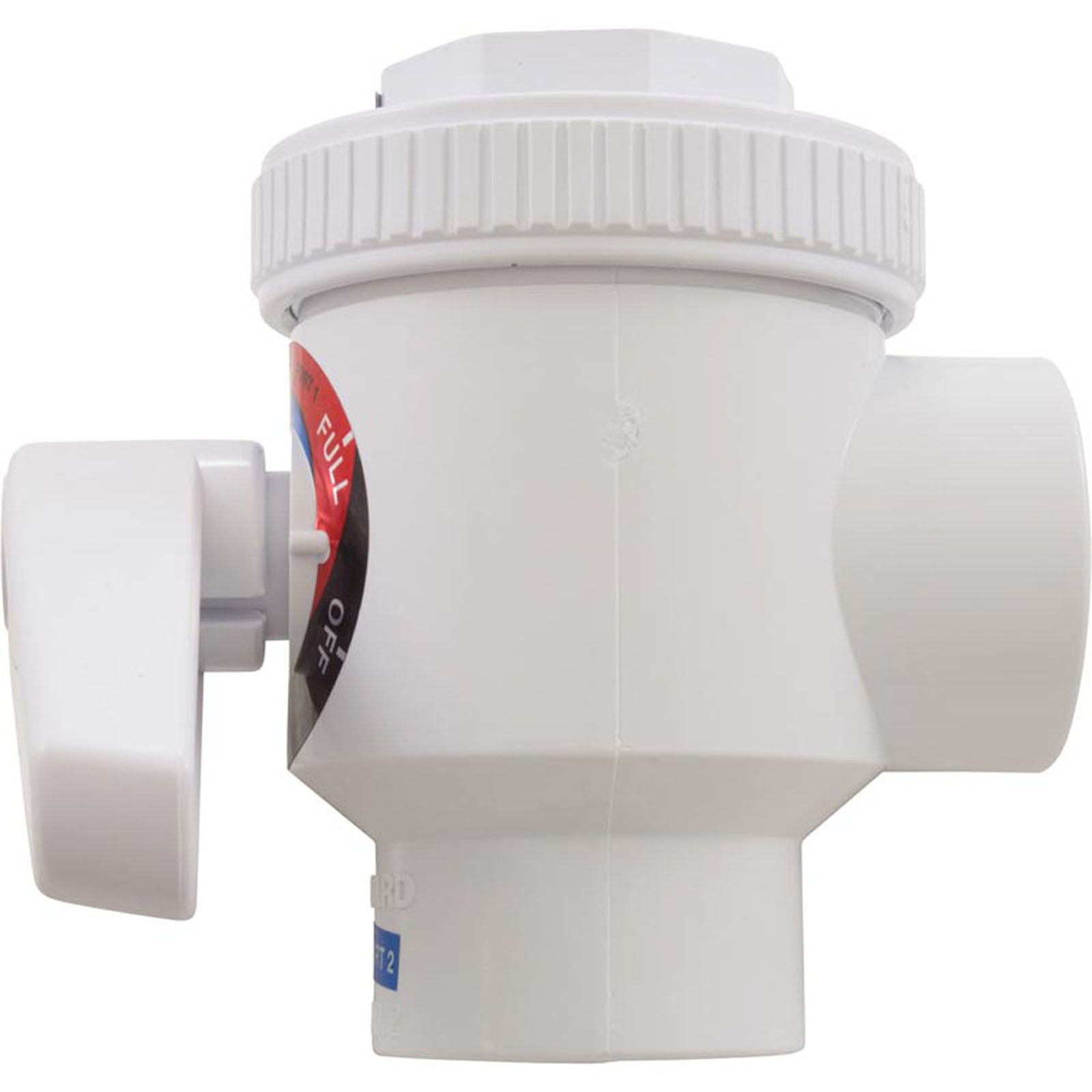

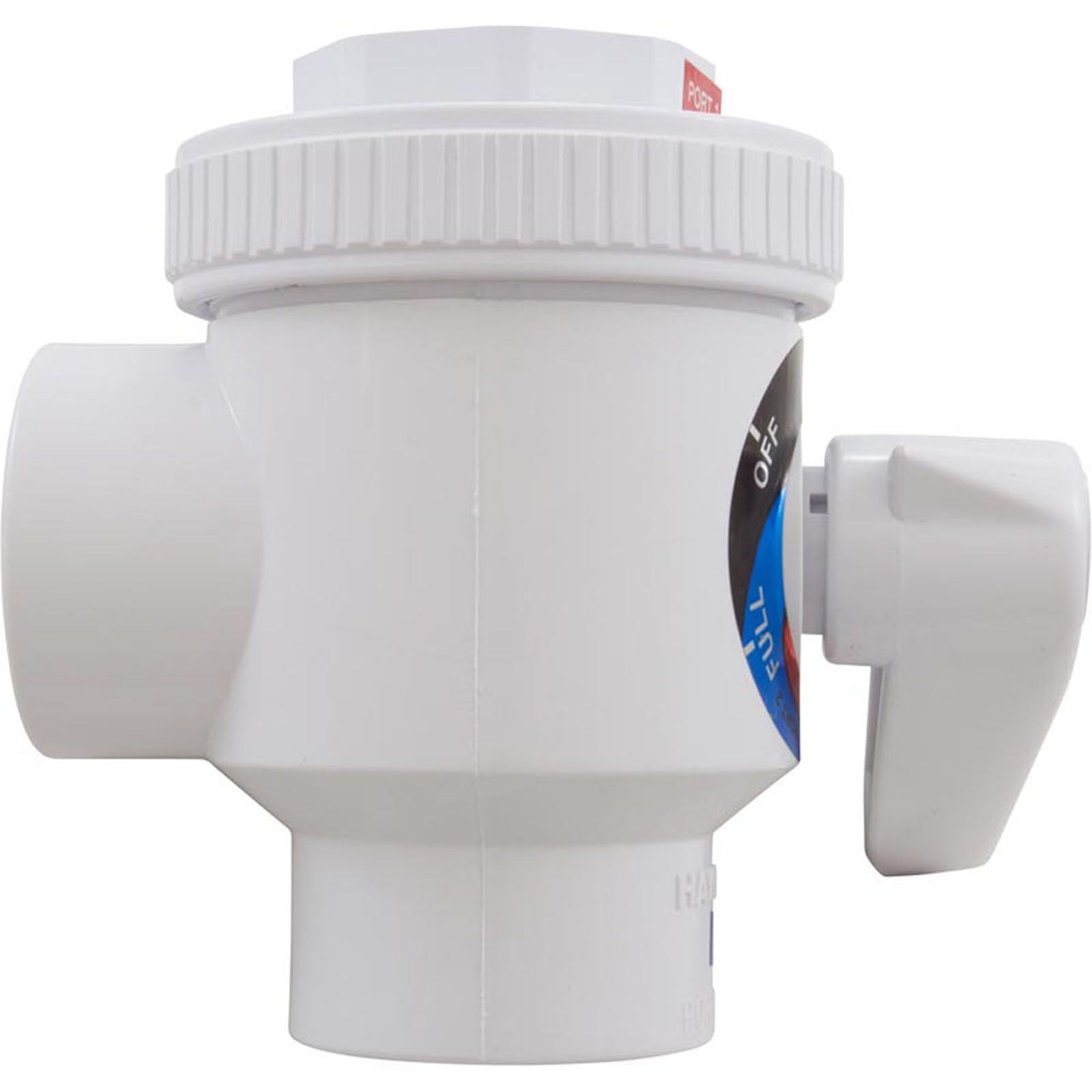

Hayward SP0735 Deluxe 4-Way Ball Valve, 1-1/2" FIP
One valve to direct, mix or shut off flow.
The Hayward SP0735 Deluxe Ball Valve is a 4-way valve with 1-1/2" female pipe threads. Hayward's owner's manual calls it a multi-functional valve that directs, controls, mixes, proportions or completely shuts off flow, rated for pool or spa service to 50 PSI.
Why PST Customers Pick This
Directs, Mixes or Shuts Off
Hayward says the 4-way valve allows flow to be directed, controlled, mixed, proportioned or shut off completely, with the two side ports color coded to the valve label.

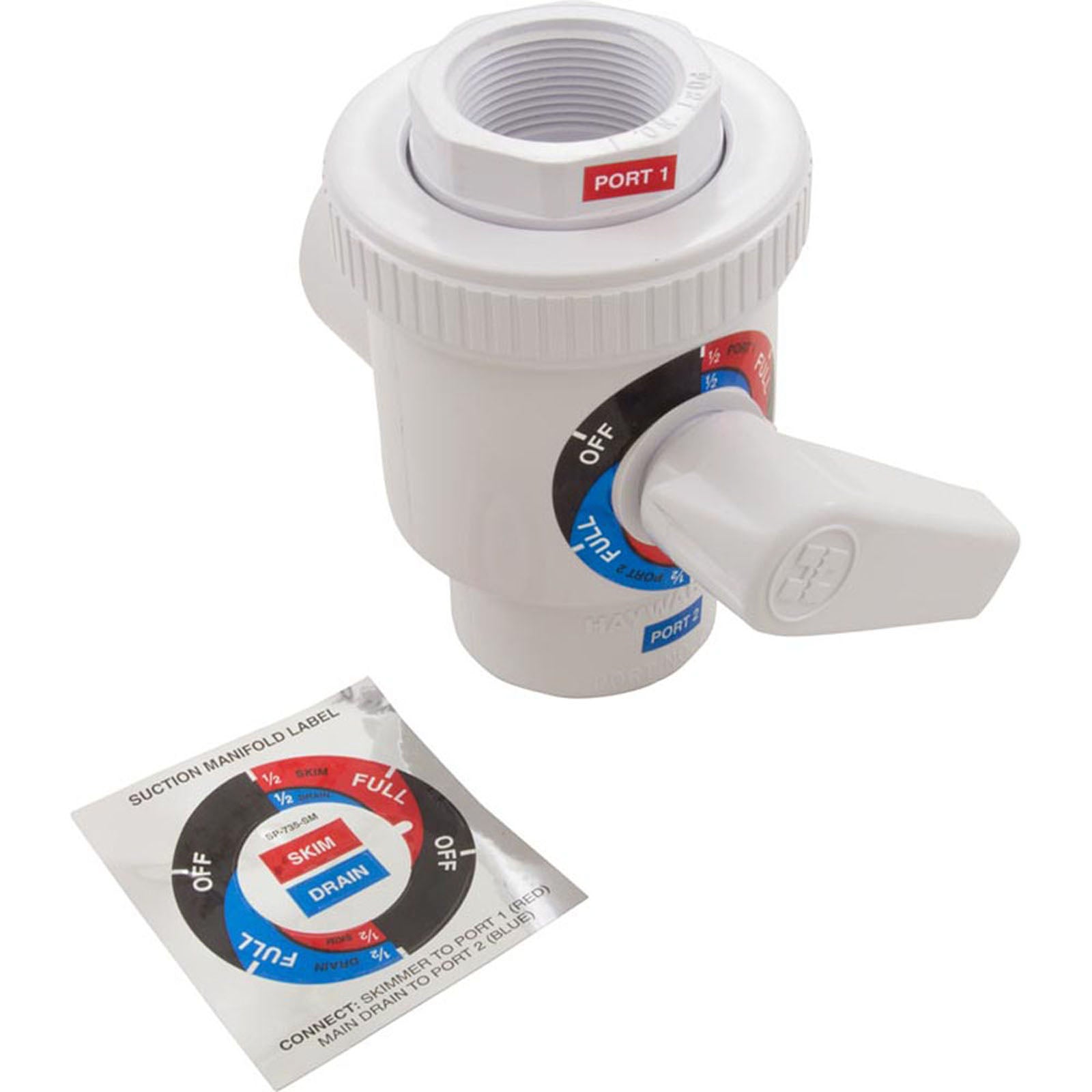

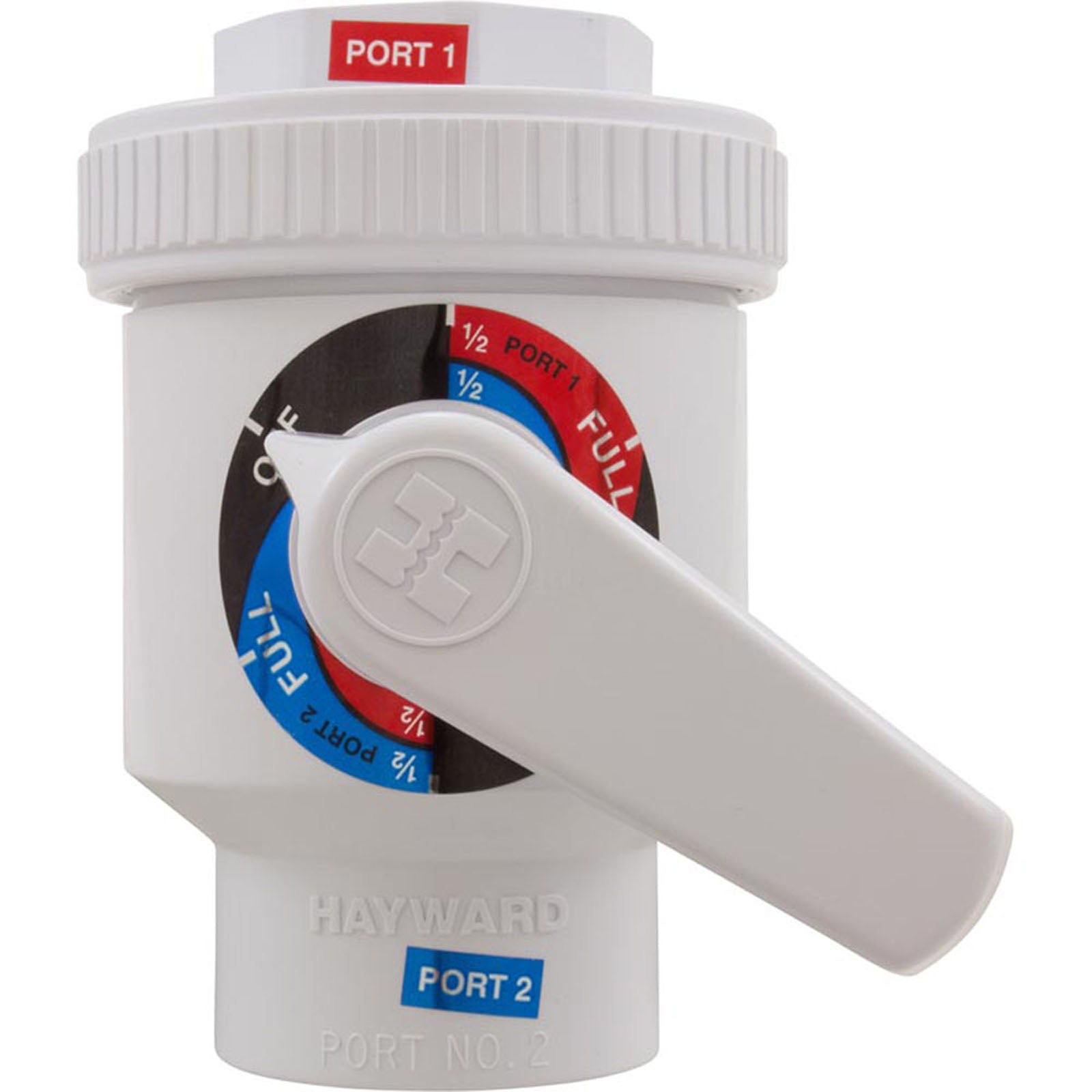

Dial Handle Shows the Setting
Hayward lists a dial handle that controls flow and shows the valve setting, with "FULL" and "OFF" positions on the label.
Teflon Seats, Union Ends
Hayward says Teflon seats and union end connectors accurately align the ball and provide a dependable sealing surface.
Corrosion-Resistant Parts
Hayward says all components are made of corrosion resistant materials allowing for proper function over an extended life, and lists the body material as ABS.
Serviceable Parts
Hayward's manual lists the handle, stem, O-ring set, valve seat set, 4-way ball, end connector and adjusting nut as separate spare parts.
Tightening Notice
Hayward's manual says to tighten the threaded joint with a strap wrench only, never a stillson type wrench, and only 1/2 to 1-1/2 turns past hand tight, because tightening beyond that may induce excessive stress that could cause failure. Hand tighten the assembly nut and do not overtighten it.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | SP0735 |
| Hayward Description | Deluxe Ball Valve, 4-way, 1 1/2" FIP |
| GTIN / UPC | 610377045292 |
| SKU | PST-_SP0735 |
| Pool Type | In Ground |
| Valve Design | |
| Valve Style | 4-way ball valve |
| Ports | Three ports in the body, four in the ball; two directional side ports and one common port |
| Connection | 1-1/2" female thread (FIP) |
| Body Material | ABS |
| Seats | Teflon |
| Handle | Dial handle with setting indicator |
| Ratings | |
| Maximum Pressure | 50 PSI (pool or spa service) |
| Maximum Water Temperature | 150°F |
| Warranty and Documents | |
| Parts Warranty | 1 year (Hayward) |
| Labor Warranty | None |
| Hayward Manual | 4 Way Ball Valve Owner's Manual IS0735 Rev B |
Frequently Asked Questions
How does the 4-way valve work?
Hayward says the SP0735 4-way valve has three ports in the body and four ports in the ball. The two side ports are directional and the third port is common, and the common port can connect to either the suction or the discharge line.
Can it split flow between two lines?
Yes. Hayward says that with the handle between "FULL" and 1/2 / 1/2 the valve gives simultaneous flow in both port directions, and at 1/2 / 1/2 flow is equal to or from both ports. Turning the handle toward "FULL" for a port increases flow for that port and decreases it at the opposite port.
Is there a socket version?
Hayward's manual covers two models, the threaded SP0735 and the female socket SP0735S. This listing is the threaded SP0735 with 1-1/2" female threads.
What are the pressure and temperature ratings?
Hayward's manual rates the valve for swimming pool or spa service to 50 PSI maximum at water temperatures not to exceed 150°F.
Can I replace parts inside it?
Hayward's manual lists the handle (SPX0735D), stem (SPX0735F), O-ring set (SPX0735GH), valve seat set (SPX0735P2), 4-way ball (SPX0735C), end connector (SPX0735B) and adjusting nut (SPX0735E) as separate spare parts.
Order the SP0735 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 1-Year Hayward Parts Warranty
- Authorized Hayward Dealer
Additional Info
| Category | Parts Pool Parts Pool Valve Parts |
| SKU | PST-_SP0735 |
| MPN | SP0735 |
| Manufacturer | Hayward |
| Weight | 1.33 lb |
