Product Information
Description
Gecko in.ye-5 V3 Spa Control System, 4.0kW Heater
Five outputs, 4kW heat, WiFi ready.

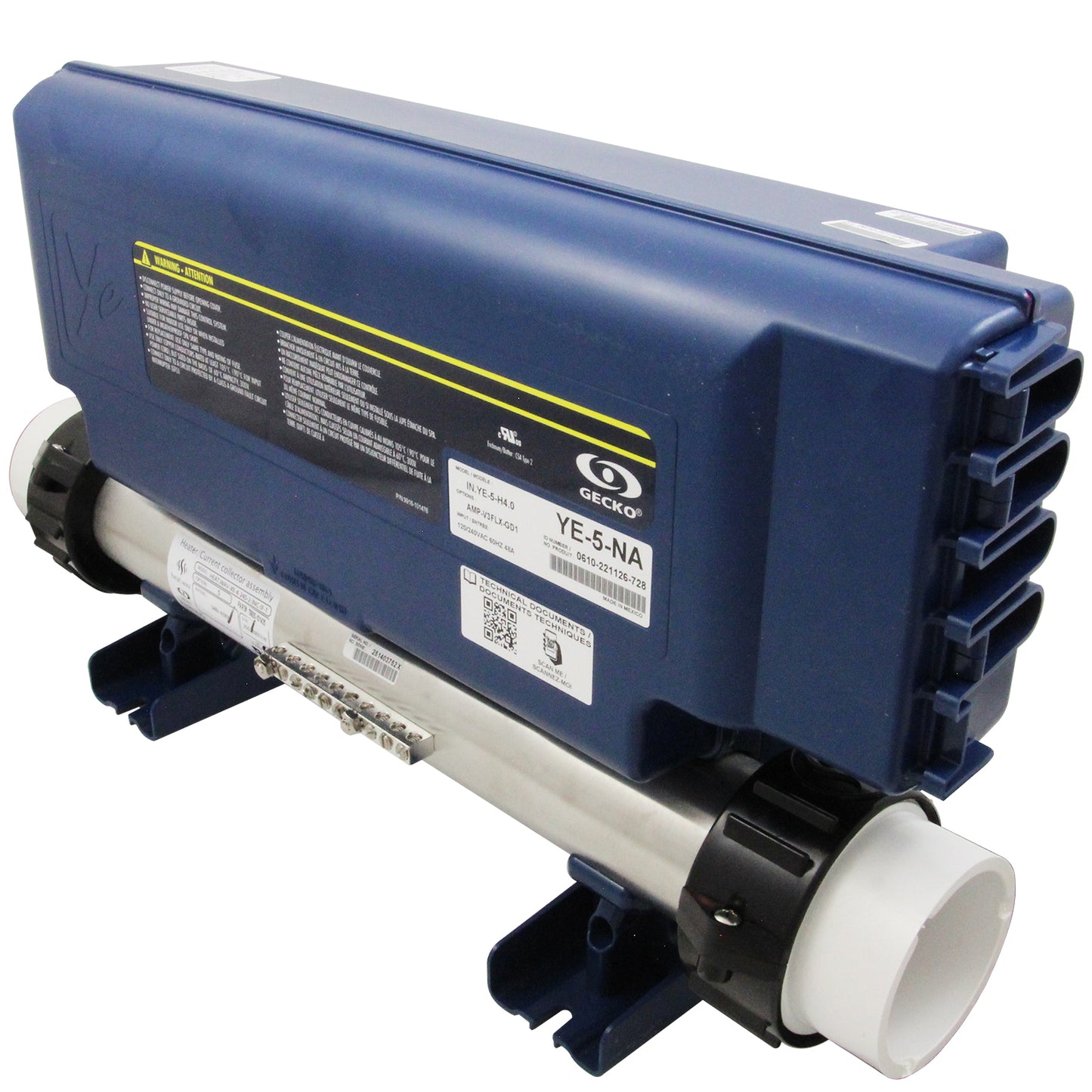

The Gecko in.ye-5 V3 spa control system (MPN 0610-221126-728, SKU PST-58-337-1475) is the brain of your hot tub or swim spa, driving up to five configurable outputs, a 4.0kW heat.wav heater, and a standard 12Vdc light from a single sealed box. It runs one or two-speed Pump 1, one or two-speed Pump 2, a blower, a circulation pump, and an ozonator, and converts between 115v and 230v so it drops into most entry to mid-range systems. Add the optional in.touch2 or in.touch3 module and you run the whole spa from your phone.
Why PST Customers Pick This
Five Configurable Outputs
Drive one or two-speed Pump 1 and Pump 2, plus a blower, circulation pump, and ozonator. Each output can be set to 115v or 230v, so one box covers a wide range of spa layouts.
4.0kW heat.wav Heater
An integrated 4.0kW low-flow heat.wav heater warms your water efficiently, with built-in heater probes and solid-state flow sensing, so there is no mechanical pressure switch to fail or adjust.
WiFi Ready with in.touch
Pair the optional in.touch2 or in.touch3 module to monitor temperature, set schedules, and control your spa from anywhere on your phone. Everything needed to run the spa is built into the pack.
Auto-Detecting Keypads
The in.ye-5 auto-detects your topside and works with a wide range of in.k keypads, including in.k200, in.k450, in.k600 static, and the in.k120 auxiliary panel, so swapping or upgrading a keypad is straightforward.
Solid-State Flow Detection
No pressure switch to clog or recalibrate. Solid-state flow sensing protects the heater from running dry and improves long-term reliability in hard-working spas and swim spas.
Swim Spa Capable
Enough output capacity and configuration flexibility to run swim spa equipment, not just standard hot tubs, which makes it a versatile replacement for larger entry to mid-range systems.
Licensed Install
This 115v/230v spa control must be hard-wired and bonded by a licensed electrician to NEC 680 and local code, on a properly sized GFCI-protected circuit. The box ships configured for 230v appliances, so a conversion is required before running 115v equipment.
Specifications
Frequently Asked Questions
Will the in.ye-5 V3 replace my older in.ye-5 pack?
In most cases, yes. The in.ye-5 V3 (model IN.YE-5-H4.0-AMP-V3FLX-GD1) is the current revision of the in.ye-5 platform and uses the same plug-in cable layout, so it replaces earlier in.ye-5 boxes running the same pumps and heater. Confirm your existing keypad and accessory plugs match before installing.
What is the difference between the in.ye-5 and the in.xe-5?
Both are 5-output, 4.0kW Aeware controls. The in.ye-5 is the value-oriented platform aimed at entry to mid-range spas, while the in.xe-5 adds extra circuit configuration flexibility. If your spa originally shipped with an in.ye-5, stay with the in.ye-5.
What pumps and accessories can it run?
The in.ye-5 supports one or two-speed Pump 1, one or two-speed Pump 2, a blower, a circulation pump, an ozonator, and a standard 12Vdc light. Each output can be configured for 115v or 230v, which covers most entry to mid-range hot tubs and many swim spas.
Is WiFi included?
No. The in.ye-5 is WiFi ready, but app control is added with the optional in.touch2 or in.touch3 module, which is sold separately. Everything else needed to run the spa is built into the control.
Can I install this myself?
Plumbing and plug-in connections are DIY-friendly, but the 115v/230v power feed must be wired and bonded by a licensed electrician to NEC 680 and local code on a GFCI-protected circuit. Do not energize the pack until the wiring has been inspected.
Order the Gecko in.ye-5 V3 From PST
Genuine Gecko OEM control, shipped fast and backed by the PST Pool Supplies service team. Questions about configuration or keypad fit? Reach out before you buy.
Additional Info
| Category | Spa Products Spa Packs |
| SKU | PST-58-337-1475 |
| MPN | 0610-221126-728 |
| Manufacturer | Gecko |
| Weight | 8.7 lb |
