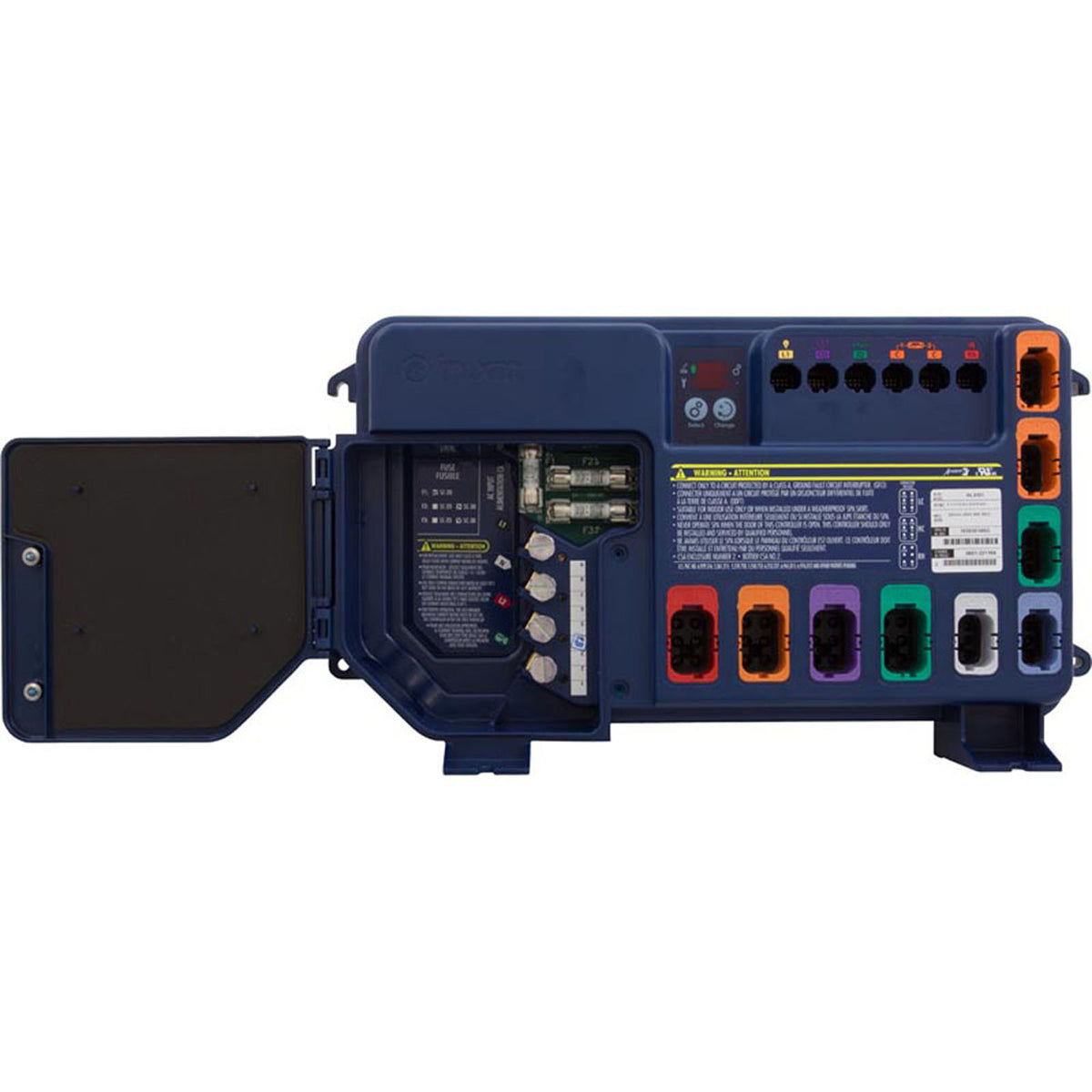

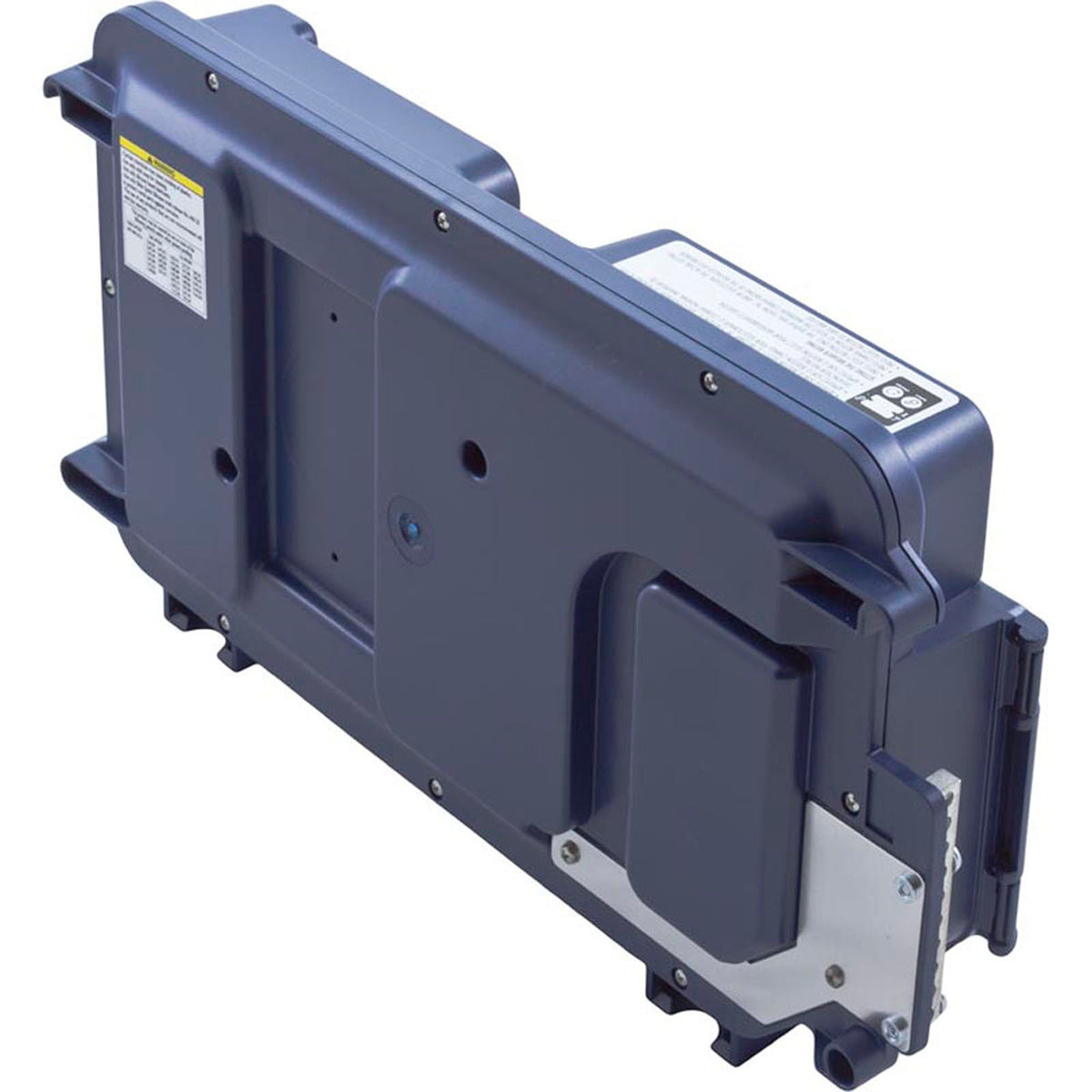

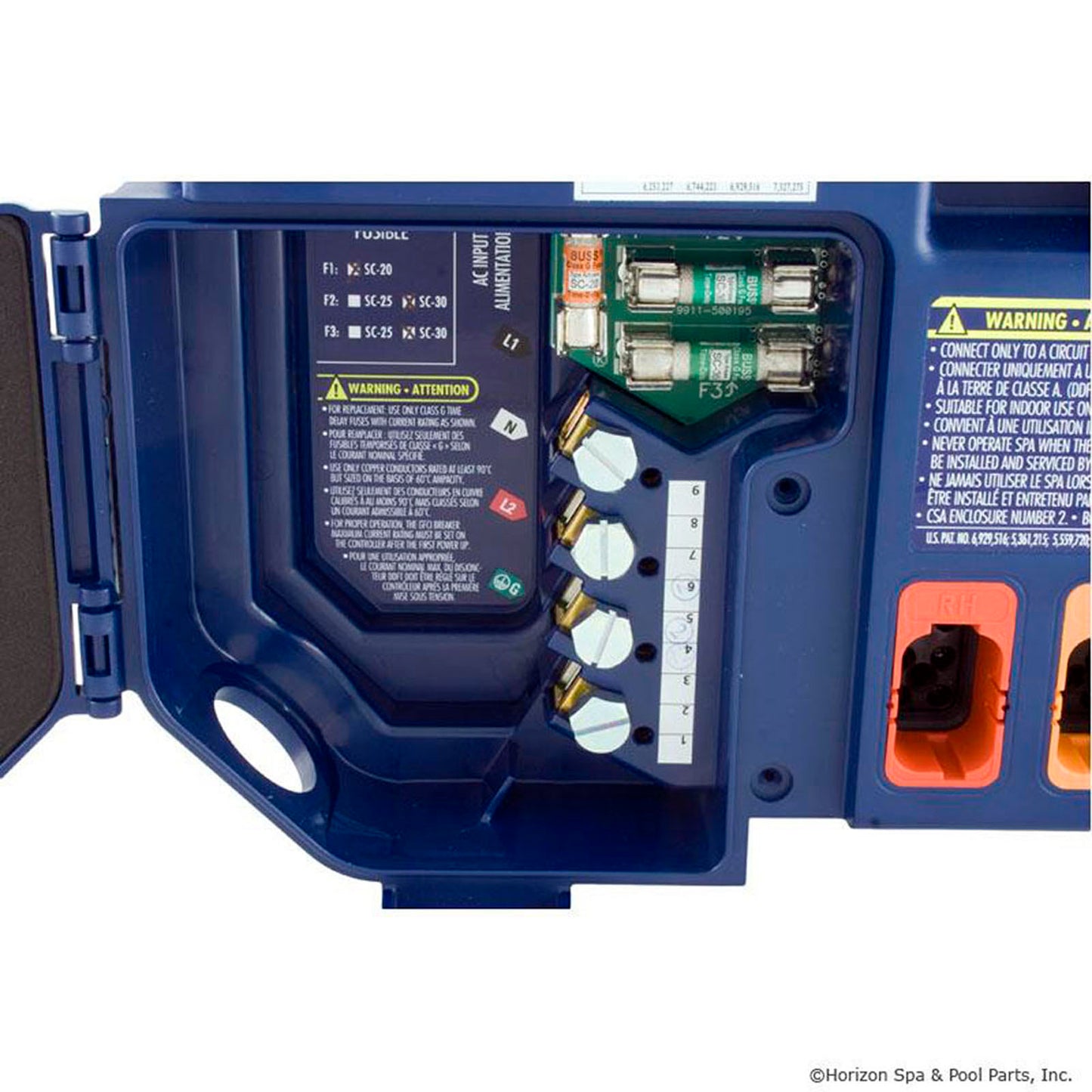

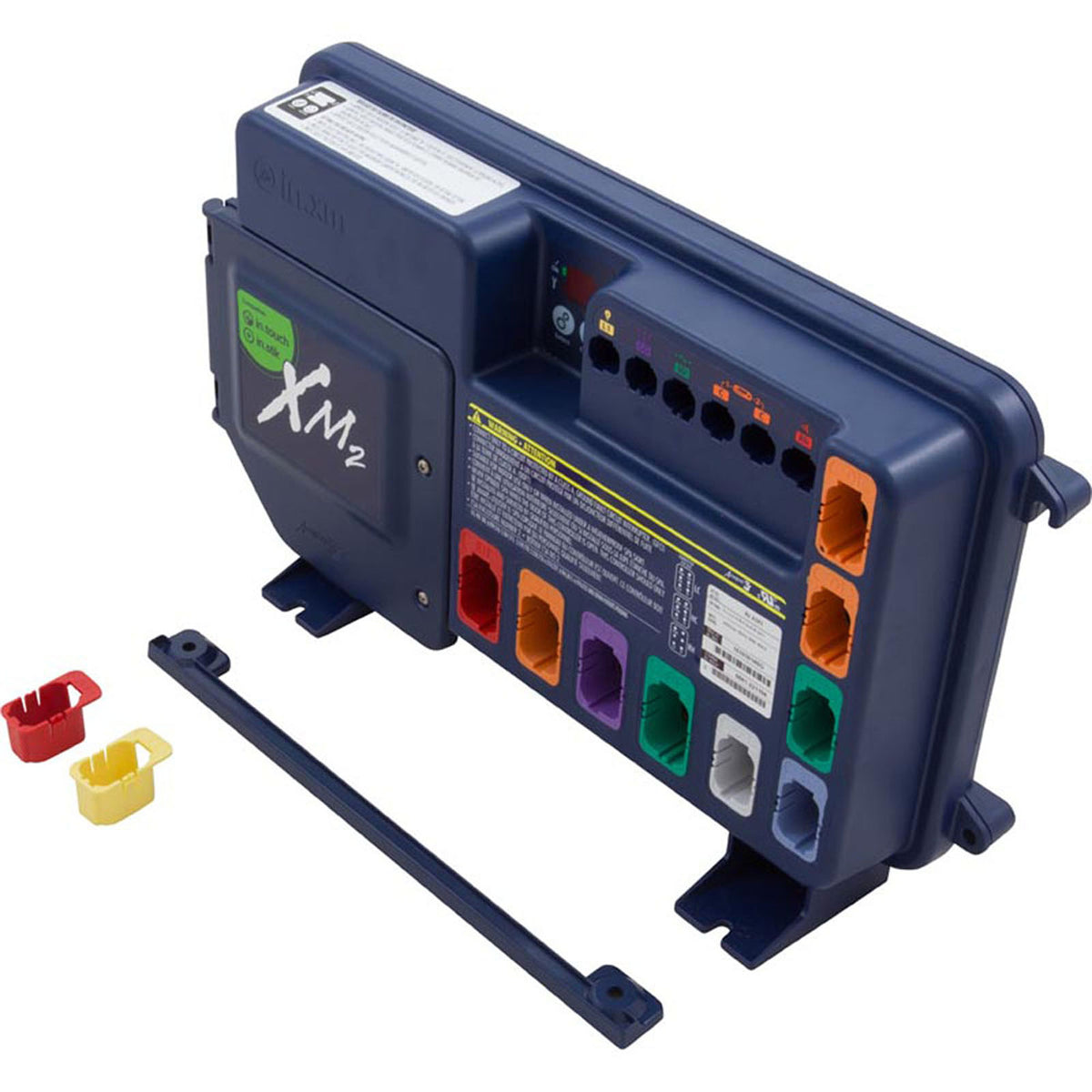

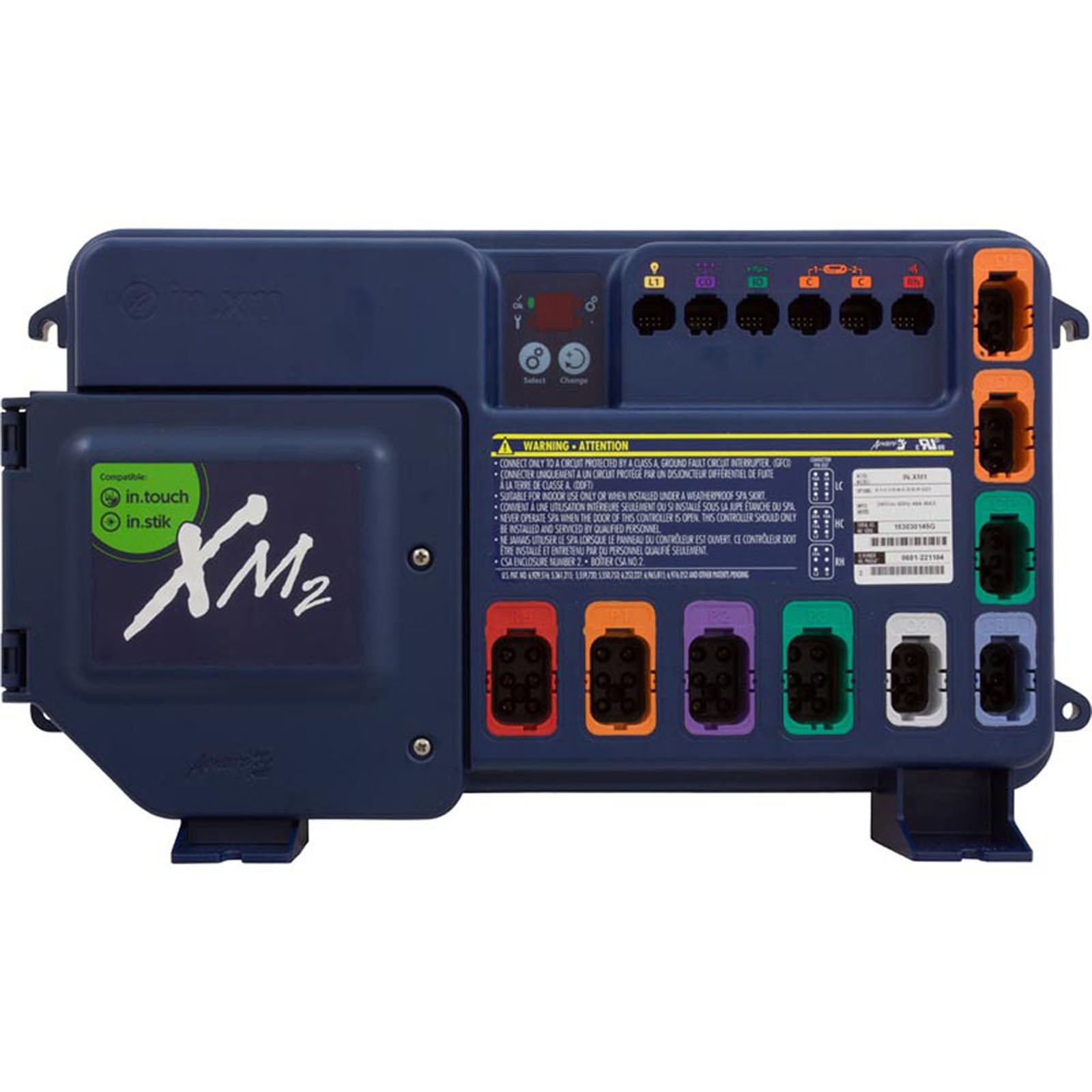

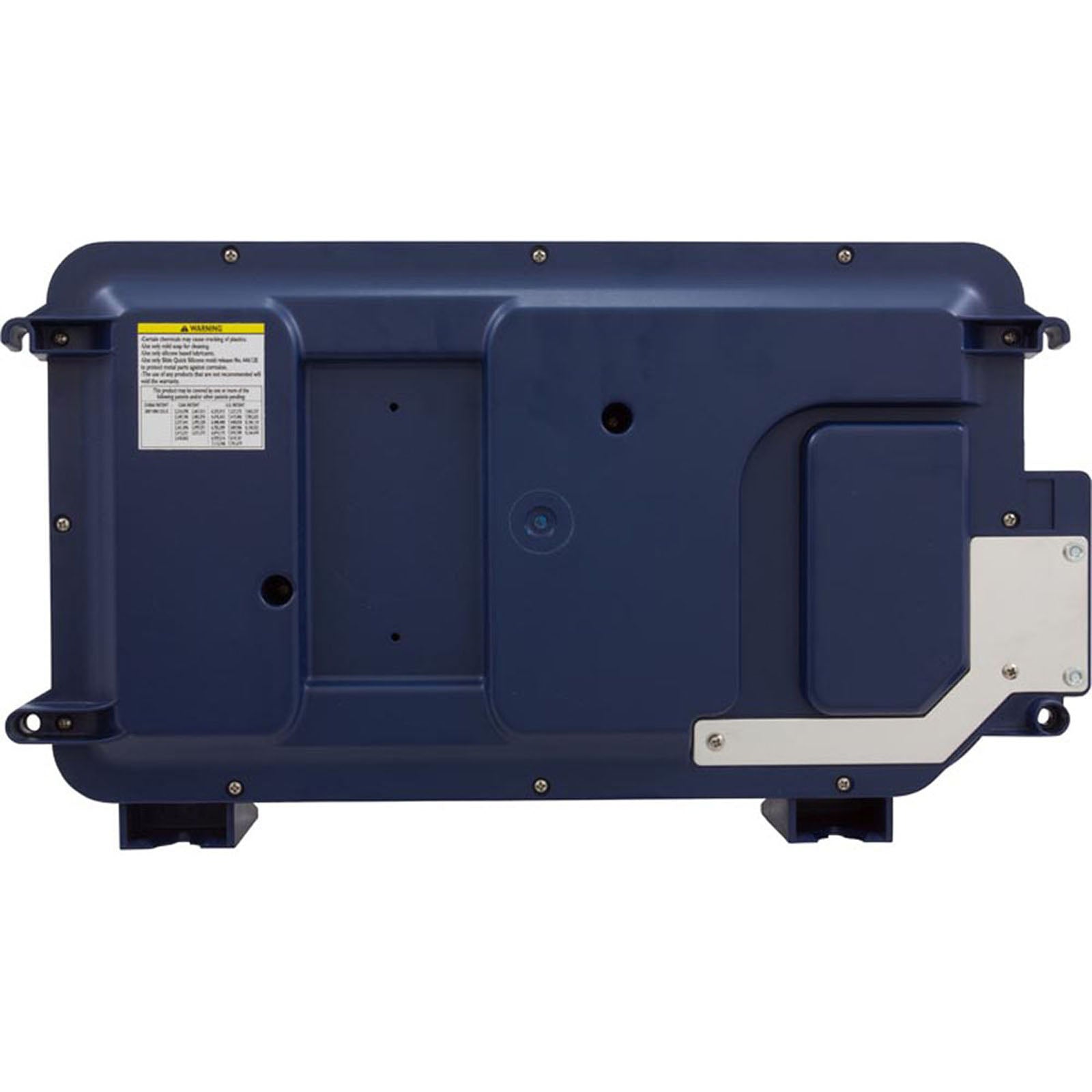

Control, Gecko in.xm2-8, P1, P2, P3, Bl, Cp, Oz, Less Heat, w/o Cords
Control, Gecko in.xm2-8, P1, P2, P3, Bl, Cp, Oz, Less Heat, w/o Cords
Out of stock
Frequently Bought Together
Product Information
Description
This part includes the replacement box only.
IN.XM2-8-1-2-K-K-B-K-O-K-R-GD1
This Control System is WiFi Compatible.
Note: In order for this Control System to become Wi-Fi Capable, you must use it with the Wi-Fi module 59-337-1002.
This innovative in.xm Aeware by Gecko spa control system contains available circuits as described below. To activate the circuit, simply remove the colored key enclosures from the field unit, replace the blanks on the new control box with the key enclosures, and plug in the existing cables. That’s it!
Product Features:
- Output circuit for in.therm remote heating system, 230v.
- High Current Pump 1 circuit, 1 or 2 speed, 230v, 20A max.
- High Current Pump 2 circuit, 1 or 2 speed, 230v, 20A max.
- High Current Pump 3 or HC Blower circuit, 1 speed, 230v, 15A max.
- Four Low Current AC relay-controlled circuits for circulation pump, blower, ozonator, or fiber box, 115v or 230v, 5A max.
- One Low Current AC direct power circuit for audio/visual accessories, 115v, 5A max.
- Installation and Instruction manual.
- Two-Year manufacturer’s limited return and repair warranty.
Control Box Dimensions
- Height: 10"
- Width : 17-13/16"
- Depth : 4"
Additional Info
| Category | Spa Products Spa Packs |
| SKU | PST-58-337-1290 |
| MPN | 0601-221104 |
| Replaces | 0601-221018, 0601-221022, 0601-221030, 3-78-7020, 386875, 9735-150 |
| Manufacturer | Aqua-Flo |
| Weight | 10.15 lb |
