Product Information
Description
This part does not include a topside panel.
This Control System is WiFi Compatible.
IN.XE-5-11-H4.0-1-2-B-O-D-60K-GD1

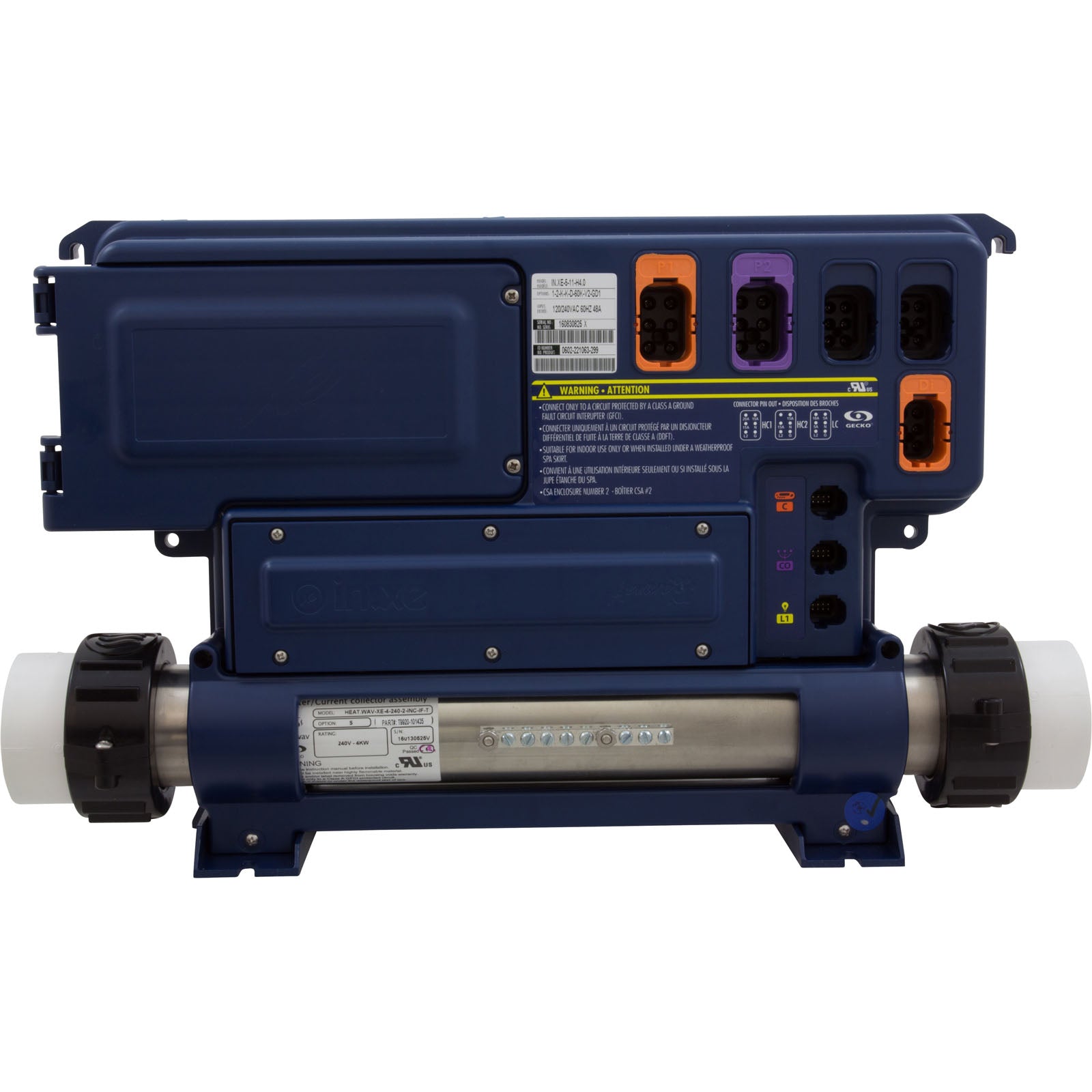

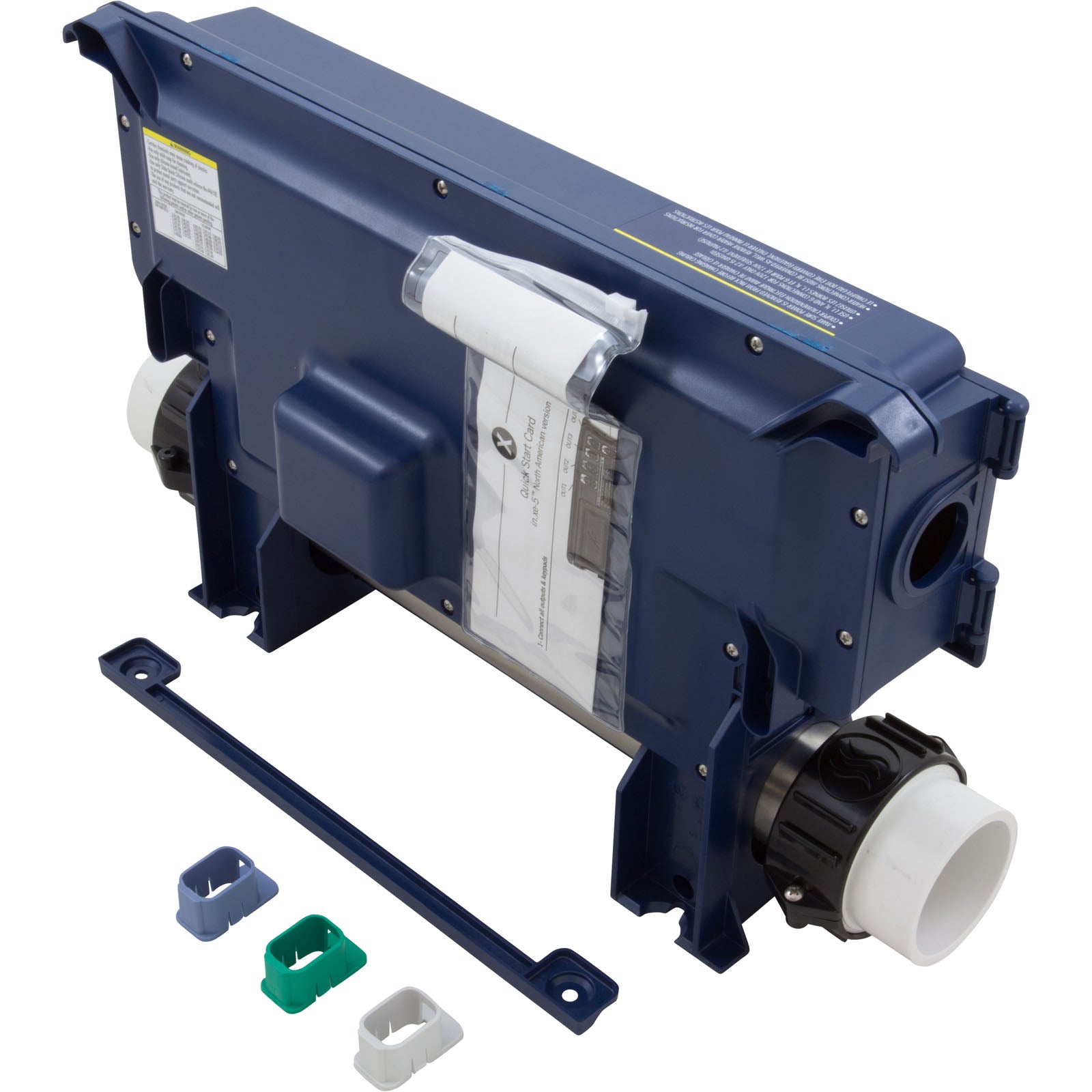

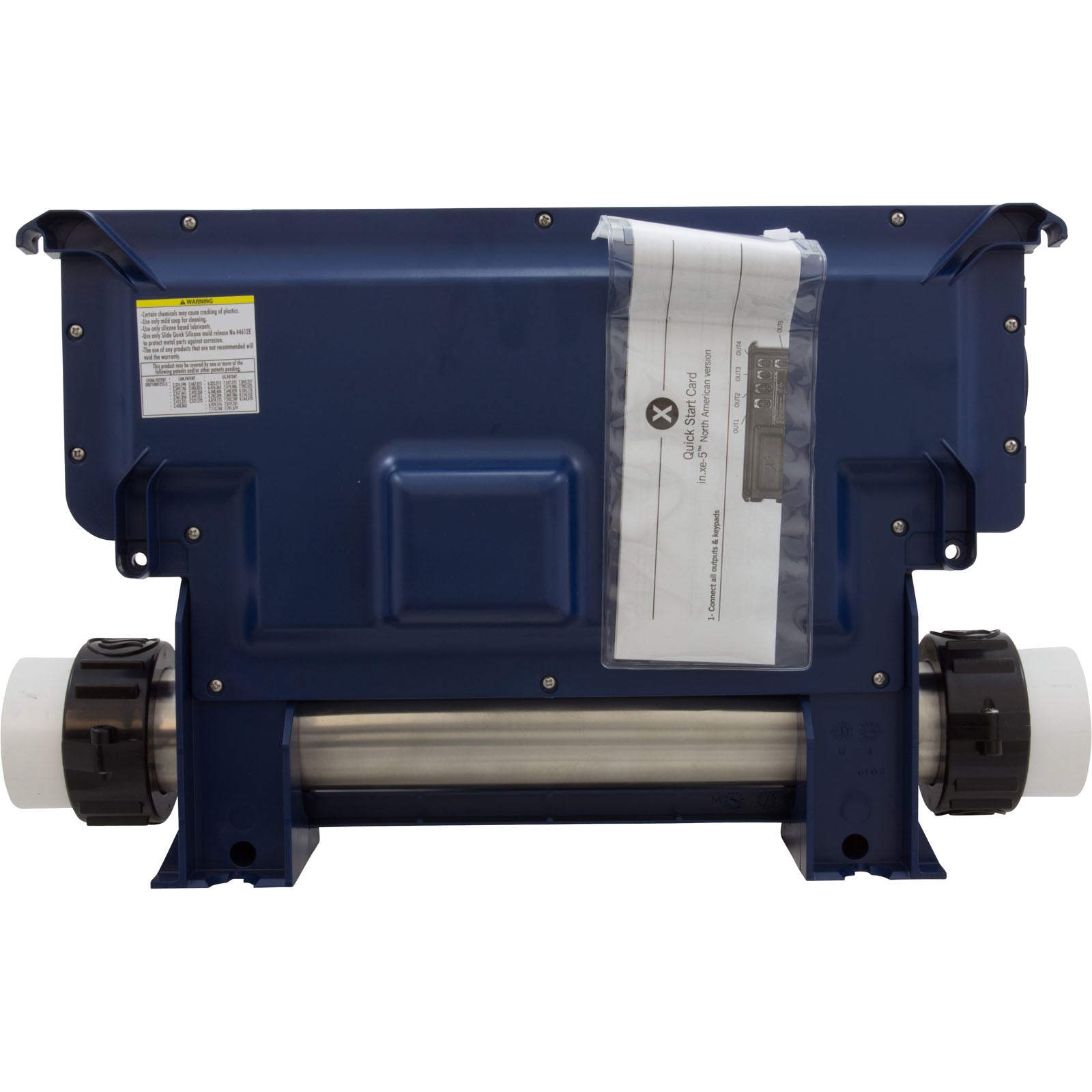

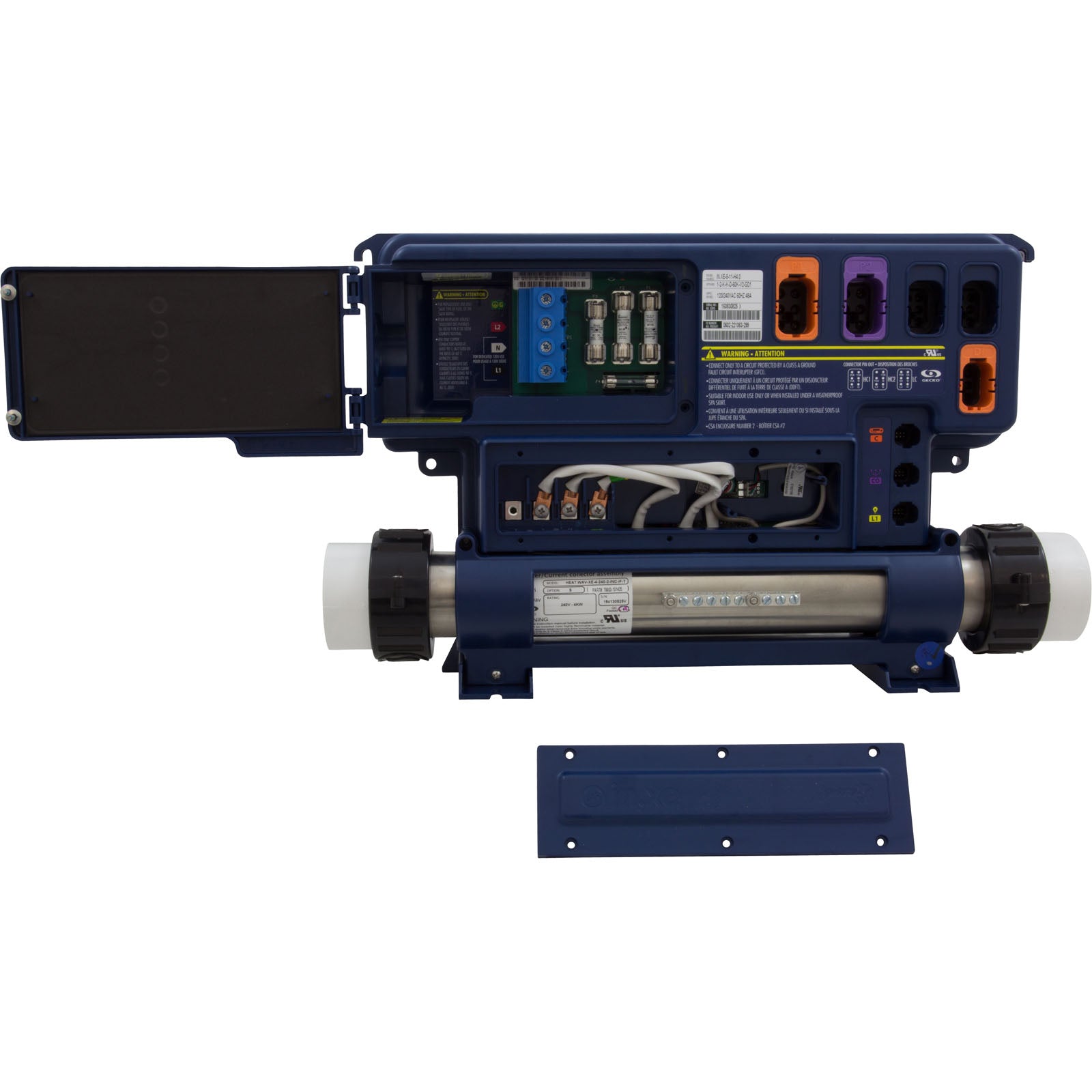

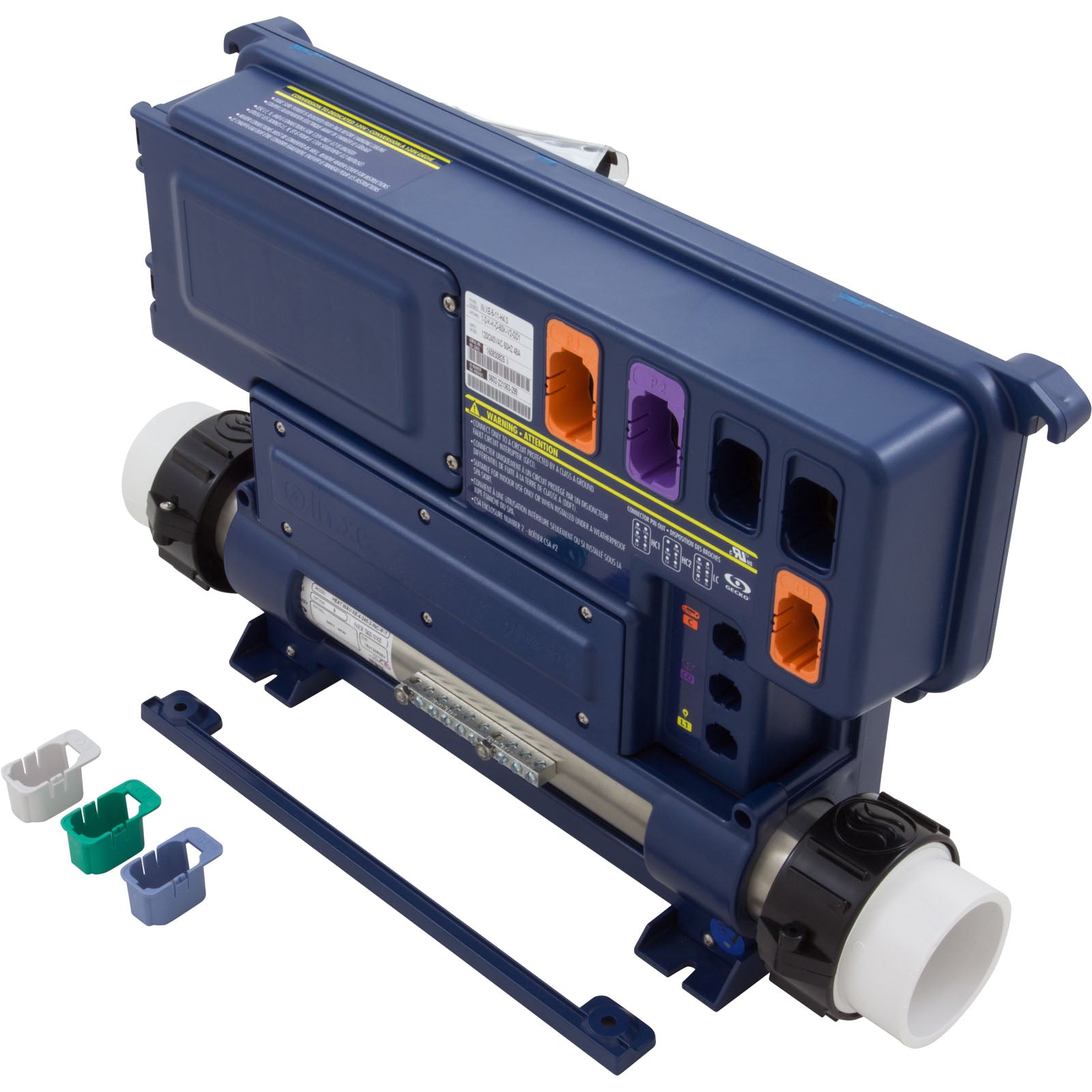

This innovative in.xe Aeware by Gecko spa control system contains available circuits as described below. To activate the circuit, simply remove the colored key enclosures from the field unit, replace the blanks on the new control box with the key enclosures, and plug in the existing cables. That's it!
Features:
- High Current Pump 1 circuit, 1 or 2 speed, 115v or 230v, 20A max
- High Current Pump 2 or HC Blower circuit, 1 speed, 115v or 230v, 20A max
- Two Low Current AC relay-controlled circuits for blower or ozonator, 115v or 230v, 5A max
- One Low Current AC direct power circuit for audio/visual accessories, 115v, 5A max
- 4.0kW heat.wav heater, 2”s tailpieces x 15” length
- Installation and Instruction manual
- Two-Year manufacturer’s limited return and repair warranty
- Height: 11-3/4"; Width: 19-5/8"; Depth: 5"
Additional Info
| Category | Spa Products Spa Packs |
| SKU | PST-58-337-1295 |
| MPN | 0602-221063-299 |
| Replaces | 0602-221001, 0602-221015, 0602-221022, 0602-221063-299, 3-72-7018, 304401, 602221022, 9735-170 |
| Manufacturer | Aqua-Flo |
| Weight | 12.95 lb |
