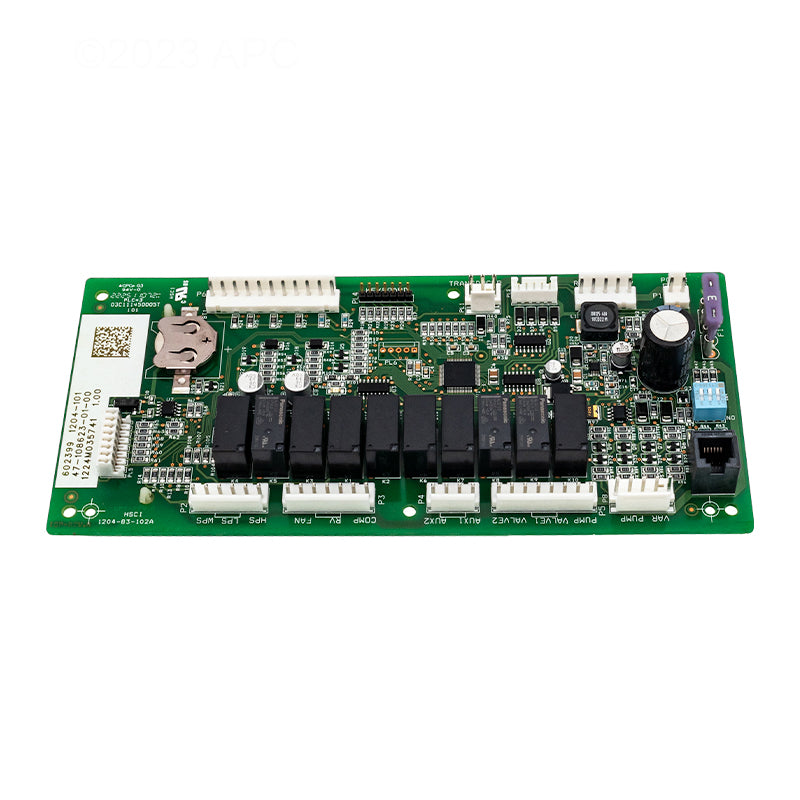

Raypak 100-10000347 Digital Control Board with LCD for Heat Pump Models 5450, 6450 and 8450
Control board and display in one part.
The Raypak 100-10000347 digital control board (PST-10010000347) is the control board Raypak lists in the parts list for its 5450, 6450 and 8450 heat pump pool and spa heaters. Raypak's current manual notes that this board now carries the LCD display, replacing both the earlier H000302 board and the separate H000336 display. Raypak's replacement instructions for part 100-10000347 also cover models 2450, 3450, 4450, 9350, 9353, 10353, 10354 and 10355.
Why PST Customers Pick This
Board and Display in One
Raypak obsoleted the separate H000336 LCD display and updated the control board from H000302 to 100-10000347, which now contains the LCD display.
Two-Line Backlit Screen
The heater control shows its information on a 2-line, 16-character backlit LCD. The backlight stays on for 15 minutes after power-up and after any button press.
Settings Survive Outages
The control carries a backup battery to hold its settings through power outages. Raypak calls for a BR2032, 3V battery when it needs replacing.
High Water Temperature Limit
The control shuts off the compressor if either water sensor reads 108°F (41°C) or higher and shows "Hi Water Temp" until both sensors drop below 103°F and you press UP.
Mounting Hardware Listed
Raypak's instructions list the kit as the digital PC board, LCD window gasket, standoffs, screws and washers, and warn that failing to replace all of the kit parts could cause the new parts to fail.
Set the Model After Install
After the swap, the display asks for the model type: HEAT ONLY, POWER DEFROST or HEAT/COOL. Pick the one on your heater's data label and press MENU/SET.
Shock Hazard
Raypak warns that electrical power to the heat pump must be disconnected before this work to avoid component damage, serious injury or death. Raypak's instructions are written for qualified individuals trained in installing and servicing this equipment, and some states require service personnel to be licensed.
Specifications
| Identification | |
|---|---|
| Manufacturer | Raypak |
| Raypak Part Number | 100-10000347 |
| Raypak Description | Control Board Digital (with LCD Display) |
| SKU | PST-10010000347 |
| Supersedes | H000302 control board and H000336 LCD display (obsoleted) |
| Fitment | |
| Parts List Models | 5450, 6450 and 8450 heat pump pool and spa heaters |
| Also Covered by Raypak's Replacement Instructions | 2450, 3450, 4450, 9350, 9353, 10353, 10354 and 10355 |
| Model Types | HEAT ONLY, POWER DEFROST or HEAT/COOL (selected on the board) |
| Display and Control | |
| Display | 2-line, 16-character backlit LCD |
| Backlight | On for 15 minutes after power-up and after any button press |
| Backup Battery | BR2032, 3V |
| High Water Temperature Limit | Compressor off at 108°F (41°C) or higher |
| Board Connectors | 8 multi-pin connectors, keyed to prevent miswiring |
| Communication Jack | J1, for an industry standard RJ11 communication cable |
| Kit Contents (per Raypak) | |
| Board | (1) digital PC board |
| Gasket | (1) LCD window gasket |
| Screws | (4) 1/4 in #6 screws and (2) 3/8 in #6 screws |
| Washers and Standoffs | (4) plastic cup washers, (4) retainer washers and (2) 1/4 in PC board standoffs |
Frequently Asked Questions
Do I also need a separate LCD display?
No. Raypak removed the separate H000336 LCD display from the parts list as obsolete and notes that the 100-10000347 control board now contains the LCD display.
Which Raypak heat pumps use this board?
Raypak's parts list shows 100-10000347 as the control board for the 5450, 6450 and 8450. Its replacement instructions for the part also cover the 2450, 3450, 4450, 9350, 9353 and 10353 through 10355. On the 9350 to 10355 models, check your heater's manufacture date against Raypak's parts list, since Raypak lists a different board, H000029, for some units built before May 15, 2017.
What has to be set after the board is installed?
The model type. If the unit type has not been set, the control prompts for HEAT ONLY, POWER DEFROST or HEAT/COOL before it will run anything. Choose the type on the heater's data label and press MENU/SET. Raypak's manual also says to set the EXV option to Disabled during a board replacement when the unit has a TXV.
Who should replace the board?
Raypak writes its instructions for qualified individuals trained in this equipment and notes that some states require a license. Its procedure starts with turning off the water and shutting off all electrical power at the breaker panel and at the unit's power switch.
