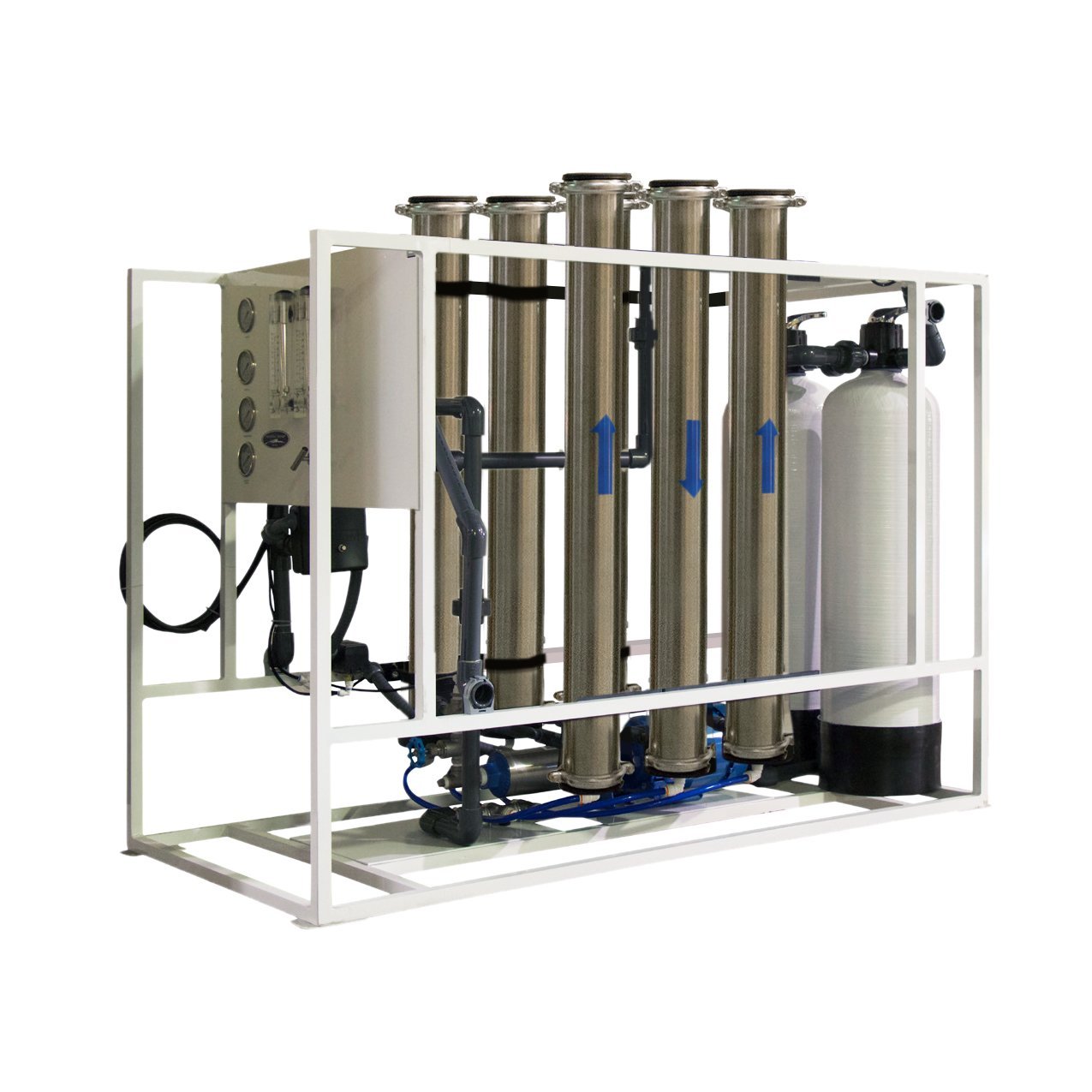

Commercial Reverse Osmosis Water Filter System - 10000 Gallons Per Day

Commercial Reverse Osmosis Water Filter System - 10000 Gallons Per Day

Commercial Reverse Osmosis Water Filter System - 10000 Gallons Per Day

Crystal Quest Water Filters
SKU: CQE-CO-02031
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {}
$15,832.65
$15,832.65

Fast Shipping

Order now to have your order shipped next business day.

Easy Returns

Enjoy peace of mind with a 30-day Return Policy.

View full details

Product Information

Description

REVERSE OSMOSIS | COMMERCIAL WATER FILTRATION SYSTEM 10000 GPD


Optional Features:

  • Stainless Steel Housings: Two 2.5” x 21” PuroTech Stainless Steel Membrane Housings 3/8” FNPT
  • TDS Meter: One Panel Mount TDS Meter, Provides you with accurate readings of the feed and product water quality.
  • Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
  • Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
  • Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
  • Additional cost will apply to listed price for custom modification based on water laboratory test report.



###



  • Station Design
  • Gallons Per Day: 10000 @ 77° F
  • Dimensions (Approx.): 49" x 33" x 54"
  • Weight (Approx.): 385 lbs.
  • Concentrate Re-Circulate: Optional
  • Auto Flush: Optional
  • Element Size (in.): 4040 TFC HF1
  • Elements (Qty.): 6
  • Motor HP: 3
  • Voltage: 110 or 220 Volts AC
  • Hertz: 60 or 50 cycles
  • Feed Connection: 2"
  • Product Connection: 1"
  • Waste Connection: 1"
  • Minimum Feed Pressure: 45 psi
  • Minimum NaCl - % Rejection: 96%
  • Minimum Feed (GPM): 14
  • Maximum Hardness: 15 Grains / Gallon
  • Maximum TDS: 2000 ppm
  • Operating Pressure: 150 psi
  • Maximum NaCl - % Rejection: 98.5%
  • Maximum Feed (GPM): 30
  • pH Range: 3 - 11
  • Maximum Temperature: 105° F
  • Membrane: Six 4" x 40" TFC HF1 Membranes, For rejection of impurities and high flow.
  • Membrane Housing: Six 4" x 40" Champ Membrane Housing, Features a patented design and requires no tools for servicing.
  • Pump & Motor: One Gould's 3 HP Multistage Pump and Motor, 110 or 220 volts AC, 60 or 50 hertz, single Phase, designed for continuous high pressures.
  • Frame: Aluminum, White Powder Coated, Corrosion resistant, and light weight.
  • Sediment Filter: One 18" FSI Bag 10 Micron Sediment Filter, Removes sediments and protects the system.
  • Sediment Filter: One 4.5" x 20" 5 Micron Polyethylene Sediment Filter, removes sediments and protects the system down to 5 microns.
  • GAC/ERA Filter: One 4.5" x 20" Coconut Shell GAC/Eagle Redox Alloy Filter.
  • Filter Housing: One 4.5" x 20" Big Grey Double O-Ring Filter Housing, Offers durability and improved sealing capabilities.
  • Pressure Gauges: Two 2.5" Gauges, 0-300 PSI, Panel Mount, Glycerin Filled, and Two 1.5" Dry Gauges, 0-160 psi, Top Mount, For monitoring the system's operating pressure, the filter and carbon operating pressure.
  • Low Pressure Switch: One McCann's Low Pressure Switch Safety, Device to protect the pump from running dry when there is insufficient feed water pressure.
  • High Pressure Switch: One Square D High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi and stops when the pressure reaches 60 psi
  • Solenoid Valve: One Solenoid Valve with manual override, 110 or 220 Volts AC, 60 or 50 Hertz, Assists with the on/off functionality of the system.
  • Manual Flush Valve: One 1/2" Brass Needle Valve, Regulates the product to waste ratio (systems recovery).
  • Computer Controller: One Rotrol S-150 Computer Controller, 110 or 220 volts AC, with built-in TDS monitor, pre-treat lockout, tank full contacts, low pressure monitoring, and alarm.
  • Flow Meters: One Product (0-10 GPM) & One Waste (0-20 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio, and monitor systems performance.
  • TDS Meter: One Panel Mount TDS Meter, provides accurate readings of the feed and product water quality.
  • Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.

    •

                  Additional Info

                  Category Home & Garden Water Treatment & Coolers Commercial & Industrial Water Treatment
                  SKU CQE-CO-02031
                  MPN
                  Manufacturer Crystal Quest Water Filters
                  Weight 385.0 lb
