Pentair Purex SM/SMBW 4000 D.E. Filter Clamp Ring Assembly with Knob (197020)
Pentair Purex SM/SMBW 4000 D.E. Filter Clamp Ring Assembly with Knob (197020)
35 in stock
Ships from: Tucson, AZ | Newnan, GA
Genuine OEM product, sold with full manufacturer warranty support.
- Next day Shipping Mon–Fri
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description

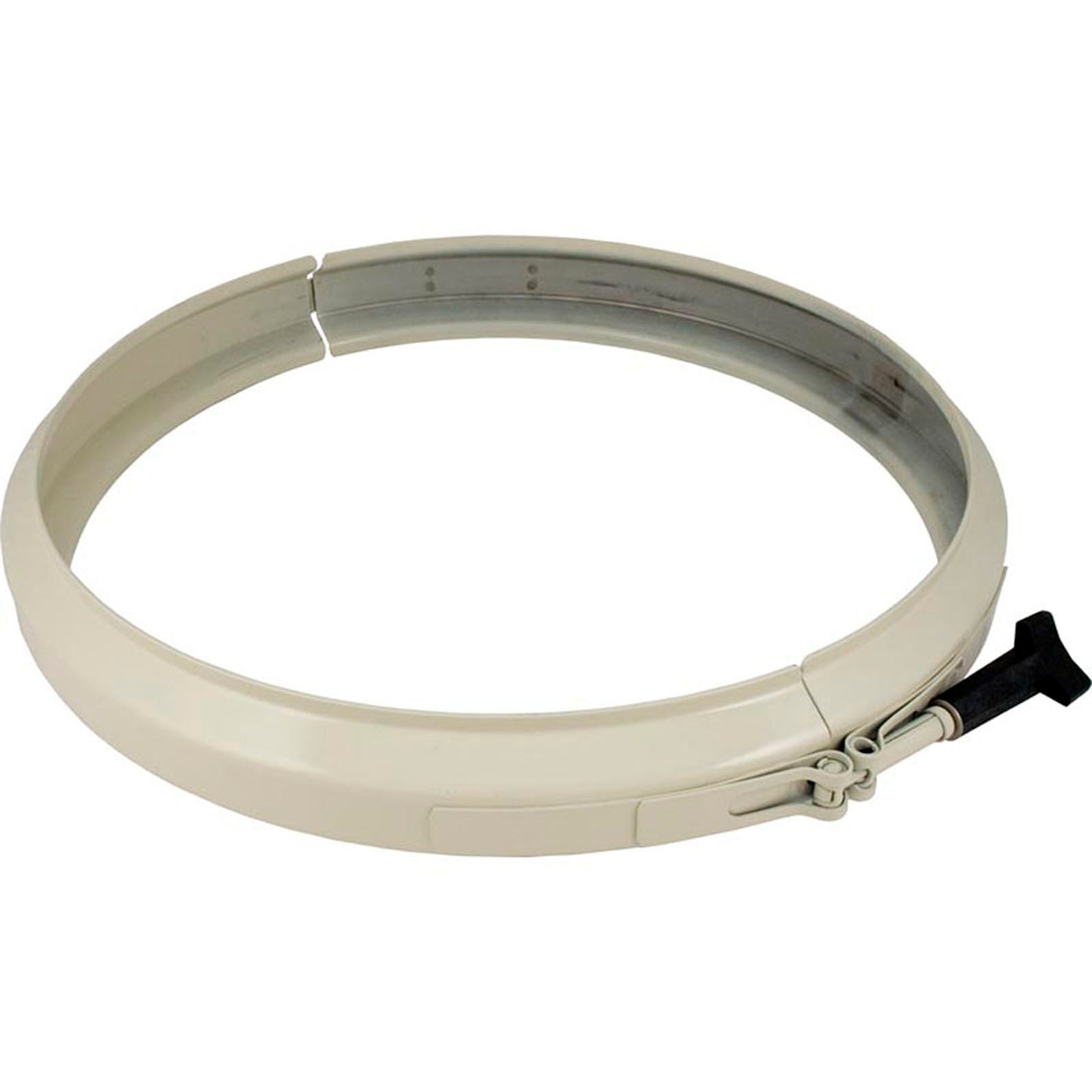

Pentair 197020 Clamp Ring Assembly with Knob for SM and SMBW 4000 Series D.E. Filters
Holds the lid on Pentair (Purex) SM and SMBW 4000 Series filters, models 4024 to 4060
The Pentair 197020 clamp ring assembly fits around the tank flanges of Pentair (Purex) SM and SMBW 4000 Series fiberglass D.E. filters to hold the lid on, models 4024 through 4060. It tightens with an adjustment knob, hand tight only. Because the filter runs under pressure, Pentair says to replace a worn or damaged clamp right away.
| Manufacturer | Pentair |
|---|---|
| Part Number | 197020 |
| Pentair Description | Clamp ring assembly |
| Parts List Item | No. 3, SM and SMBW 4000 Series parts list |
| SKU | PST-14-110-1166 |
| Fits | Pentair (Purex) SM and SMBW 4000 Series fiberglass D.E. filters |
|---|---|
| Filter Models | 4024, 4036, 4048, 4060 |
| Filter Tank | 20 in. diameter fiberglass tank |
| Quantity per Filter | 1 |
| Includes | Clamp ring with adjustment knob |
|---|---|
| Tightening | Adjustment knob, hand tighten only |
| Replacement Knob, Filters Built After 1998 | 076033 |
| Replacement Knob, Filters Built Before 1998 | 071136Z |
| Lid O-Ring (sold separately) | 071439 |
| Maximum Operating Pressure | 50 psi |
|---|---|
| Maximum Water Temperature | 104 F (40 C) |
- Pentair SMBW 4024, 4036, 4048 and 4060 D.E. filters
- Pentair SM 4000 Series D.E. filters, 4024 to 4060
How do I take the clamp ring off and put it back?
Turn the pump off, open the air relief valve and wait until all pressure is relieved. Partially unscrew the adjustment knob and release the head of the T-bolt from the slotted bracket. To refit, seat the T-bolt head in the bracket and tighten the knob by hand only.
Can I replace just the knob?
Yes. Pentair lists knob 076033 for filters built after 1998 and 071136Z for filters built before 1998.
Does it come with the lid O-ring?
Pentair lists the 4000 Series lid O-ring as its own part, 071439. When the lid is off, the manual says to clean the O-ring and its channel and lubricate it with a non-water-soluble grease or silicone lubricant.
Additional Info
| Category | Parts Pool Parts Filter Parts |
| SKU | PST-14-110-1166 |
| MPN | 197020 |
| Manufacturer | Pentair |
| Weight | 11.25 lb |
