Pentair Rainbow 10 in. Chlorinator Extension for 320 and 300 Feeders (R172087)
Pentair Rainbow 10 in. Chlorinator Extension for 320 and 300 Feeders (R172087)
Low stock: 1 left
Ships from: Newnan, GA
Genuine OEM product, sold with full manufacturer warranty support.
- Today Shipping 5 hrs 17 mins left
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description
- Genuine Pentair Part
- About 2x Tablet Capacity
- Free Shipping

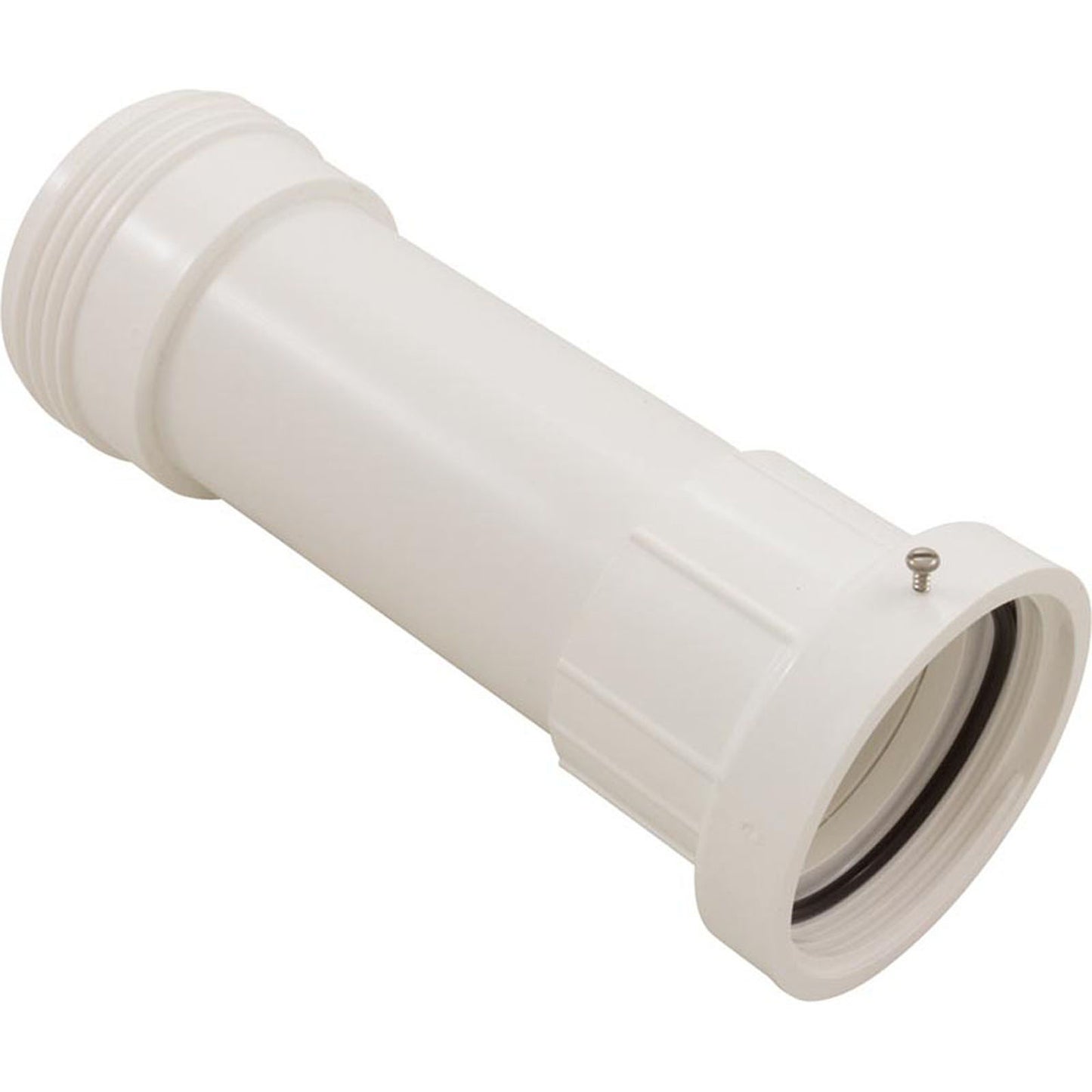

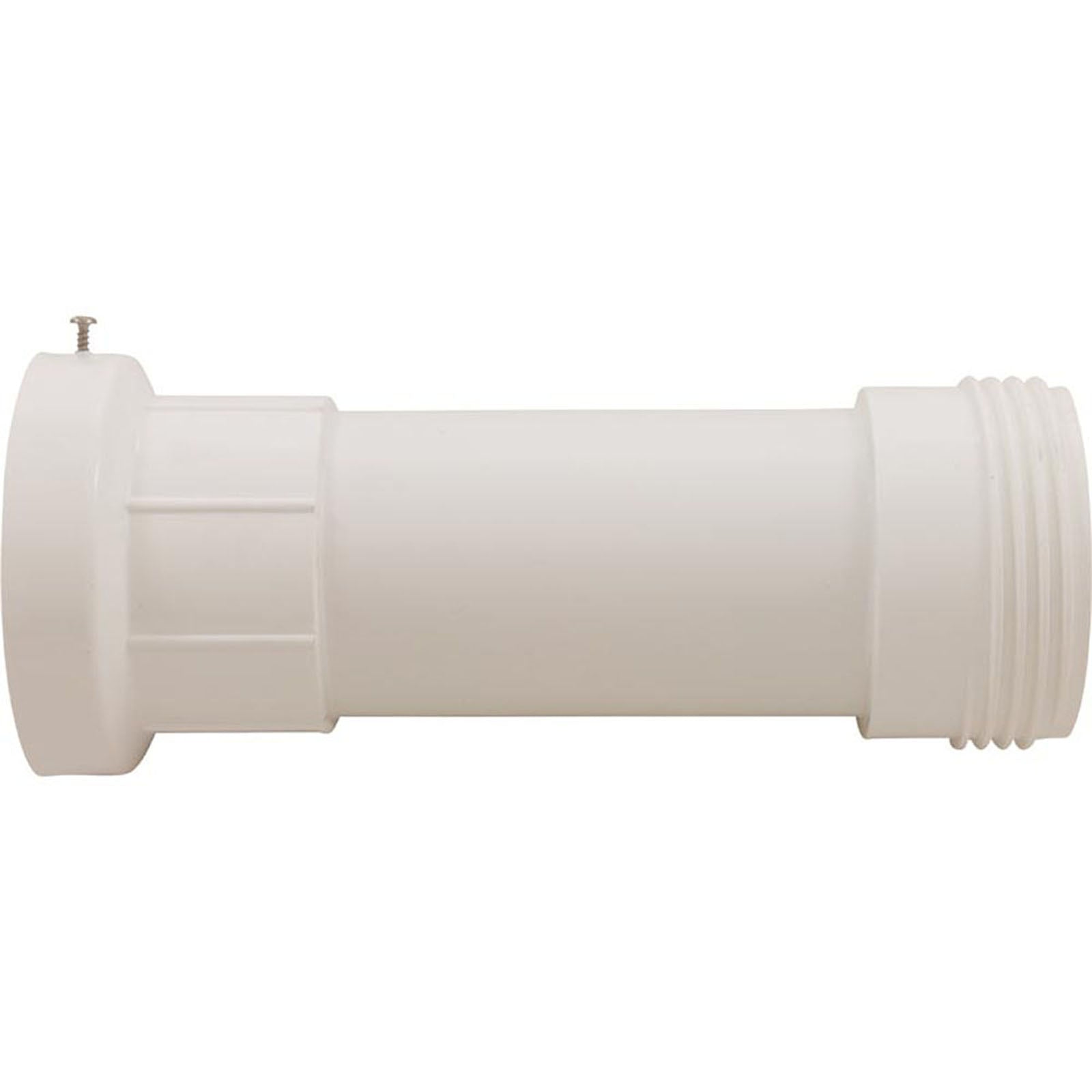

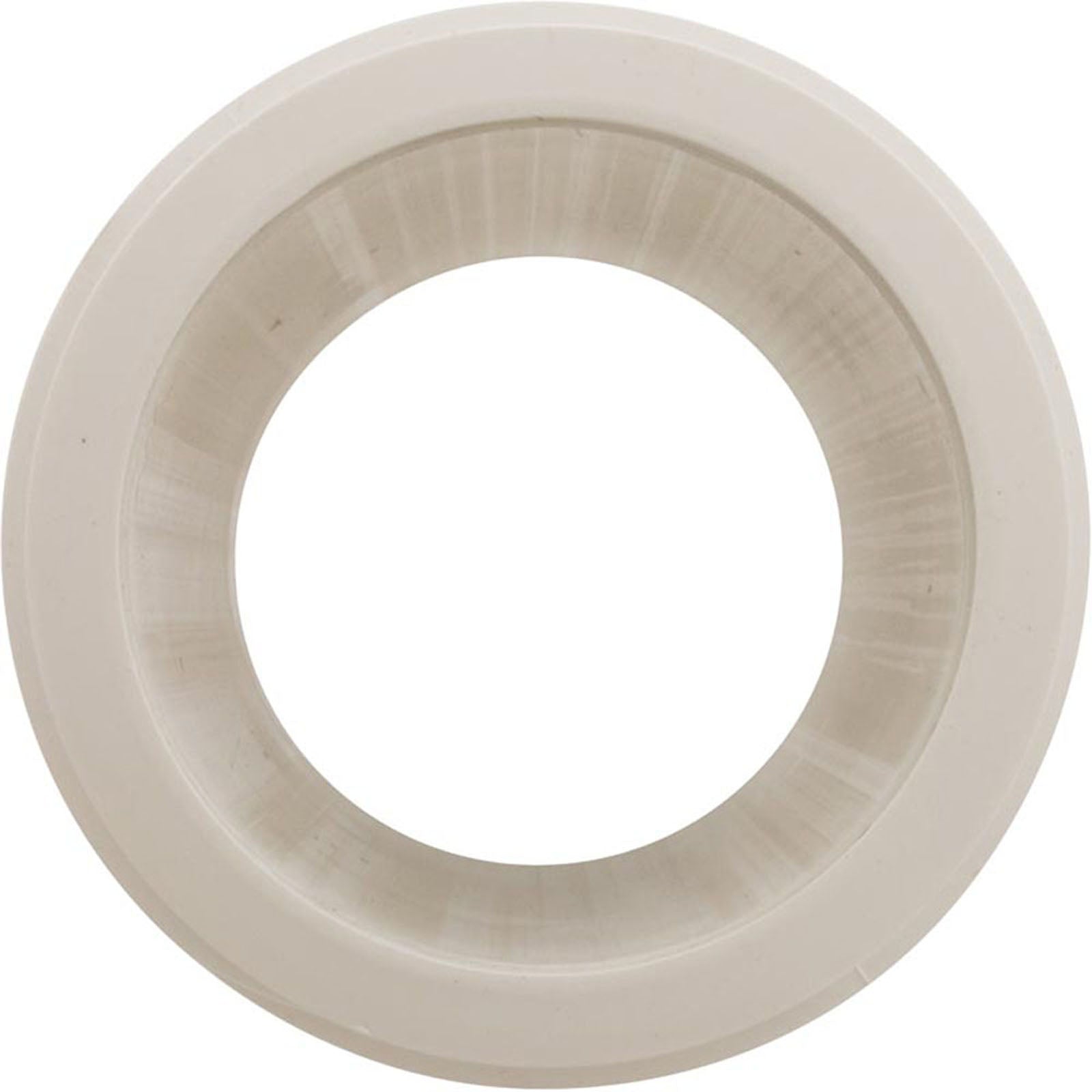

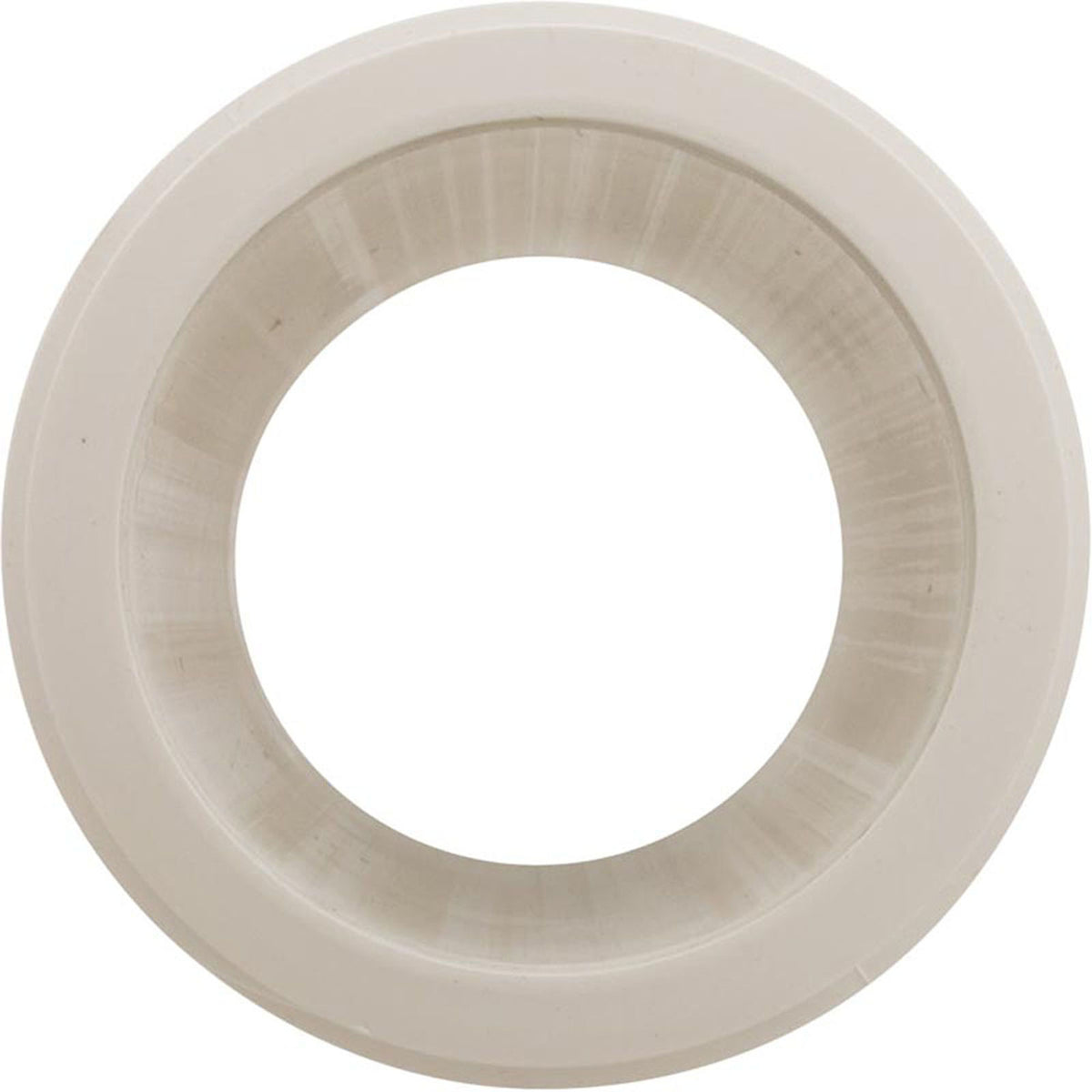

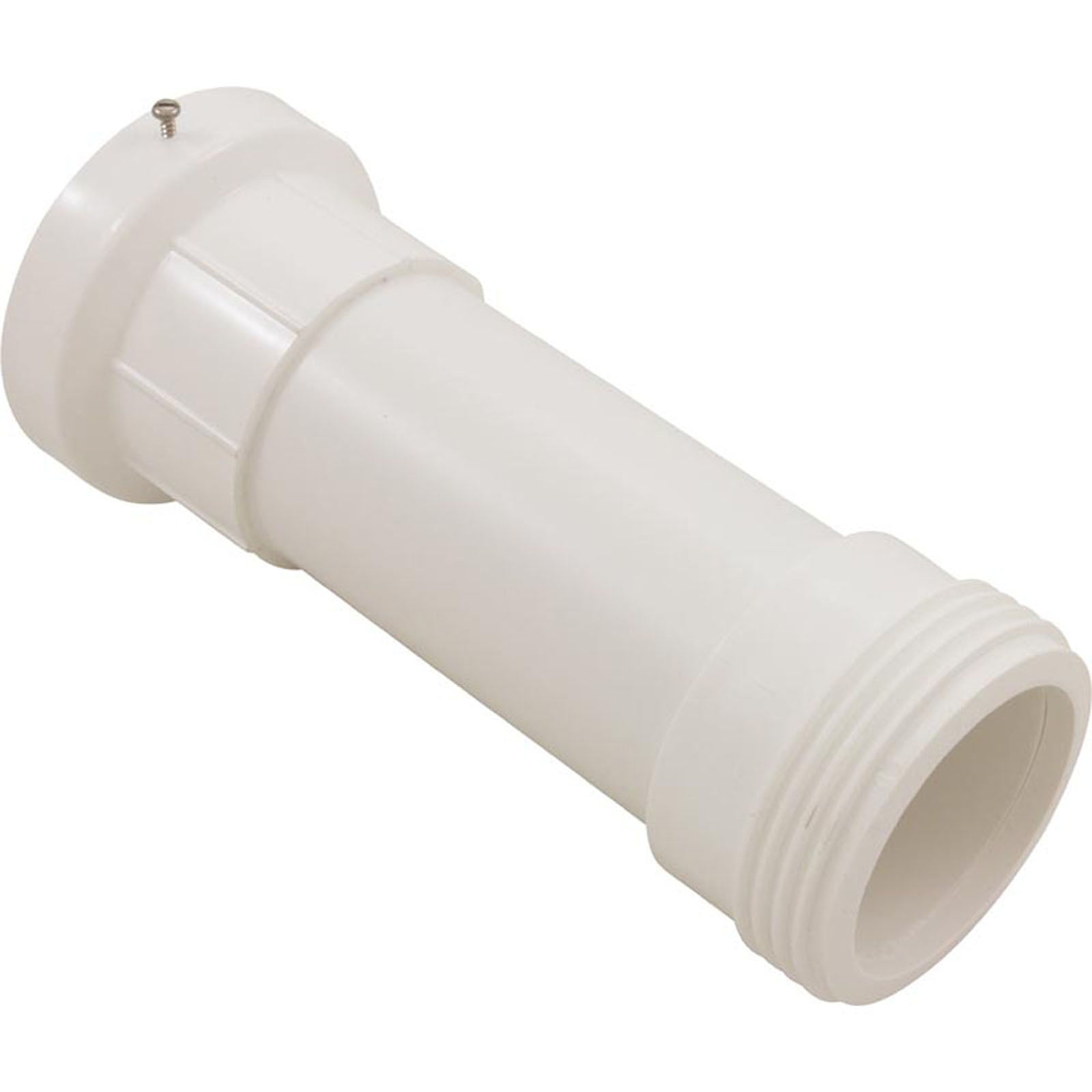

Pentair Rainbow 10 in. Chlorinator Extension for 320 and 300 Feeders (R172087)
About double the tablets between refills.
Pentair R172087 is the 10 in. chlorinator extension for Rainbow automatic chlorine and bromine feeders, including the in-line Model 320 and the free-standing 300 series. Pentair says the 10 in. extension approximately doubles the tablet capacity and the time between refills. PST SKU PST-_R172087.
Why PST Customers Pick This
Roughly Double the Capacity
Pentair says the 10 in. extension approximately doubles the tablet capacity and the time between refills, and the larger chamber allows more erosion of the tablets.
Screws On, Locks In

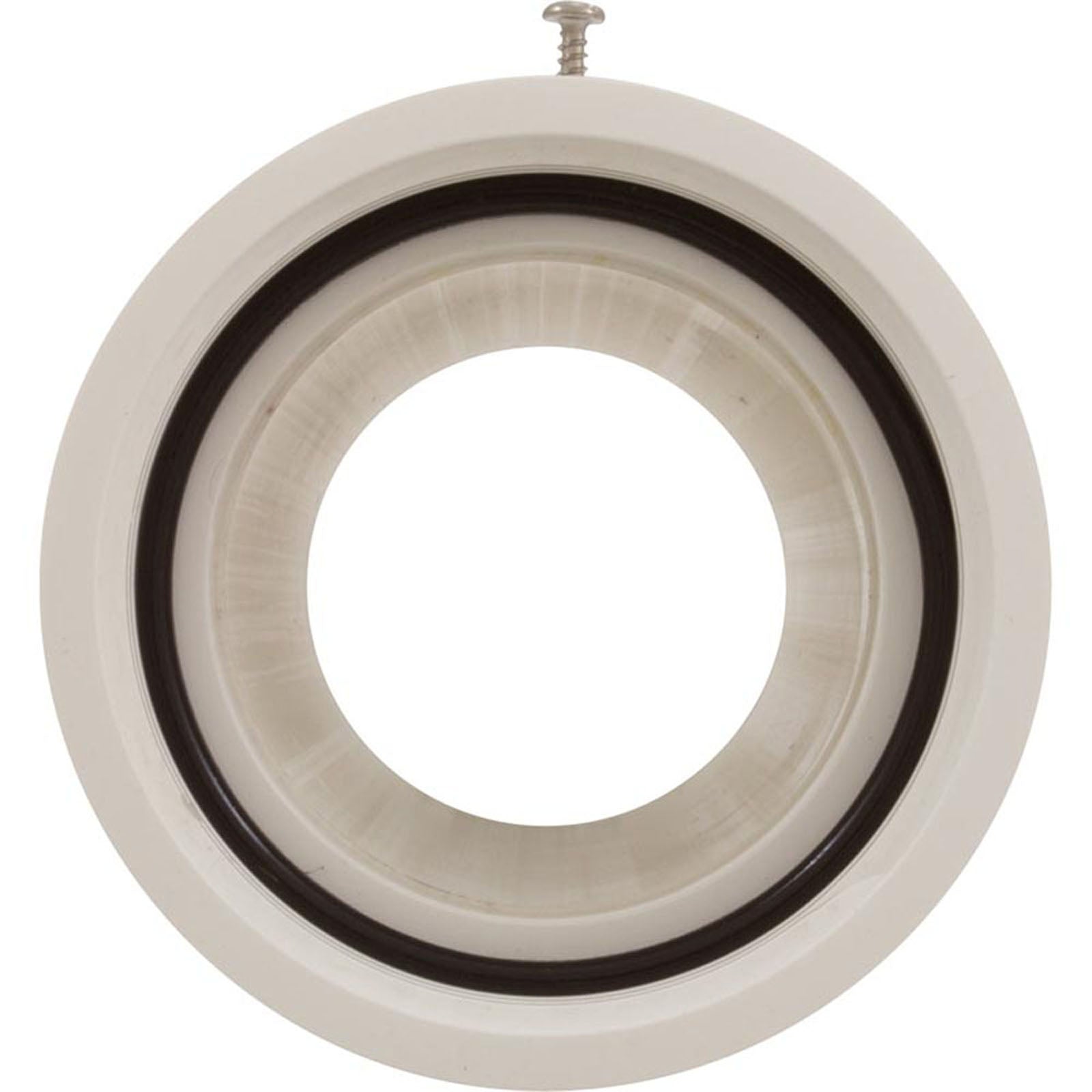

The extension screws on tightly over a clean, silicone-lubricated O-ring and is secured with a lock screw. Pentair's parts breakdown lists the bottom-collar lockscrew (R172078) and O-ring (R172009).
Re-Set the Feed Rate
The larger chamber dispenses more chlorine at the same valve setting, so Pentair calls for several days of monitoring after installation to readjust the feeder output.
Model 320 and 300 Series
Pentair's extension sheet covers the #320 in-line feeder and free-standing #300 series feeders, and notes that it does not apply to the large-capacity #300-19 or #300-29.
Silicone Only on the O-Ring
Pentair warns never to use oils or grease on the O-ring, because oil in contact with trichlor or bromine may cause a fire. Use Lifegard silicone O-ring lubricant only.
Secure Free-Standing Feeders
On free-standing #300 series feeders, Pentair says to secure the base of the feeder so the added height cannot tip it over.
Chemical Safety
Use only clean trichlor or clean bromine slow-dissolving tablets in the feeder, and never mix them with calcium hypochlorite or any other chemical: Pentair warns that fire or explosion may result. Take care when removing the cap and do not inhale the fumes.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair (Rainbow) |
| Part Number | R172087 |
| Pentair Description | 10 in. chlorinator extension complete |
| SKU | PST-_R172087 |
| Fitment | |
| Feeders | Rainbow Model 320 in-line and free-standing 300 series |
| Pentair Note | Does not apply to large-capacity #300-19 or #300-29 |
| Free-Standing Feeders | Secure the base against tipping |
| Capacity | |
| Extension Length | 10 in. |
| Capacity Gain | About double the capacity and time between refills |
| Longer Option | 20 in. extension R172283, about triple |
| Hardware and Use | |
| Lockscrew (Bottom Collar) | R172078 |
| O-Ring | R172009 |
| O-Ring Lubricant | Lifegard silicone only, never oil or grease |
| Tablets | Clean trichlor or bromine, slow-dissolving |
Frequently Asked Questions
How much more tablet capacity do I get?
Pentair says the 10 in. extension approximately doubles the feeder's capacity and the time between refills. The 20 in. extension, R172283, approximately triples it.
Will it work on a 300-29 feeder?
Pentair's extension sheet notes that it does not apply to the large-capacity #300-19 or #300-29 feeders.
Do I need to change the feeder setting afterward?
Pentair says the larger chamber dispenses more chlorine at the same valve setting, so several days of monitoring are needed after installation to readjust the output.
How does it install?
Follow the recharging steps up to filling with tablets. With the O-ring clean, lubricated with silicone and in place, screw the extension on tightly and secure it with the lock screw, then fill with tablets and finish the normal recharge.
Order the R172087 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Pentair Dealer
Additional Info
| Category | Parts Pool Parts Chemical Feeder Parts |
| SKU | PST-_R172087 |
| MPN | R172087 |
| Replaces | 2114-39, 611717, 788379004842, RAI-451-4988 |
| Manufacturer | Pentair |
| Weight | 1.64 lb |
