Product Information
Description

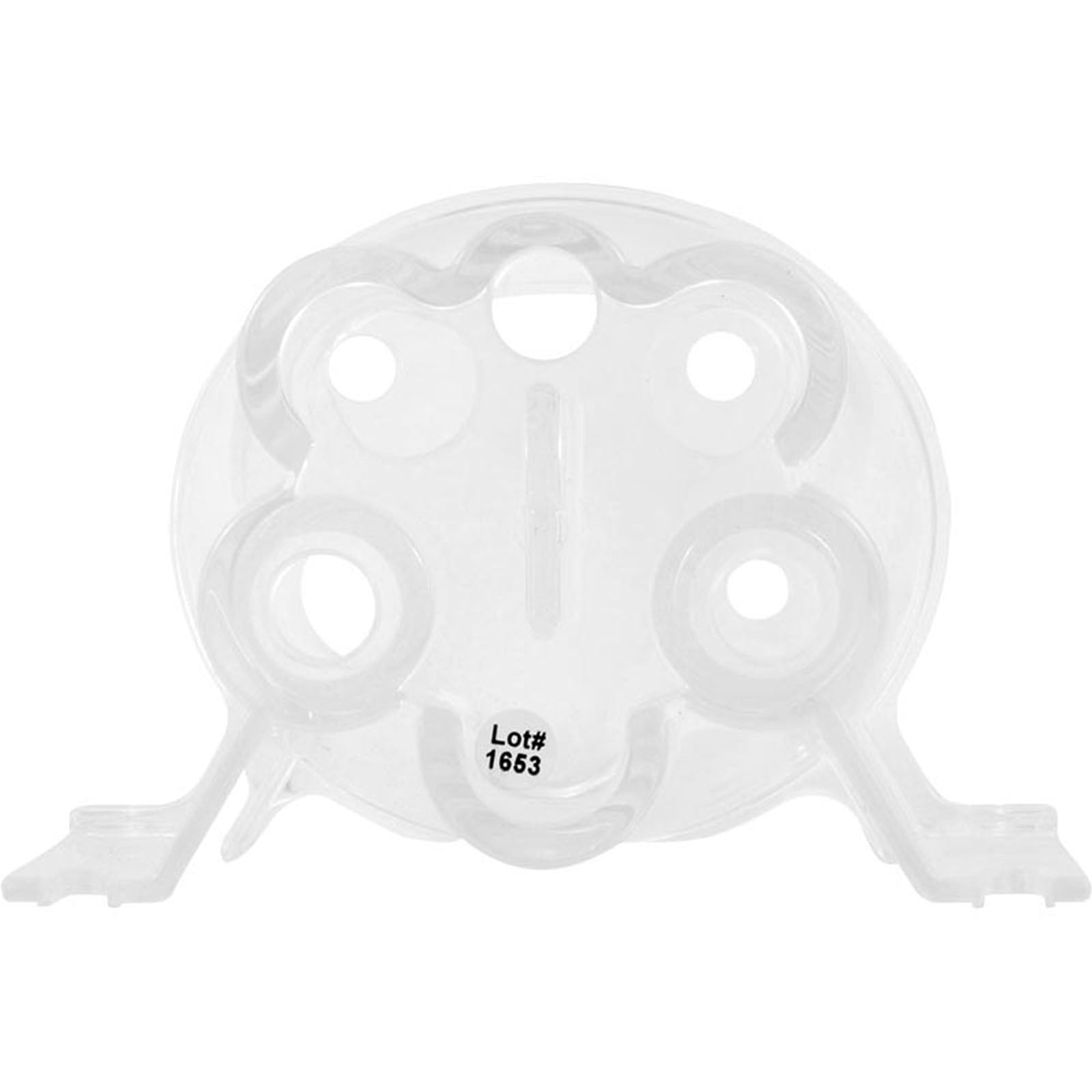

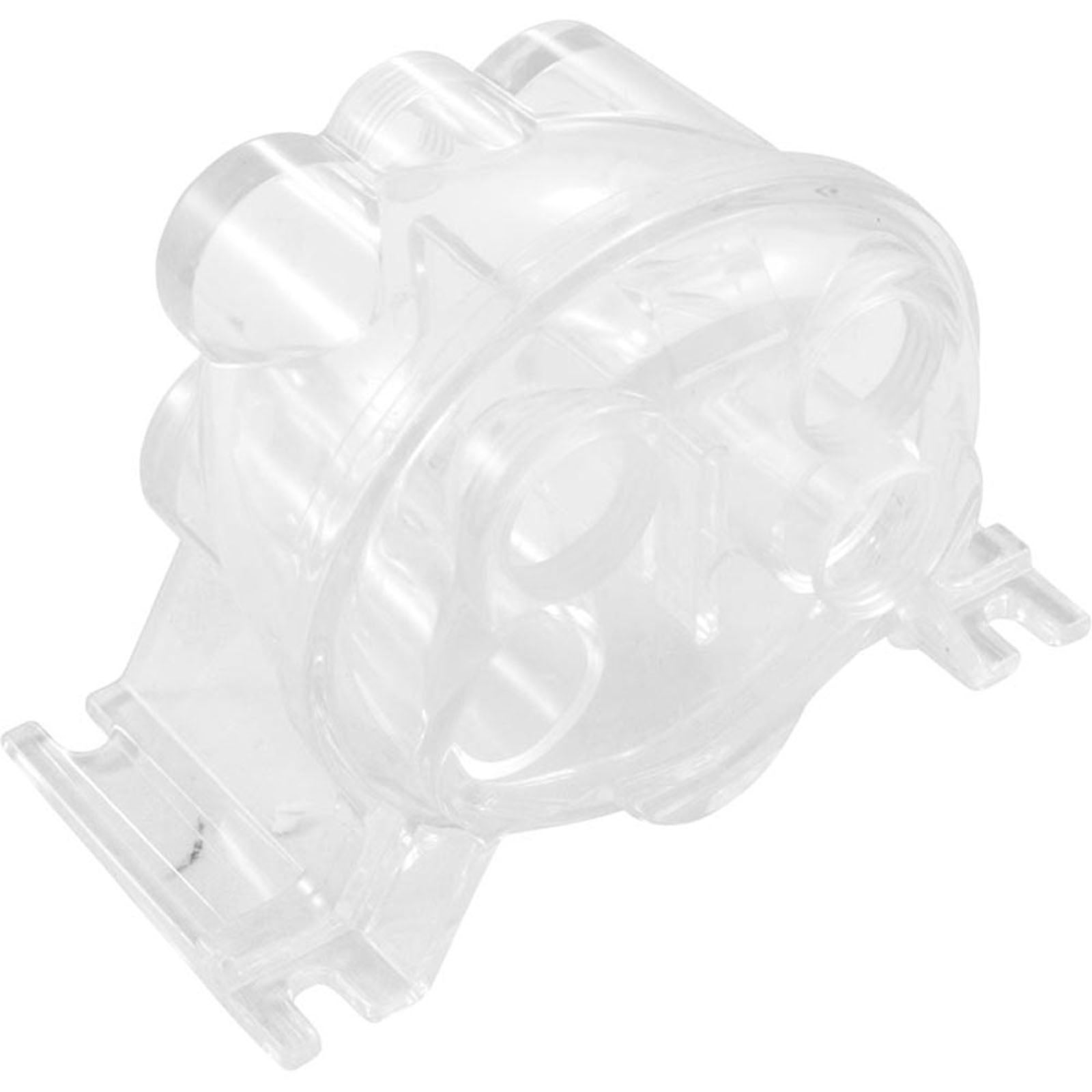

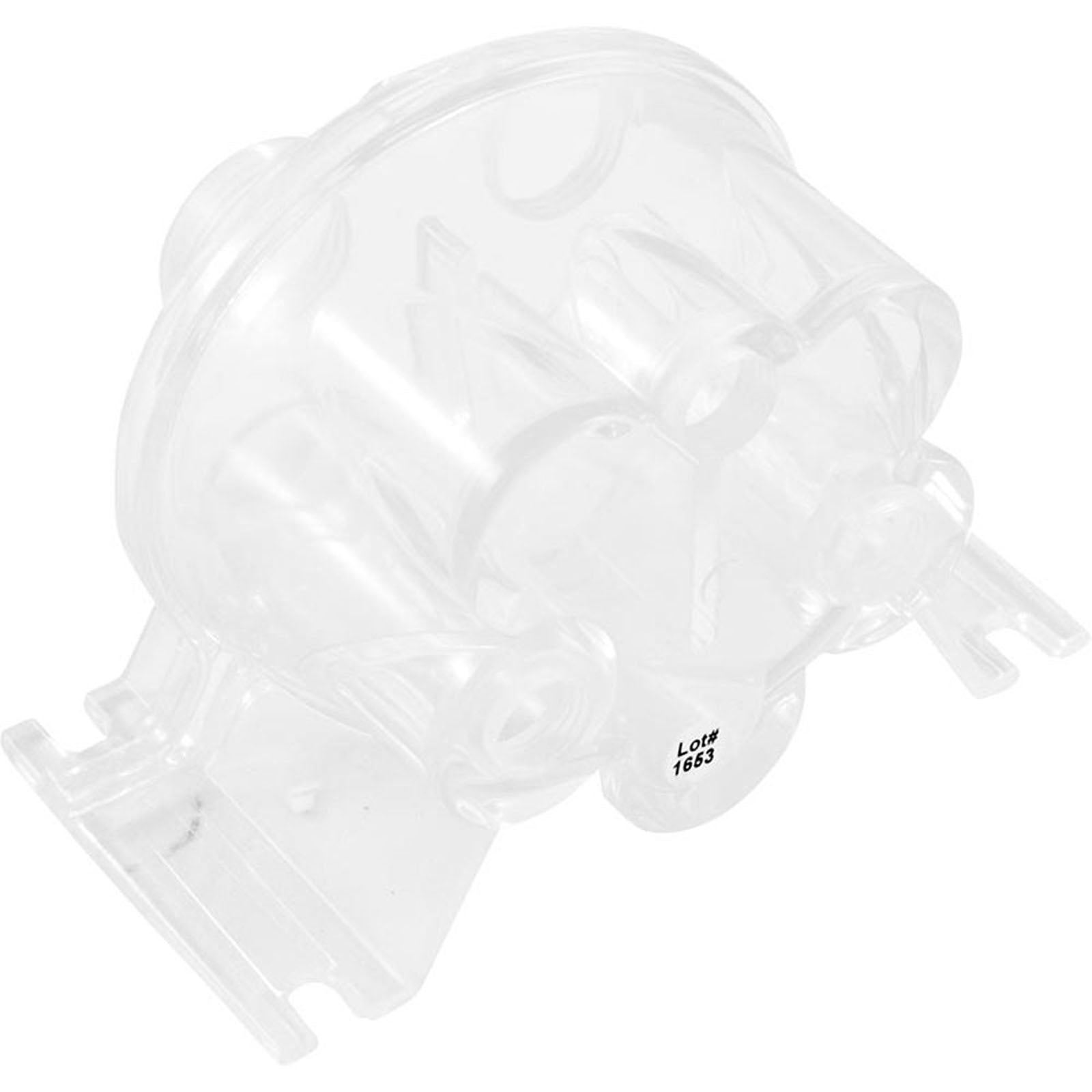

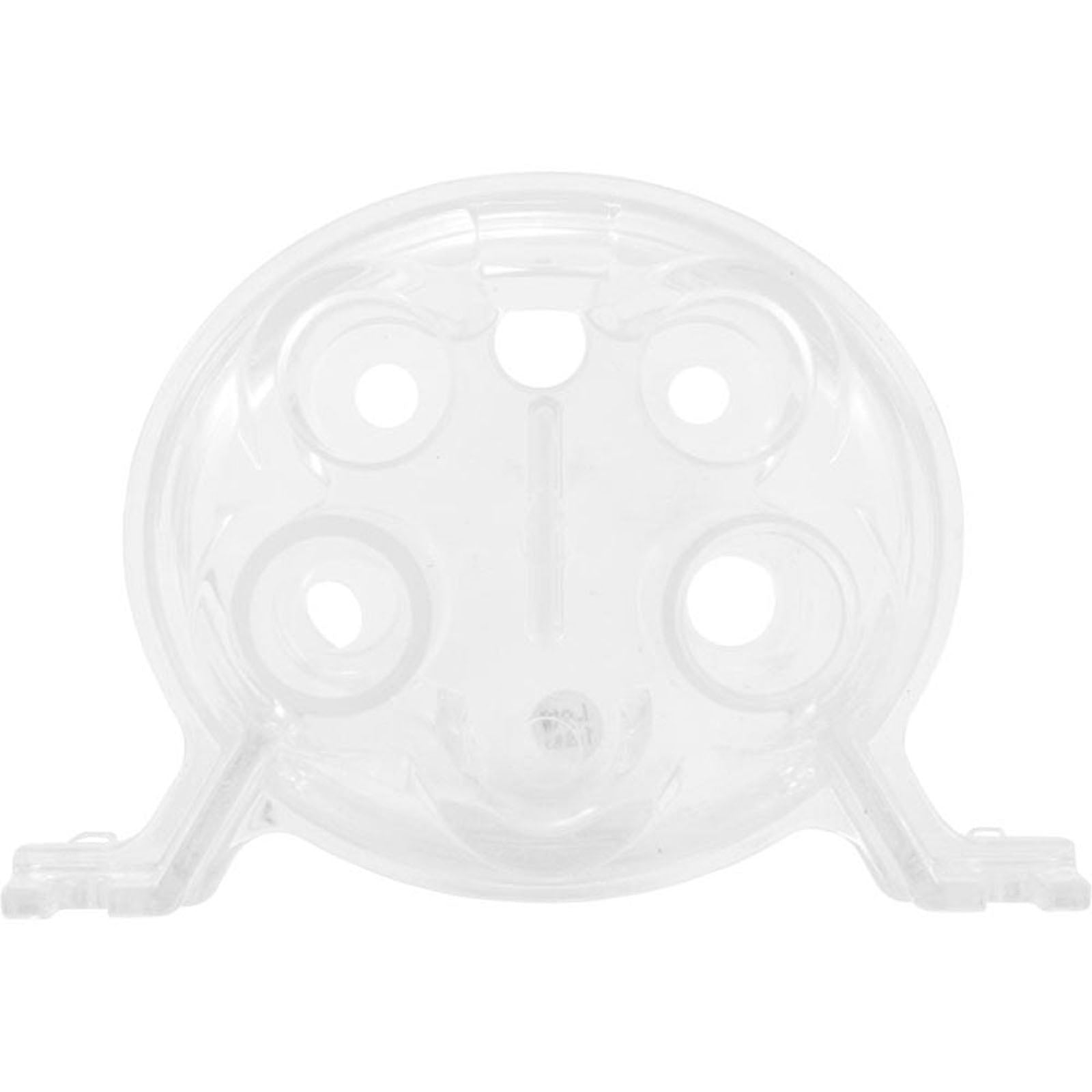

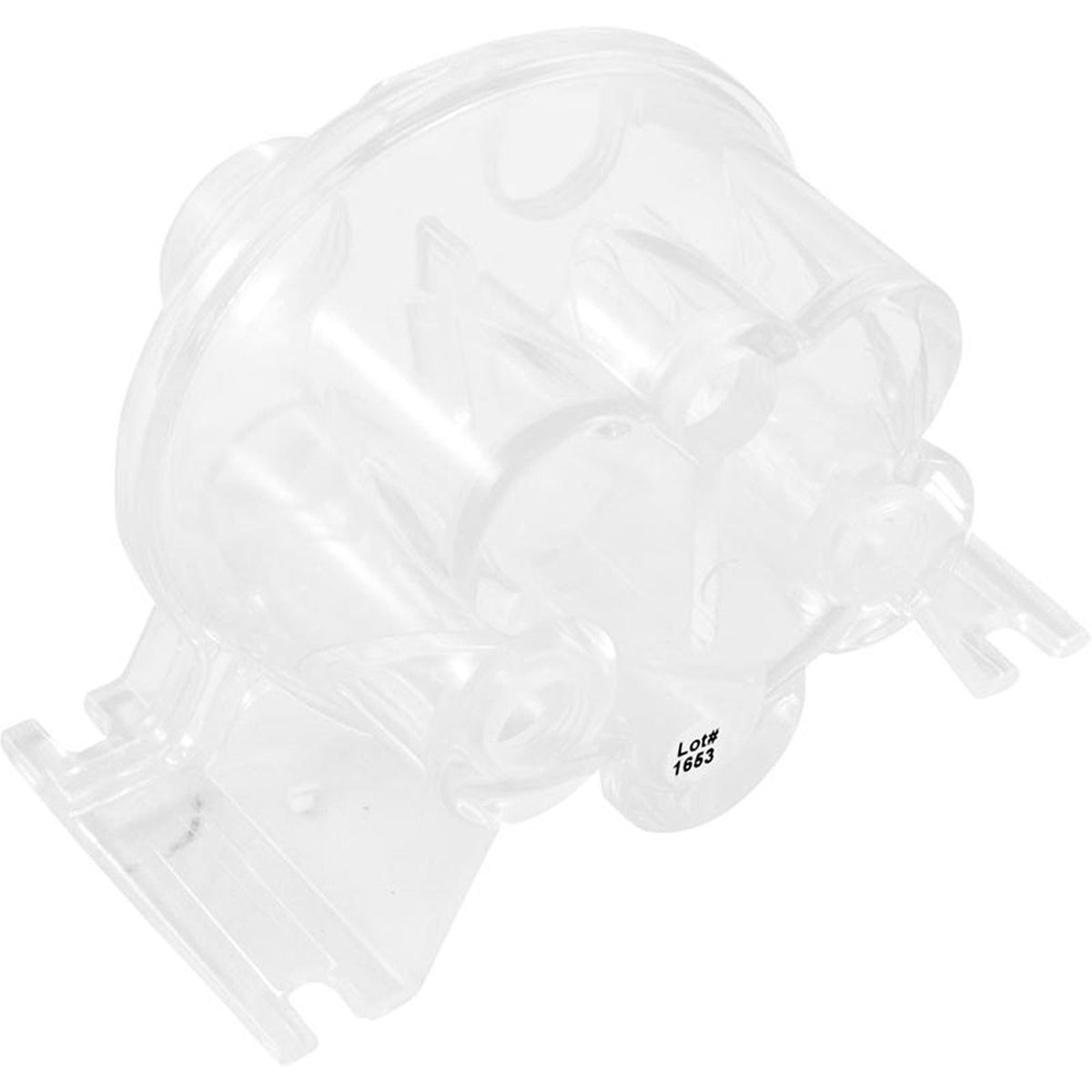

Hayward CAX-20272 Molded Flow Cell for CAT 3500 and HCC 2000 Controllers
Replacement flow cell for Hayward commercial water chemistry controllers.
The Hayward CAX-20272 is a molded flow cell, listed for the Hayward CAT 3500 and HCC 2000 controllers. In Hayward's manuals the flow cell is the mounting point for the controller's pH, ORP and flow sensors, built to give those sensors ideal hydraulic conditions.
| Manufacturer | Hayward |
|---|---|
| Hayward Part Number | CAX-20272 |
| Hayward Description | CELL-FLOW, MOLDED |
| Part Type | Flow cell |
| Hayward Part Category | Automation parts, commercial parts |
| Fits Controllers | Hayward CAT 3500 and HCC 2000 |
| Pool Type | Commercial |
| GTIN / UPC | 761418013449 |
| SKU | PST-_CAX-20272 |
| Replacement Part Warranty | 1 year, parts only (Hayward) |
What does the flow cell do?
Hayward's controller manuals say the flow cell gives the pH, ORP and flow sensors a convenient mounting location while providing ideal hydraulic conditions to maximize sensor performance and life.
Does it need special plumbing?
Hayward's CAT 3500 manual says a pressure differential is needed to push clean, untreated water through the cell and across the sensors. It also says the flow cell and tubing must be drained before freezing temperatures, by purging with compressed air or draining through the valve ports and tubing connections.
Additional Info
| Category | Parts Pool Parts Salt Generator Parts |
| SKU | PST-_CAX-20272 |
| MPN | CAX-20272 |
| Replaces | 901085, CAX20272, HAY-451-2025 |
| Manufacturer | Hayward |
| Weight | 0.67 lb |
