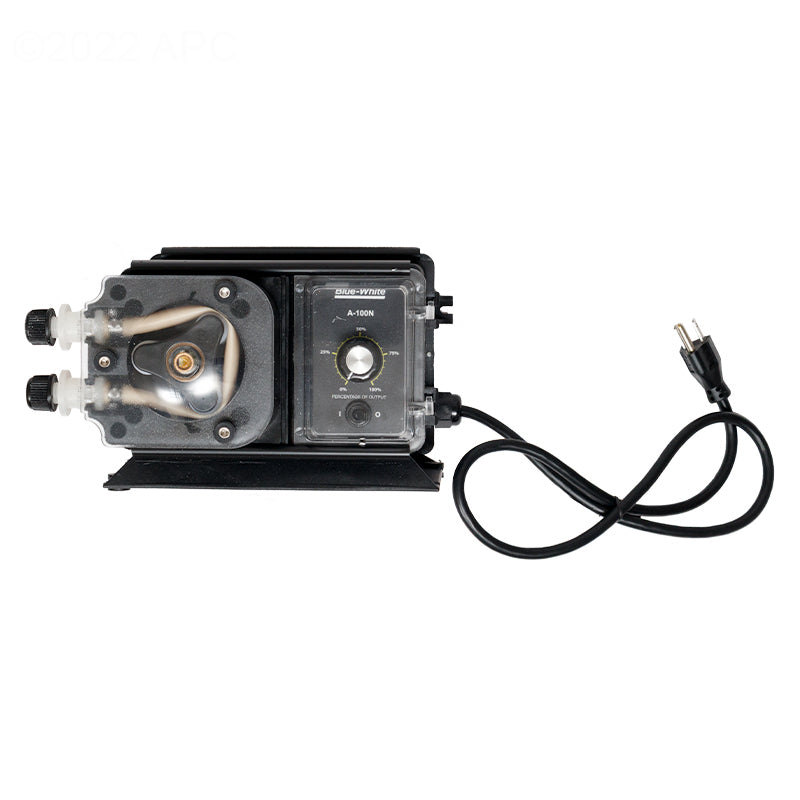

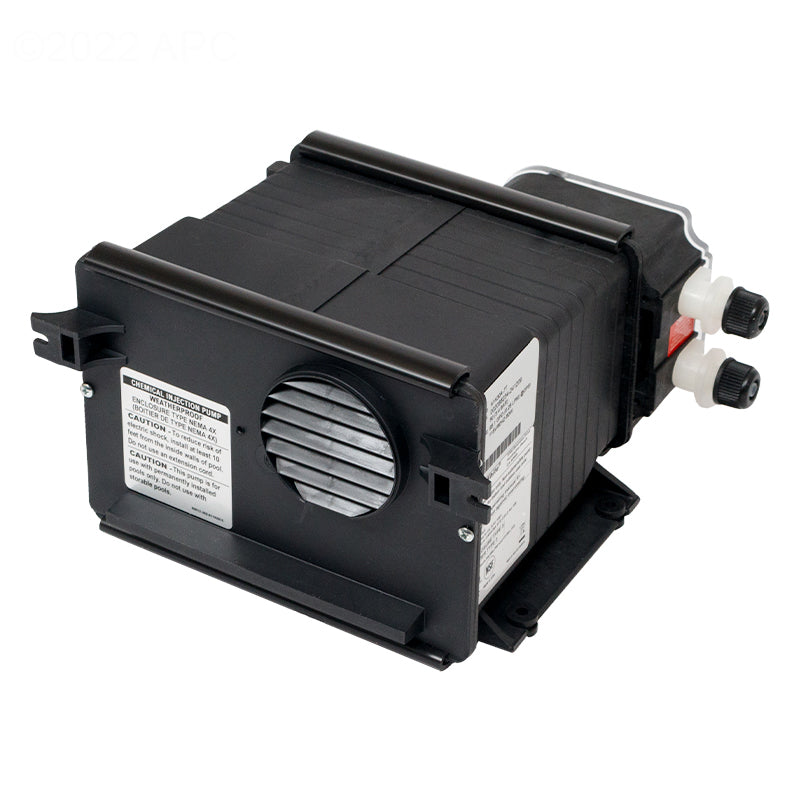

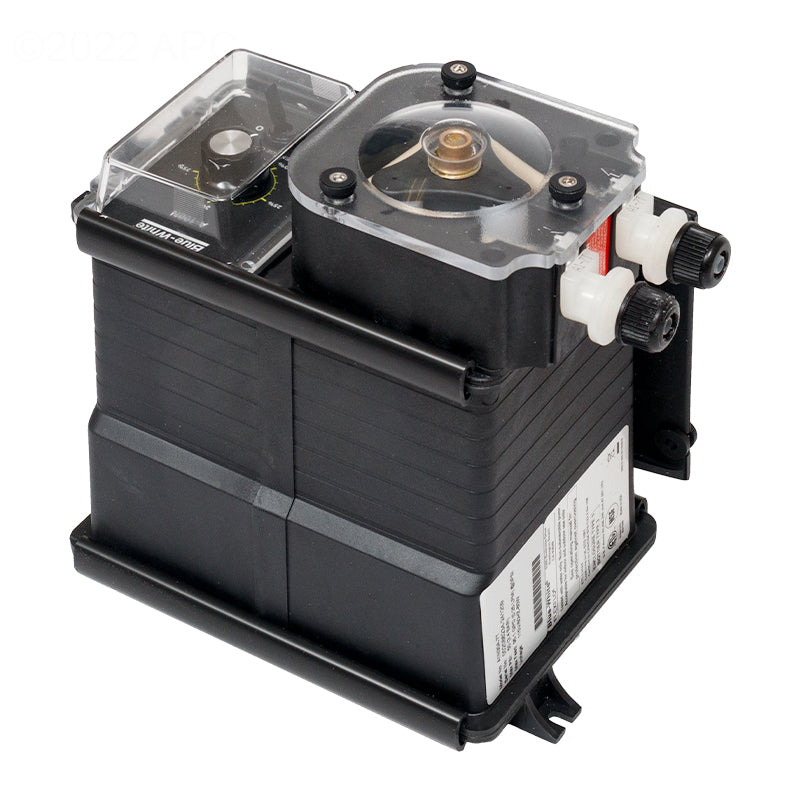

Blue-White A1N20A-6T FLEXFLO A-100N Peristaltic Metering Pump, 24 GPD, 115V
High-pressure chemical feed without the clogs.
The Blue-White A1N20A-6T FLEXFLO A-100N (SKU PST-BWA1N20A6T) is a fixed-speed peristaltic metering pump that delivers up to 24 GPD against 100 PSI of line pressure for chlorine, acid, and other liquid pool chemicals. The peristaltic design has no internal check valves to clog or vapor-lock, so you get reliable priming even on long suction lifts and aggressive solutions. Built-in Tube Failure Detection (TFD) trips an alarm relay the moment the squeeze tube wears through, protecting your equipment pad from spills.
| Manufacturer | Blue-White Industries |
|---|---|
| Model / MPN | A1N20A-6T |
| Series | FLEXFLO A-100N |
| SKU | PST-BWA1N20A6T |
| Pump Type | Fixed-speed peristaltic metering pump |
| Maximum Output | 24 GPD (gallons per day) |
| Maximum Pressure | 100 PSI |
| Voltage | 115V, 60 Hz |
| Tube Connections | 3/8 inch OD compression nuts |
| Suction Tube | Clear PVC, 5 ft, 3/8 inch OD / 1/4 inch ID |
| Discharge Tube | Opaque polyethylene, 5 ft, 3/8 inch OD / 1/4 inch ID |
| Housing Material | Polypropylene |
| Maximum Fluid Temperature | 130 F (54 C) |
| Timer | Built-in analog timer |
| Tube Failure Detection | Patented TFD with alarm output relay |
| Self-Priming | Yes, against full line pressure |

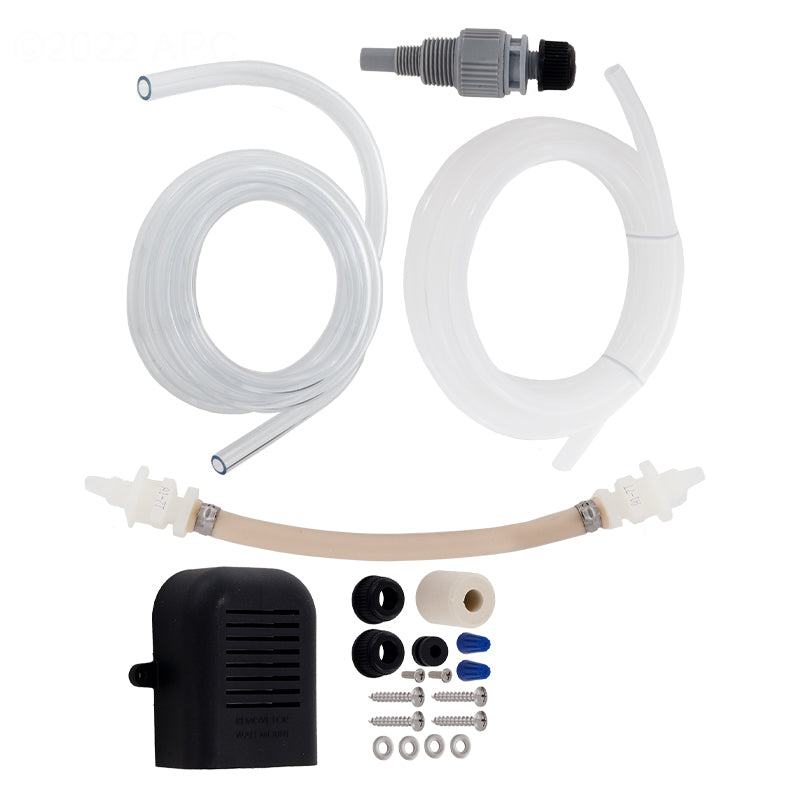

| Included | Two tube assemblies, injection check valve, suction strainer, ceramic weight, mounting hardware |
What is the A1N20A-6T rated to feed?
It delivers a fixed 24 GPD at up to 100 PSI on 115V power, which covers most residential and light commercial chlorine, muriatic acid, and pH-control feed jobs.
Do I need check valves on the suction or discharge line?
No. The peristaltic squeeze-tube design seals on every rotation, so the pump is fully self-priming and will not vapor-lock. An injection check valve is included for the discharge side at the point of injection.
Can I install this pump myself?
Plumbing the suction and discharge tubing is straightforward, but the 115V wiring and chemical injection point should be handled by a licensed pool professional. Improperly grounded chemical feeders can damage the bonding grid and create a shock hazard. Always follow NEC 680 for pool equipment wiring.
