Product Information
Description
- Jandy Part R0462802
- Fits CS200 and CS250
- Free Shipping

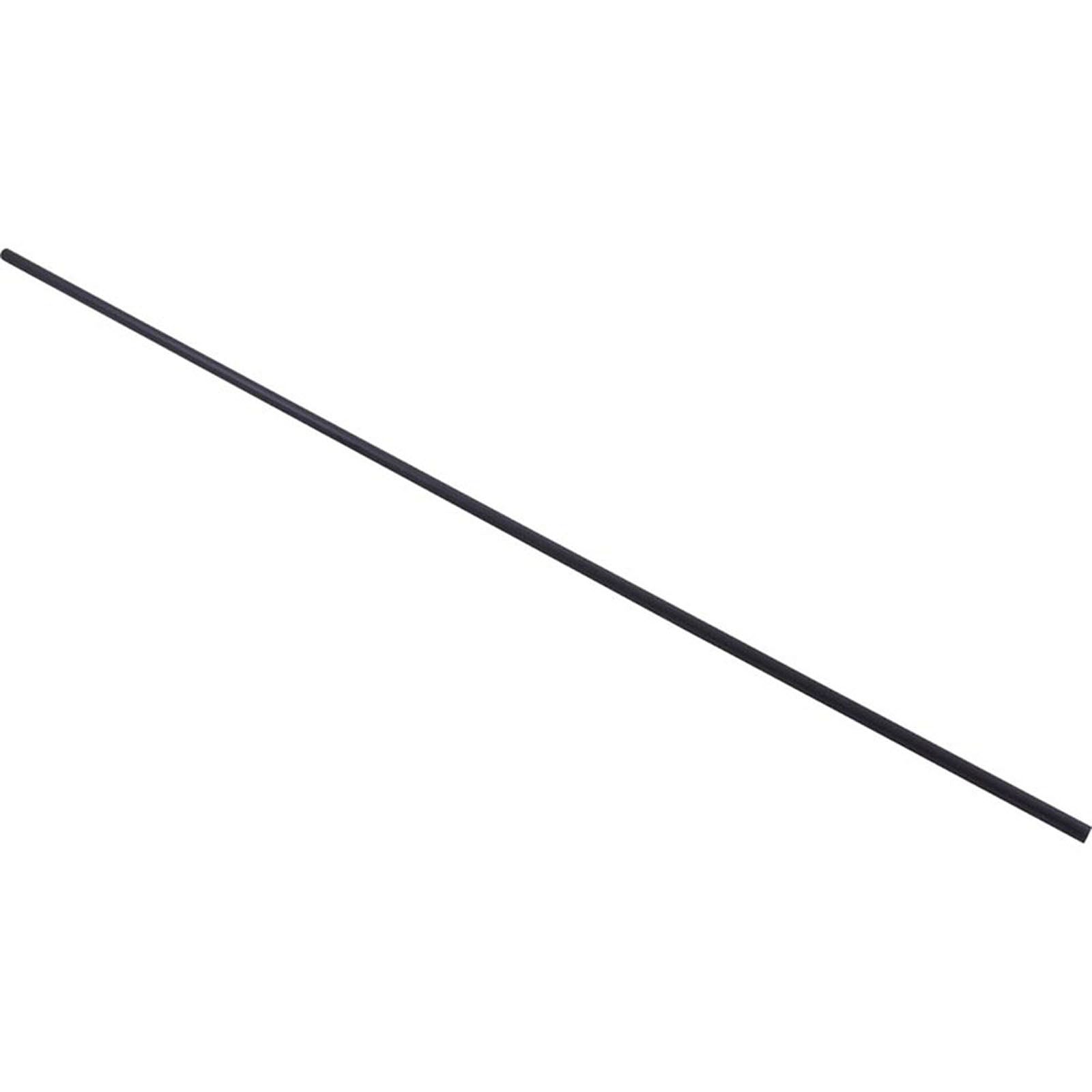

Jandy R0462802 Breather Tube for CS200 and CS250 Cartridge Filters
Jandy breather tube for CS200 and CS250.
The Jandy R0462802 breather tube (SKU PST-17-295-1116) is the breather tube Jandy lists for its CS200 and CS250 single element cartridge pool and spa filters. It is also called a bleed tube and measures 34-1/4 inches. Jandy lists a different tube, R0462801, for the CS100 and CS150.
Why PST Customers Pick This
Jandy Part R0462802
Jandy's parts list for the CS Series filters shows R0462802 as key 6, Breather Tube, CS200, CS250.
Flush Out Debris
Jandy's maintenance steps say to check the breather tube for obstructions or debris and, if needed, remove it and flush it with running water until it is clear.
Replace It When Damaged
If the obstruction can't be removed or the tube is damaged, Jandy says to stop using the filter immediately and replace the breather tube assembly.
Seat It Fully
When you reassemble, Jandy says to fully seat the breather tube into the bottom tank before you close the filter.
Not the CS100 or CS150 Tube
Jandy lists R0462801 for the CS100 and CS150. Those tubes are listed at 24-1/2 inches, while this CS200 and CS250 tube is 34-1/4 inches.
Safety Notice
Jandy warns that if the breather tube is not fully seated, or is damaged or clogged, trapped air can cause product failure or blow the filter lid off, which can result in death, serious personal injury or property damage. Before opening the filter, Jandy says to turn the pump off, open the air release valve and wait until all pressure is relieved.
Specifications
| Identification | |
|---|---|
| Brand | Jandy |
| Jandy Part Number | R0462802 |
| Jandy Parts List Name | Breather Tube, CS200, CS250 |
| Also Called | Bleed tube |
| SKU | PST-17-295-1116 |
| Part Type | Filter breather tube |
| Fitment | |
| Fits | Jandy CS200 and CS250 single element cartridge pool and spa filters |
| Not For | CS100 and CS150 (Jandy lists R0462801) |
| Jandy Parts List Key | 6 |
| Tube Length | 34-1/4 in |
| CS200 and CS250 Filter Specifications | |
| Filter Area | 200 sq ft (CS200), 250 sq ft (CS250) |
| Max Working Pressure | 50 psi |
| Normal Start-Up Pressure | 6 to 15 psi |
| Max Residential Flow | 125 GPM (CS200 and CS250) |
| Filter Certification | NSF/ANSI Standard 50 (per the Jandy CS filter manual) |
Frequently Asked Questions
Does this fit the CS100 or CS150?
No. Jandy's parts list shows R0462801 for the CS100 and CS150 and R0462802 for the CS200 and CS250. The CS100/CS150 tube is listed at 24-1/2 inches and this one at 34-1/4 inches.
What does Jandy say to do about a clogged or damaged breather tube?
Jandy's manual says to check the tube for obstructions or debris and, if needed, remove it and flush it with running water. If the debris can't be removed or the tube is damaged, stop using the filter immediately and replace the breather tube assembly.
How do I get the filter ready to open?
Jandy's steps are: turn off the pump and its circuit breaker, close any isolation valves if the filter sits below pool level, open the air release valve and wait for all air pressure to release, then loosen the drain plug at the base so the tank empties before you open it.
Who should install it?
Jandy states the filter must be installed and serviced by a contractor who is licensed and qualified in pool equipment where the local jurisdiction requires it, and that improper installation or operation may void the warranty.
Order the R0462802 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Authorized Jandy Dealer
- Pool Techs on Support
Additional Info
| Category | Parts Pool Parts Filter Parts |
| SKU | PST-17-295-1116 |
| MPN | R0462802 |
| Manufacturer | Jandy |
| Weight | 0.15 lb |
