Balboa G6506 BP7 Retrofit Kit — 5.5kW, 1-3 Pumps, TP600 Topside
Balboa G6506 BP7 Retrofit Kit — 5.5kW, 1-3 Pumps, TP600 Topside
46 in stock
Ships from: Bloomfield, CT
Genuine OEM product.
- Next day Shipping Mon–Fri
- 30 days ReturnsPolicy
Frequently Bought Together
Product Information
Description

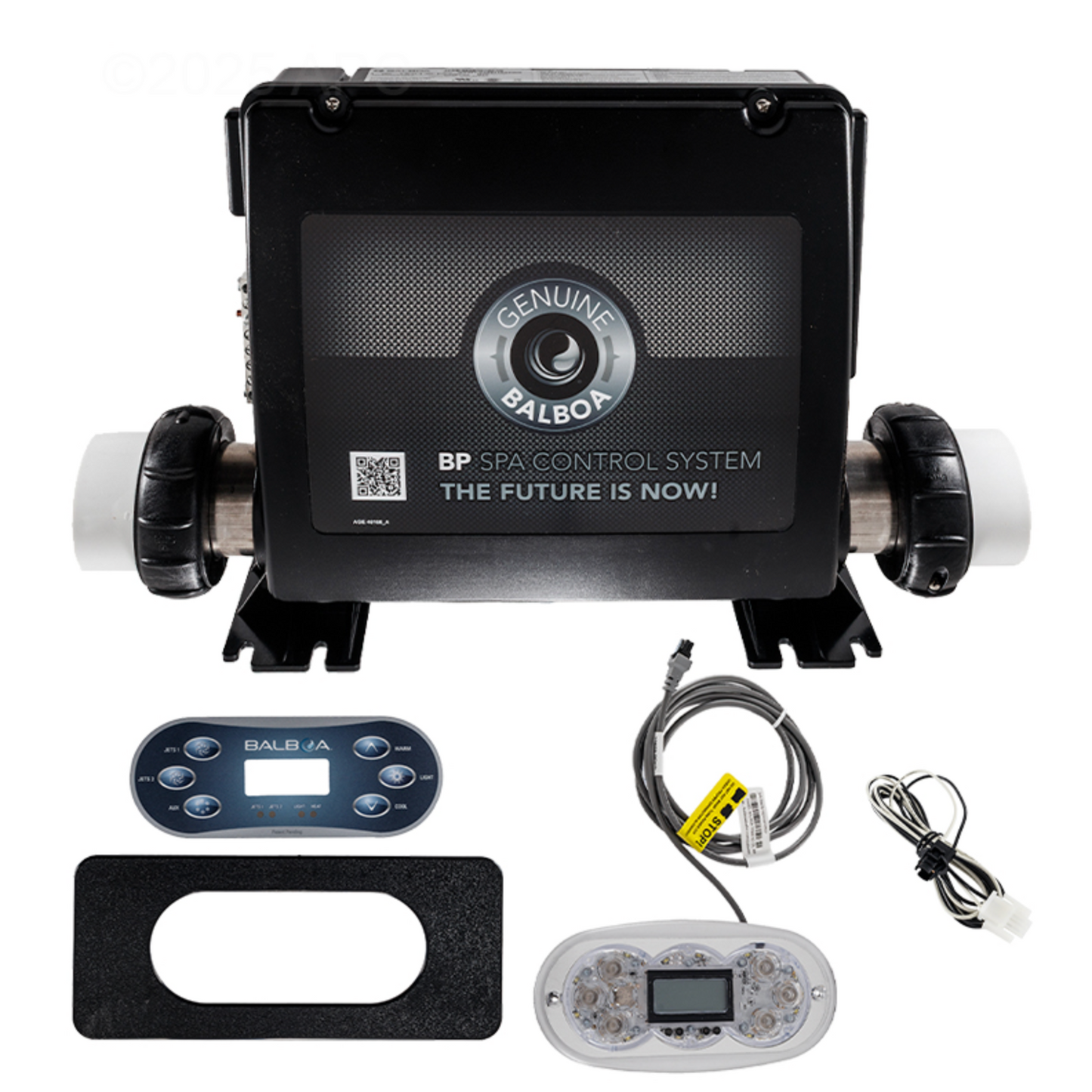

Balboa G6506 BP7 Retrofit Kit — 5.5 kW, 1-3 Pumps, TP600 Topside
A complete BP7-series retrofit pack with a high-output 5.5 kW heater. The kit ships with everything needed to swap into most existing installations: pre-wired control box, integrated heater, TP600 topside, panel adapter plate, and the light cord and overlay needed to reconnect your existing spa light. Built for 230V (4-wire) supply with 50/60 Hz auto-detect.
What's Included

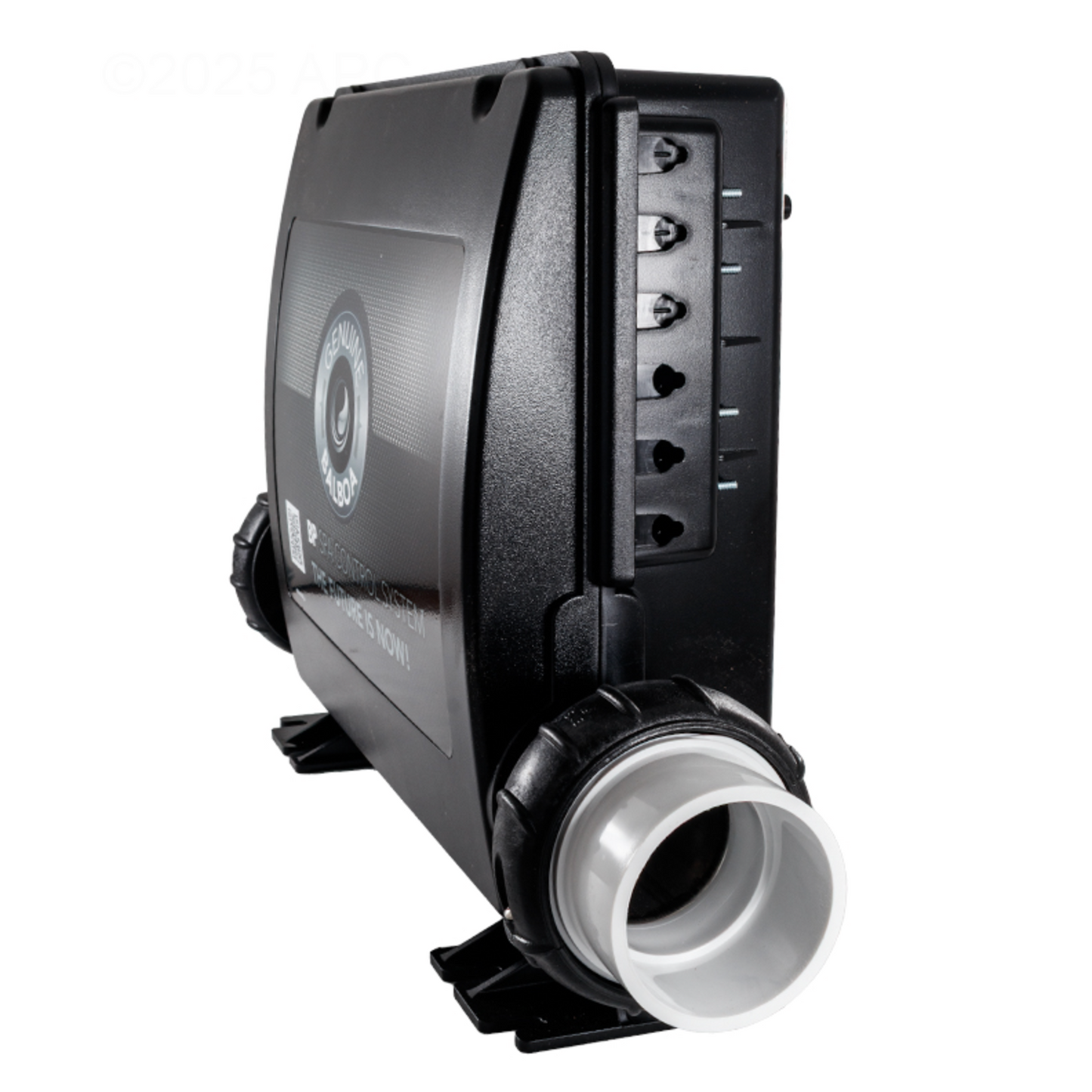

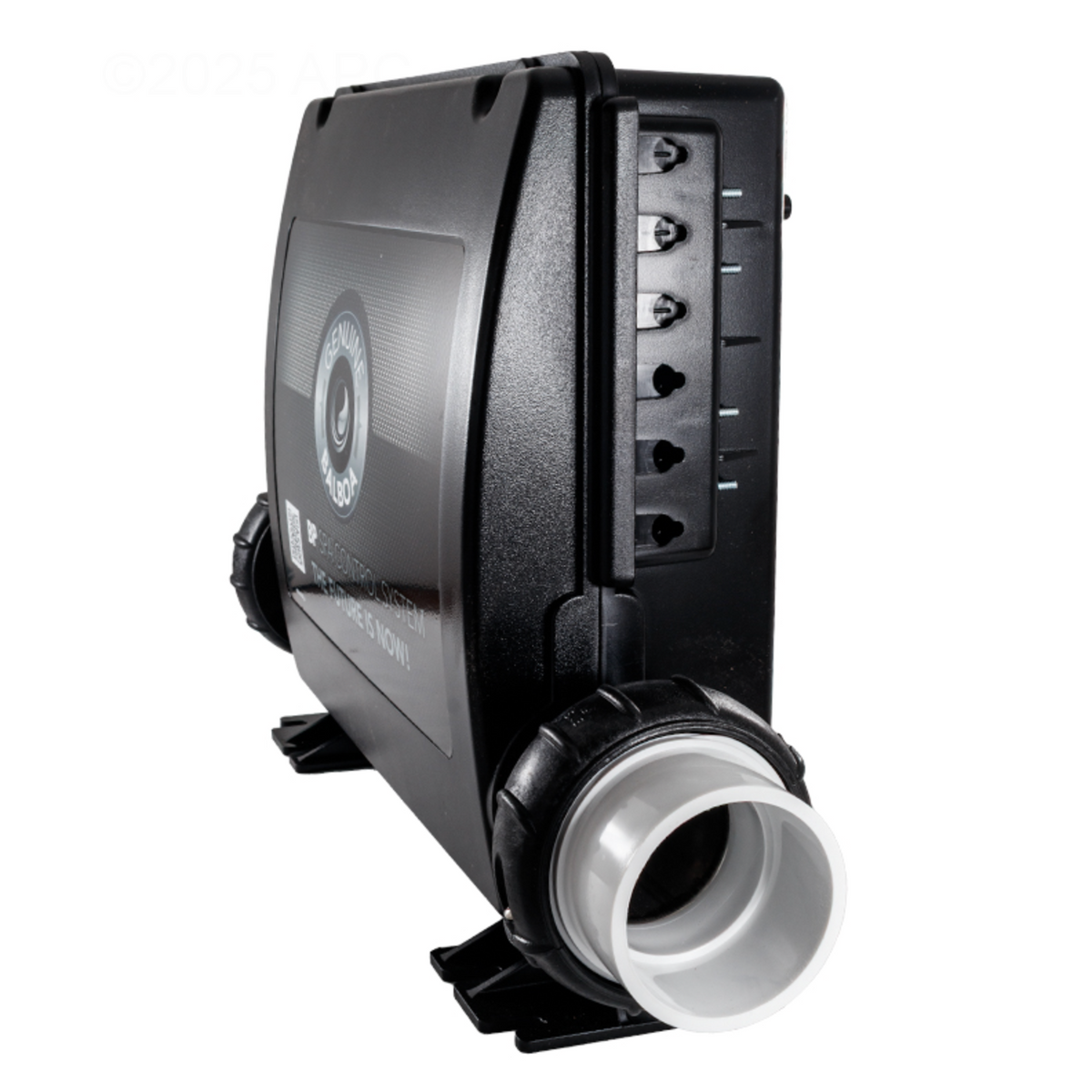

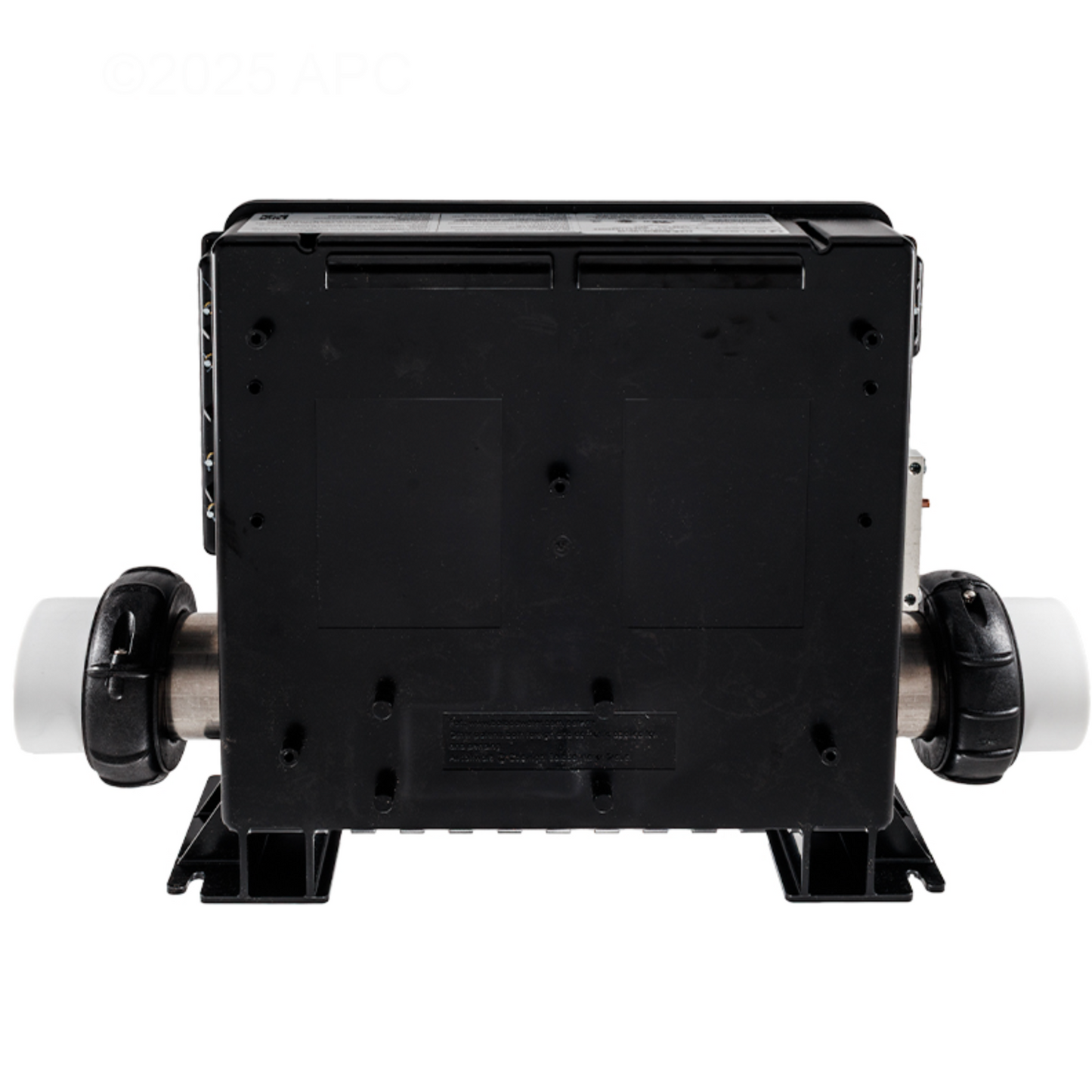

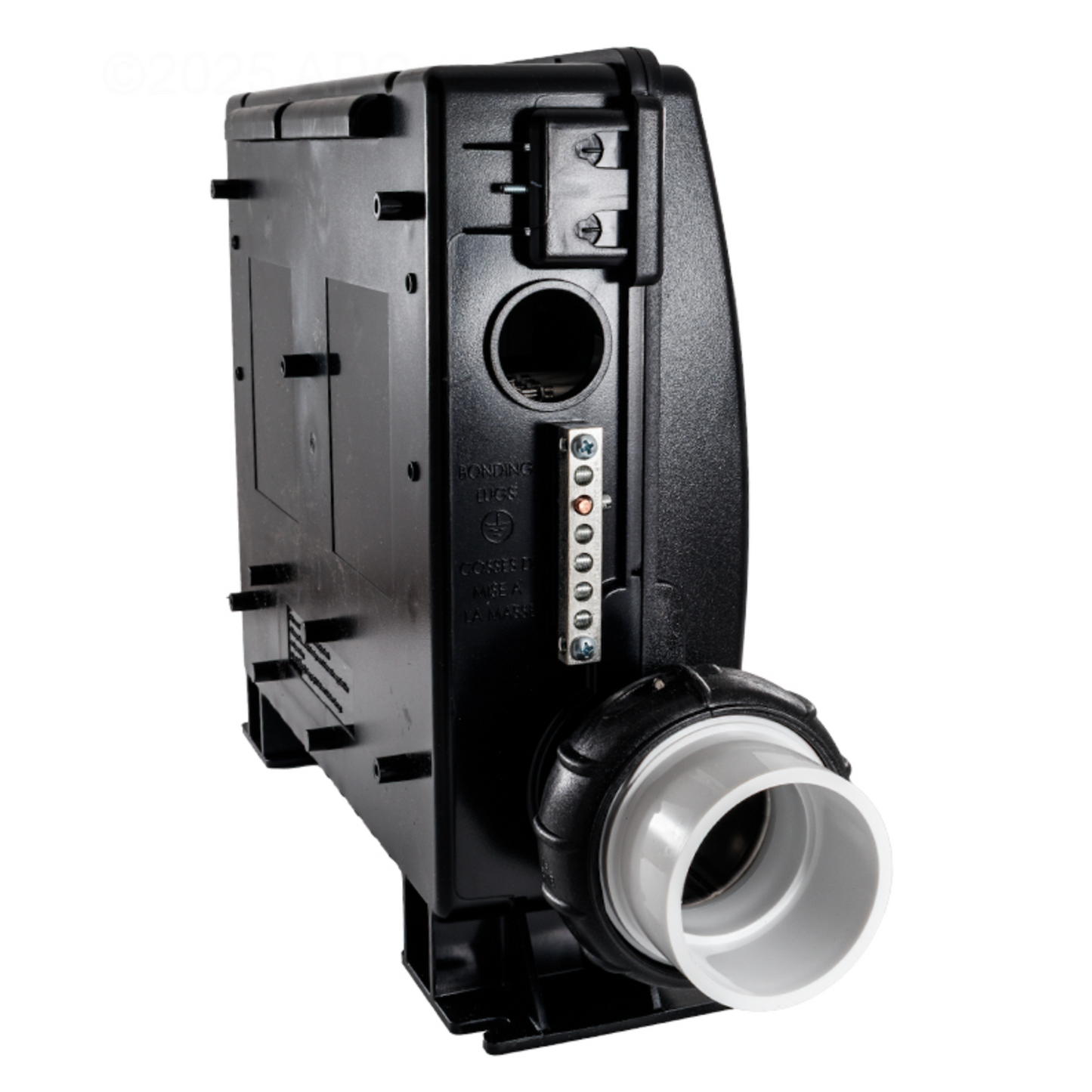

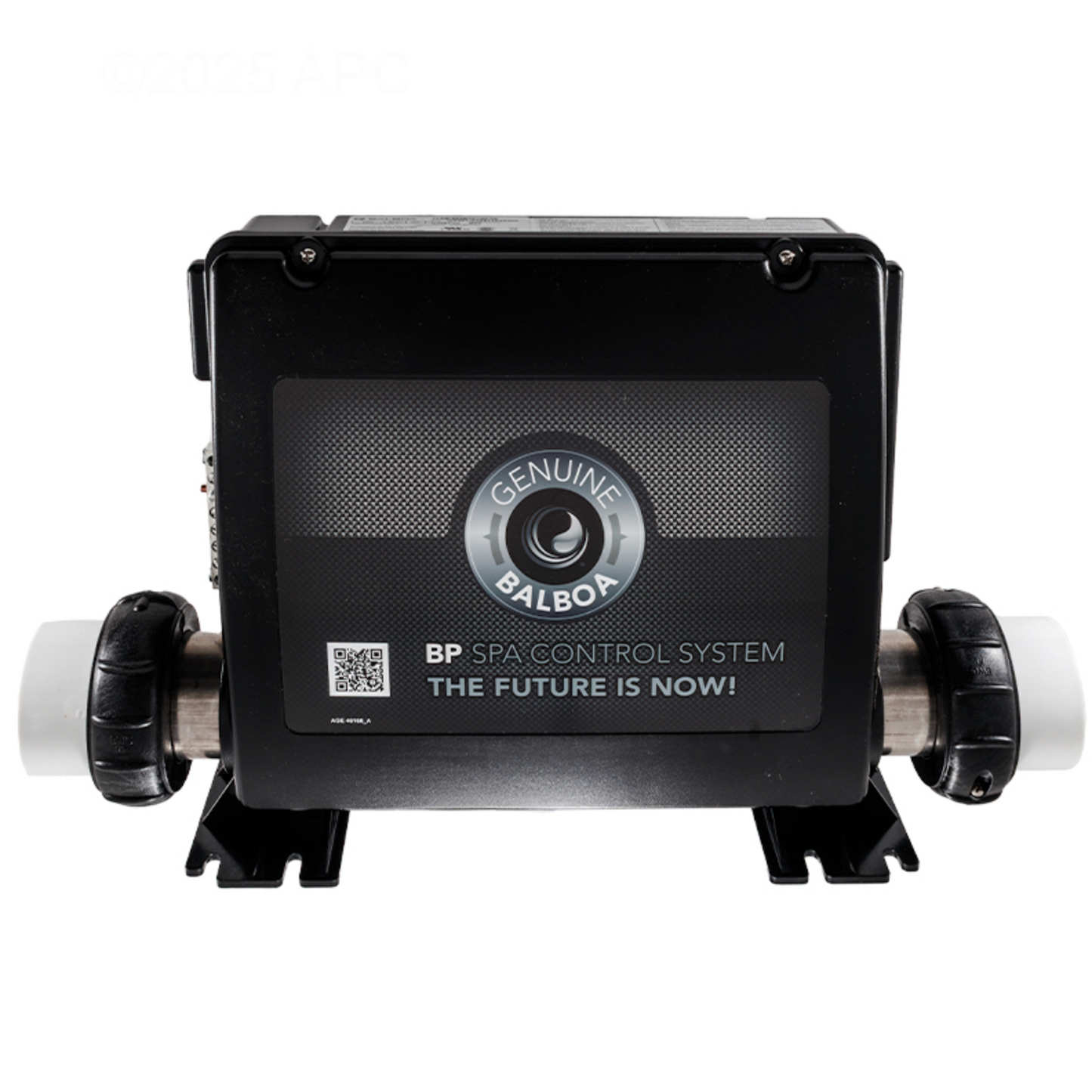

- Balboa BP7 control pack with integrated 5.5 kW flow-thru heater

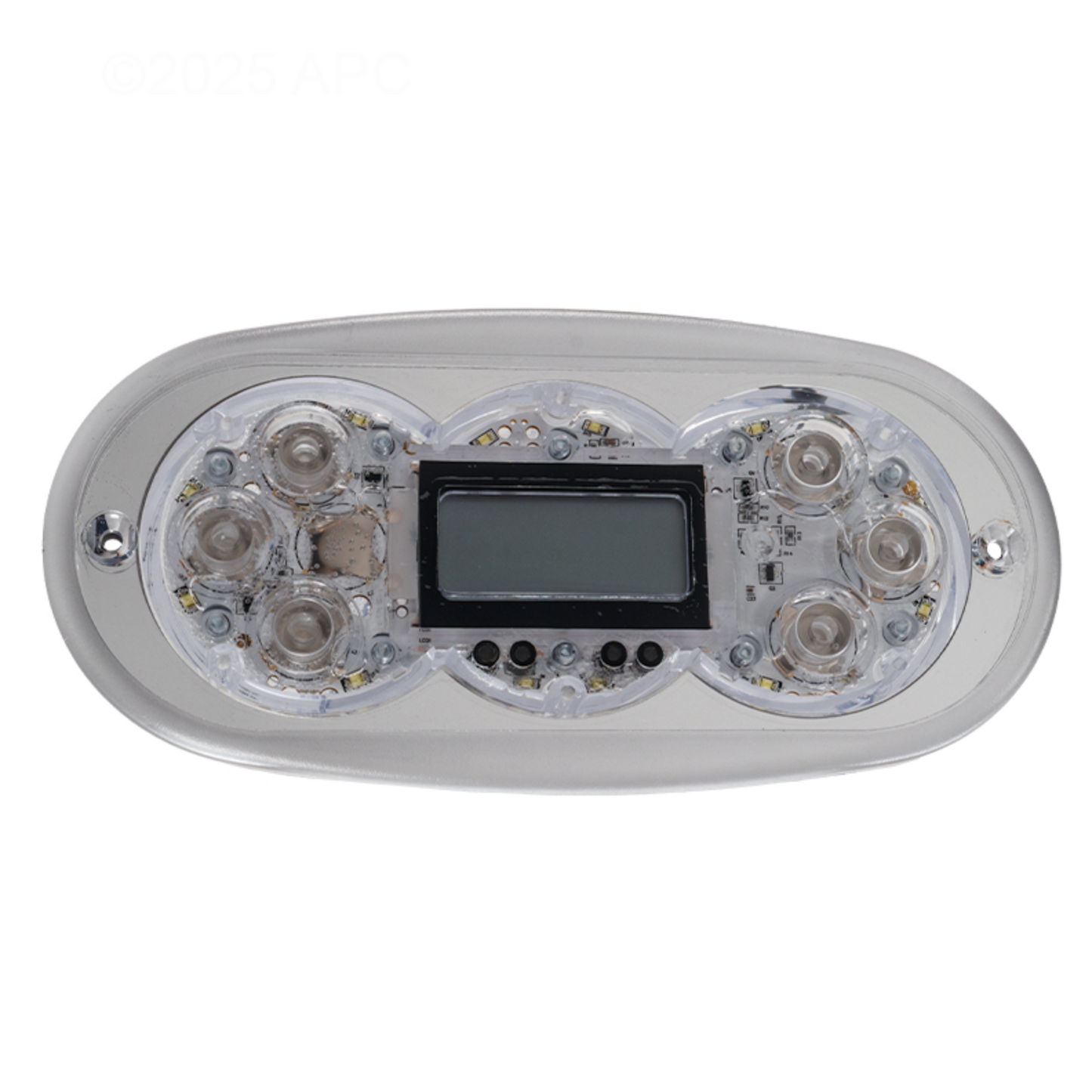

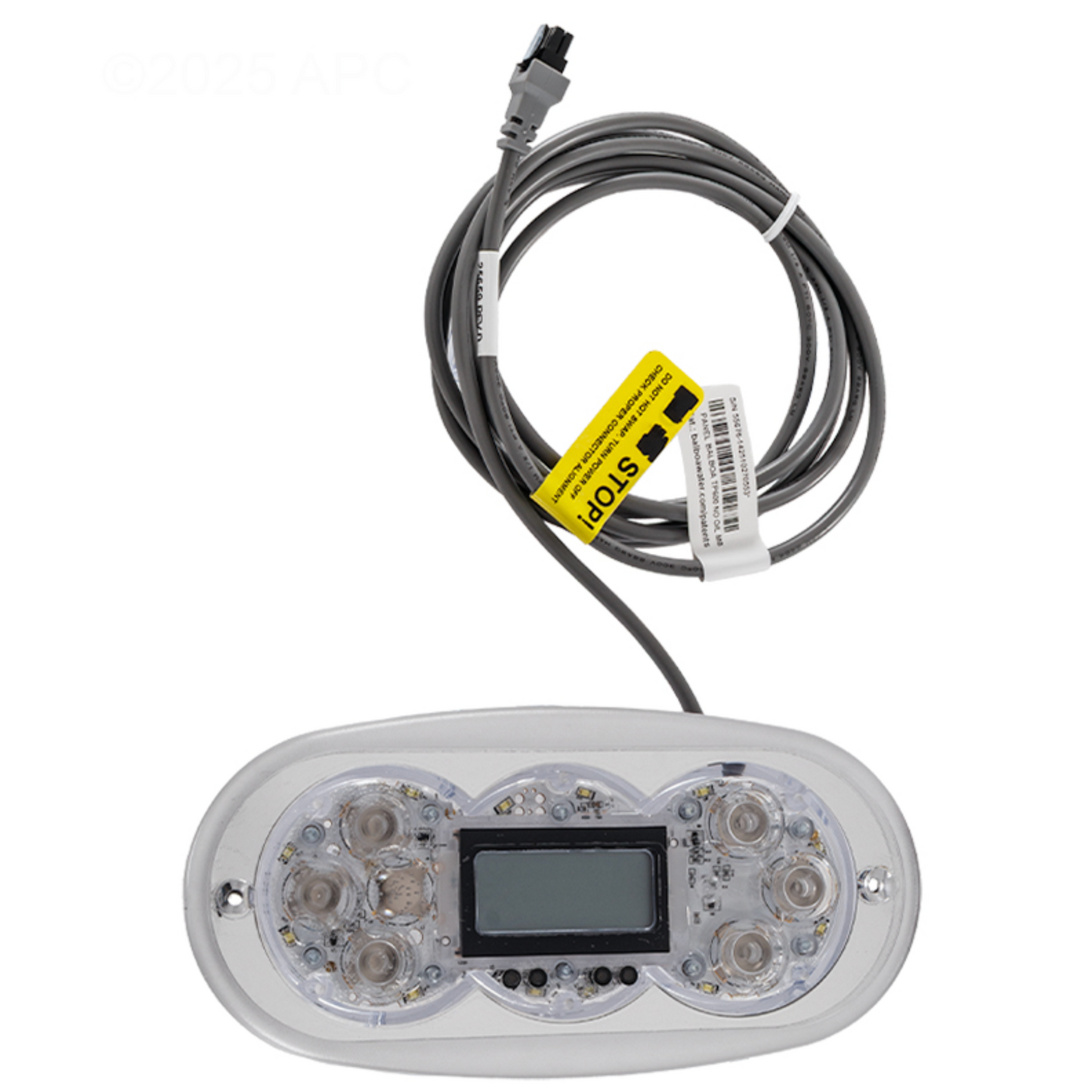

- TP600 topside keypad and cable

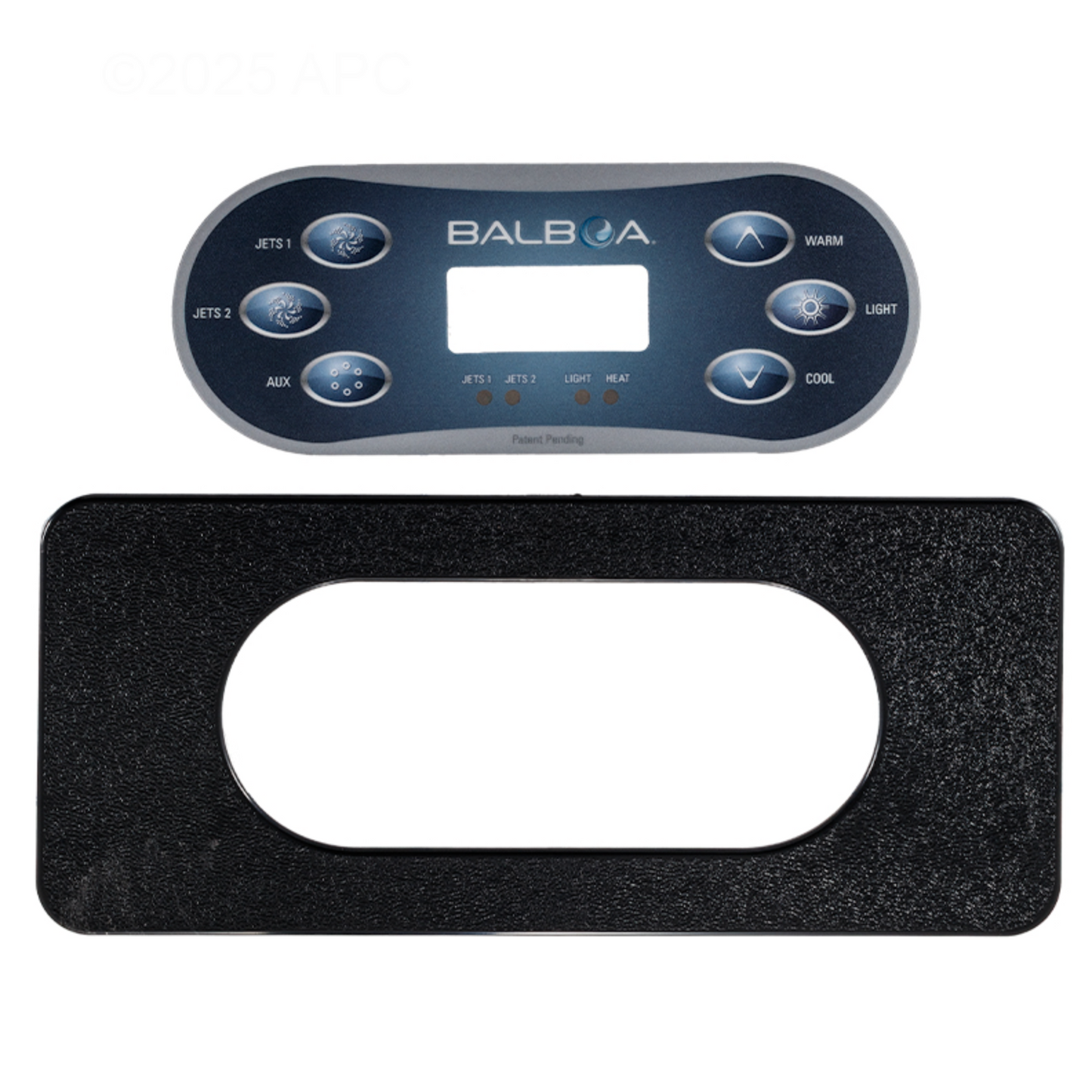

- Topside panel adapter plate
- Spa light cord (for an existing light — light fixture not included)
- Topside overlay(s)
- Plug-n-Click wiring harness
Features
- Seven on-board relays support 32 distinct configurations, covering spas with anywhere from one to four pumps
- Direct replacement for any other Balboa BP system using the spa's existing topside (some exceptions apply)
- Replaces Balboa VS or EL systems when paired with a TP or SpaTouch topside panel (some exceptions apply)
- Replaces most third-party non-low-flow systems when paired with a TP or SpaTouch topside (some exceptions apply)
- Accessory support for ControlMySpa, Balboa Bluetooth Audio, @ease/Chromozon3 sanitization, and Status Pro
- M7 internal temperature and flow sensing; Plug-n-Click wiring throughout
Control Box Dimensions
17" L × 4.75" W × 11.5" H
Product Specifications
| Number Of Appliances | 1, 2, 3, 4 |
| Manufacturer | Balboa Water Group |
| Model | BP7 |
| Supply Voltage | 230v - 4 Wire |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 5.5kW |
| Topside Included | TP600 |
| Light Included | No (light cord and overlay only) |
| Circ Pump Ready | Optional 115v, Optional 230v |
| Accessory Ready | Yes (ControlMySpa, BT Audio, Chromozon3, Status Pro) |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 50Hz, 60Hz |
| Control Box Dimensions | 17" L × 4.75" W × 11.5" H |
Additional Info
| Category | Spa Products Spa Packs |
| SKU | PST-BBG6506 |
| MPN | G6506 |
| Manufacturer | Balboa Water Group |
| Weight | 13.1 lb |
