Balboa G5310 BP100G2 Spa Control System with 5.5kW Heater — Control Only
Balboa G5310 BP100G2 Spa Control System with 5.5kW Heater — Control Only
Low stock: 10 left
Ships from: Bloomfield, CT
Genuine OEM product, sold with full manufacturer warranty support.
- Next day Shipping Mon–Fri
- 30 days ReturnsPolicy
- 1 Year Warranty Manufacturer
Frequently Bought Together
Product Information
Description

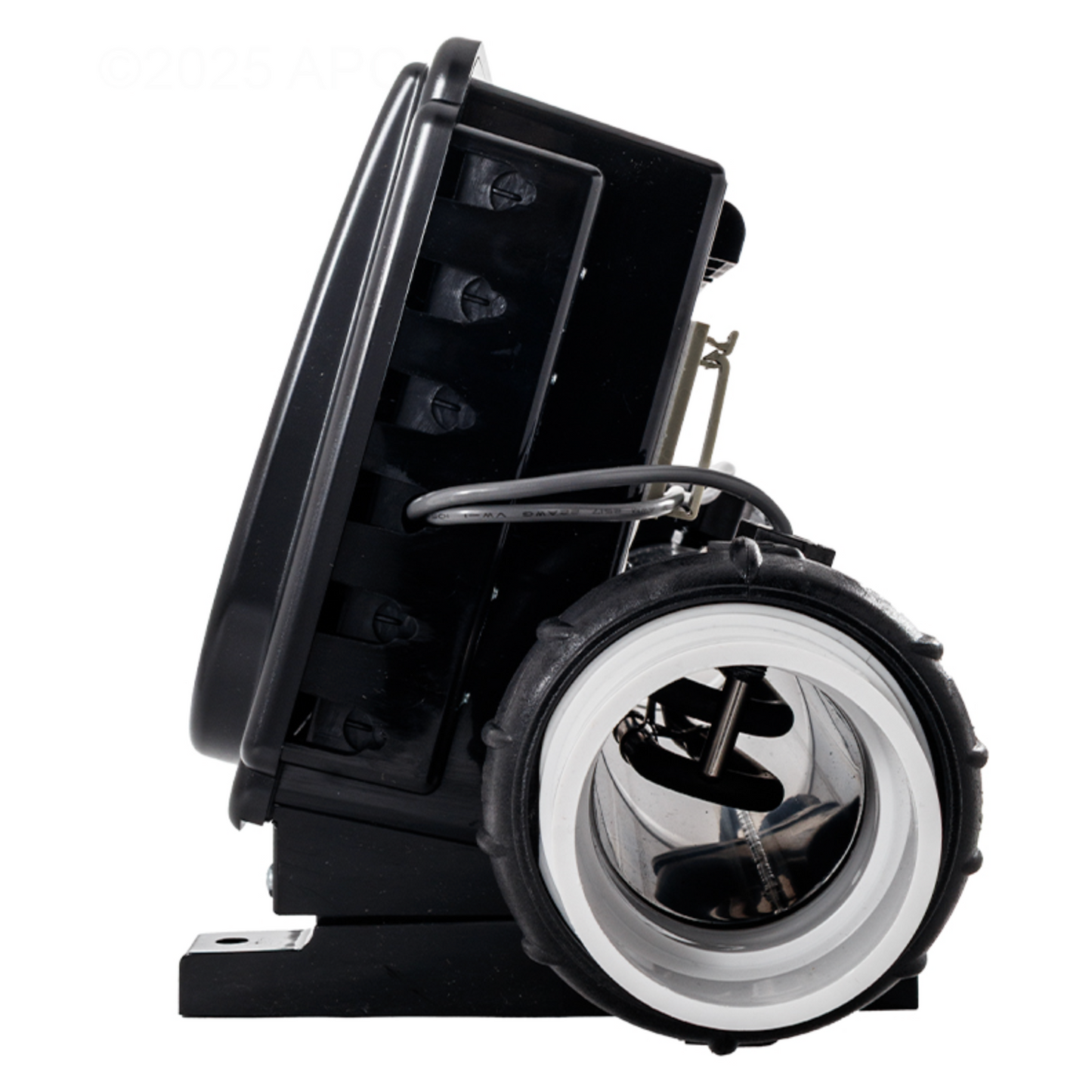

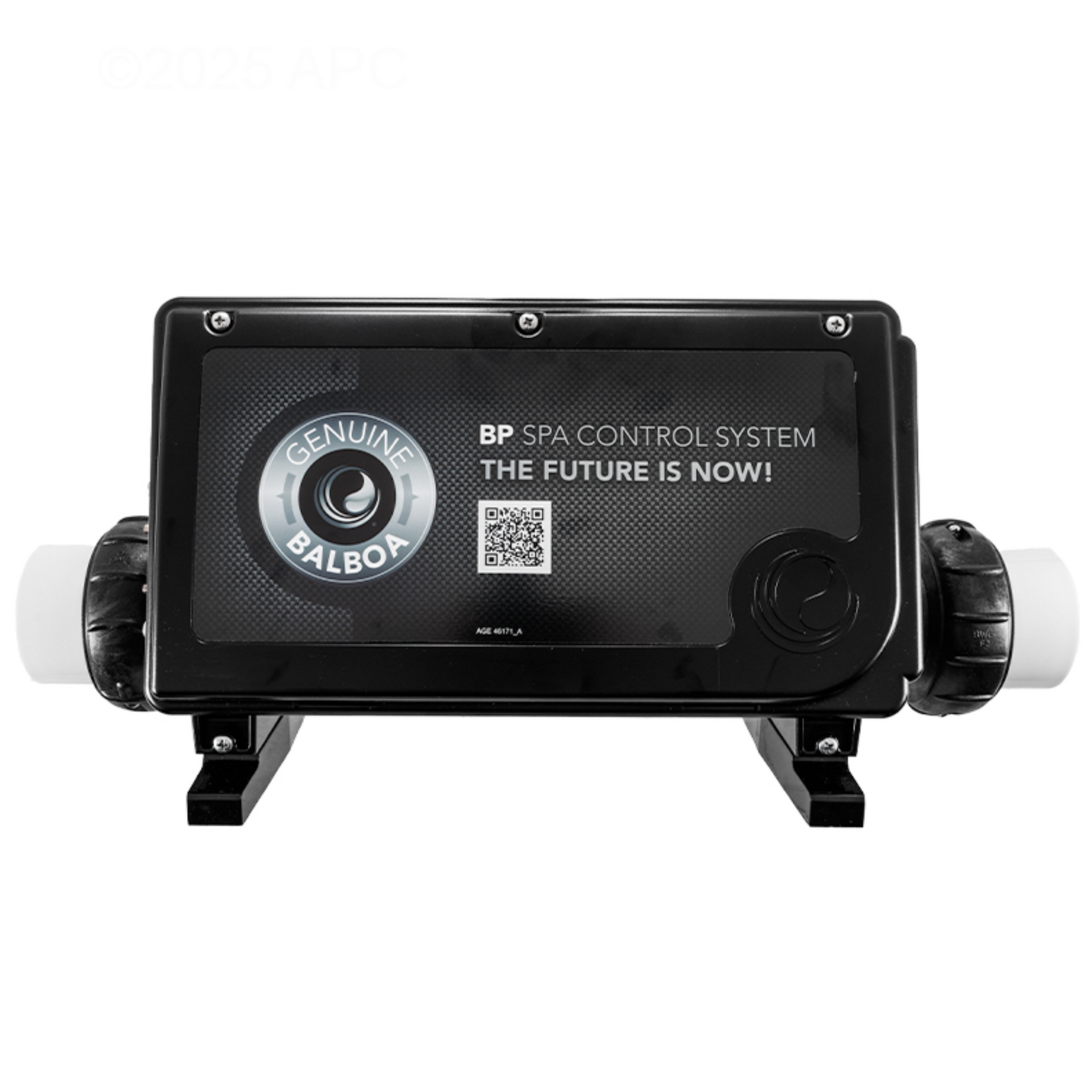

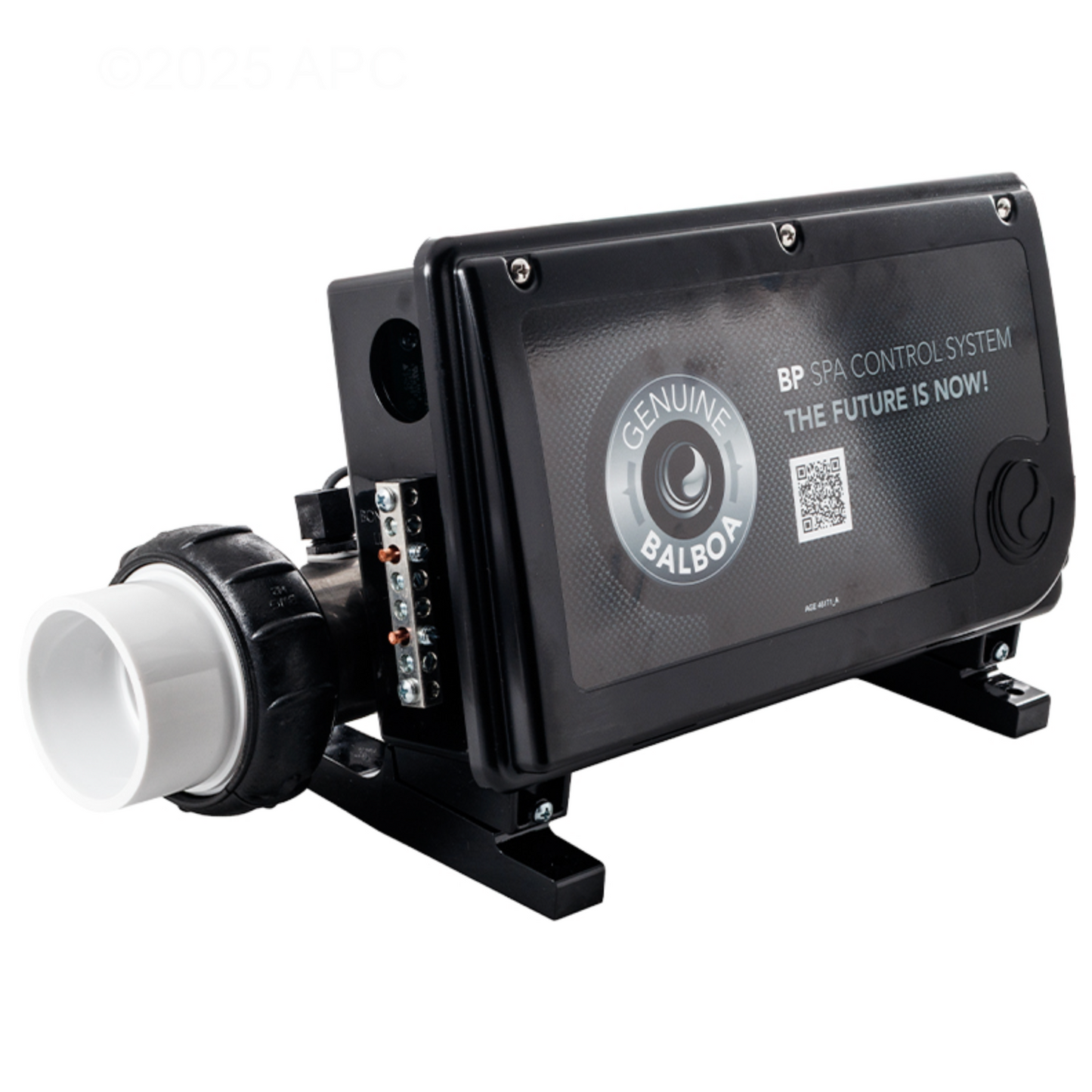

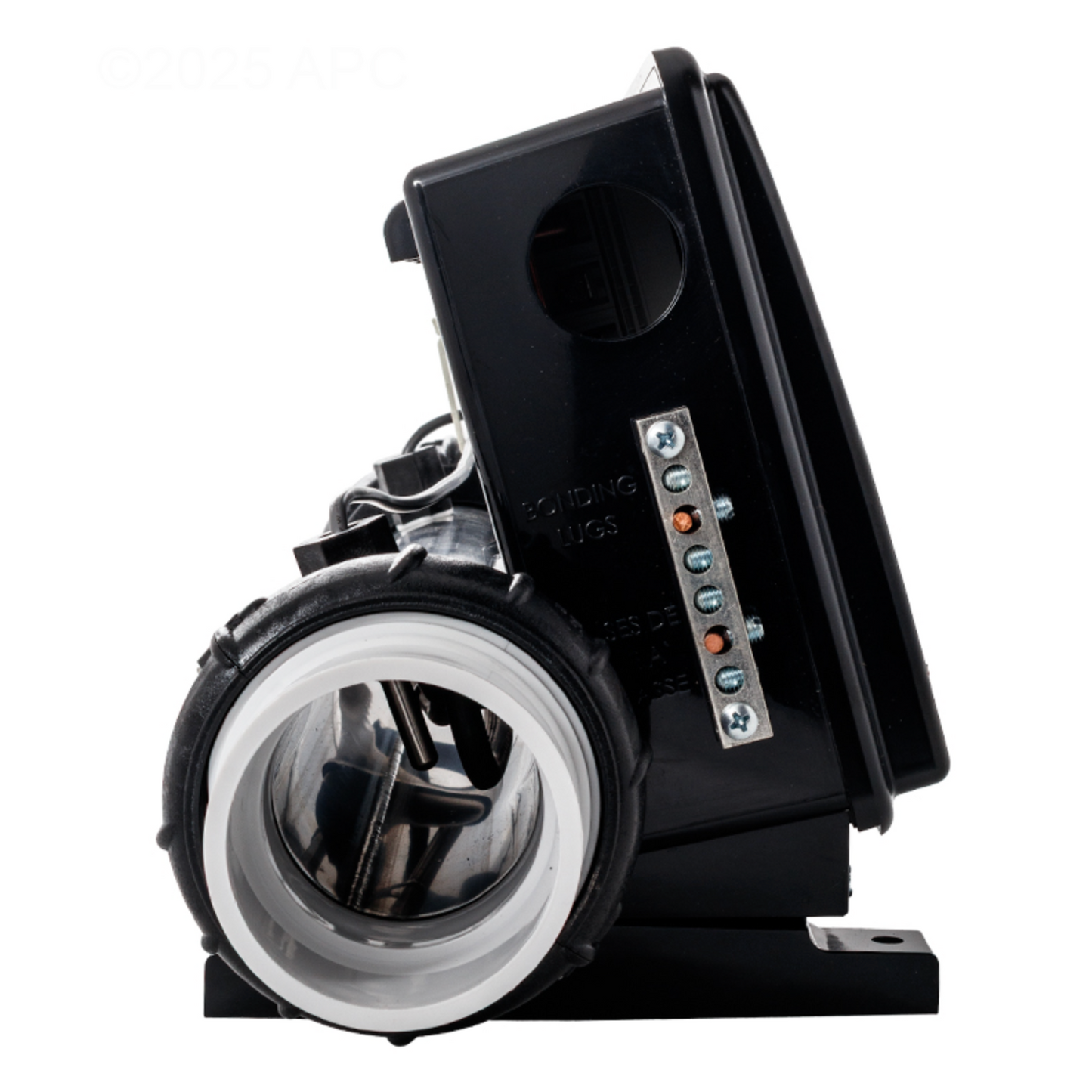

Balboa BP100G2 Spa Control System (G5310) — 5.5kW Heater, Control Box Only
The Balboa Water Group BP100G2 is an entry-level spa pack from the proven BP series, built around an integrated 5.5kW stainless-steel flow-thru heater and the latest M7 sensor technology. This listing is for the control box only — topside panel sold separately.
What's Included
- Balboa BP100G2 control box (MPN: G5310)
- Integrated 5.5kW heater assembly with stainless-steel element
- Plug-n-Click connectors for fast wiring
Topside panel, mounting brackets (P/N 32068), and pumps sold separately.
Specifications
- Model: BP100G2
- Manufacturer Part Number: G5310
- Heater Output: 5.5 kW
- Voltage: 230V (4-wire), 50/60 Hz auto-detect
- Pump 1: 2-speed, up to 12A
- Pump 2: 1-speed, up to 12A
- Optional: Circulation pump (115V or 230V), ozone, 12V spa light
- Sensor System: M7 (internal temperature and flow sensing)
- Wi-Fi Ready: Compatible with bwa, ControlMySpa, and bba modules
Topside Compatibility
The BP100G2 works with the full Balboa topside lineup, including:
- TP series: TP400, TP500, TP600, TP700, TP800, TP900
- SpaTouch series: SpaTouch 1, SpaTouch 2, SpaTouch 3
Notes
- The 5.5kW heater requires 230V supply.
- If a 24-hour circulation pump is used, it must flow at least 23 GPM.
- Pump 1, the circulation pump, and ozone must share the same voltage.
Product Specifications
| Number Of Appliances | 1, 2 |
| Manufacturer | Balboa Water Group |
| Model | BP100 |
| Supply Voltage | 230v - 4 Wire |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 5.5kW |
| Topside Included | None |
| Circ Pump Ready | Optional 115v, Optional 230v |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 50Hz, 60Hz |
Additional Info
| Category | Spa Products Spa Packs |
| SKU | PST-BBG5310 |
| MPN | G5310 |
| Manufacturer | Balboa Water Group |
| Weight | 8.98 lb |
