Product Information
Description
Balboa BP100G2 Spa Control System (G431101) — Remote Pack, No Heater
The Balboa Water Group BP100G2 is an entry-level spa pack from the proven BP series, built on the latest M7 sensor technology with Plug-n-Click connectors. This listing is the remote / slave configuration — there is no integrated heater, making it ideal for installations that use an external heater or operate as a secondary pack alongside another Balboa BP system.
What's Included
- Balboa BP100G2 control box (MPN: G431101)
- Plug-n-Click connectors for fast wiring

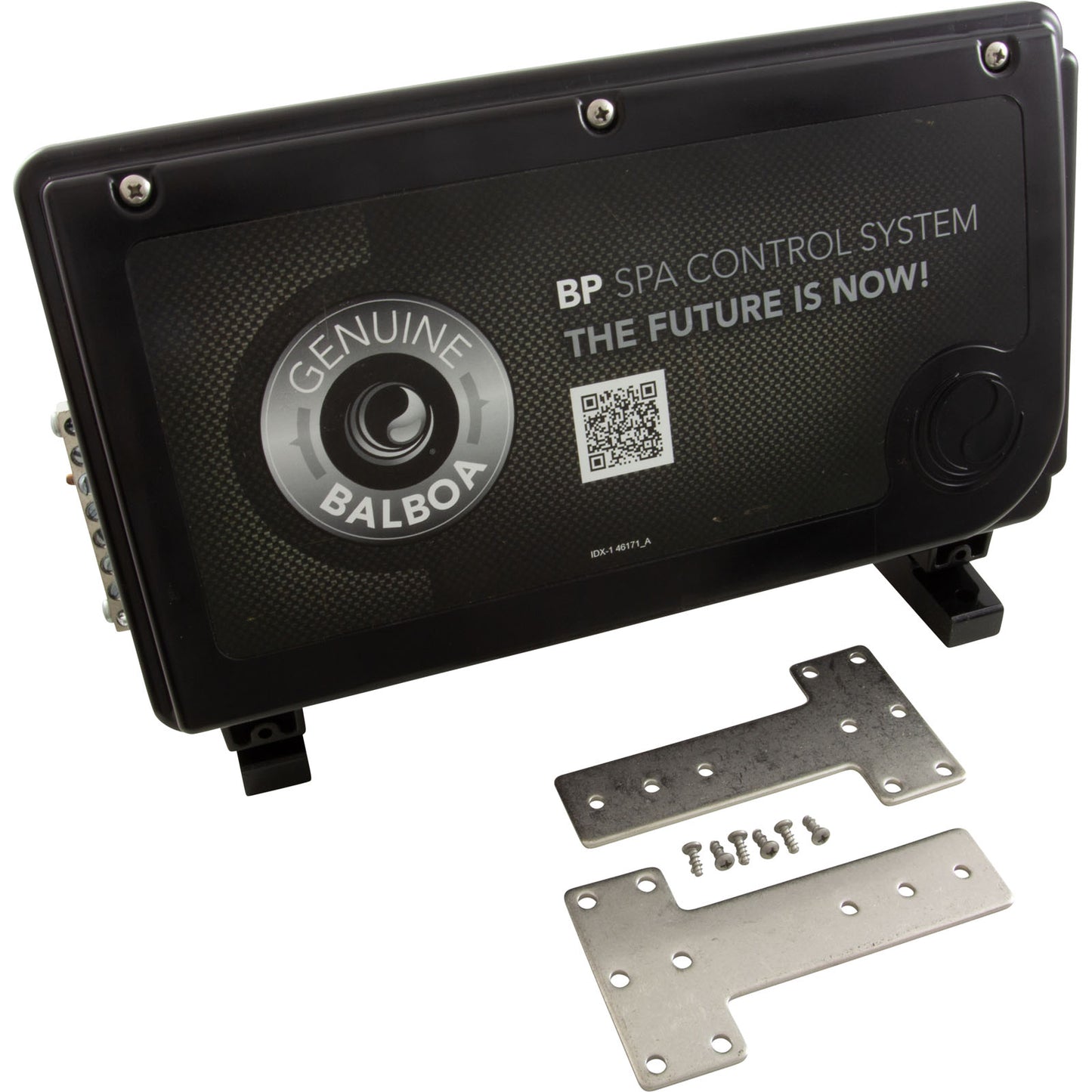

Heater assembly, topside panel, mounting brackets (P/N 32068), and pumps sold separately.
Specifications
- Model: BP100G2 (Remote / No Heater)
- Manufacturer Part Number: G431101
- Heater: Not included — designed for use with an external heater or in a remote/slave configuration
- Voltage: 115V / 230V (4-wire), 50/60 Hz auto-detect
- Pump 1: 2-speed, up to 12A
- Pump 2: 1-speed, up to 12A
- Optional: Circulation pump (115V or 230V), ozone, 12V spa light
- Sensor System: M7 (internal temperature and flow sensing)
- Wi-Fi Ready: Compatible with bwa, ControlMySpa, and bba modules
Topside Compatibility
The BP100G2 works with the full Balboa topside lineup, including:
- TP series: TP400, TP500, TP600, TP700, TP800, TP900
- SpaTouch series: SpaTouch 1, SpaTouch 2, SpaTouch 3
Notes
- If a 24-hour circulation pump is used, it must flow at least 23 GPM.
- Pump 1, the circulation pump, and ozone must share the same voltage.
Product Specifications
| Number Of Appliances | 1, 2 |
| Manufacturer | Balboa Water Group |
| Model | BP100 |
| Supply Voltage | 115v, 230v - 4 Wire |
| Heater Type | None (Remote) |
| Heater Wattage | None |
| Topside Included | None |
| Circ Pump Ready | Optional 115v, Optional 230v |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 50Hz, 60Hz |
Additional Info
| Category | Spa Products Spa Packs |
| SKU | PST-BBG431101 |
| MPN | G4311-01 |
| Manufacturer | Balboa Water Group |
| Weight | 6.64 lb |
Documentation
