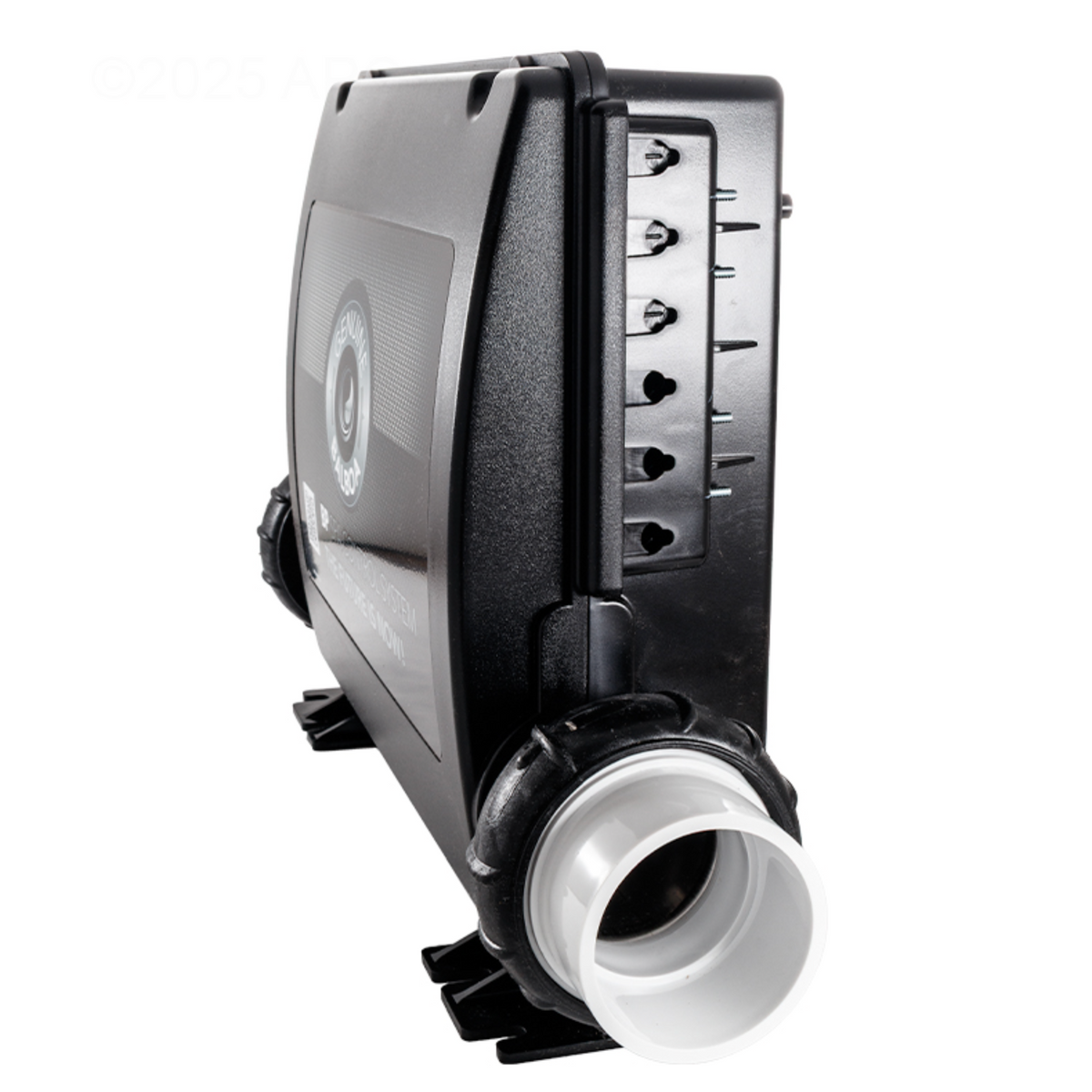

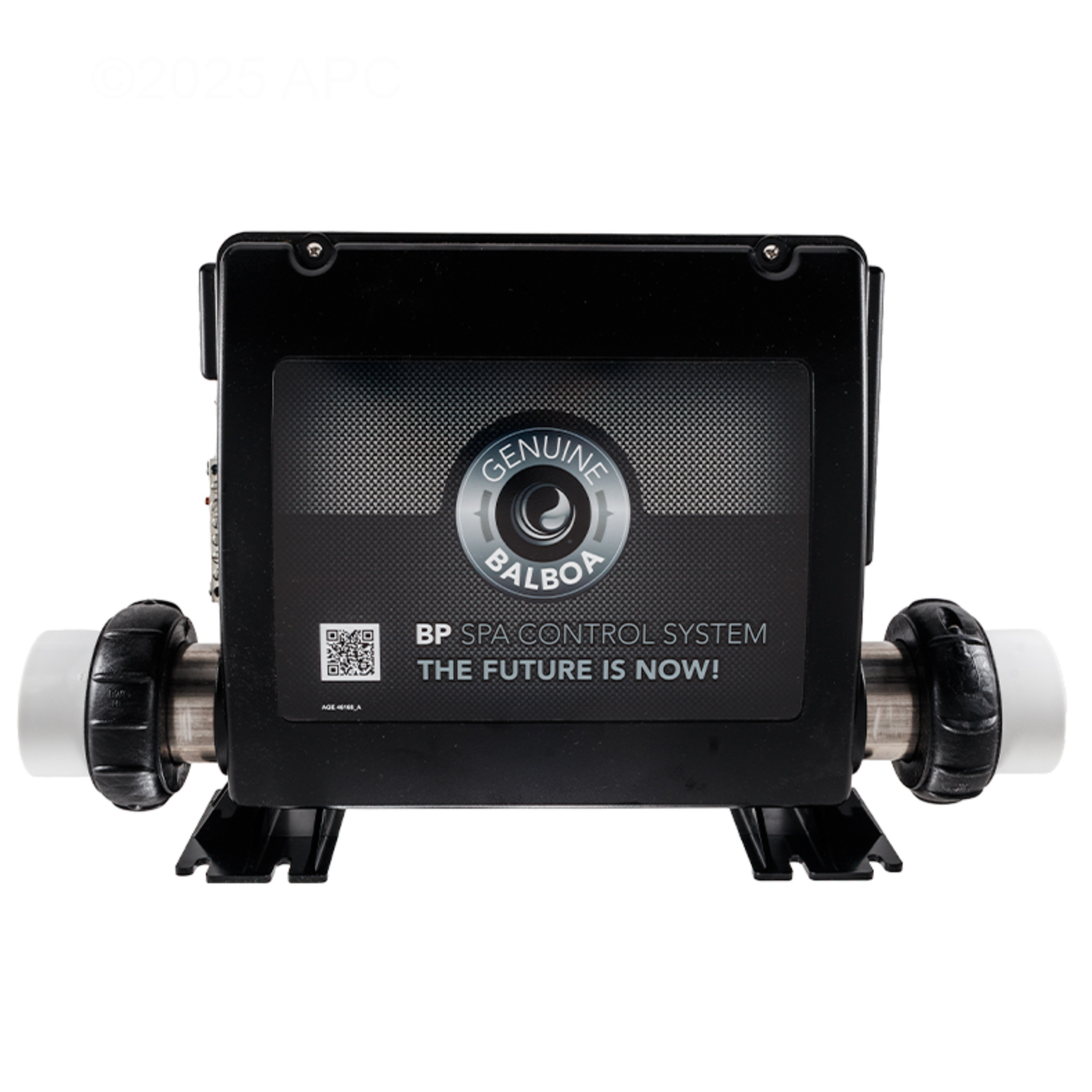

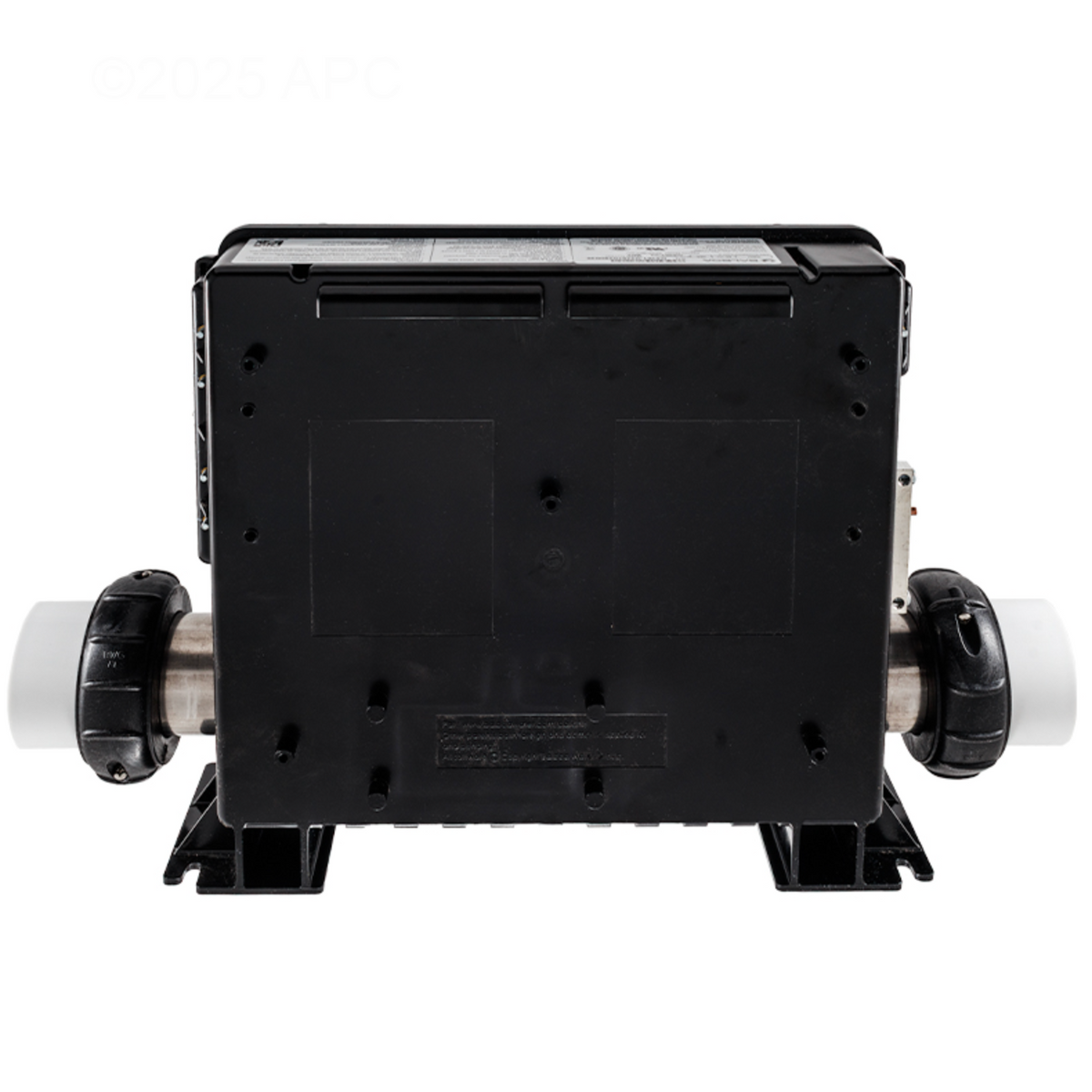

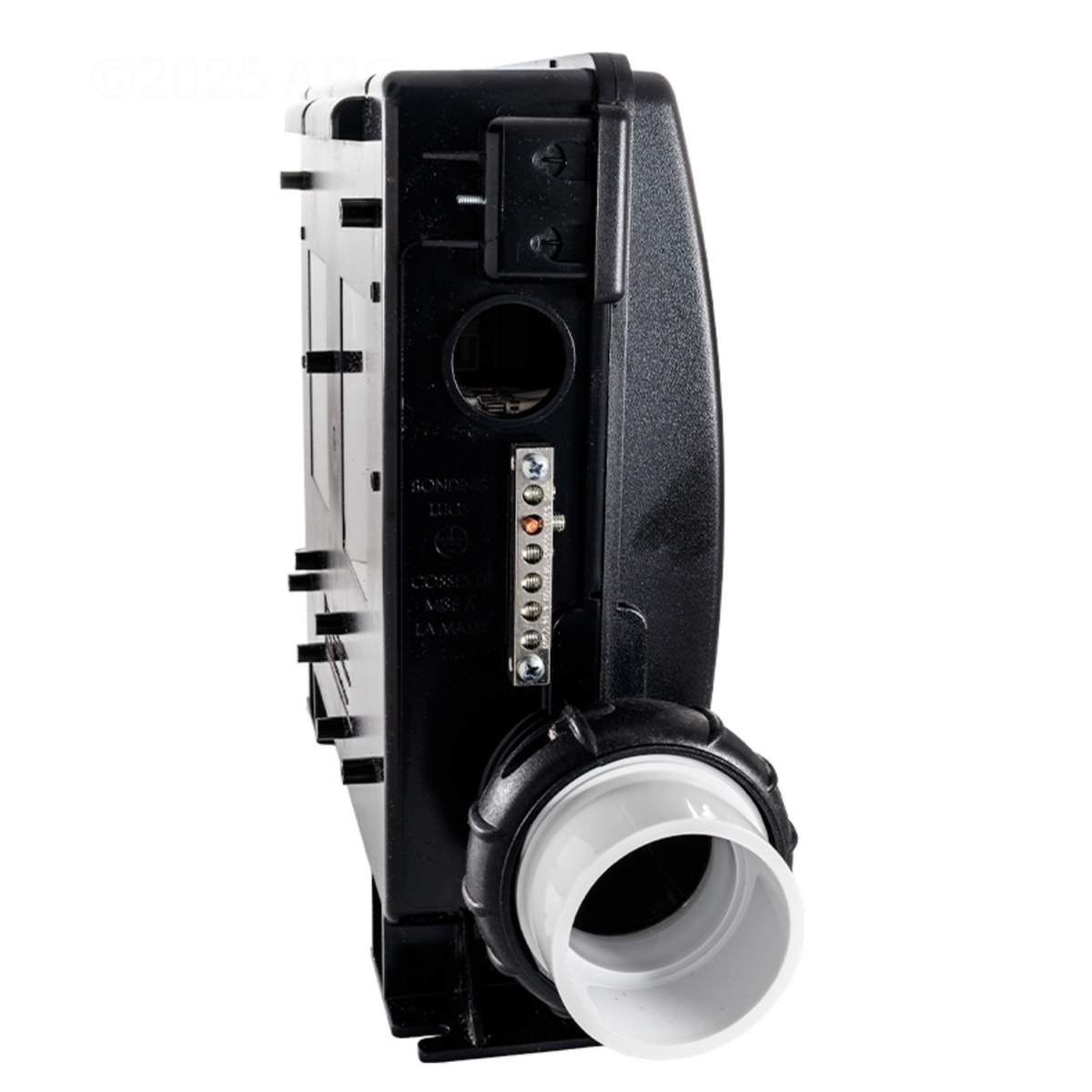

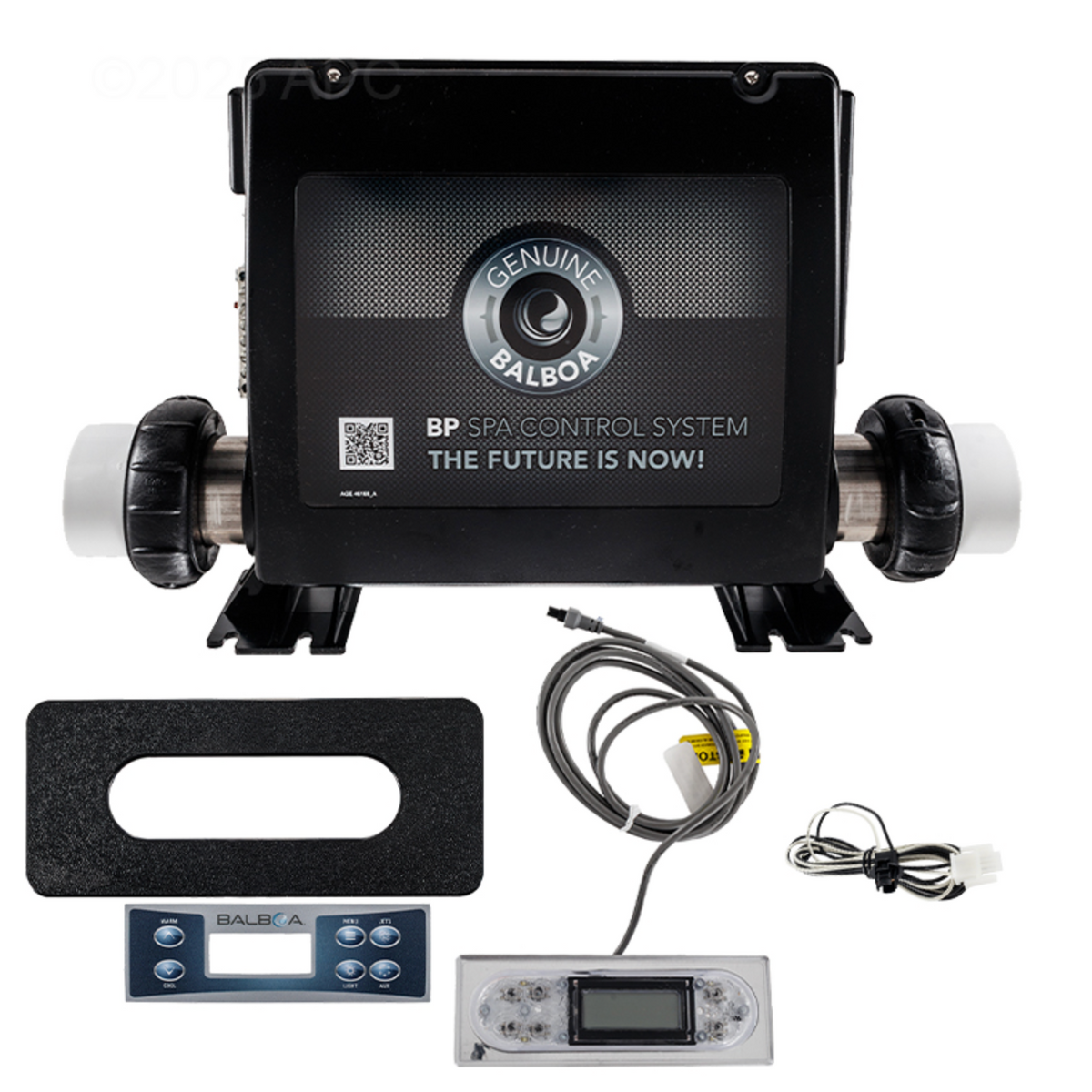

Balboa BP7 Spa Retrofit Kit - 5.5kW Heater with TP500 Keypad
The Balboa BP7 retrofit kit is a full-featured spa control replacement designed for larger hot tubs with up to 4 pumps plus ozone, light, and audio. Built on Balboa's patented M7 heater technology, it eliminates the pressure switch entirely and allows flexible heater placement on either the suction or discharge side of the pump.
Key Features:
- BP7 Controller with 7 Relays: Supports up to 4 pumps (including Microsilk systems) with 32 different preconfigured setups.
- M7 Heater Technology: Patented pressureless heater design allows mounting on either side of the pump and removes the failure-prone pressure switch.
- 5.5kW @ 240V Heater: Delivers faster heating and dependable temperature maintenance in colder climates.

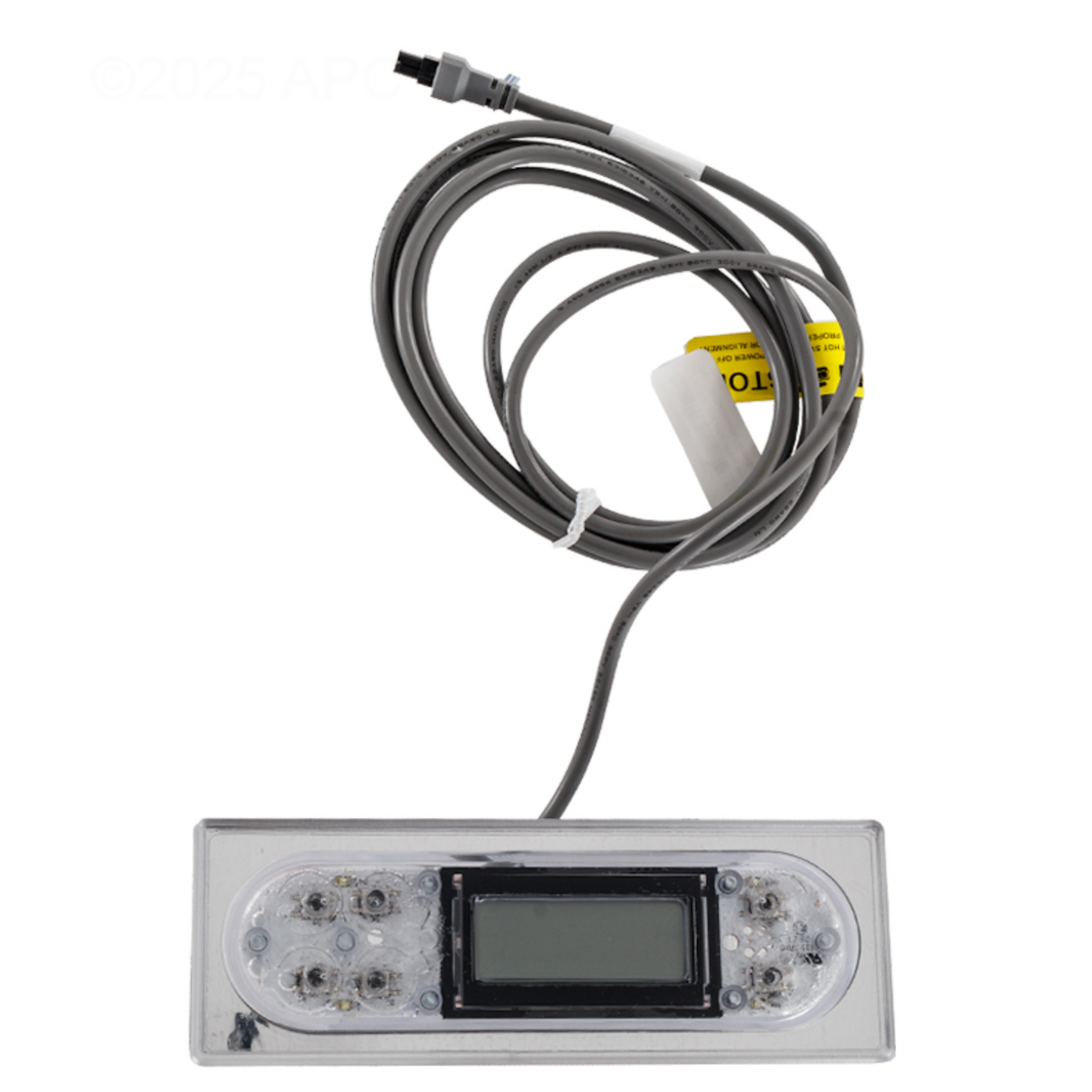

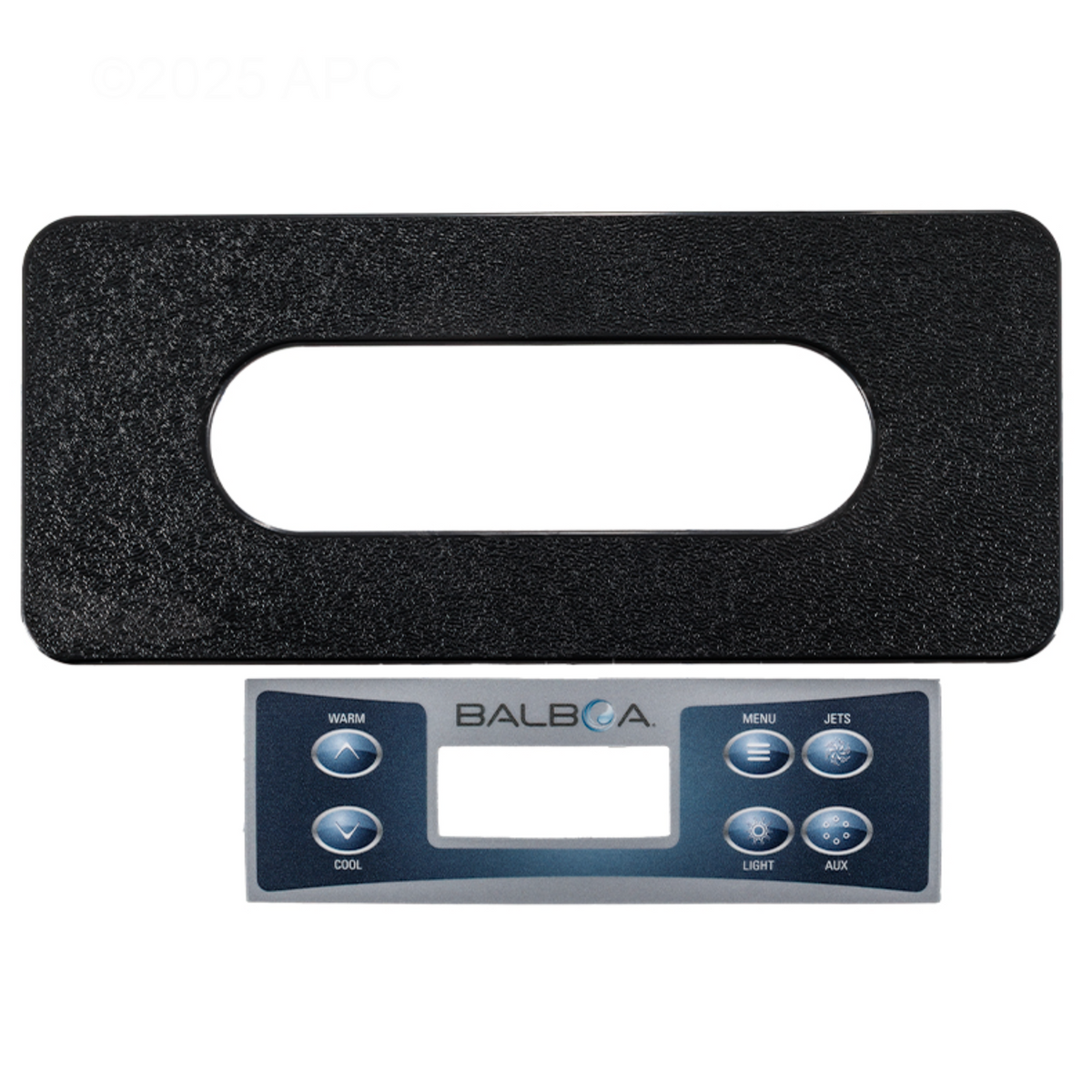

- TP500 Topside Panel: Digital display with straightforward controls for temperature, jets, lights, and auxiliary functions.
- Broad Circuit Support: Drives Jet Pumps 1-3, Blower or Jet Pump 4, continuous circulation pump, ozone, light, and A/V stereo output.
- Wi-Fi Compatible: Works with Balboa's bwa Wi-Fi module for smartphone control (sold separately).
Technical Specifications:
- Part Number (MPN): G6505
- Control Pack: BP7 (7 relays)
- Topside Panel: TP500
- Heater: 5.5kW @ 240V
- Supply Voltage: 115V / 230V
- Pump Support: 1 to 4 pumps
- Service Requirement: 50A+ recommended for 5.5kW configuration
- Included Accessories: Light (as noted in kit description)
- Wi-Fi Compatible: Yes (module sold separately)
Additional Info
| Category | Spa Products Spa Heaters |
| SKU | PST-BBG6505 |
| MPN | G6505 |
| Manufacturer | Balboa |
| Weight | 13.0 lb |
