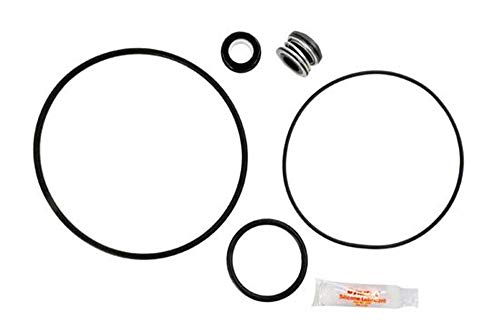

APC APCK1180 Pump Repair Kit -- Hayward Matrix
OEM-equivalent service kit for Hayward Matrix above-ground pumps.
The APC APCK1180 is the standard service kit for the Hayward Matrix above-ground pump line. Includes the mechanical shaft seal plus the lid, diffuser, and housing O-rings needed for a complete rebuild.
| Manufacturer | APC |
|---|---|
| Kit Type | Pump Repair Kit |
| APC Catalog # | APCK1180 |
| SKU | PST-APCK1180 |
| Equipment Family | Hayward Matrix Above-Ground Pumps |
|---|---|
| Fitment Note | Matrix family only. Hayward's many other pump lines (Super Pump, Power-Flo, Max-Flo, NorthStar, EcoStar) each use their own dedicated kit. |
| Mechanical Shaft Seal | 1 |
|---|---|
| Lid / Strainer Pot O-Ring | 1 |
| Diffuser Gasket | 1 |
| Housing O-Ring | 1 |
- Hayward Matrix Above-Ground Pumps
How do I know my pump is a Matrix?
The Matrix line is Hayward's premium above-ground pump with the cast-in 'Matrix' name on the volute. Check the motor data plate for the full Hayward model number to confirm.
Is there a Premium Seal upgrade for this kit?
Not at the moment. For an ozone-equipped pad on a Matrix install, lubricate the standard seal with pool-grade silicone and plan on a shorter service interval.
Can I install this myself?
Yes. Disconnect power, separate the wet-end from the motor, swap the seal and all O-rings, lubricate with pool-grade silicone, and torque the volute bolts in a star pattern.
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-APCK1180 |
| MPN | APCK1180 |
| Manufacturer | Hayward |
| Weight | 1.0 lb |
