Product Information
Description
APC Universal Pressure Switch Kit, 1A, 1-5 PSI, with Adapters (APC3902)
Universal 1/8 in NPT heater pressure switch with brass adapters

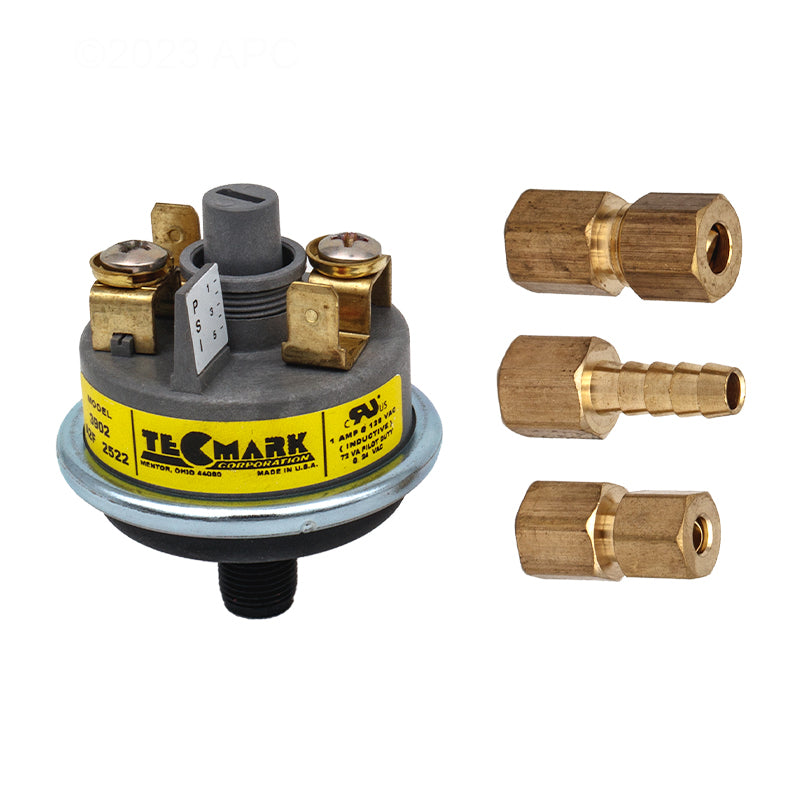

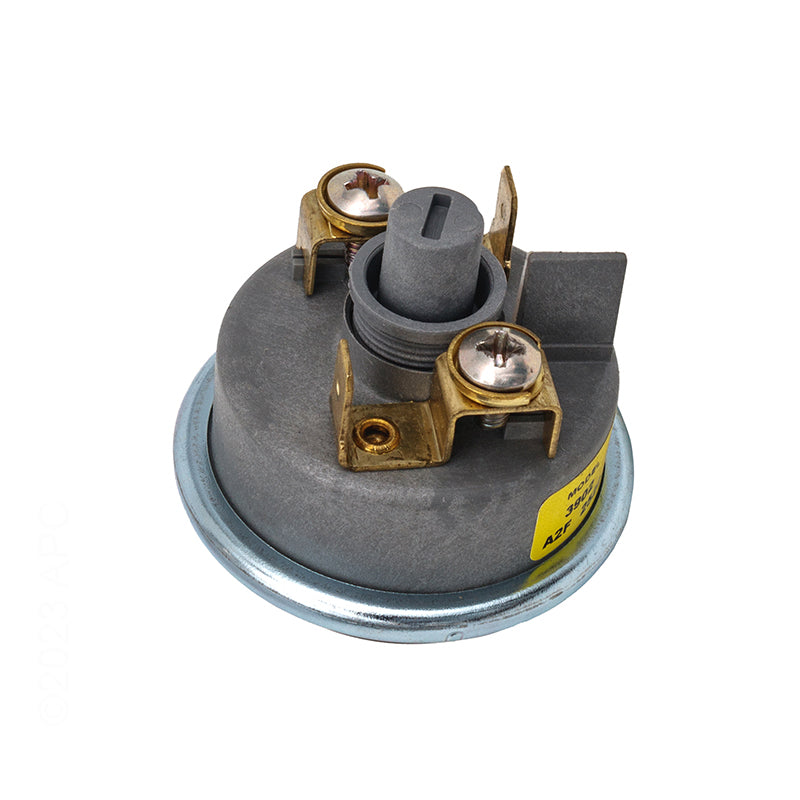

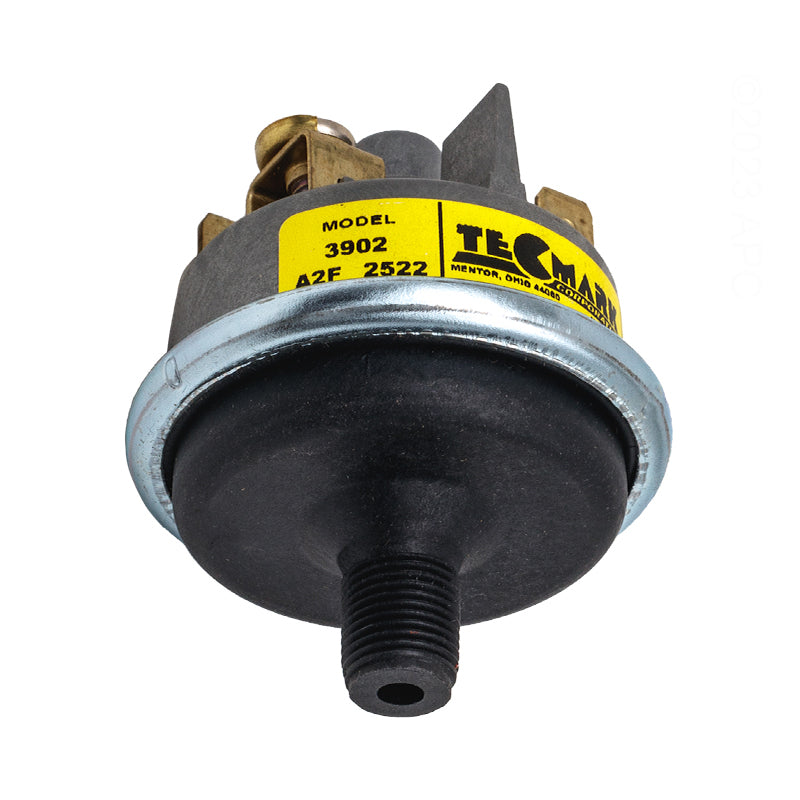

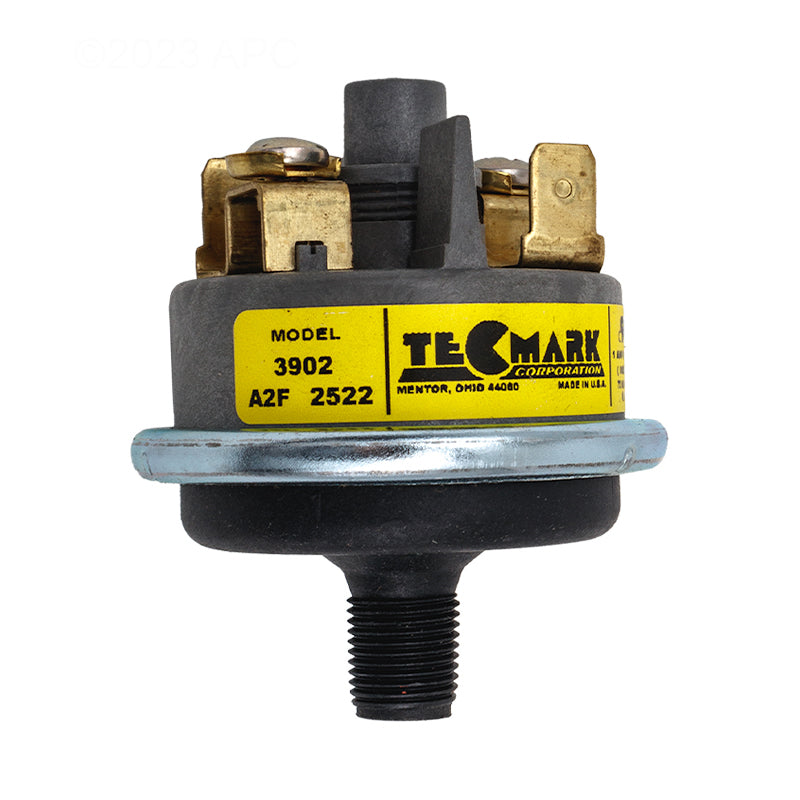

APC APC3902 is a universal pressure switch kit for spa packs and pool and spa heaters: a 1 amp, normally open, 1/8 in NPT switch (a Tecmark 3902, as pictured) with an adjustable 1 to 5 PSI set point, plus brass adapters so it can match the original connection.
| Brand | APC |
|---|---|
| Part Number | APC3902 |
| Switch Pictured | Tecmark 3902 |
| Contact Rating | 1 amp (pilot duty) |
| Contacts | SPNO, single pole normally open |
| Pressure Range | 1 to 5 PSI, field adjustable |
| Connection | 1/8 in NPT male |
| Diaphragm | Elastomeric, no oil barrier needed |

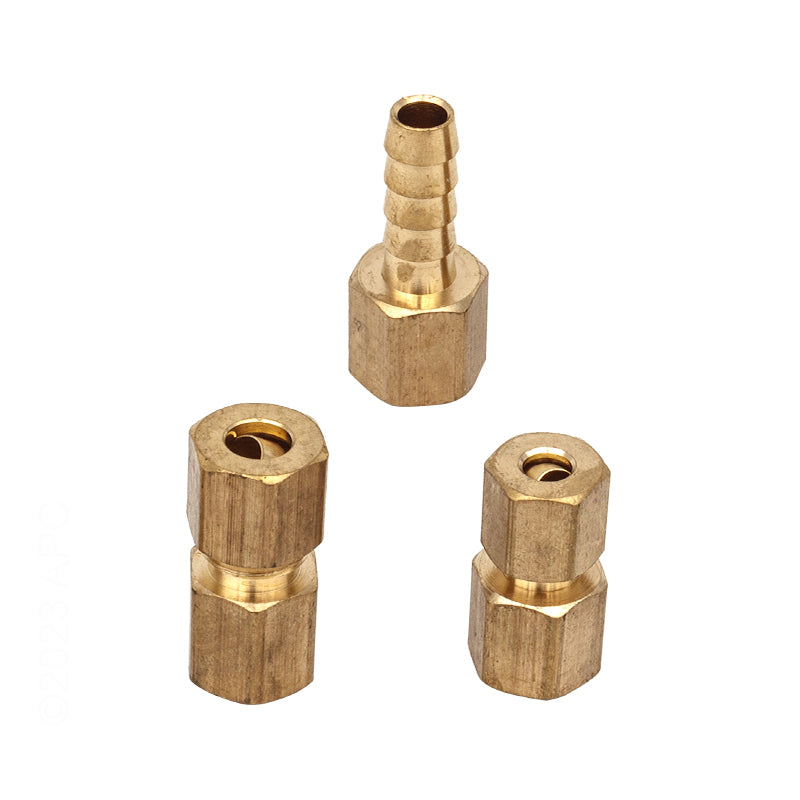

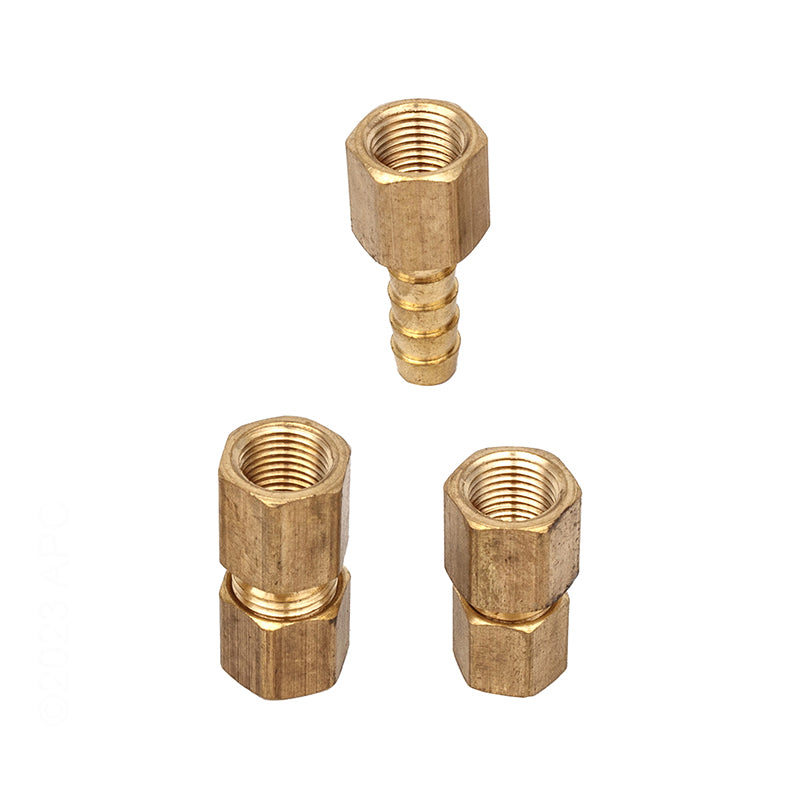

| Adapters Included | 3 brass adapters: 2 compression fittings and 1 hose barb |
| Typical Use | Digital spa packs; pool and spa gas heaters with millivolt or electronic ignition |
| Heater Brands Cross-Referenced | ComfortZone, Hobbs, Laars, Purex, Raypak |
| Sold As | Kit (switch plus adapters) |
- Digital spa packs that use a 1 amp, 1-5 PSI pressure switch
- Pool and spa gas heaters with millivolt or electronic ignition (ComfortZone, Hobbs, Laars, Purex, Raypak cross-references)
- Replaces Tecmark 3900, 3901, 3903, 3904, 3906 and 3909 style switches
Will a 1 amp switch work on my heater?
Only if the old switch was also a low current (1 amp) switch. Digital spa packs and gas heater control circuits use 1 amp switches. Older analog spa packs that switch the heater element directly need a 21 or 25 amp switch, so check the rating printed on your old switch first.
Do I need to adjust it?
Usually not. If the heater shows a flow or pressure error with good flow, the set point can be adjusted on the switch. Turn off power before working on the heater or spa pack.
Additional Info
| Category | Parts Spa Parts Spa Pressure Switches |
| SKU | PST-APC3902 |
| MPN | APC3902 |
| Replaces | 26775, 26776, 26778, 3900, 3901, 3903, 3904, 3906, 3909, 600025, 71076, B600025, M3218, PRS-1100, PRS-1101, R-113, R-130, R-132B, S-1921173328 |
| Manufacturer | APC |
| Weight | 0.23 lb |
