Description

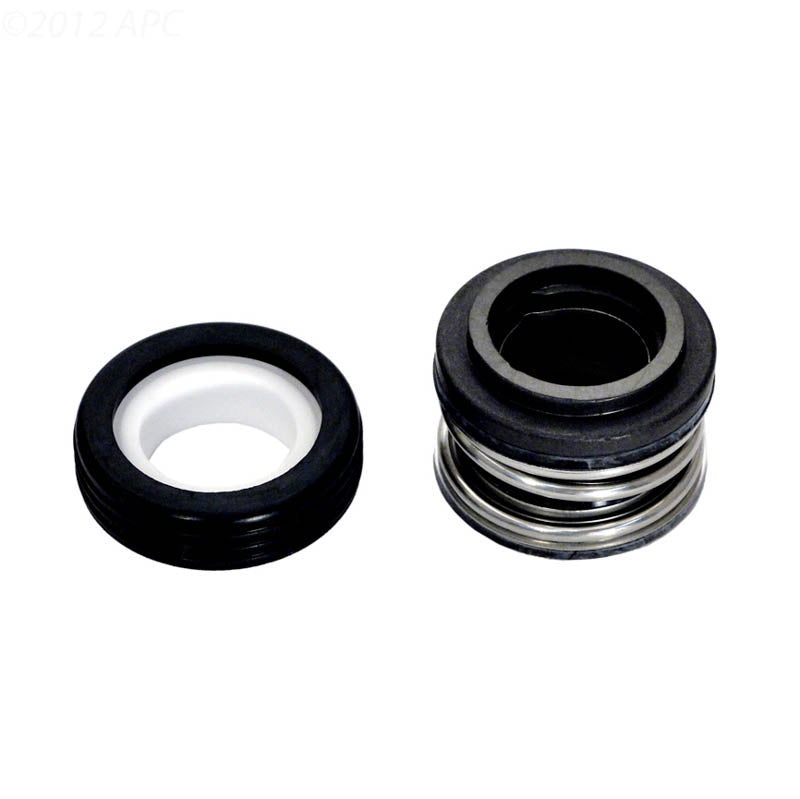

APC Pump Shaft Seal, 5/8 in Shaft, Buna, Replaces PS-200 (APCAS200)
Standard 5/8 in shaft seal that crosses to dozens of pump brands
APC APCAS200 is a 5/8 in mechanical pump shaft seal, the common PS-200 / AS-200 size. It crosses to Pentair PacFab 354545, Hayward SPX2700SA and Sta-Rite 17304-0100 among many others, and has a carbon face running against a ceramic seat.
| Brand | APC |
|---|---|
| Part Number | APCAS200 |
| Shaft Size | 5/8 in |
| Seal Type | Two-piece mechanical shaft seal (spring head and ceramic seat) |
| Faces | Carbon against ceramic |
| Elastomer | Buna-N (standard) |
| Industry Size | PS-200 / AS-200 |
| Location | Between the pump seal plate and the impeller |
| Sold As | Each (both seal halves) |
| Install Tip | Replace both halves together and keep the faces clean |
- Pentair / PacFab pumps using 354545
- Hayward pumps using SPX2700SA or SPX1250Z2
- Sta-Rite 17304-0100, Aqua-Flo 92509020 / 92500150 / 92500151
- Jacuzzi 10000206, 10143600, 100476; Speck 2920060603 / 60603200
- Advance 6C200, AmPro 6078, Arneson A8, Baker Hydro 35B1178, Doughboy 3061007
How do I install a pump shaft seal?
Turn off power, open the pump and remove the impeller. Press the ceramic seat into the seal plate with the polished face out, then slide the spring half onto the motor shaft or impeller hub. Never touch the polished faces, and don't run the pump dry.
When should I use a Viton seal?
Choose Viton if the pool or spa uses a salt chlorine generator, ozone or peroxide based chemicals. Standard Buna seals are fine for regular chlorine pools.
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-APCAS200 |
| MPN | APCAS200 |
| Replaces | 10000206, 100476, 10143600, 173040100, 2920060603, 3061007, 354545, 35B1178, 92500150, 92500151, 92509020, AS200, PS-200, SPX1250Z2, SPX2700SA |
| Manufacturer | APC |
| Weight | 0.1 lb |
