Product Information
Description

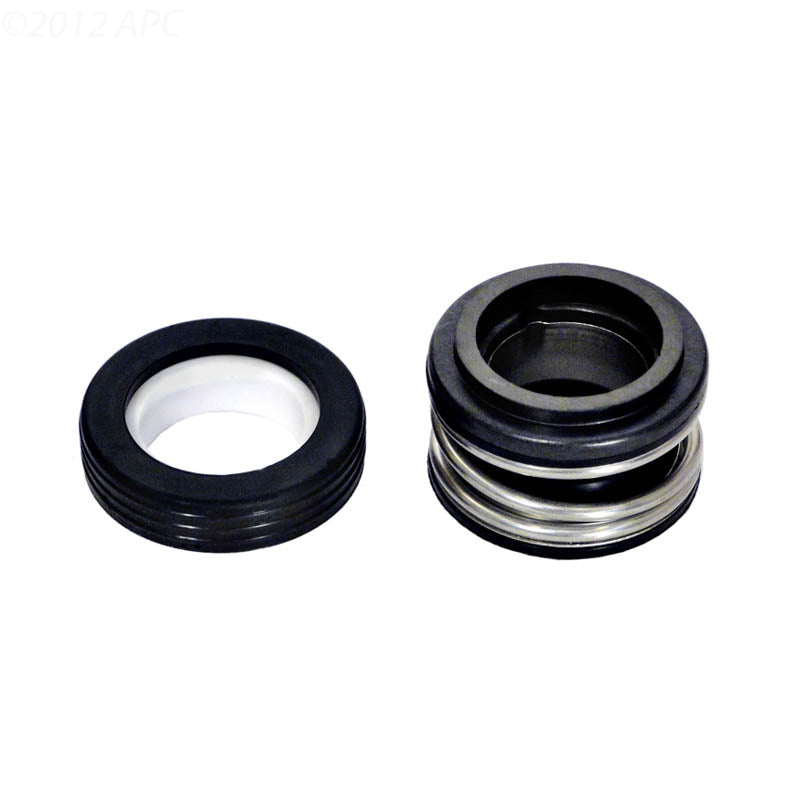

APC Pump Shaft Seal, 3/4 in Shaft, Buna, Replaces PS-201 (APCAS201)
The common 3/4 in shaft seal for Hayward, Pentair, Sta-Rite and more
APC APCAS201 is a 3/4 in mechanical pump shaft seal, the common PS-201 / AS-201 size. It crosses to Hayward SPX1600Z2, Pentair 354001 / U9-358 and Sta-Rite 17351-0101 among many others, and has a carbon face running against a ceramic seat.
| Brand | APC |
|---|---|
| Part Number | APCAS201 |
| Shaft Size | 3/4 in |
| Seal Type | Two-piece mechanical shaft seal (spring head and ceramic seat) |
| Faces | Carbon against ceramic |
| Elastomer | Buna-N (standard) |
| Industry Size | PS-201 / AS-201 |
| Location | Between the pump seal plate and the impeller |
| Sold As | Each (both seal halves) |
| Install Tip | Replace both halves together and keep the faces clean |
- Hayward pumps using SPX1600Z2
- Pentair / PacFab 354001, 354894, 350002, U9-358, U109358S, U109372SS
- Sta-Rite 17351-0101, 37400-0027S; Purex P28300 / 071278; American Products 395005
- Jacuzzi 100477, 100486, 100487, 10150209; Premier 31812; Swimquip 374070009
- Baker Hydro 385920 / 35B1109, Harmsco 201, Marlow 38592, Martec 320119, Wayne Water 15693, Advance 6C201
How do I install a pump shaft seal?
Turn off power, open the pump and remove the impeller. Press the ceramic seat into the seal plate with the polished face out, then slide the spring half onto the motor shaft or impeller hub. Never touch the polished faces, and don't run the pump dry.
When should I use a Viton seal?
Choose Viton if the pool or spa uses a salt chlorine generator, ozone or peroxide based chemicals. Standard Buna seals are fine for regular chlorine pools.
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-APCAS201 |
| MPN | APCAS201 |
| Replaces | 071278, 100477, 100486, 100487, 10150209, 15693, 173510101, 31812, 320119, 350002, 354001, 354894, 35B1109, 374000027S, 374070009, 38592, 385920, 395005, AS201, P28300, PS-201, SPX1600Z2, U109358S, U109372SS, U9358 |
| Manufacturer | APC |
| Weight | 0.1 lb |
