Product Information
Description

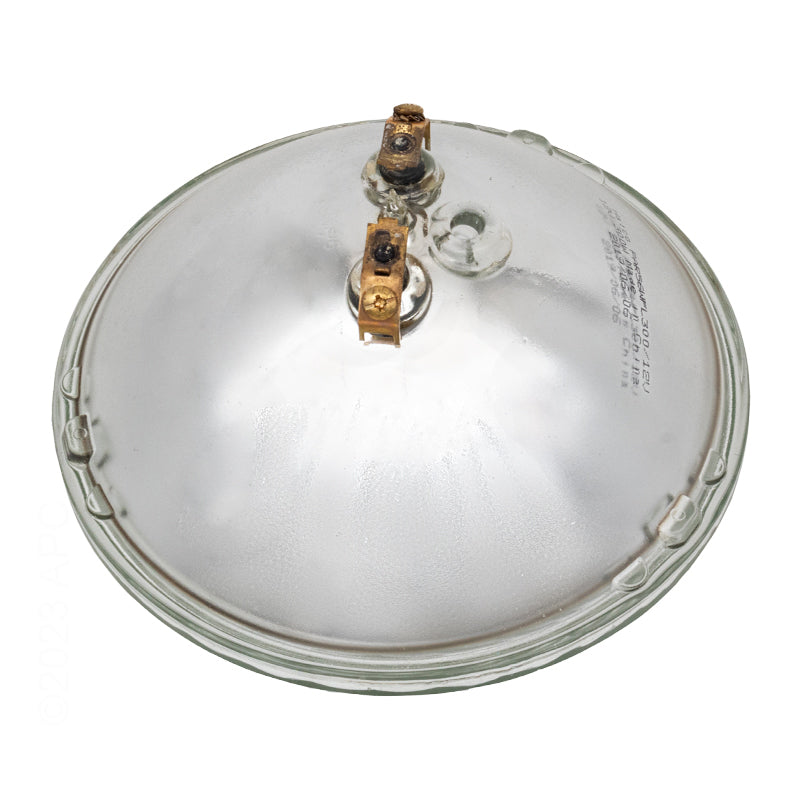

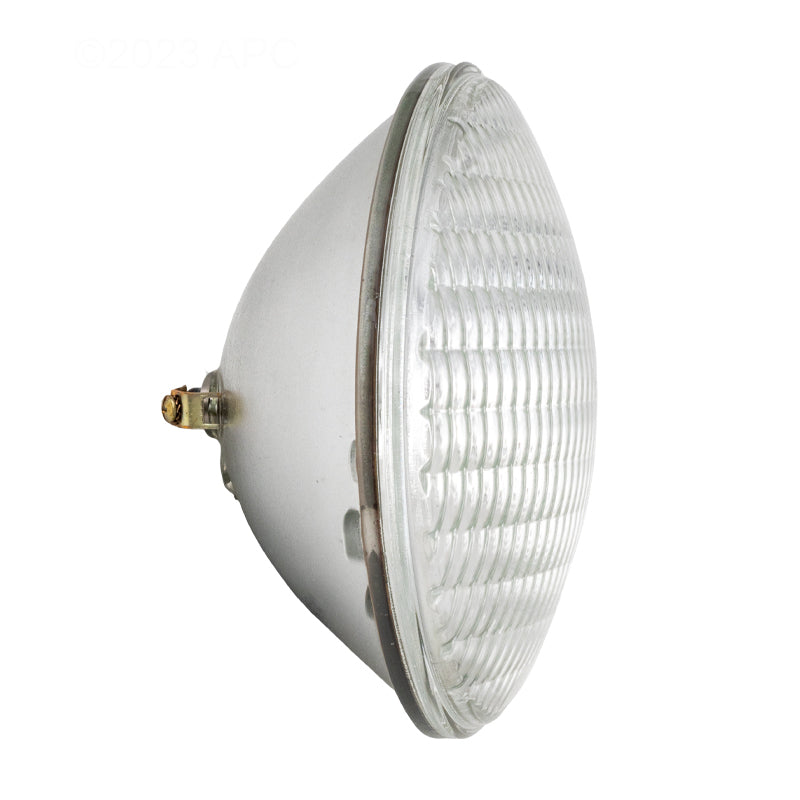

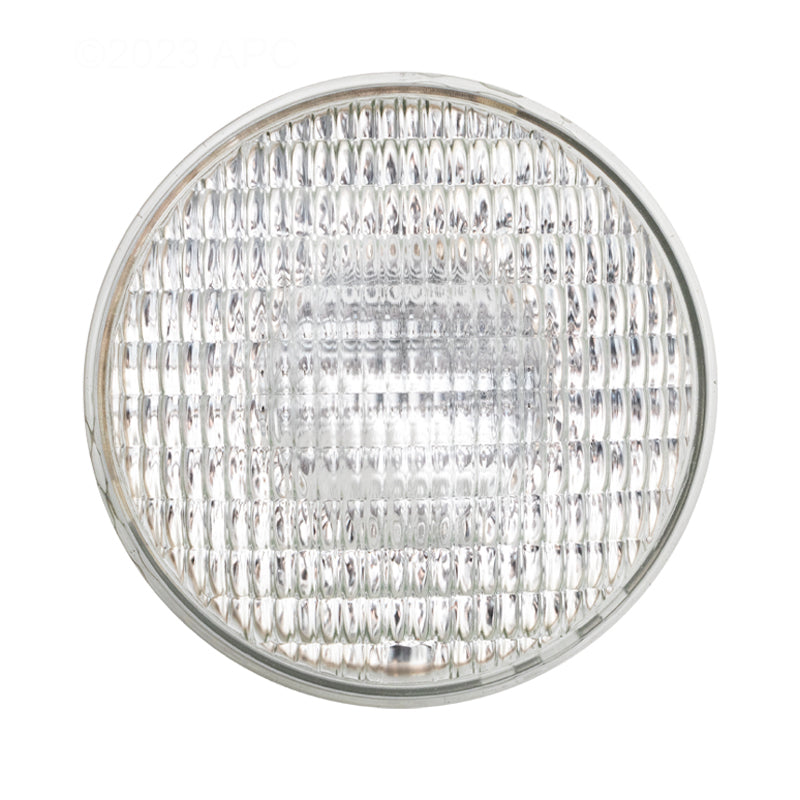

APC 300W 12V PAR56 Sealed Beam Pool Light Bulb, Screw Terminal (APC12300S)
300 W PAR56 sealed beam for Hayward SP0500 series lights
APC APC12300S is a 12 V, 300 W PAR56 wide-flood sealed beam lamp (PAR56WFL300/12V) with screw terminals. It is an aftermarket replacement for Hayward SPX0502Z1 in the SP0500, SP0501 and SP0502 sealed beam pool lights, where the lamp itself forms the lens.
| Brand | APC |
|---|---|
| Part Number | APC12300S |
| Part Type | Replacement sealed beam lamp (aftermarket) |
| Lamp Type | Incandescent sealed beam |
| Wattage | 300 W |
| Voltage | 12 V |
| Bulb Shape | PAR56 |
| Beam | Wide flood (WFL) |
| Lamp Code | PAR56WFL300/12V |
| Terminals | 2 screw terminals |
| Diameter | 7 in |
| Overall Depth | 4-1/2 in |
| Fixture Voltage | 12 V low-voltage lights only |
| Fits | Hayward SP0500, SP0501 and SP0502 sealed beam lights |
| Replaces (Hayward) | SPX0502Z1 |
| Sold As | 1 lamp |
- Hayward SP0500 sealed beam pool light
- Hayward SP0501 sealed beam pool light
- Hayward SP0502 sealed beam pool light
Is there a 120 V version of this lamp?
Yes, PAR56 sealed beams are also made for 120 V. This one is 12 V, so confirm the voltage on your old lamp or the light's label before you order.
Do I need a separate lens?
No. On a sealed beam light the lamp face is the lens. Swap the lamp, move the two wires to the screw terminals, and reseal the light with its gasket.
Additional Info
| Category | Parts Pool Parts Pool Light Parts |
| SKU | PST-APC12300S |
| MPN | APC12300S |
| Replaces | SPX0502Z1 |
| Manufacturer | APC |
| Weight | 1.21 lb |
