Product Information
Description

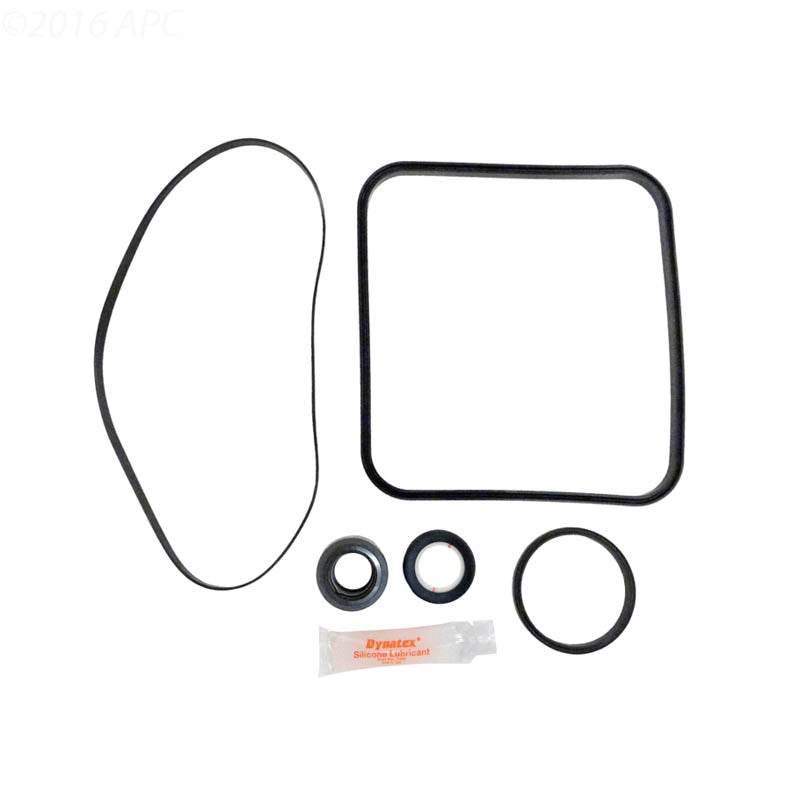

APC APCK1024 Pump Repair Kit -- Hayward Super Pump
OEM-equivalent shaft seal, O-rings, and gaskets for the original Hayward Super Pump.
The APC APCK1024 (legacy P/N APCKIT3) is the standard service kit for the Hayward Super Pump (SP1600, SP2600, and related single-speed and two-speed Super Pump models). The seal is the wear part most likely to fail first on this pump line, and catching the leak early with a $20 kit prevents the leak from running down the shaft into the motor bearings.
| Manufacturer | APC |
|---|---|
| Kit Type | Pump Repair Kit |
| APC Catalog # | APCK1024 |
| SKU | PST-APCK1024 |
| Equipment Family | Hayward Super Pump SP1600 Series |
|---|---|
| Also Fits | Hayward Super Pump SP2600 Series | Hayward Super Pump 2-Speed variants | Pumps sharing the Super Pump shaft seal (PS-200 family) |
| Fitment Note | If your pool has an inline ozone generator, step up to APCK1024A which uses the 3868 Viton seal upgrade. Ozone destroys the standard Buna-N elastomer in under a year. |
| Mechanical Shaft Seal (PS-200 family) | 1 (carbon vs ceramic face pair, Buna-N elastomer) |
|---|---|
| Lid / Strainer Pot O-Ring | 1 |
| Diffuser Gasket | 1 |
| Housing / Seal Plate O-Ring | 1 |
- Hayward Super Pump SP1600 Series
- Hayward Super Pump SP2600 Series
- Hayward Super Pump 2-Speed variants
- Pumps sharing the Super Pump shaft seal (PS-200 family)
What is the difference between APCK1024 and APCK1024A?
APCK1024 is the standard kit with a Buna-N (NBR) elastomer shaft seal. APCK1024A is the ozone-resistant upgrade using a 3868 Viton (FKM) seal. Choose 1024A if you have any ozone generator on the equipment pad.
Which Super Pump models does this fit?
All single-speed and 2-speed Hayward Super Pump models in the SP1600 and SP2600 families that use the PS-200 shaft seal. Also fits a number of related Hayward pumps sharing the same wet-end design. Match your pump's model number against the SPX parts diagram before ordering.
Can I install this myself?
Yes. Disconnect power at the breaker, unscrew the volute bolts in a star pattern, separate the motor from the wet-end, replace the impeller seal and all O-rings, lubricate with pool-grade silicone, reassemble, and torque the bolts in a star pattern. About 45 minutes for a first-time rebuild.
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-APCK1024 |
| MPN | APCKIT3 |
| Manufacturer | Aladdin |
| Weight | 0.44 lb |
