Product Information
Description
- Genuine Pentair Part
- 12 VAC, 16 W
- 100 ft. Cord

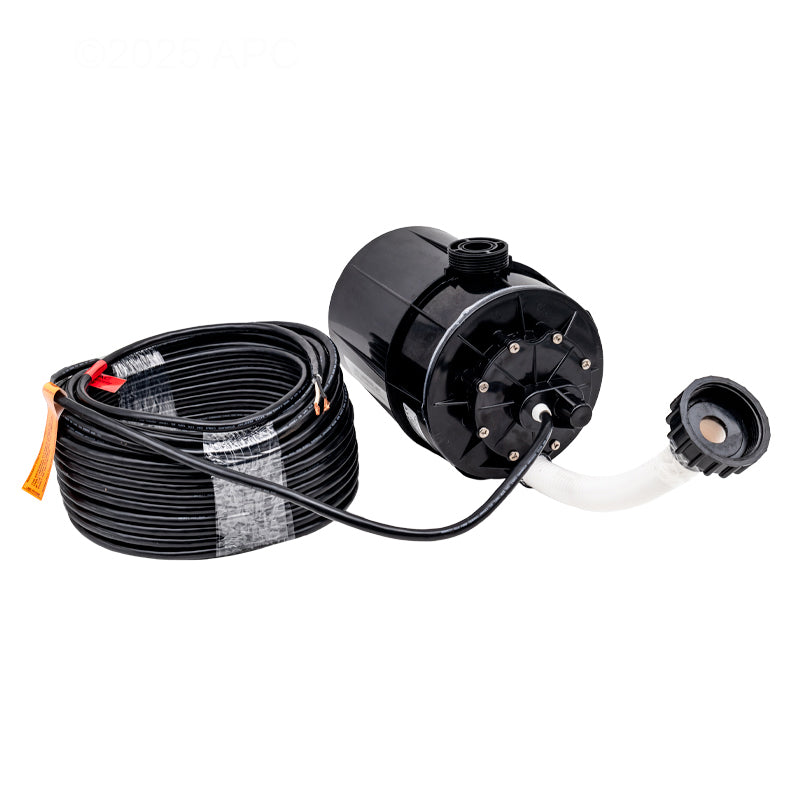

Pentair MagicStream Laminar LED Light Engine, 100 ft. Cord (590021)
The replacement color LED engine for MagicStream laminars.
The Pentair 590021 is the replacement LED light engine for the MagicStream Laminar, supplied with a 100 ft. cord. It runs on 12 VAC at 16 W and uses IntelliBrite color LED technology for seven light shows and five fixed colors. Pentair's laminar guide names this part as the fix when the engine's cord is damaged, because the cord itself cannot be replaced.
Why PST Customers Pick This
IntelliBrite Color LEDs
Pentair builds the engine around IntelliBrite color LED technology. Pick one of seven programmed light shows or hold one of five fixed colors, and the built-in memory brings back the last setting at power on.
Runs From a Wall Switch
You pick shows and colors by switching power off and on a set number of times. Several laminars can share one switch through a junction box, and Hold and Recall save a color effect.
Matches Older Laminars
The engine ships in IntelliBrite Mode. If your pool has an older laminar without that mode, 16 off and on cycles switch it to Standard Mode, and 17 cycles switch it back.
Automation Ready
Pentair lists MagicStream laminars as compatible with IntelliBrite 5G lights, the Color Sync Controller and IntelliCenter, EasyTouch and IntelliTouch automation.
Whole Unit Replacement
Pentair says the laminar's cord cannot be replaced. If it is damaged, the LED engine is replaced as a unit, and Pentair names part 590021 for that job.
Electrical Notice
Pentair requires the MagicStream Laminar to be installed by a licensed or certified electrician or a qualified pool serviceman in line with the National Electrical Code and local codes. Switch AC power off at the circuit breaker before you service the laminar, since a mistake can cause a fatal shock.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair |
| Part Number | 590021 |
| Pentair Description | Laminar LED engine, 100 ft. cord |
| Product Line | MagicStream Laminar |
| 150 ft. Cord Version | 590123 |
| SKU | PST-590021 |
| Electrical | |
| Operating Voltage | 12 VAC |
| Power | 16 W |
| Cord | 100 ft., 2-wire |
| Transformer | 100 W pool lighting transformer on a GFCI breaker, sold separately |
| Laminars per 100 W Transformer | 6 |
| Transformer Connection | LED wires to the 12 VAC taps |
| Lighting and Control | |
| Light Shows | SAm, Party, Romance, Caribbean, American, California Sunset, Royal |
| Fixed Colors | Blue, green, red, white, magenta |
| Operating Modes | IntelliBrite Mode (factory default) and Standard Mode |
| Synchronizes With | IntelliBrite 5G LED pool lights |
| Control Options | Wall switch, Color Sync Controller, IntelliCenter, EasyTouch, IntelliTouch |
Frequently Asked Questions
What is the difference between 590021 and 590123?
Cord length. Pentair lists 590021 with a 100 ft. cord and 590123 with a 150 ft. cord.
Can I replace just the damaged cord?
No. Pentair's laminar guide says the cord cannot be replaced, and that if it is damaged the LED engine is replaced as a unit, using part 590021.
Will it work alongside my older MagicStream laminars?
Yes. It ships in IntelliBrite Mode. For an older laminar without IntelliBrite Mode, cycle the power 16 times to set Standard Mode so the units match, and 17 times to return to IntelliBrite Mode.
How is the engine swapped?
Pentair's kit instructions: switch power off at the breaker, lift out the deck cover and laminar assembly, remove the eight light engine screws and the two solenoid thumper screws, and pull the engine. Cut the old cable, pull the new cable through the conduit leaving 3 ft. of slack in the deck housing, and connect it to the 12 VAC taps of the transformer.
What transformer does it need?
Pentair calls for a 100 W pool lighting transformer powered through a GFCI breaker, sold separately. Up to six laminars can run on one 100 W transformer.
Order the 590021 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Genuine Pentair Part
- Pool Techs on Support
