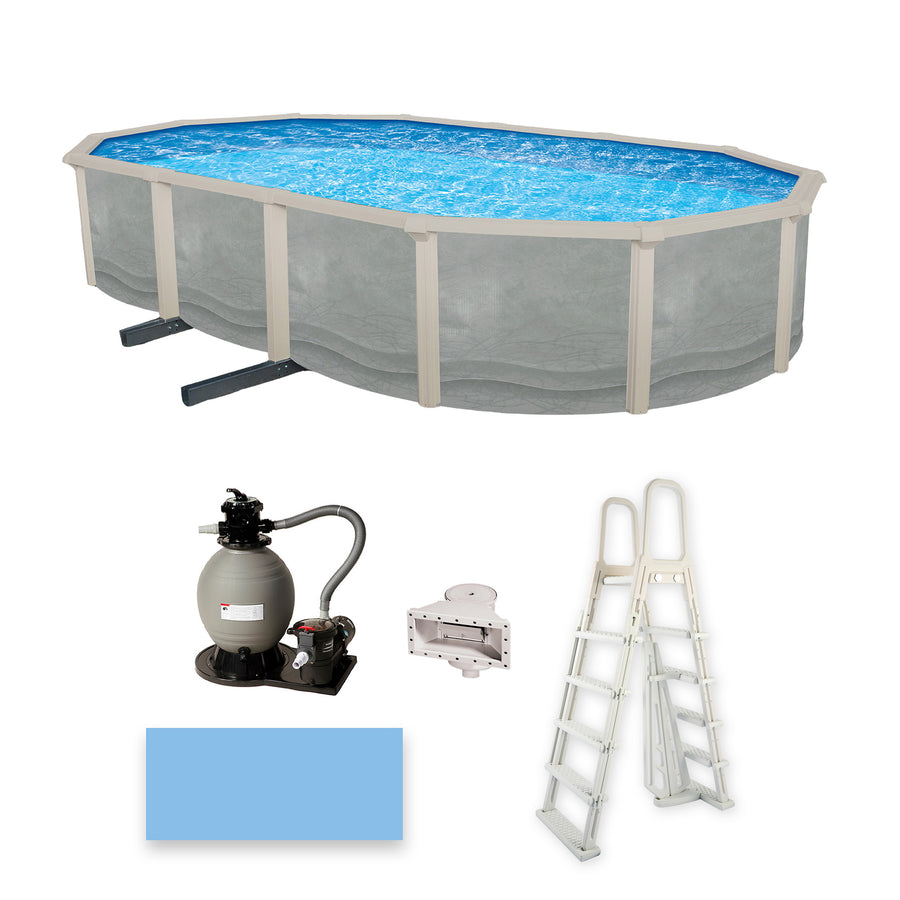

33' x 18' Oval Resin Above-Ground Pool Package with 52" Steel Wall | Trinity | 30-Year Warranty
Your pool 33 × 18 ft Oval above-ground pool

33' x 18' Oval Resin Above-Ground Pool Package with 52" Steel Wall | Trinity | 30-Year Warranty

14,018
gallons of water
Water capacity
594
square feet
Yard footprint
52
inch walls
Wall height
33 × 18
ft · oval
Pool size
Top railResin FrameResin Built-in stepNo ShapeOval
  • 52" Steel Wall
  • Resin Top Seats and Verticals
  • Liner, Filter and Ladder Included
  • 30-Year Wall and Frame Warranty

Blue Wave Trinity 33' x 18' Oval Above-Ground Pool Package

A resin-framed pool with liner, filter and ladder.

33' x 18'
Pool Size
52"
Wall Height
7"
Resin Top Seats
22"
Sand Filter
30 Yr
Wall and Frame Warranty

The Blue Wave Trinity 33' x 18' oval above-ground pool package (NB19916) sets a 52" steel wall inside a resin frame of 7" resin top seats, 6" resin verticals and 1" resin top and bottom rails. Along with the pool and its widemouth skimmer and return, you get a standard-gauge overlap liner, a Sandman 22 in sand filter system with a 1.5 HP two-speed pump and a resin A-frame ladder. A pool maintenance kit is not included.

Why PST Customers Pick This

Matched to This Pool

The overlap liner is cut for the 33' x 18' oval pool, and the Sandman 22 in sand filter system is the size paired with it, so there is no separate liner or filter sizing to work out.

Resin Frame Components

7" resin top seats, 6" resin verticals, 1" resin top and bottom rails and resin top and bottom joints frame a 52" steel wall with a 0.46 mm wall gauge.

Sandman Sand Filtration

The Sandman system mounts the filter tank and 1.5 HP pump on one base. A 6-way valve with settings including filter, backwash, rinse, waste and recirculate, plus a pressure gauge and sight glass, keeps routine care straightforward. Filter-grade sand is sold separately.

Resin A-Frame Ladder

The resin A-frame ladder has outside steps, an in-pool ladder, a top platform, handrails and an anti-entrapment barrier. Take the ladder out of the pool whenever the pool is not in use.

Braceless Oval Frame

The braceless oval frame adds skin-covered side verticals, horizontal supports, pressure plates and end and middle straps for the straight sides of the pool, with no outside braces.

About 14,018 Gallons

The 33' x 18' oval pool holds an estimated 14,018 gallons, figured from its size and wall height. The actual volume depends on how high the water is filled.

Electrical Safety

Plug the filter pump only into a grounded outlet protected by a GFCI, and have a qualified electrician install it. Keep the pump's power cut-off within reach, and keep other electrical devices at least 8 ft from the pool.

Specifications

Manufacturer Blue Wave
Series Trinity
Model / MPN NB19916
SKU PST-NB19916
Pool Size 33' x 18' Oval
Oval Frame Braceless
Wall Height 52 in
Wall Material Steel, 0.46 mm gauge
Top Seats 7 in resin
Verticals 6 in resin
Top and Bottom Rails 1 in resin
Joints Resin top and bottom joints
Approx. Water Capacity 14,018 gallons
Skimmer Widemouth skimmer and return
Liner Standard-gauge overlap liner for 48 in to 54 in walls
Filter System Sandman 22 in sand filter with 1.5 HP two-speed pump
Ladder Resin A-frame ladder
Maintenance Kit Not included
Sold Separately Filter-grade sand, backwash hose, pea gravel to fill the ladder legs
Assembly Required, instructions included
Pool Warranty 30-year limited warranty on the pool wall and frame
Liner Warranty 15-year pro-rated liner warranty
Filter System Warranty 1-year limited warranty
Ladder Warranty 3-year limited warranty

Frequently Asked Questions

What is included in this package?

The Trinity 33' x 18' oval pool with its 52" steel wall, frame, hardware, plastic coping strips and a widemouth skimmer and return, plus a standard-gauge overlap liner, a Sandman 22 in sand filter system with a 1.5 HP two-speed pump and a resin A-frame ladder. A pool maintenance kit is not included.

What else do I need before I start?

Pick up filter-grade sand for the sand filter, a backwash hose and pea gravel to fill the ladder legs, since none of these come in the package. The ladder instructions list its mounting bolts, washers and nuts as not included, and recommend a ladder pad under the bottom step to protect the liner. The site needs level, firm ground cleared of grass and sod, a patio block under each bottom joint, cinder blocks set level under each side support, sand for the pool base and cove, and a grounded 110-volt outlet with GFCI protection for the pump.

Can I install it myself?

Yes. The pool, liner, filter system and ladder each come with step-by-step instructions. On an oval pool the side supports are set level on cinder blocks before the wall goes up. Start the wall on a calm day when you have the whole day free, bring a few helpers to handle the steel wall, and have a qualified electrician install the GFCI outlet.

How do the warranties work?

The Trinity pool carries a 30-year limited warranty on the pool wall and frame. The other components are backed separately: the sand filter system by a 1-year limited warranty, the standard-gauge liner by a 15-year pro-rated liner warranty and the ladder by a 3-year limited warranty. The written warranty documents set the full terms.

How does the included liner install?

The standard-gauge overlap liner drapes over the top of the wall and is held in place with the plastic coping strips, and it is made for walls from 48 in to 54 in. Unfold it in the sun first so the vinyl warms up and is easier to position.
