18' Round Resin Above-Ground Pool with 52" Steel Wall | Trinity | 30-Year Warranty
Your pool 18 ft Round above-ground pool

18' Round Resin Above-Ground Pool with 52" Steel Wall | Trinity | 30-Year Warranty

7,646
gallons of water
Water capacity
255
square feet
Yard footprint
52
inch walls
Wall height
18
ft · round
Pool size
Top railResin FrameResin Built-in stepNo ShapeRound

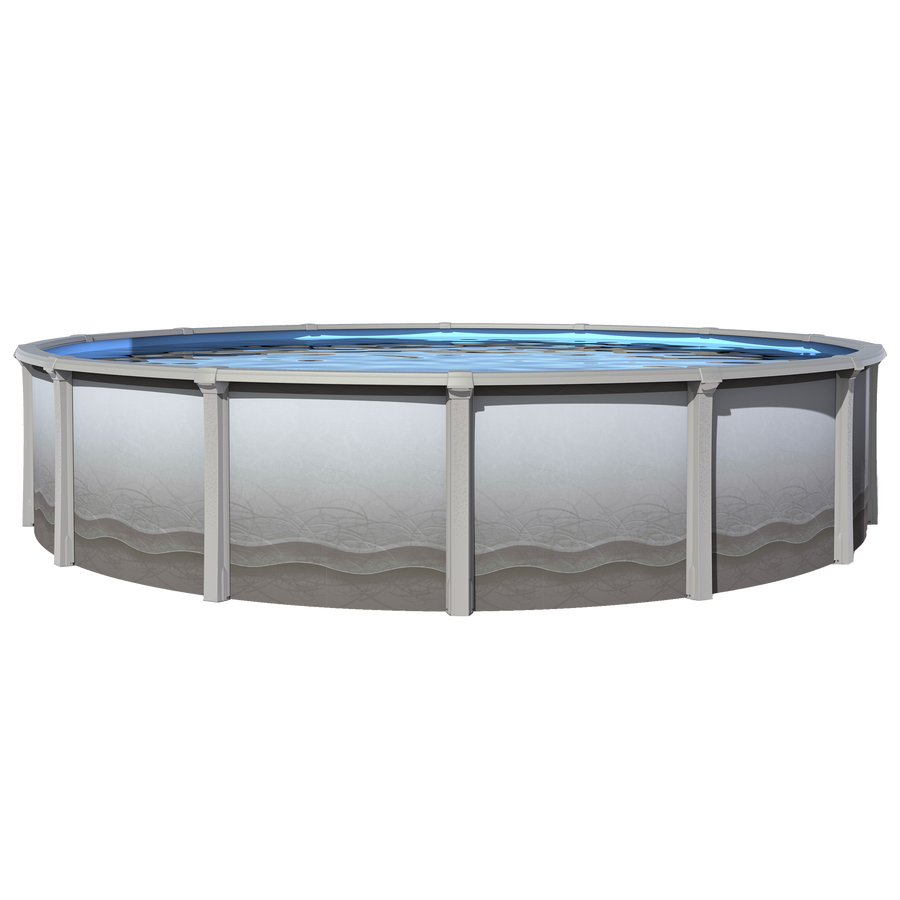

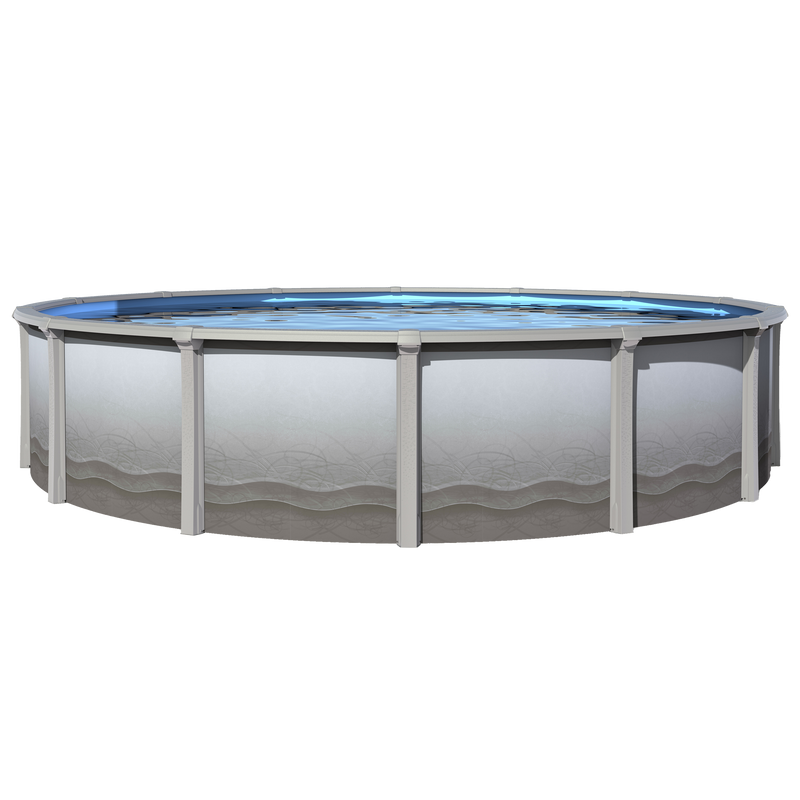

Blue Wave Trinity 18' Round Resin Above-Ground Pool

A resin frame around a taupe steel wall.

52" Steel Wall7" Resin Top Seats30-Year Limited Warranty

The Blue Wave Trinity 18' round resin above-ground pool (model NB1818, SKU PST-NB1818) pairs a taupe 52" steel wall with a resin frame of 7" resin top seats, 6" resin verticals and 1" resin top and bottom rails. The wall, frame, hardware, plastic coping strips and a wide mouth skimmer with return come in the box, so you choose the overlap liner, filter system and ladder that suit your yard.

18'
Diameter
52"
Wall Height
7"
Top Seats
6"
Verticals
30 yr
Warranty

Why PST Customers Pick This

🛡️
Resin Frame

7" resin top seats, 6" resin verticals and 1" resin rails meet at resin top and bottom joints, with seat covers and caps to finish the look.

📏
Taupe Galvanized Wall

The hot dipped galvanized 52" steel wall is 0.46 mm thick, finished in taupe with protective wall coatings, and holds roughly 7,646 gallons at a normal fill level.

🎯
Overlap Liner Ready

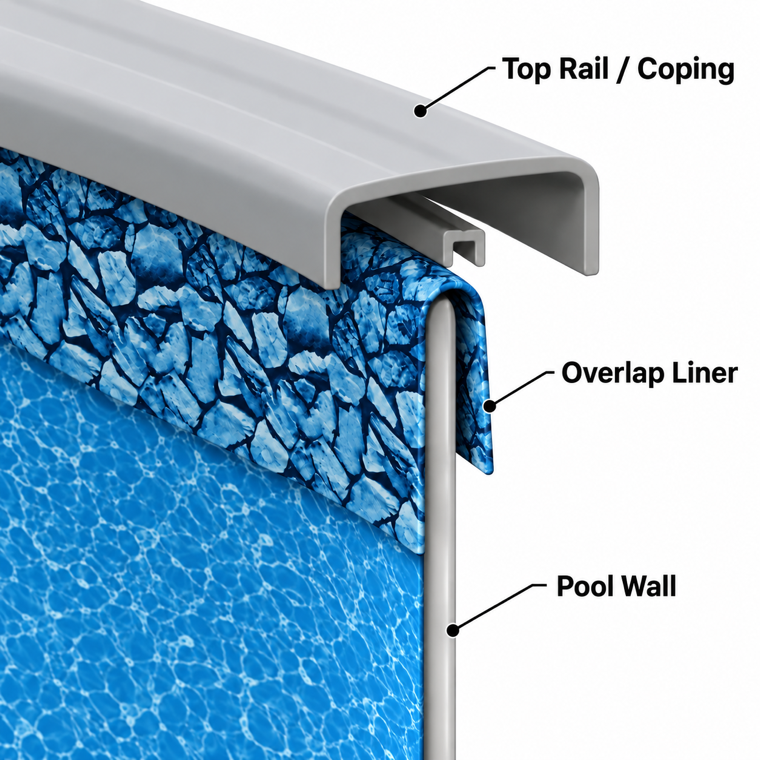

Drape an overlap liner over the top of the wall, slide the included plastic coping strips over it, and the top rails fasten down on top.

🌊
Skimmer In The Box

A wide mouth skimmer and return come with the pool, ready for the filter system you choose.

💧
Plan The Site First

Pick firm, level ground within reach of a water supply and a grounded outlet with GFCI protection for your filter pump. All sod under the pool area has to come out before you start.

🧰
Do It Yourself Setup

The instruction manual walks you from site prep to a finished frame. Plan one full, calm day and bring a few friends to help.

Specifications

ManufacturerBlue Wave
SeriesTrinity
Model / MPNNB1818
SKUPST-NB1818
Pool Size18' Round
Wall Height52 in
Wall MaterialHot dipped galvanized steel with protective wall coatings
Wall Thickness0.46 mm
Wall ColorTaupe
Frame TypeResin
Top Seats7 in resin
Verticals6 in resin
Top and Bottom Rails1 in resin
JointsResin top and bottom joints
Seat CoversSeat covers with seat cover caps
Liner TypeOverlap, sold separately
In The BoxWall, frame, hardware, plastic coping strips, wide mouth skimmer and return
Sold SeparatelyLiner, filter system, ladder, wall foam, floor pad, foam pool cove
Approx. Water Capacity7,646 gallons
AssemblyRequired, instruction manual included
Country of OriginJapan (pool wall and frame)
Warranty30-year limited warranty on the pool wall and frame

Frequently Asked Questions

What comes in the box?

The taupe 52" steel wall, the resin frame with its joints, seat covers and caps, all assembly hardware, plastic coping strips and a wide mouth skimmer with return. The liner, filter system and ladder are sold separately. The manual recommends wall foam and a floor pad, and calls for a pool cove around the inside of the wall, either packed from sand or made with peel and stick foam cove.

Which liner fits this pool?

Choose an overlap liner sized for this 18' round pool. It drapes over the top of the wall and the included plastic coping strips hold it in place under the top rails.

Can I install it myself?

Yes, with helpers. The manual covers removing the sod, leveling the ground, setting patio blocks under the frame, spreading a 1 to 2 in sand base, building the pool cove and assembling the frame. Start early on a calm day, because the wall is hard to handle in wind.

What does the warranty cover?

The 30-year limited warranty covers the pool wall and frame components. The liner, filter, pump, ladder and skimmer are not covered by the pool warranty, and the pool must be set up above ground on level ground, following the instructions.

Do I keep water in the pool over winter?

Yes. Keep the pool filled through the winter. In areas that freeze, lower the water to about 6 in below the lowest skimmer opening, then hold that level steady. Snow and ice on a winter cover need the water underneath for support, and the pool should never be left standing empty.

Build Your Trinity Pool With PST

Real pool people on support, fast answers before and after you buy.

Free Shipping30-Day Returns30-Year WarrantyAuthorized Blue Wave Dealer
