24' x 12' Oval Above-Ground Pool with 52" Steel Wall | Marbella | 15-Year Warranty
Your pool 24 × 12 ft Oval above-ground pool

24' x 12' Oval Above-Ground Pool with 52" Steel Wall | Marbella | 15-Year Warranty

6,797
gallons of water
Water capacity
288
square feet
Yard footprint
52
inch walls
Wall height
24 × 12
ft · oval
Pool size
Top railSteel FrameSteel Built-in stepNo ShapeOval

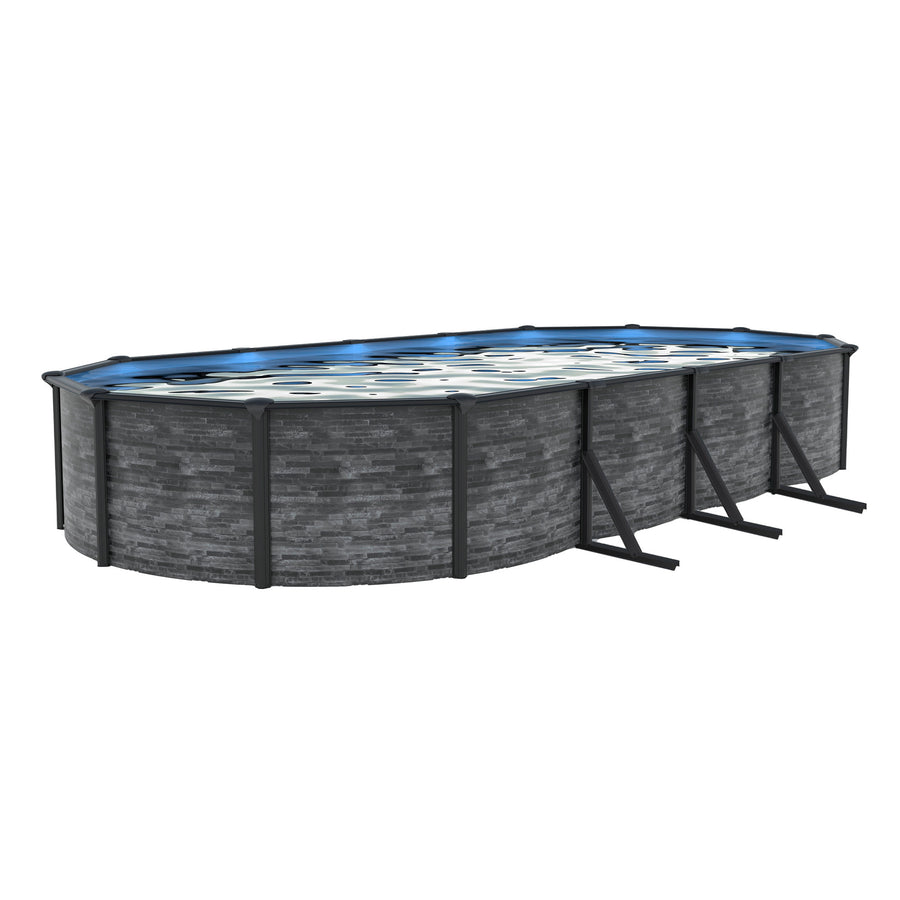

Blue Wave Marbella 24' x 12' Oval Above-Ground Pool

Dark grey steel, built for the backyard.

52" Steel Wall6" Steel Top Seats15-Year Limited Warranty

The Blue Wave Marbella 24' x 12' oval above-ground pool (model NB19861, SKU PST-NB19861) sets a 52" steel wall inside a steel frame of 6" steel top seats, 5" steel verticals and resin top and bottom joints. The wall, frame, hardware, plastic coping strips and a wide mouth skimmer with return come in the box, so you choose the overlap liner, filter system and ladder that suit your yard.

24' x 12'
Pool Size
52"
Wall Height
6"
Top Seats
5"
Verticals
15 yr
Warranty

Why PST Customers Pick This

🛡️
Dark Grey Steel Frame

6" steel top seats and 5" steel verticals in a dark grey finish, with matching seat covers, injection-molded resin top caps, resin joints and 5/8" steel top and bottom rails.

📏
Zinc-Aluminum Coated Wall

The galvanized 52" steel wall (0.32 mm) carries a zinc-aluminum coating with 3-layer exterior and 2-layer interior protection, and holds roughly 6,797 gallons at a normal fill level.

🎯
Overlap Liner Ready

Drape an overlap liner over the top of the wall, slide the included plastic coping strips over it, and the top rails fasten down on top.

🌊
Skimmer In The Box

A wide mouth skimmer and return come with the pool, ready for the filter system you choose.

🔩
Braced Oval Frame

Side verticals, braces, horizontal supports, pressure plates and tension straps hold the straight sides of the pool. Mark out 3 extra feet beside each long side to make room for the braces.

🧰
Do It Yourself Setup

The instruction manual walks you from site prep to a finished frame. Plan one full, calm day and bring a few friends to help.

Specifications

ManufacturerBlue Wave
SeriesMarbella
Model / MPNNB19861
SKUPST-NB19861
Pool Size24' x 12' Oval
Oval FrameBraced
Wall Height52 in
Wall MaterialGalvanized steel, zinc-aluminum coated
Wall Thickness0.32 mm
Frame FinishDark grey top seats, verticals and seat covers
Top Seats6 in steel
Verticals5 in steel
Top and Bottom Rails5/8 in steel
JointsResin top and bottom joints
Seat CoversSeat covers with resin seat cover caps
Liner TypeOverlap, sold separately
In The BoxWall, frame, hardware, plastic coping strips, wide mouth skimmer and return
Sold SeparatelyLiner, filter system, ladder, wall foam, floor pad, foam pool cove
Approx. Water Capacity6,797 gallons
AssemblyRequired, instruction manual included
Country of OriginJapan (pool wall and frame)
Warranty15-year limited warranty on the pool wall and frame

Frequently Asked Questions

What comes in the box?

The 52" steel wall, the steel frame with its resin joints, seat covers and caps, all assembly hardware, plastic coping strips and a wide mouth skimmer with return. The liner, filter system and ladder are sold separately. The manual recommends wall foam and a floor pad, and calls for a pool cove around the inside of the wall, either packed from sand or made with peel and stick foam cove.

Which liner fits this pool?

Choose an overlap liner sized for this 24' x 12' oval pool. It drapes over the top of the wall and the included plastic coping strips hold it in place under the top rails.

Can I install it myself?

Yes, with helpers. The manual covers removing the sod, leveling the ground, setting patio blocks under the frame, spreading a 1 to 2 in sand base, building the pool cove and assembling the frame. Start early on a calm day, because the wall is hard to handle in wind.

What does the warranty cover?

The 15-year limited warranty covers the pool wall and frame components. The liner, filter, pump, ladder and skimmer are not covered by the pool warranty, and the pool must be set up above ground on level ground, following the instructions.

Do I keep water in the pool over winter?

Yes. Keep the pool filled through the winter. In areas that freeze, lower the water to about 6 in below the lowest skimmer opening, then hold that level steady. Snow and ice on a winter cover need the water underneath for support, and the pool should never be left standing empty.
