Product Information
Description

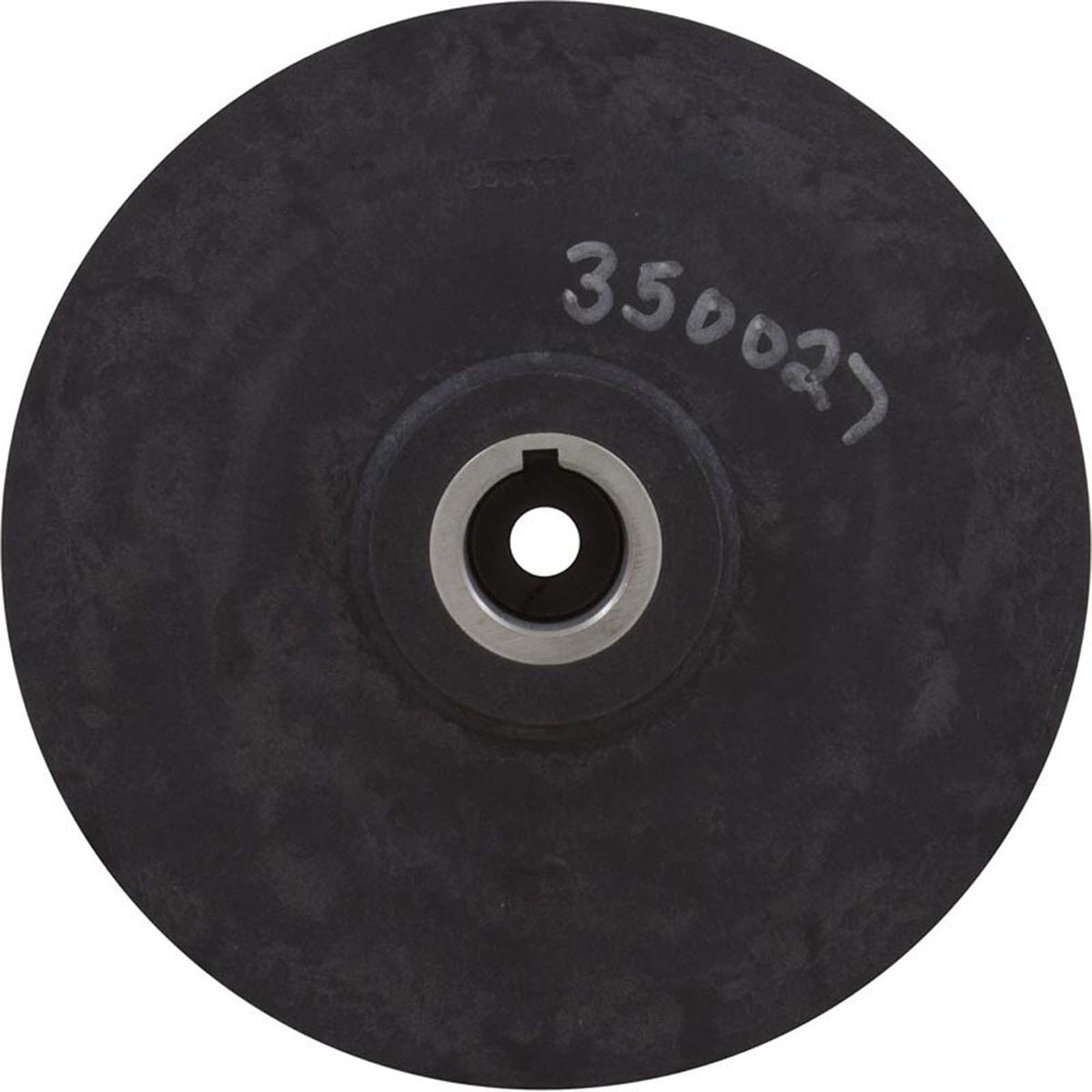

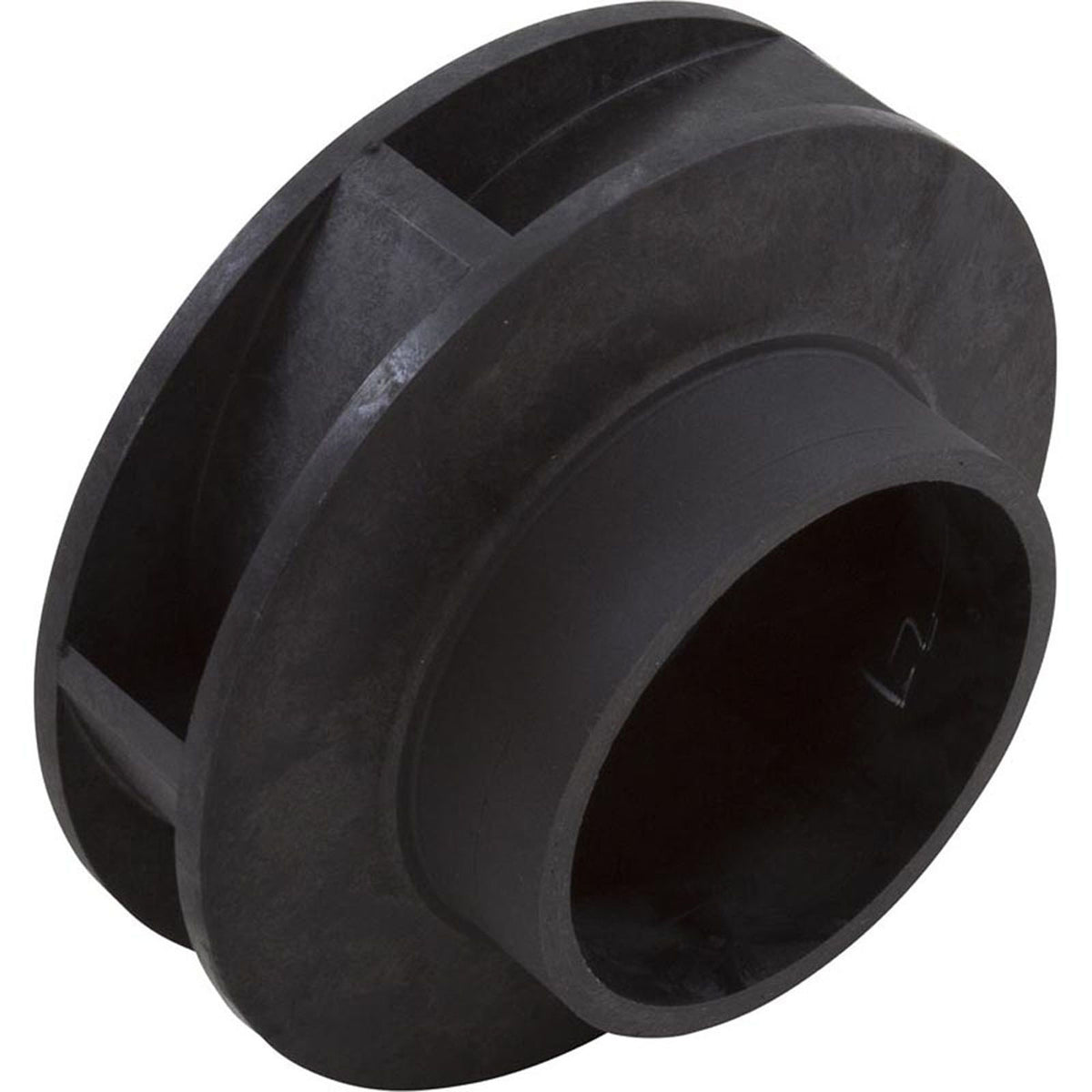

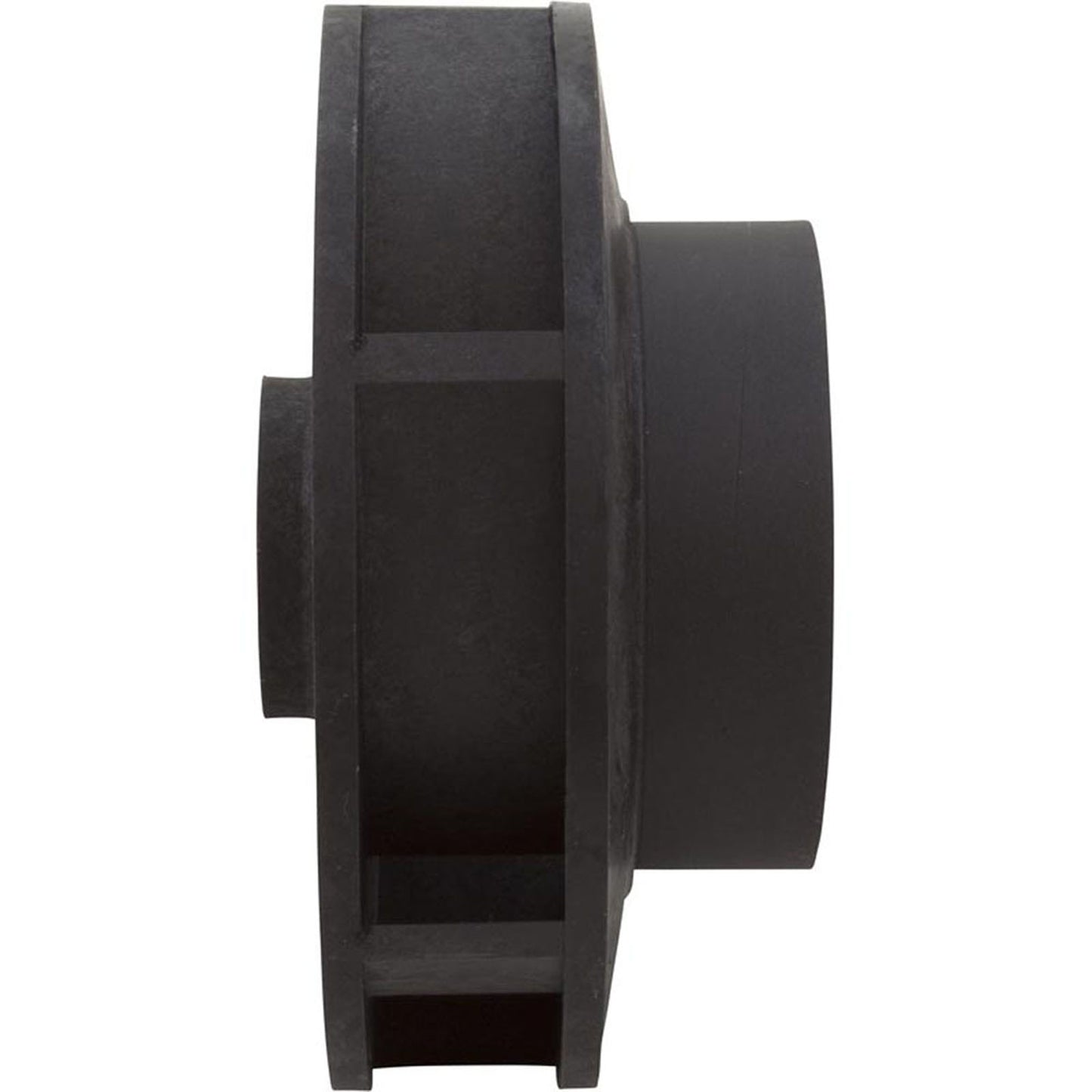

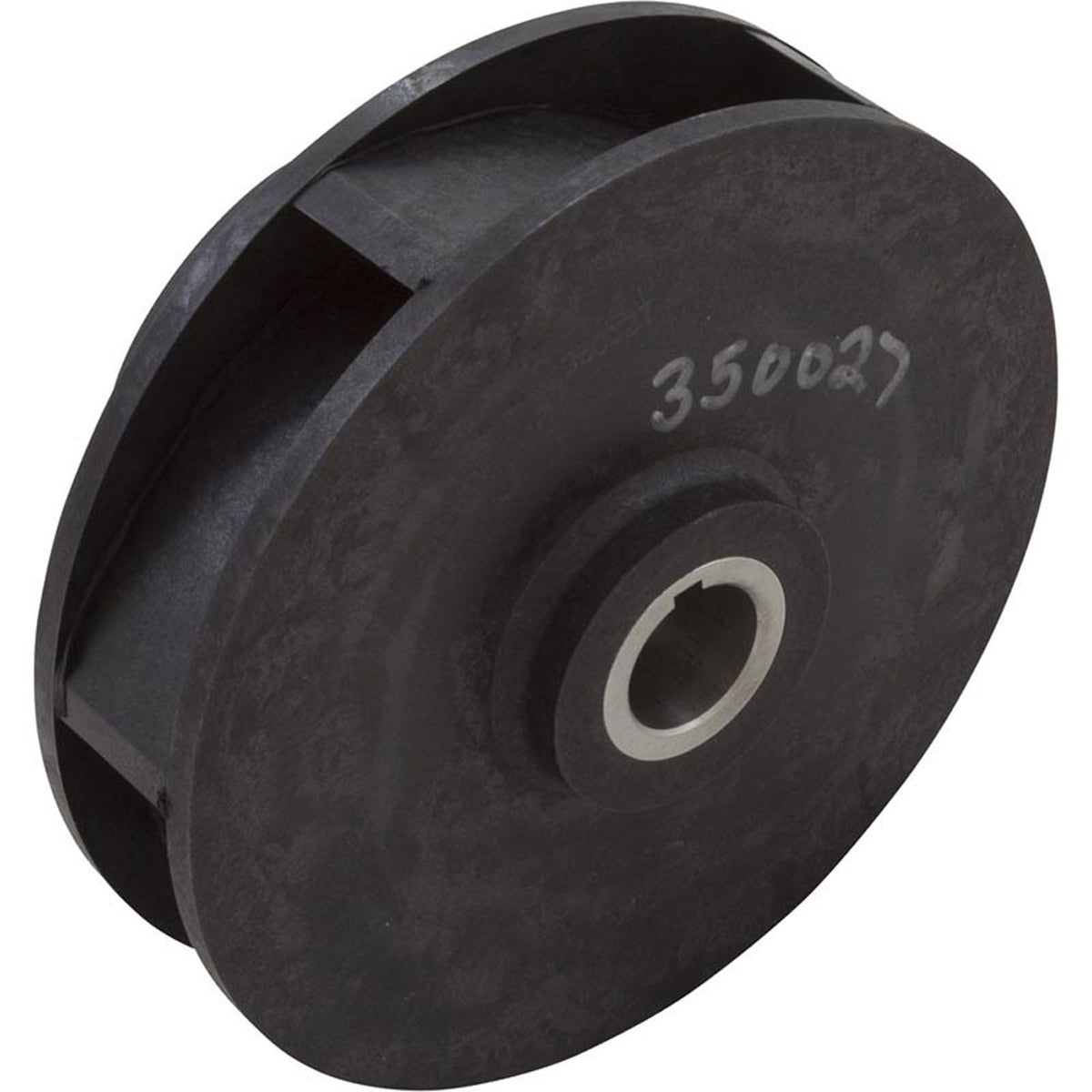

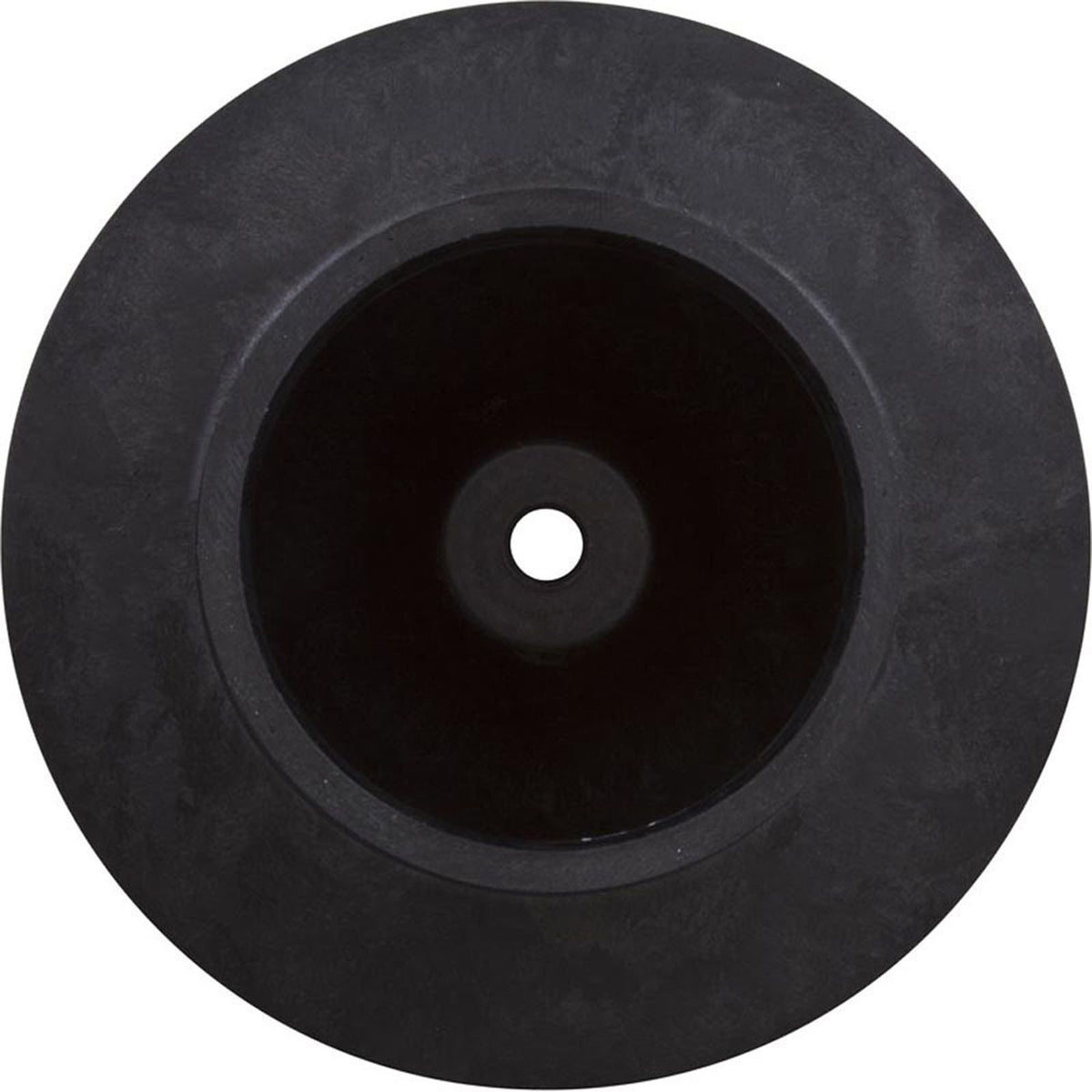

Pentair Pool Products Pump ImpellerClosed face impeller made for the EQ series Pool Pump by Pentair. This impeller is rated at 10.0hp when installed on a 50Hz motor, 15.0hp when installed on a 60Hz motor, and 3.0hp when installed on Waterfall series motor. The motor can be 1 phase or 3 phase. Shaft seal sold separately
Product Specifications:
Impeller Type
Closed Face
Pump Part Type
Impeller
Impeller Diameter OD
5-15/16"
Vane Width ID
1"
Eye Diameter OD
3-9/16"
Eye Length
1"
Impeller Width OD
1-7/16"
Horsepower
15.0hp, 3.0hp
Seal Seat Depth
n/a
Shaft Length
11/32"
Shaft Diameter OD
1-7/8"
Seal Seat Diameter OD
n/a
Manufacturer
Pentair
Model
EQ Series
Pump Application
EQ Series
Application
Pool, Waterfall
California Prop 65 Warning:
This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-110-3144 |
| MPN | 350027 |
| Manufacturer | Pentair |
| Weight | 0.0 lb |
