Hayward DEX3600DC Filter Element Cluster Assembly for ProGrid DE3620 DE Filters
The complete grid nest for the DE3620.

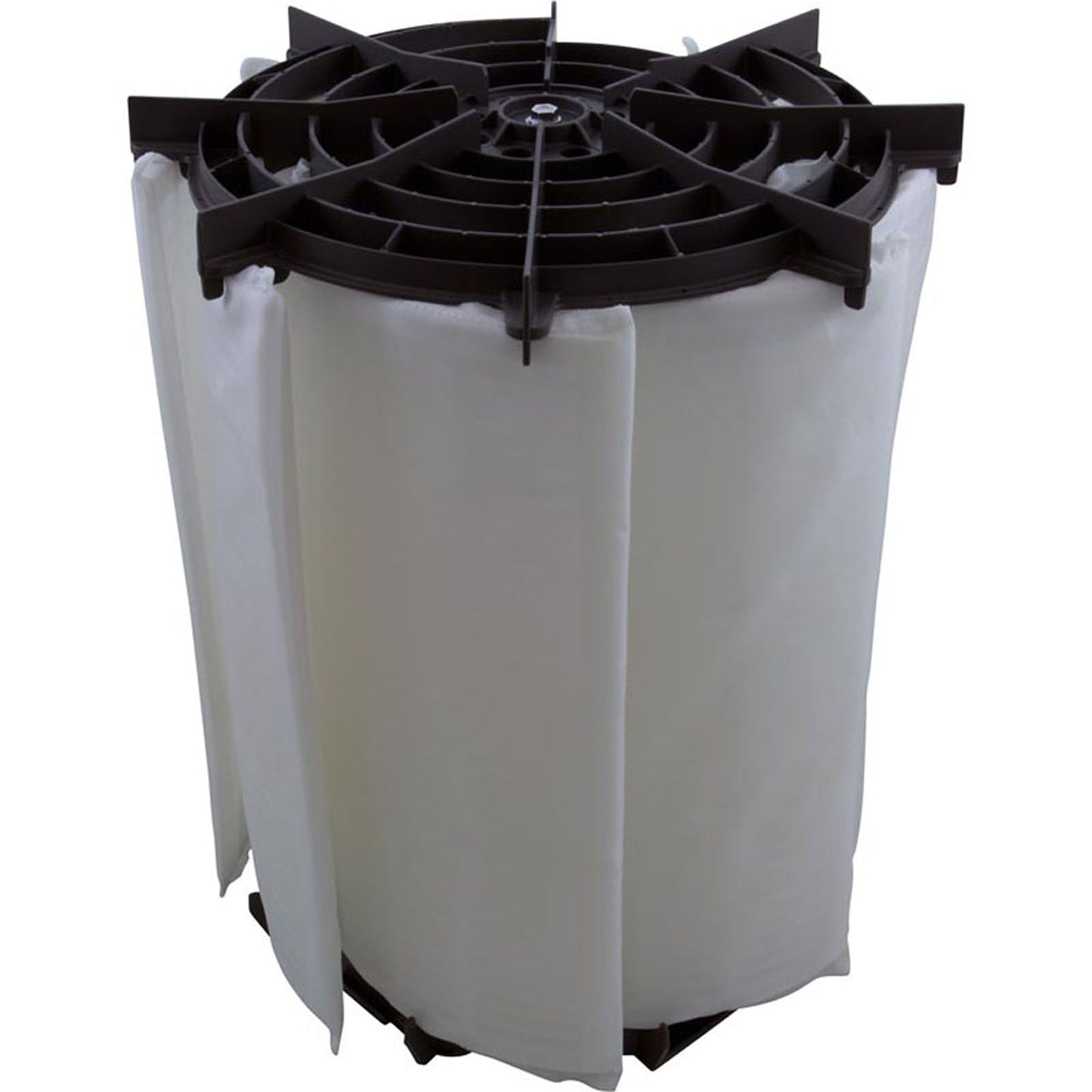

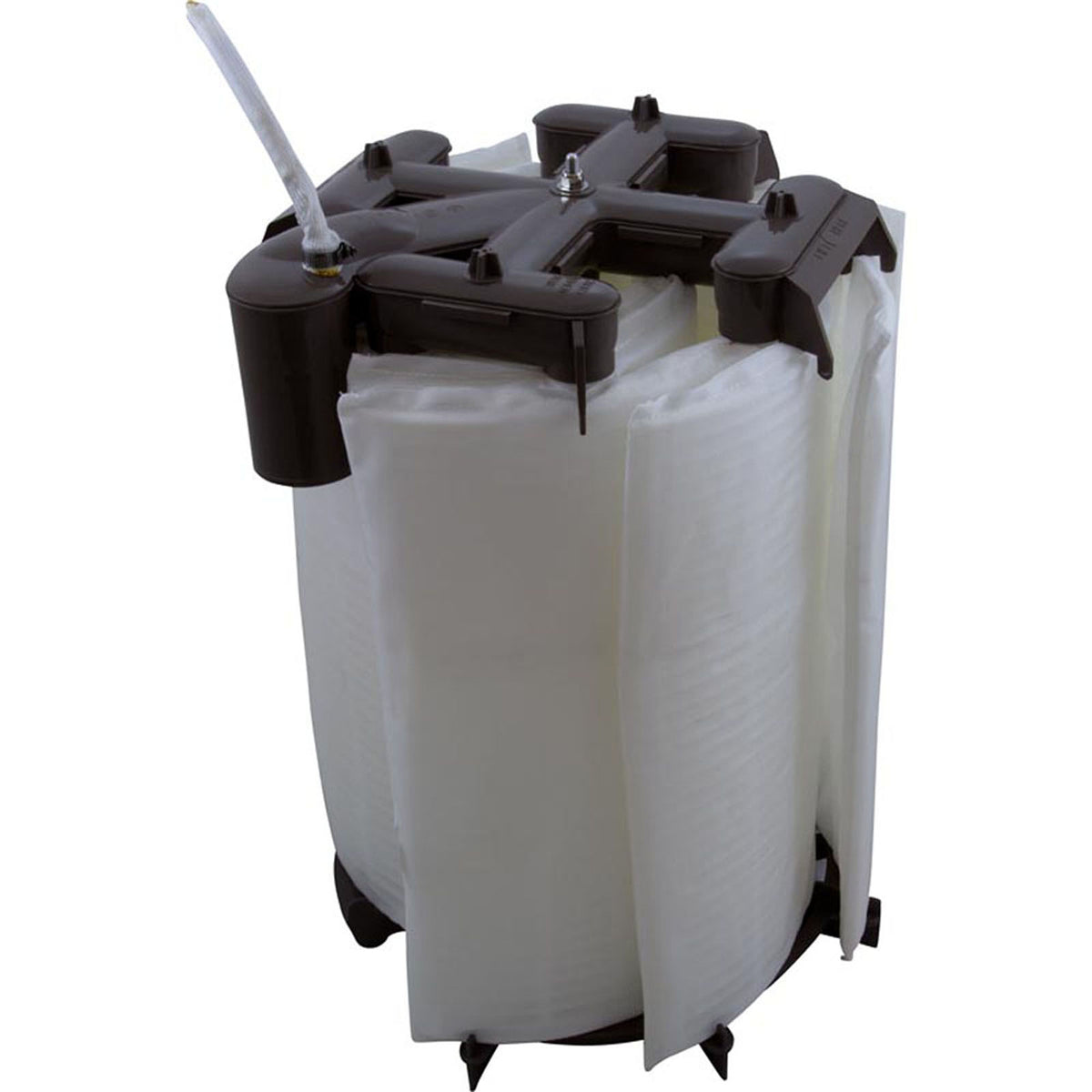

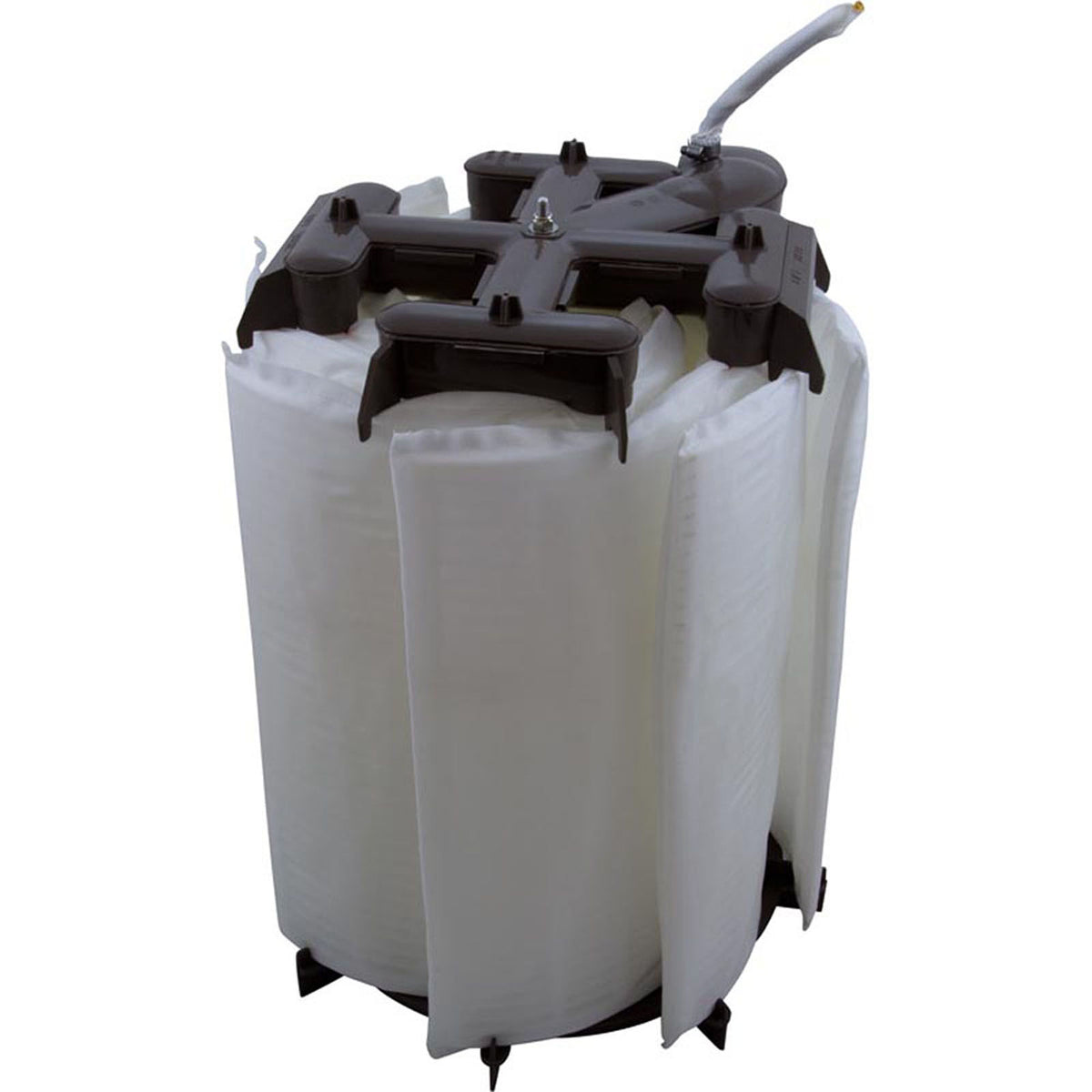

The Hayward DEX3600DC is the filter element cluster assembly for the ProGrid DE3620, Hayward's 36 sq ft vertical grid DE filter. It replaces the whole grid nest at once: Hayward lists it as the complete set of elements, collectors, locators and manifold. The curved vertical elements wear Hayward's monofilament polypropylene filter cloth, which the DE pre-coat covers.
Why PST Customers Pick This
Built for the DE3620
Hayward Support identifies DEX3600DC as the element cluster for the DE3620 ProGrid, and the ProGrid manual lists it in the DE3620 column.
Complete Cluster
One assembly with the full set of elements, collectors, locators and manifold, so you swap the grid nest in one piece.
Polypropylene Grid Cloth
The curved vertical elements are covered with custom fitted monofilament polypropylene cloth that the DE coats to trap fine particles.
Up-Flow Grid Design
Hayward designs the high impact ProGrid elements for up-flow filtration and top-down backwashing.
Lifts Out by Hand
Integral lift handles let you rock the cluster free of the outlet elbow and lift it straight out of the tank.
Hose Clean
Wash the cluster inside and out with a garden hose and brush the surface. Hayward warns that pressure washing can damage it.
Pressure Notice
Use only Hayward clamp system components and torque the clamp nut to 150 inch-lbs; Hayward warns that non-Hayward clamp parts can fail and cause explosive component separation. The ProGrid's maximum working pressure is 50 PSI, and running the filter more than a minute or two without the DE pre-coat can damage the grid elements.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | DEX3600DC |
| Hayward Description | Filter element cluster assembly |
| GTIN / UPC | 610377021357 |
| SKU | PST-14-150-1366 |
| Fitment & Contents | |
| Filter | Hayward ProGrid DE3620 vertical grid DE filter |
| ProGrid Generations | PermaGlass XL tank, pre-2009 and 2009 and later |
| Includes | Elements, collectors, locators and manifold (complete cluster) |
| Element Cloth | Monofilament polypropylene |
| Element Design | Up-flow filtration, top-down backwashing |
| DE3620 Filter Data | |
| Effective Filtration Area | 36 sq ft |
| Recommended DE | 4.5 lb |
| Maximum Working Pressure | 50 PSI |
| Clearance Above / Side | 16 in. / 18 in. |
| Warranty | |
| Pool Type | In-ground |
| Warranty | 6-month Hayward replacement part warranty |
Frequently Asked Questions
Will it fit my DE3620 ProGrid filter?
Yes. Hayward Support identifies the DEX3600DC as the element cluster for the DE3620 ProGrid, and the ProGrid owner's manual lists it as the DE3620 filter element cluster assembly. It also appears in the parts diagrams for both pre-2009 and 2009-and-later ProGrid filters.
How do I get the old cluster out?
Backwash first, shut off the pumps and power, open the manual air relief valve and drain the filter. Remove the clamp and lift off the upper body. Hose the cluster down (Hayward suggests its EC2024 cleaning wand), rock it side to side to free the manifold from the vertical outlet elbow, then lift it straight up by the lift handles.
How do I reinstall it?
Lubricate the outlet elbow O-rings with Jack's Formula 327 Multilube and set the cluster in the tank with the top collector manifold outlet over the outlet elbow O-ring. Reassemble with genuine Hayward clamp parts and torque the clamp nut to 150 inch-lbs.
How much DE does the DE3620 take?
Hayward recommends 4.5 lb of DE for the DE3620. Add the pre-coat promptly: running the filter more than a minute or two without it can damage the grid elements.
Order the Hayward DEX3600DC From PST
- Free Shipping
- 30-Day Returns
- 6-Month Hayward Part Warranty
- Authorized Hayward Dealer
Additional Info
| Category | Parts Pool Parts Filter Parts |
| SKU | PST-14-150-1366 |
| MPN | DEX3600DC |
| Replaces | 4810-65, 609398, 610377021357, DE3600DC, HAY-051-1486 |
| Manufacturer | Hayward |
| Weight | 18.45 lb |
