Stand in front of a pool equipment pad for the first time and it looks like a plumber lost a bet: a tangle of white pipe looping between the pump, the filter, and the heater, with a few handles sticking up here and there. Those handles are the part almost nobody thinks about, and they are quietly running the whole show. Turn one and water goes to the spa instead of the pool. Turn another and you have shut the pump off from the plumbing so you can open the strainer pot without draining the yard.
Those handles belong to your pool valves. They are simple, they last for years, and they are easy to ignore right up until one seizes, cracks, or starts weeping at the shaft. This guide clears up what the valves on a typical pad actually do, the difference between the two families you will run into, and how to pick the right replacement when one finally gives out. Get this straight once and the plumbing on your pad stops looking like chaos and starts looking like a map.
Two jobs, two kinds of valve
Nearly every valve on a residential pool does one of two things, and sorting them into those two buckets makes the rest of this easy.
The first job is controlling where water goes and whether it goes at all. That is a diverter valve — the ones with the handle you turn by hand to open, close, or split the flow between two paths. The second job is stopping water from running backward. That is a check valve — no handle, no choice for you to make; it simply lets water pass one way and slams shut if it tries to come back. Diverters are about direction. Check valves are about protection. Almost everything else is a variation on those two ideas.
Diverter valves: 2-port vs. 3-port
Diverter valves come in two shapes, and the port count tells you what each one is for.
A 2-port (2-way) valve is an on/off and throttle valve. It has one inlet and one outlet, and the handle either lets water through, shuts it off, or holds it somewhere in between to fine-tune flow. This is the valve you want when you need to isolate a piece of equipment — close it to work on the pump without letting the whole system drain back, or trim the pull on a main drain so the skimmer still gets its share.

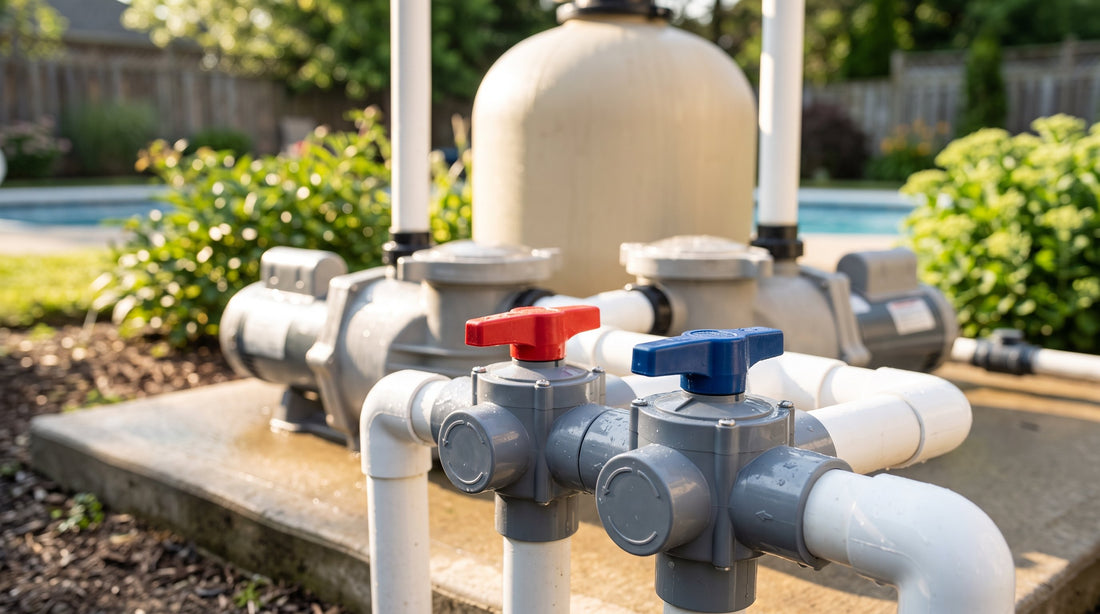

A 3-port (3-way) valve is the one that earns the name “diverter.” It has a common port and two others, and the handle sends water down one path, the other, or a proportioned mix of both. This is how a single pump serves a pool and a spa, how flow gets split between two return lines, how you switch suction between the skimmer and the main drain, and how water is routed off to a solar array or a waterfall when you want it. If a pad does anything clever with its water, a 3-way valve is usually the piece making the decision.
Most inground pads use both. Here are the two everyday workhorses side by side — a 2-port for isolation and a 3-port for diverting:
Jandy NeverLube 2-Port Diverter Valve (2-1/2 in. x 3 in.)Shop Now →
Hayward PSV 3-Port Diverter Valve (2 in. to 2.5 in.)Shop Now →
Why “NeverLube” shows up on so many valves
Shop for a diverter valve and you will keep seeing the word NeverLube. It is worth understanding, because it is the difference between a valve you maintain and one you forget about.
Older-style diverter valves seal against an O-ring or diverter seal that needs a dab of lubricant now and then. Skip it, and the seal dries out, gets stiff, and starts to leak or bind — which is exactly why so many neglected valves are hard to turn. A NeverLube-style valve uses a self-lubricating seal designed to run for years with no attention at all. You give up the annual chore and gain a valve that keeps turning smoothly through many seasons.
There is a second payoff: these premium 3-way bodies are typically actuator-ready. If you ever add automation, an electric actuator drops onto the same valve and switches your pool and spa on a schedule or from your phone — no replumbing required. If a valve you replace is one you would eventually like to automate, buying the automation-ready body now saves you doing the job twice.
Jandy NeverLube 3-Port Diverter Valve (2-1/2 in. x 3 in.)Shop Now →
Match the size, not just the shape
A valve only works well if it fits the pipe. Residential pools are almost always plumbed in 1-1/2 inch or 2 inch PVC, and valves are sold to match — many with a stepped socket that accepts either size, and some with spigot ends that slip into a fitting. Two rules keep you out of trouble. First, do not undersize: forcing full flow through a valve that is a size too small adds resistance, costs you circulation, and makes the pump work harder. Second, favor a body with unions or serviceable connections where you can, because a valve you can unthread beats one you have to saw out of the plumbing the day it fails.
Smaller above-ground pads, spas, and tight equipment areas often run 1-1/2 inch pipe, where a compact 3-way like this one fits without a nest of reducers:
Praher 3-Port Diverter Valve (1-1/2 in.)Shop Now →
Check valves: the quiet insurance policy
A check valve has no handle because it makes no decisions. Inside is a spring-loaded flapper or poppet that opens when water pushes the right way and snaps shut the instant water tries to reverse. It is a one-way door, and its whole purpose is to prevent the damage that back-flowing water causes when the pump shuts off. A few spots on a pool truly depend on one:
- Ahead of a chlorinator or chemical feeder. When the pump stops, concentrated, acidic water sitting in an off-line chlorinator will try to siphon backward. A check valve keeps that harsh water out of your pump and, especially, your heater, where it would eat the heat exchanger from the inside.
- On a spillover spa. A raised spa wants to drain down into the pool every time the pump switches off. A check valve on the line holds the spa full between runs instead of letting it empty.
- On multi-pump and solar systems. Check valves stop water from running backward through an idle pump, and they keep a rooftop solar array from draining its whole column of water back down the pipe each cycle.
- On a pressure-side cleaner line, to keep the loop primed so the cleaner starts working promptly instead of waiting for air to clear.
Material matters here. Standard PVC is fine on cool suction and return lines, but on the hot side just after a heater you want CPVC, which handles the higher water temperature without softening. A CPVC check valve like this one is the right pick for that after-heater position and works anywhere a standard one would:
Hayward CPVC Check Valve (2 in. x 2.5 in.)Shop Now →
How to tell a valve is on its way out
Valves rarely fail dramatically. They give you hints, and reading them early turns a five-minute part swap into exactly that instead of a bigger repair.
With a diverter valve, watch for water weeping up around the base of the handle or the shaft, a body that has developed a hairline crack (common after a hard freeze traps water inside), and a handle that has gotten stiff or no longer seats fully at its stops. A diverter that will not close all the way lets water sneak down the path you meant to shut — the spa slowly draining while the pool runs is a classic tell. On an older lubricated valve, a fresh seal and lubricant often revives it; on a NeverLube body, a stiff or leaking valve usually means it is time to replace the seal assembly or the valve.
A check valve announces trouble in its own way. A worn or stuck-open flapper stops stopping backflow, so the spa drains, the cleaner loses prime, or you hear water siphoning back through the pad when the pump cuts off. A flapper stuck the other way — jammed shut — starves everything downstream and shows up as weak or no flow. And a rhythmic chatter from a check valve is its spring wearing out, flapping instead of holding. Any of those means the internal assembly, or the whole valve, is due.
A quick tour of a typical pad
Put it together and the handles on your pad start to read like a story. A 2-way valve on the pump suction lets you isolate the pump for service. A 3-way on the suction side chooses between skimmer and main drain. Water runs through the pump, the filter, and the heater, and on the way back a 3-way return valve splits flow between the pool and the spa — or peels some off to a solar panel or water feature. Tucked in near the feeder and after the heater, check valves you never touch are quietly keeping chemicals and hot-side water from siphoning back where they would do harm. Five or six unremarkable parts, and between them they route every gallon your pump moves.
Choosing with confidence
Replacing a pool valve is one of the friendliest jobs on the pad, as long as you buy the right piece. Sort it into a bucket first: if you need to steer or split water, that is a diverter — 2-port to isolate or throttle, 3-port to divert. If you need to stop water from running backward, that is a check valve, in CPVC anywhere the water is hot. Match your pipe size, lean toward NeverLube and serviceable, union-friendly bodies so future-you has an easy time, and pick an actuator-ready 3-way if automation is anywhere in your plans.
Not sure which one you are staring at on your own pad? Count the ports and look for a handle: a handle with three pipes is a diverter, a handle with two is an isolation valve, and no handle at all is a check valve. From there, the parts above cover the cases you are most likely to meet — and if you want a second opinion before you cut any pipe, our team talks pool owners through valve choices every day.
