You flip on the pump, wait for the cleaner to wake up, and… it barely limps across the floor. The tail hardly whips, the wheels crawl, and half the deep end goes untouched. Before you blame the cleaner itself, look one step upstream. If you run a pressure-side pool cleaner — a Polaris 280, 360, 380, or 3900 — the muscle behind it isn’t your filter pump at all. It’s a small, separate workhorse called a booster pump, and when it fades, your cleaner is the first thing to show it.
This guide walks through what a booster pump actually does, how to tell whether yours is the problem, how to size a replacement, and where a rebuild beats buying new. No pressure-side cleaner runs well without a healthy booster behind it, so it’s worth understanding the part most owners never think about until the day it quits.
What a booster pump actually does
A pressure-side cleaner is driven by a jet of high-pressure water. That water has to come from somewhere, and your main filtration pump can’t supply it at the pressure the cleaner needs while also pushing water through the filter, heater, and returns. So pressure-side systems add a dedicated booster pump: it taps clean, already-filtered water from the return line and re-pressurizes it, then sends it out a single wall fitting that feeds the cleaner’s hose.
Think of it as a relay runner. The filter pump handles circulation and filtration. The booster pump takes the baton and delivers the concentrated push that makes the cleaner climb walls, sweep the floor, and drive its tail. Because it only runs when you want the cleaner working, it’s wired to its own timer — almost always set to switch on after the main pump is already moving water.
Pump, Booster, Zodiac Polaris, 0.75hp,115/230v, OEMShop Now →
That last detail matters more than any other in this article: a booster pump is designed to be fed by the main pump. Let it run dry — on its own, with no water coming from the filter side — and it will cook its own shaft seal in a matter of minutes. We’ll come back to that.
Do you even have (or need) a booster pump?
Not every automatic cleaner uses one. Here’s the quick way to tell where you stand:
- Pressure-side cleaner (Polaris Vac-Sweep 280/360/380/3900, some Legend models): Yes — these rely on a booster pump plumbed into the return line and a dedicated wall port.
- Suction-side cleaner (Hayward Navigator/Pool Vac, Kreepy Krauly, Zodiac MX-series): No — these run off the suction your existing pump already pulls through the skimmer.
- Robotic cleaner (Dolphin, Polaris 9-series): No — these are self-contained, powered by a low-voltage transformer, and don’t touch your plumbing at all.

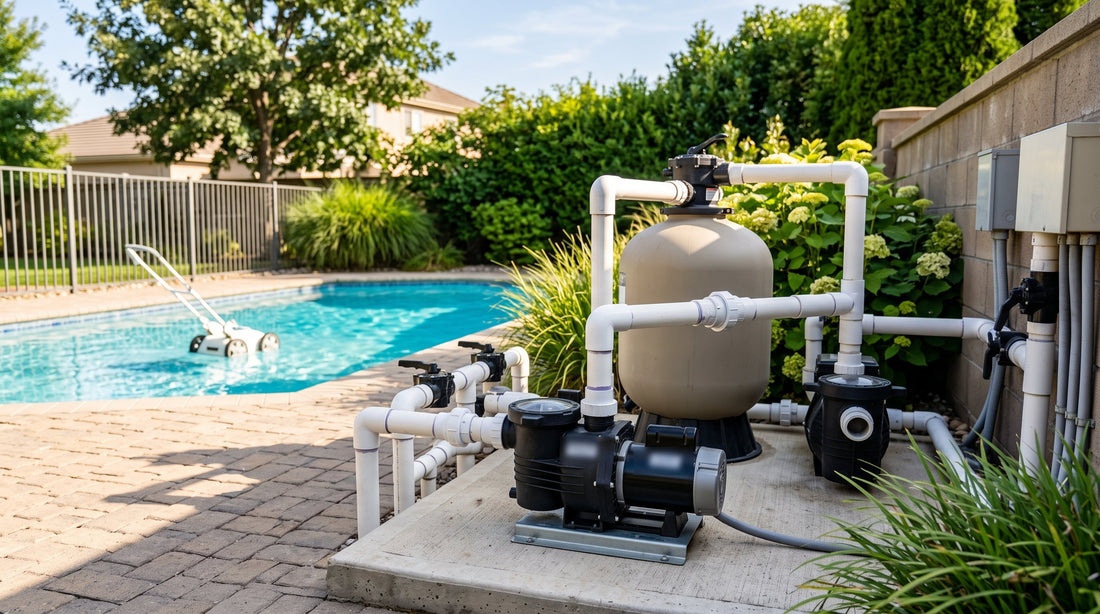

So if your cleaner plugs into a wall fitting and you have a second, smaller pump sitting next to your filter pump on the equipment pad, that’s your booster. If you’re shopping for a brand-new pressure-side cleaner and your pad doesn’t have one yet, budget for the pump too — the cleaner won’t move without it. Many pressure-side cleaners are even sold as a body only, without the pump, exactly because so many pads already have one:
F6 Polaris Vac-Sweep 3900 Sport IG Pressure Side Pool Cleaner W/O PumpShop Now →
Signs your booster pump is on the way out
Booster pumps rarely die all at once. They usually warn you first. Watch for these:
- The cleaner slows down or stops. Weak jet pressure is the classic symptom — the cleaner wanders, stalls on slopes, or won’t climb the walls the way it used to.
- Water dripping under the pump. A steady drip at the seam between the motor and the wet end means the shaft seal is leaking. This is the single most common failure, and left alone it lets water wick into the motor.
- Loud grinding or screeching. That’s the motor bearings. They’re replaceable, but once they’re screaming, the clock is running.
- Humming but not spinning. The motor gets power but can’t start — often a bad start capacitor or a seized shaft.
- Tripping the breaker. Usually a motor that’s shorting internally, frequently after a seal leak has let water in.
Notice how many of these trace back to one root cause: a leaking seal. Catch a drip early and you’re looking at an inexpensive part. Ignore it and you’re shopping for a whole pump.
Sizing a replacement (hint: don’t overthink it)
For pressure-side pool cleaners, the industry has effectively standardized on one pump: the Polaris PB4-60, a 3/4-horsepower (0.75 HP) booster that runs on 115/230V. It’s the spec behind virtually every Polaris Vac-Sweep cleaner, and Zodiac sells the same pump under its own label. Unless your cleaner’s manual calls for something different, that 3/4 HP unit is your match.
Resist the urge to “upgrade” to a bigger pump. A pressure-side cleaner is engineered for a specific flow and pressure. Too much pressure doesn’t clean faster — it can blow the cleaner’s internal seals, tear the bag, and shorten the life of every part downstream. Match the spec; don’t exceed it. When you replace the pump, it’s also the right moment to swap the short feed hose and unions that connect it, since old ones tend to crack and leak air right when the new pump goes in:
Hose, Polaris PB4-60 Booster Pump, Suction, 2ft x 3/4", GenShop Now →
Repair or replace? A simple rule
Here’s the honest calculus we give customers over the phone:
Rebuild it when the motor still runs strong and the problem is a leak or lost pressure. A leaking seal and a worn or clogged impeller are wear items, not death sentences. A fresh shaft seal set stops the drip that’s threatening the motor, and a new impeller restores the pressure the cleaner needs to drive. Together they turn a tired pump back into a working one for a fraction of the cost of a new unit.
Replace it when the motor itself is gone — seized, humming without spinning, tripping the breaker, or grinding on shot bearings — especially if the pump is already several seasons old. At that point you’re rebuilding around a failing core, and a new OEM booster will outlast the repair. The good news is the pressure-side cleaner, its hose, and its wall fitting all carry over; you’re only swapping the pump.
One nuance on parts: for wear items like seals, impellers, and hoses, quality aftermarket pieces work fine and save money. For the pump itself, we lean toward OEM — it’s the part doing the hard work, and the fit and motor quality are worth it.
How to make a booster pump last
Most booster pumps that die young were killed by the same handful of mistakes. Avoid them and yours can run for many seasons:
- Never let it run dry. Set the timers so the filter pump starts first and is already circulating before the booster kicks on. A booster running without water feeding it burns its seal almost immediately. If you replace one seal after another, a dry-run timing problem is the usual culprit.
- Keep the cleaner and screens clean. A clogged cleaner bag or a dirty in-line screen makes the booster strain against back-pressure. Empty the bag and rinse the screen regularly.
- Chase leaks early. A small drip at the seal is a cheap fix today and a dead motor next month. Don’t wait.
- Winterize it. Pull the drain plug and blow the water out before a freeze. A cracked volute from trapped, frozen water is one of the few failures no rebuild kit can fix.
The bottom line
A pressure-side cleaner is only as good as the booster pump feeding it. When the cleaner slows down, start at the pump: a drip or weak pressure usually means a seal and impeller rebuild, while a seized or breaker-tripping motor means it’s time for a new one. Size to the 3/4 HP PB4-60 standard, keep it fed by the main pump, and drain it every winter, and it’ll keep your cleaner climbing walls for years.
Not sure which camp your pump is in? Match your symptom to the list above, then grab the seal set and impeller for a rebuild or a fresh OEM booster for a clean replacement — whichever your diagnosis points to.
