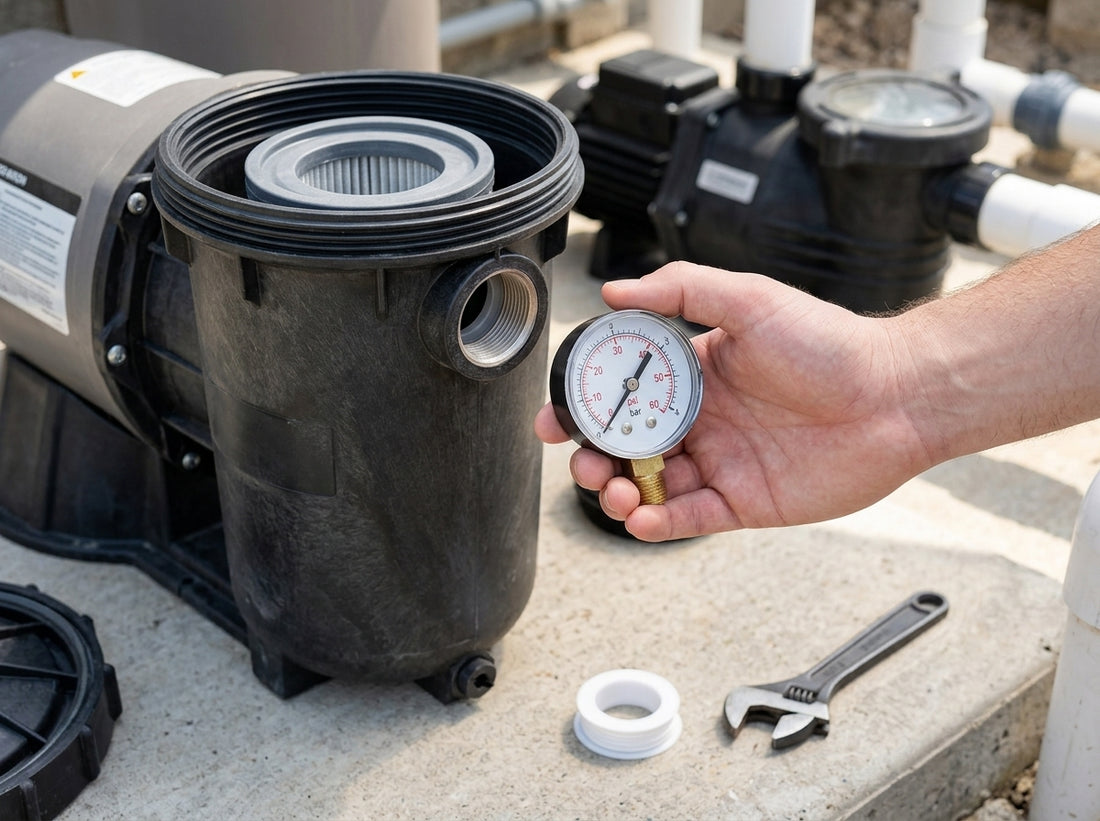

Replacement pool filter pressure gauge on an equipment pad in daylight

How To Replace a Pool Filter Pressure Gauge

A working pressure gauge is the single most important diagnostic tool on your pool equipment pad. It tells you when to backwash, when to clean the cartridge, when you have an air leak, and when the pump is laboring. A foggy, stuck, or broken gauge means you’re flying blind. Replacing one is a 10-minute job, $15–$60 in parts, no special tools.

When to replace (not just tap)

  • The needle doesn’t move when the pump turns on.
  • The needle is stuck on a non-zero value with the pump off.
  • The face is condensed/foggy and you can’t read it.
  • The threads at the base are leaking (look for a wet spot below the gauge).
  • The reading is wildly different from what your filter’s clean baseline used to be (could be reading low or high).

The two gauge specs that matter

  1. Mounting position — bottom mount (stem goes into the filter from the bottom of the gauge), side mount, or back mount. Most residential cartridge and DE filters use bottom mount.
  2. Pressure range — 0–60 PSI is the residential standard. Commercial filters sometimes use 0–100 PSI.

Almost every residential gauge uses a 1/4-inch NPT thread — you can mix gauges from different manufacturers as long as the mounting position and pressure range match.

Step-by-step: replacing a pool filter pressure gauge

Depressurize before touching anything. Pool filters run at 15–25 PSI. Always turn the pump off and open the air-relief valve until the gauge reads zero (or until you hear no more hissing) before unscrewing the gauge.
1Turn the pump off.

Power down at the timer or breaker. Wait 10 seconds for water to stop moving.

2Open the air-relief valve on top of the filter.

Watch the gauge needle drop to zero. If it doesn’t drop, your existing gauge may be stuck open — in which case crack the drain plug at the bottom slightly to confirm the filter is depressurized.

3Unscrew the old gauge.

Grip the body of the gauge (NOT the bezel ring) and turn counter-clockwise. Most come off hand-tight. If yours is corroded in, use a 1-inch wrench on the flats at the base.

4Clean the threads on the filter.

Look at the threaded port on the filter where the gauge sits. Clean off any old thread tape, gasket residue, or corrosion. Threads need to be clean for the new seal to work.

5Apply thread sealant to the new gauge.

Wrap 2–3 turns of PTFE (Teflon) thread tape clockwise around the threads of the new gauge. Or apply a thin smear of silicone pool lubricant if your gauge has an integrated o-ring instead of a tapered thread.

6Thread the new gauge in by hand.

Spin it in clockwise until snug, then tighten 1/2 to 1 full turn with a wrench. Don’t crank it — the gauge body is plastic on the bottom side and will crack if overtightened. Orient the dial face so you can read it from where you stand at the equipment pad.

7Close the air-relief valve and restart the pump.

The new gauge should read your clean filter baseline within 30 seconds. Verify there’s no water dripping at the threads.

8Write the new clean baseline somewhere permanent.

Take a marker and write the clean-filter PSI on the side of the filter housing. Now you have a reference for when to backwash or clean.

Replacement gauges in stock

0 to 60 PSI pool filter pressure gauge bottom mount

0–60 PSI Pressure Gauge, Bottom Mount

Shop Now
0 to 60 PSI pool filter pressure gauge bottom or side mount clamshell

0–60 PSI Bottom/Side Mount Clamshell

Shop Now
Pentair filter gauge kit replacement

Pentair Filter Gauge Kit

Shop Now

If you’re not sure whether your gauge is bottom or side mount, snap a photo and send it to PST Pool Supplies — we’ll match the right replacement so you’re not ordering twice.
