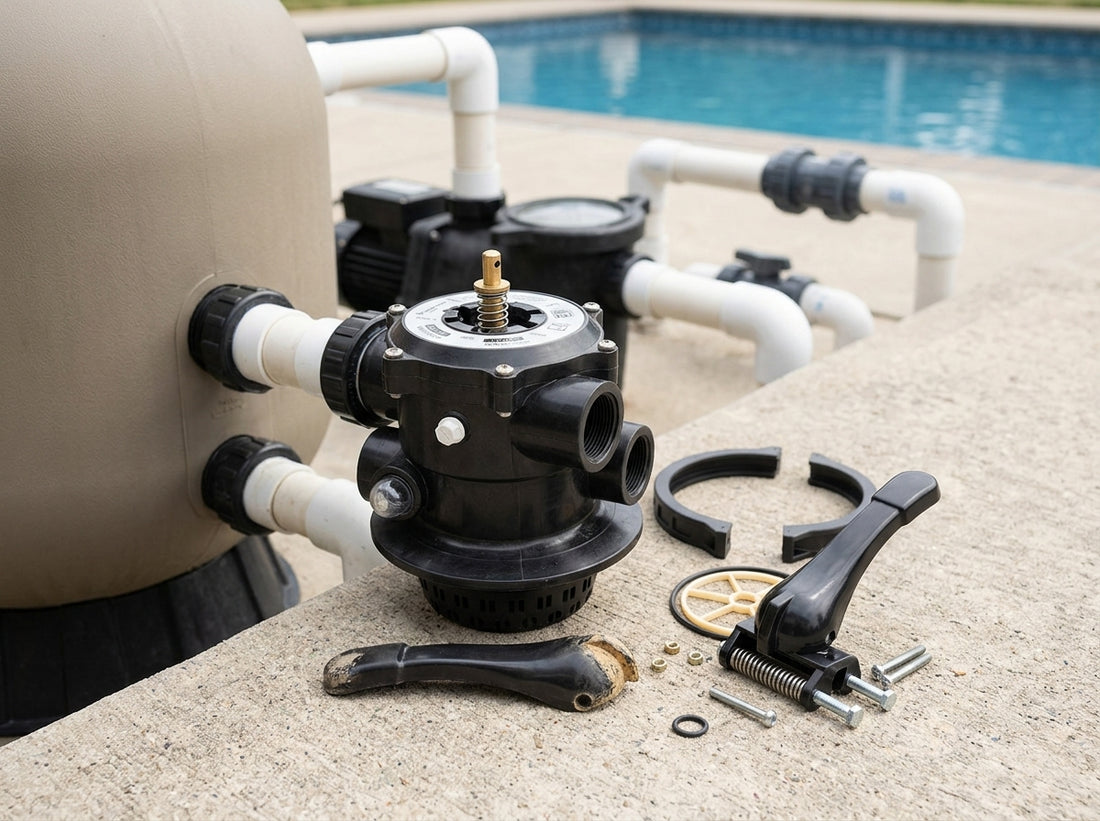

Multiport valve handle replacement on a daylight pad

How to Replace a Multiport Valve Handle

May 21, 2026

A multiport valve handle that won’t click into position, won’t hold its setting, or spins freely without engaging the valve key is a $20–$60 fix. Replacing just the handle and spring is much cheaper than replacing the whole multiport. Here’s how.

How the handle assembly works

Inside a multiport valve handle is a spring-loaded mechanism that lets the handle push down (to disengage from the position detents) and rotate. When released, the spring pulls the handle back up into the next position. If the spring breaks or the handle bushing wears, the handle won’t hold position.

When to replace just the handle vs. the whole valve

Handle and spring only: handle won’t click into position but the valve still routes water correctly when held in position.
Spider gasket: handle holds position but water leaks between modes. See our spider gasket tutorial.
Whole valve: the valve body itself is cracked, threads stripped, or rotor (key) is worn beyond what a new gasket can seal. See our whole valve replacement.

What you’ll need

Replacement handle assembly matched to your multiport brand (Hayward, Pentair/Praher, Jandy, Astral)
Phillips and flat screwdrivers
Channel-lock pliers

Step-by-step

1Turn the pump off and depressurize.

Open the air-relief on the filter. Drop pressure to zero.

2Remove the handle retaining screw/nut.

The handle is held on by a central screw, nut, or knob at the top of the assembly. Different brands use different fastener types.

3Lift the old handle straight up.

The handle should come off without disturbing the valve key beneath it.

4Inspect the spring and detent mechanism.

The spring sits inside the handle body. Detents are the notches that the handle locks into at each valve position. Worn or stripped detents mean a new handle is required.

5Install the new handle.

Set it onto the valve stem. Align with the existing position indicators on the valve body.

6Reinstall the retaining screw/nut.

Tighten until the handle is held firmly but can still push down and rotate freely.

7Test all positions.

With the pump off, push down on the handle and rotate through Filter, Backwash, Rinse, Waste, and Recirculate. The handle should click into each position with the spring action working correctly.
